The Underground Horizontal Garbage Compactor is a high-tech, advanced and practical efficient environmental sanitation product developed by RNKJ using its own patented technology. It requires a small investment, has high efficiency and shows quick results.
The Underground Horizontal Garbage Compactor has a small footprint and is easy to site plan. It can be equipped with various types of material collection methods such as bagged collection, trash cans, manual carts, and small motor vehicles. It is widely applicable for garbage collection, compression, and storage processing in urban streets, communities, schools, hospitals, scenic areas, expressway service areas, prisons, stations and docks, airports, and new rural construction sites. The Underground Horizontal Garbage Compactor can be particularly suitable for new transfer stations to be built in urban areas where land acquisition is difficult and the site is small, as well as for the renovation of old transfer stations or garbage rooms.
Product AdvantageEnvironmental Protection
Fully enclosed design: Garbage is processed throughout in underground containers, without any exposure, no odor diffusion, and no mosquito breeding. This effectively improves the surrounding environmental quality.
Controllable leachate: The compressed wastewater is collected and discharged through a dedicated sewage system, avoiding pollution of the soil and groundwater.
Noise reduction: The main body of the equipment is buried underground, resulting in low noise on the ground.

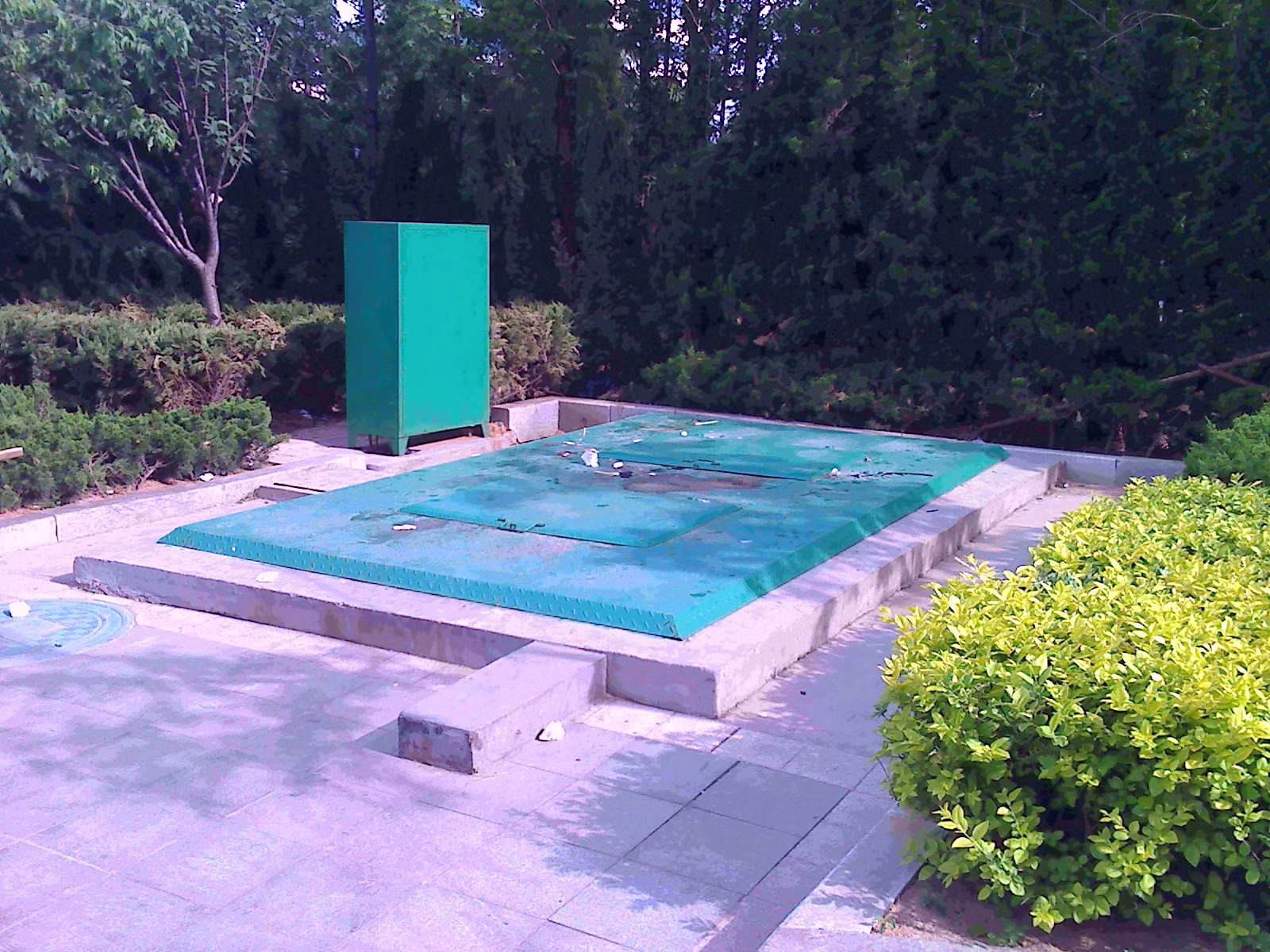

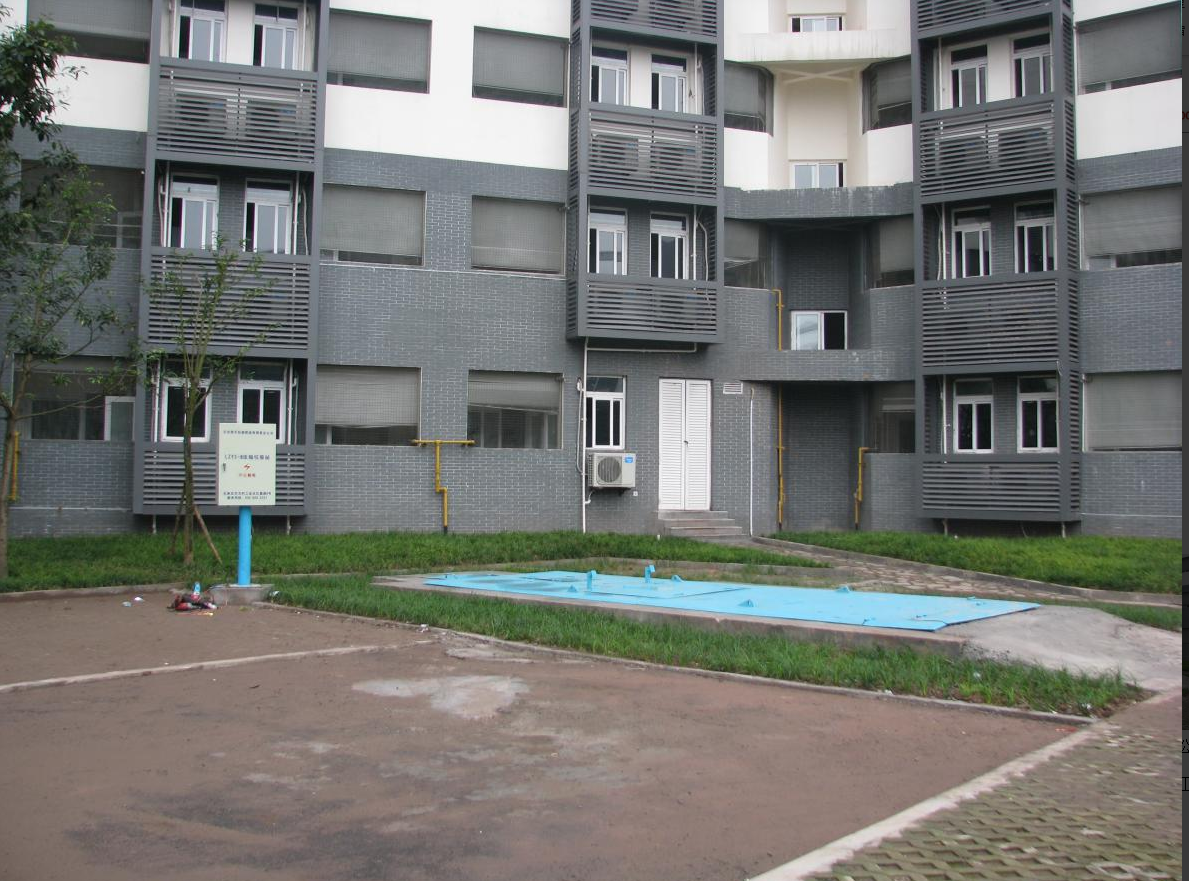

Symbiosis with landscape: Only the aesthetically pleasing feeding ports are retained on the ground. The color and pattern can be customized according to the surrounding environment, integrating seamlessly with the landscape.
Operational Efficiency
High compression efficiency: The horizontal compression technology reduces the volume of waste and lowers the frequency of collection, significantly saving transportation costs.
Large daily processing capacity: The 10 m³ model can handle a daily processing capacity of 50 to 70 tons, meeting the needs of large communities and commercial centers.
Easy operation: All operations can be completed by a single person using a remote control, reducing labor costs and operational difficulty.
Continuous operation: Some models are equipped with a double-box design. While one box is in the compression process, the other can simultaneously transport, enabling 24-hour continuous operation.
Safety & Reliability
Multi-level safety protection: emergency shutdown, hand-protection, overload protection, leakage protection and other devices provide comprehensive safety guarantees for personnel and equipment.
High durability: Using high-strength steel and high-quality hydraulic components, the service life can reach 8 to 10 years, with a long maintenance cycle.
Fault warning: The intelligent control system continuously monitors the equipment operation status, providing early warnings for potential faults and reducing the risk of downtime.
Fire prevention performance: The underground sealed space reduces the contact between garbage and air, lowering the risk of spontaneous combustion.
Space Optimization
Small footprint: The overall area is only 15 to 30 square meters, much smaller than traditional garbage stations.
Utilization of underground space: Fully utilize the underground space without occupying valuable land resources on the surface, especially suitable for urban central areas.
Flexible installation: The depth of the pit and the location of the feeding port can be adjusted according to the site conditions, adaptable to various complex terrains.
Structural CompositionBox body: Made of Q345 high-strength steel, it can hold garbage and withstand compression force, preventing deformation and leakage.
Horizontal push head: Performs horizontal reciprocating movement to compact the garbage, preventing rebound and clogging.
Loading port: Size can be customized, equipped with a cover / sliding door. Garbage disposal channel with anti-odor sealing function.
Back door / tail door: Driven by hydraulic power, with a double-sealing structure. Opens when the box is full of garbage, cooperating with the transfer vehicle to complete the unloading.
Diversion channel: Sloping design at the bottom of the box, made of stainless steel. Collects the filtrate generated during the compression process and guides it to the sewage tank.
Technical ParametersCompression Type | Horizontal compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Ground gallows, side gallows, four pillars |
Run Process1. Garbage Disposal Phase
Manual / Small Boom Truck / Bucket Lifter will deposit the garbage into the ground disposal opening.
The photoelectric sensor detects that the garbage has reached the set height and automatically initiates the compression process.
The lid of the disposal opening automatically closes to prevent the spread of odors.
2. Horizontal Compression Process
The hydraulic system drives the horizontal push head to advance forward, performing the first compression on the garbage.
After the push head reaches the preset position, it automatically retreats to leave space for new garbage.
The "advance - retreat" cycle is repeated, gradually compacting the garbage and pushing it towards the rear of the container.
The filtrate generated during the compression process flows into the sewage tank through the diversion channel and is automatically discharged by the sewage pump.
Pressure sensors continuously monitor the compression force and automatically adjust the pressure according to the type of garbage.
3. Storage and Full-Cart Detection
The garbage continues to be compressed until the cart is full.
The full-cart sensor sends a signal, and the control panel displays the "Full Cart" status and triggers an alarm.
The equipment automatically stops the compression process and waits for the transfer vehicle to dock.
4. Lifting and Transportation Stage
After the transportation vehicle arrives, the operator activates the lifting procedure via the remote control.

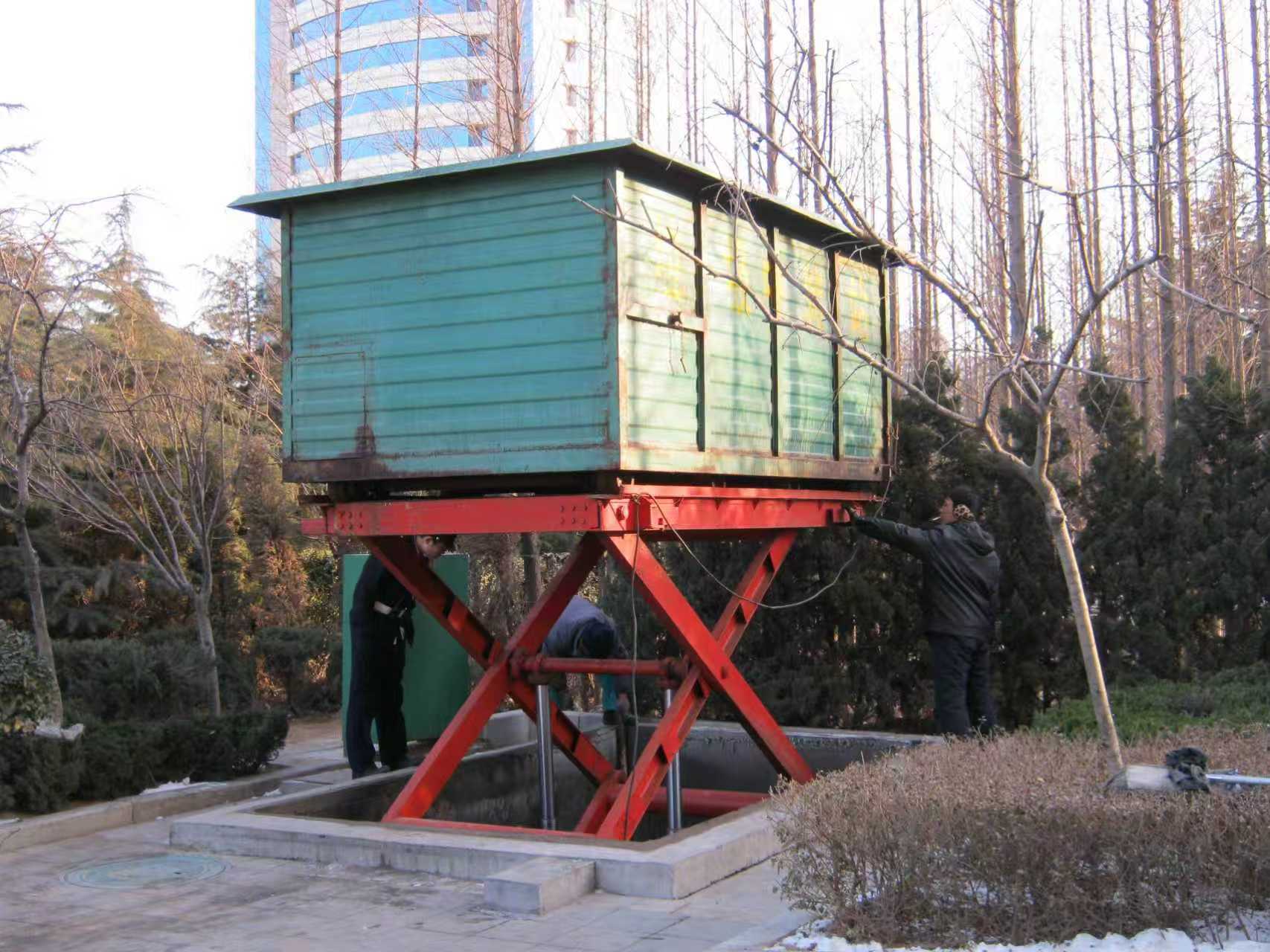

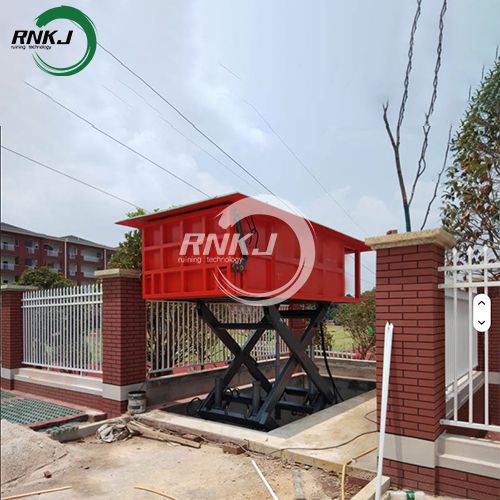

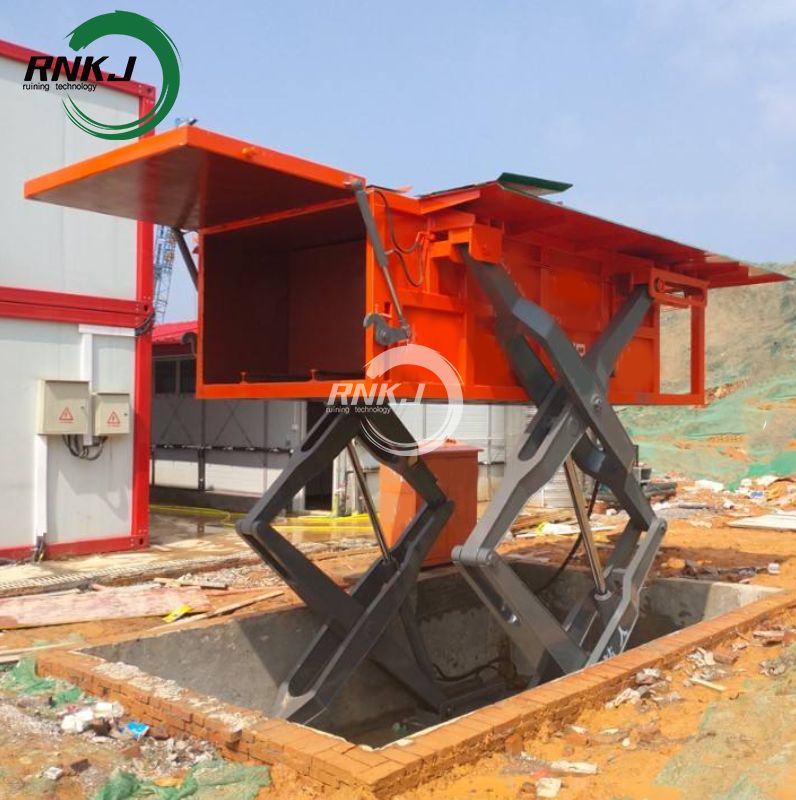

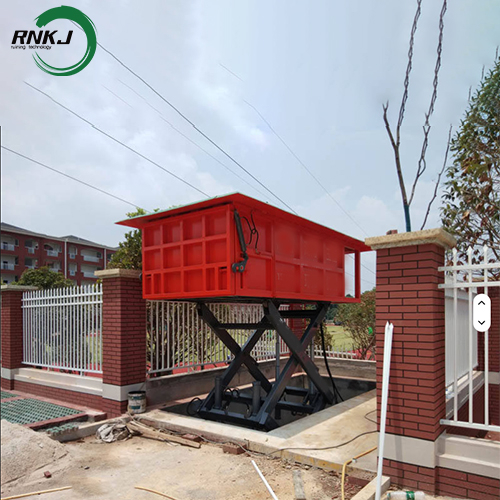

The lifting frame smoothly lifts the compressed container to the ground, aligning with the height of the transportation vehicle's compartment.
The hydraulic system drives the rear door to automatically open, and the horizontal push head advances again, pushing the compacted garbage blocks into the transportation vehicle's compartment.
After the discharge is completed, the push head retreats, the rear door closes, and the container is smoothly lowered back to its original position underground by the lifting frame.
The equipment automatically resets and enters the next working cycle.
Product Style
|
|
Product DesignHydraulic Design: Utilizes multiple techniques such as bidirectional hydraulic lock and integral design of the cylinder,shunt and collection, pressure feedback design, etc., to prevent the danger caused by sudden burst of hydraulic pipelines and the collapse of the box body.
Electrical Design： Uses buzzers， overpressure alarms， emergency stop switches， current overload protectors to ensure the safety and stability of the equipment during operation.
Structural Design： Uses support roller protection devices to ensure the stability of the equipment during lifting and running， and adopts adjustable pull rods for maintenance， to ensure the safety of personnel during equipment maintenance.
Lightning protection design: The electrical cabinets of the equipment are equipped with a grounding system to prevent lightning strikes and ensure the safety of the outdoor installation of the control cabinets.
Application ScenarioLarge residential communities: Large processing capacity, high environmental requirements, limited space
Commercial centers / office buildings: Beautiful appearance, strict odor control, low frequency of collection
Tourist attractions / parks: Integration of landscape, high environmental requirements, dense visitor traffic
Hospitals / schools: High hygiene standards, strict noise control, high safety requirements
Industrial parks: Large amount of waste production, continuous operation requirements, cost control
Townships / rural areas: Small area， simple operation， low maintenance cost
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
