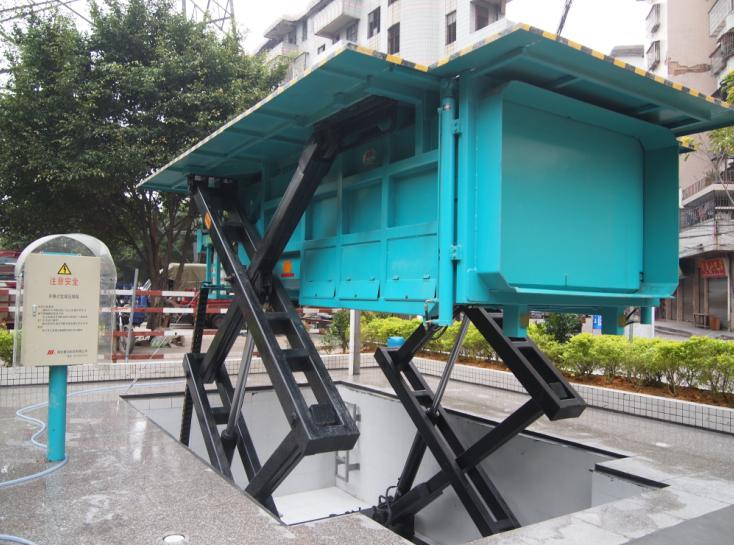

The Underground Cross-type Trash Compactor feeds the material into the feeding port through various small garbage collection vehicles or manual carts. When a certain amount of garbage is accumulated, the compression mechanism is activated to compress it. Through multiple pre-pressing and layering processes, the garbage is filled until it is full. Once the garbage is fully compressed, the Underground Cross-type Trash Compactor rises from the pit and moves forward by 60 centimeters to prevent the garbage from spilling into the pit during the forward movement. The Underground Cross-type Trash Compactor connects with the garbage transport vehicle, and after the connection is completed, the discharge door is opened. The entire block of garbage is pushed into the compartment of the garbage transport vehicle by the compression mechanism, and then transported to the landfill for disposal.
Product Advantage
The Underground Cross-type Trash Compactor has a small footprint, requiring only 20-30 square meters of space and a corresponding foundation of earthwork pits. It can be directly used outdoors without the need for building a factory building. It is economically viable and can solve the problem of urban site selection. It is suitable for the collection and transportation of various types of household garbage. It is particularly applicable for the construction of new transfer stations and the renovation of old stations or garbage rooms in urban areas where land acquisition is difficult and the site is small.
Technical Parameters
Compression Type | Horizontal compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Ground gallows, side gallows, four pillars |
Run Process
The user puts the garbage into the feeding port of the garbage bin, the garbage is stored in a certain amount and then the compression mechanism compresses the garbage and repeats until the garbage is full, the sewage is discharged from the bottom of the sewage discharge system without power from the bin into the sewage collection tank to be discharged away.
After the garbage is filled, the equipment is raised from the pit. Dock with the garbage truck and open the discharge door after docking. The garbage block is pushed into the garbage transportation vehicle through the compression mechanism.
After the garbage is unloaded, the garbage truck leaves the garbage bin, the push shovel is withdrawn, and the discharging door is closed and locked.
After making sure the door is closed tightly, the equipment is lowered into the ground and waits for re-inputting garbage.
Product Style
|
|
Features
The Underground Cross-type Trash Compactor has a small footprint, requiring only 20-30 square meters of space and a corresponding foundation of earthwork pits. It can be directly used outdoors without the need for building a factory building. It is economically viable and can solve the problem of urban site selection. It is suitable for the collection and transportation of various types of household waste. It is particularly applicable for the construction of new transfer stations and the renovation of old stations or garbage rooms in urban areas where land acquisition is difficult and the site is small.
Our Advantages
Reasonable Design
The compression head is on the upper side of the tank to avoid liquid backflow and ensure that the cylinder and compression head are not corroded by sewage immersion, and thus ensure that the tank is clean.
Sewage collection box is equipped to prevent sewage leakage. Sewage can be discharged directly through sewage pump or transported with the tank for disposal.
Small Footprint
The compactor takes less floor space and is flexible to move and change sites.
Muitiple Choices
Muitiple choices of garbage drop-off point are available, including hoppers, flipping buckets, etc. Customers can choose the most suitable pattern.
Good Performance
The system adopts high strength steel as main frame to ensure its long service life. And it has high compression rate and short cycle time to ensure high efficiency.
Standardization
The garbage compactor is applicable for most standard hook arm garbage trucks in the world.
Customization
As a professional factory and manufacturer, we are able to caters to our customers needs in every way, such as color, capacity, dimensions, voltage etc.
FAQ
Are you a manufacturer or trader?
1set.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
