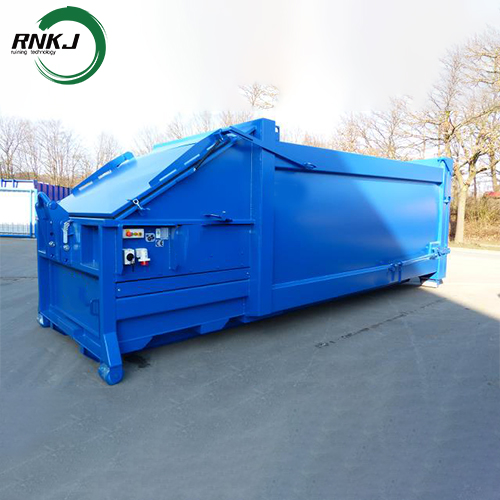

The Mobile Waste Compressor, also known as a mobile waste compression station, a mobile compression box, or an integrated mobile waste compression device, is a highly integrated and highly mobile waste treatment and transportation equipment. It integrates the functions of waste collection, compression reduction, sealed storage, and transportation. It does not require the construction of fixed buildings or infrastructure. It can be quickly deployed at various waste generation points and is one of the key equipment in the modern sanitation system for addressing the problems of waste pollution and land use.
Product AdvantageHigh mobility: Can be moved as a whole and quickly deployed at different locations, suitable for temporary activities, construction sites, remote areas and other scenarios.
No need for fixed facilities: Eliminates the high cost and long cycle of building fixed compression stations. Only about 10 square meters of working space is required.
Sealed and environmentally friendly: Fully sealed design, effectively preventing garbage from being exposed, spilling or spreading odors, and sewage is collected and treated through dedicated pipelines to avoid secondary pollution.
Highly efficient reduction: Significantly reduces the volume of garbage, lowers transportation frequency and costs, saves fuel consumption and carbon emissions.
High automation level: Equipped with PLC control system, it can achieve functions such as automatic compression, full-box alarm, and some models support remote monitoring.
Wide adaptability: Can handle various types of garbage including household waste, industrial waste and commercial waste, with daily processing capacity ranging from several tons to hundreds of tons.
Core Definition and Working PrincipleThe Mobile Waste Compressor is essentially a mobile container that integrates a hydraulic compression system, a sealed storage box, a feed hopper, and a power unit. The entire structure is in the form of a large box.
Process:
Garbage feeding: Loose garbage is manually or mechanically poured into the feeding hopper of the equipment.
Hydraulic compression: After starting the Mobile Waste Compressor, the hydraulic ram automatically pushes the garbage into the compression chamber and repeatedly compresses it, reducing the loose garbage to 1/3 - 1/5 of its original volume. The compression density can reach 0.7 - 0.9 tons per cubic meter.
Sealed storage: The compressed garbage is stored in a sealed container to prevent odor diffusion and sewage leakage.
Overall transportation: When the container is fully loaded, it can be lifted or dragged to the garbage treatment plant or large transfer station by special vehicles such as boom trucks or trailers, achieving integrated operations of "collection - compression - transportation".
Application ScenarioThe Mobile Waste Compressor is widely used in the following scenarios:
Urban communities: Solving the problem of environmental pollution caused by garbage collection points in residential areas
Villages and towns: Suitable for scattered garbage collection points, without the need for large-scale infrastructure construction
Tourist attractions: Protecting the ecological environment and avoiding the exposure of garbage affecting the landscape
Construction sites: Handling construction waste and the domestic garbage of construction workers, and being flexible to follow the movement of the construction site
Temporary events: Such as concerts, sports events, etc., where there is a large amount of temporary garbage generated
Industrial parks: Handling industrial solid waste, improving transportation efficiency, and reducing processing costs
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
FeaturesPower System: Mostly driven by diesel engines or electric motors. Some equipment supports dual power modes, adapting to the energy supply conditions of different operation scenarios.
Compression System: Hydraulic compression is the main method, with a pressure reaching tens of tons, ensuring stable garbage compression effect. Some high-end models have an intelligent pressure regulation function, which can automatically adjust the compression force according to the type of garbage.
Environmental Protection Design: Equipped with a sealed compression chamber and odor removal device, reducing the spread of garbage odors; some equipment has a sewage collection system to avoid environmental pollution caused by the sewage generated during compression.
Intelligent Control: Uses PLC control system, supporting one-click operation. Some equipment can be remotely monitored and fault diagnosed through IoT technology.
Opting for a Mobile Waste Compressor:
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services.
If you would like to obtain more customized specifications or purchase this garbage compaction station at factory price, please contact us via website message or WhatsApp(+86-18853809997).
