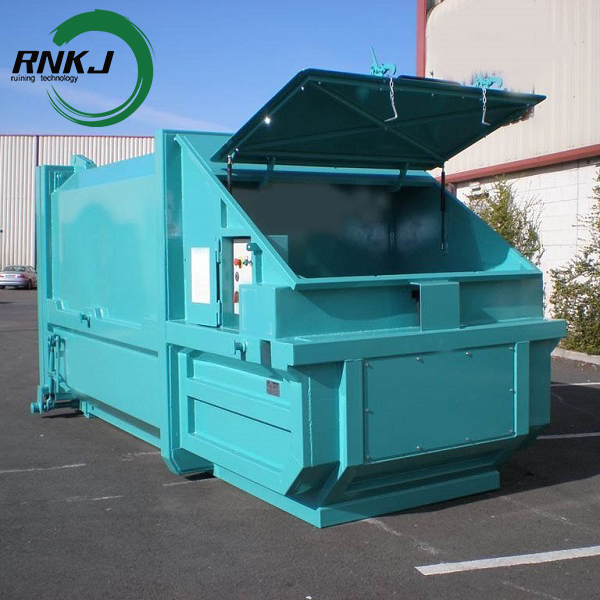

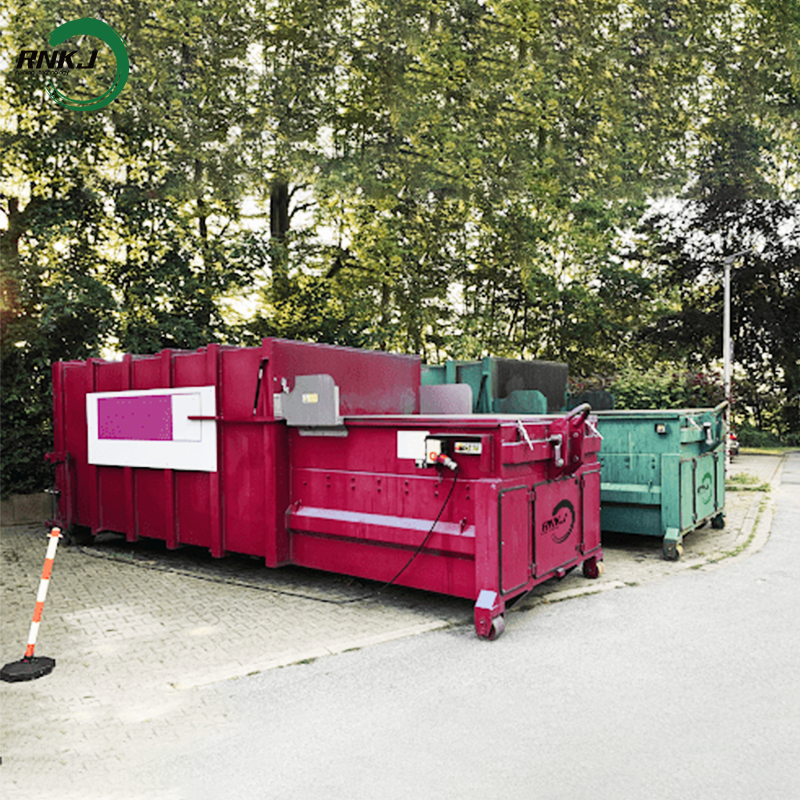

The Mobile Waste Compression Station can directly operate at the source of garbage generation (such as communities, construction sites, temporary dumping areas, rural areas, etc.), without the need to transport loose garbage to fixed compaction points. It is particularly suitable for scattered, remote or terrain-complex scenarios (such as narrow streets, muddy sites), with a wider coverage. The Mobile Waste Compression Station adopts automated operation (one-click start, automatic compression) to reduce manual intervention and can be operated without professional training. The modular design reduces maintenance difficulty and the cost of purchasing common components is lower.
Product Advantage
High flexibility: No civil engineering required, rapid transportation deployment, and dynamic adjustment of location based on waste volume, avoiding idle or overloaded fixed transfer stations.
Improved efficiency: Significantly reduced waste volume after compression, decreasing transport trips by 30%~60%, lowering transportation costs and carbon emissions.
Environmentally friendly: Sealed design reduces odor and dust diffusion, and centralized leachate treatment prevents secondary pollution.
Controllable costs: Lower initial investment than fixed transfer stations, simple maintenance, and reusable for different projects.
Garbage collection and storage: Equipped with an open loading port, supporting manual/automatic loading, the built-in storage capacity ranges from 6 to 30 m³ (customizable), meeting the needs of single-day/multiple-day garbage storage.
Efficient compression and reduction: Utilizing a hydraulic-driven compression mechanism with a pressure range of 10 to 30 MPa, it enables rapid compaction of garbage, significantly reducing volume and improving transfer efficiency.
Sealed anti-contamination design: The container body adopts a fully sealed structure, equipped with corrosion-resistant sealing strips and a leakage collection tank, preventing leakage of garbage leachate, odor diffusion and mosquito breeding.
Flexible transfer compatibility: The equipment bottom is reserved for towing interfaces or comes with mobile wheel sets. It can be towed by a trailer for transfer, and the compressed garbage can directly connect to garbage transfer vehicles (hook-arm type / pull-arm type), achieving seamless connection from "compression - transfer".
Intelligent monitoring and safety protection: Integrated with a PLC control system and a touch screen operation panel, it supports compression pressure adjustment and real-time display of working status; Equipped with overload protection, emergency stop, hand protection, etc., some high-end models support remote data monitoring.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Main Components
Compression System: The core component, including hydraulic/mechanical compression devices and pusher mechanisms, responsible for compressing waste volume and ensuring compression density and stability.
Storage Bin: Used to temporarily store compressed waste, mostly made of high-strength steel, with corrosion-resistant and leak-proof design.
Power System: Available in diesel, electric, or hybrid power to meet the needs of different scenarios.
Control System: Includes a manual operation panel and an automatic control system, enabling one-button operation of compression, unloading, and other processes; some systems support remote monitoring.
Auxiliary Components: Leachate collection tank, sealing door, and casters/traction device.
Product Uses
Municipal Sanitation: Community and street garbage collection points, replacing traditional trash cans to achieve on-site compression.
Commercial establishments: Shopping malls, supermarkets, office buildings, handling mixed garbage to reduce collection frequency.
Small industries / parks: Processing daily production waste (such as plastic scraps, paper), reducing storage costs;
Temporary scenarios: Temporary garbage collection points at events,活动现场， etc.， can be quickly deployed and used.
Community garbage rooms： Processing mixed household garbage， compressing it and then transporting it uniformly by sanitation vehicles， reducing the odor and mosquito and fly breeding in the garbage room.
Small factories： Simultaneously compressing plastic waste and paper waste， reducing warehouse storage space and improving workshop cleanliness.
Township garbage transfer stations： As the main equipment to handle rural mixed garbage (food waste + agricultural waste + packaging waste)， reducing transportation costs.
Product Operate Guide
Sanitary: Self-contained Mobile Waste Compactor have a built-in fluid collection chamber (sump).
Easy to use: Self-contained Mobile Waste Compactor are easy and safe to operate and drequire no special training.The user throws in the garbage and turns the compactor on with the touch of a button.
Cost-effective: Trash is compacted into blocks ,take up less space, savingyour money on hauling trips.
Operation & Maintenance
1. Basic operation process
Loading: Open the loading port and manually or mechanically place the garbage into the temporary storage bin;
Compression: Press the compression button, and the hydraulic system drives the compression plate to advance, after which the garbage is compressed and automatically resets;
Storage: The compressed garbage is sealed and stored in the bin until it reaches the preset capacity;
Transportation: Connect to the garbage transfer vehicle, and use hydraulic pushing or hook arm devices to quickly load the compressed garbage blocks into the transfer vehicle, completing the removal.
2. Daily Maintenance Points
Daily: Clean the feed inlet and the remaining garbage inside the bin, check if the seals are intact, and confirm that the leachate collection tank is not leaking;
Weekly: Check the pressure of the hydraulic system, the oil quantity and the sealing performance of the pipelines, clean the air filter and the filter screen of the deodorization device;
Monthly: Calibrate the parameters of the PLC control system, check the sensitivity of the safety protection devices;
Every 6 to 12 months: Replace the hydraulic oil and filter elements, inspect and repair the compressor piston and sealing components, and lubricate and maintain the mobile wheel set.
Product Details
Reasonable Design
The compression head is on the upper side of the tank to avoid liquid backflow and ensure that the cylinder and compression head are not corroded by sewage immersion, and thus ensure that the tank is clean.
Reasonable sewage treatment
Sewage collection box is equipped to prevent sewage leakage.
Sewage can be discharged directly through sewage pump or transported with the tank for disposal.
Standardiztion
Mobile Waste Compactor is applicable for most standard hook arm garbage trucks in the world.
Customization
As a professional factory and manufacturer, we are able to caters to our customers needs in every way, such as color, capacity, dimensions, voltage etc.
Good Performance
Mobile Waste Compactor system adopts high strength steel as main frame to ensure its long service life.
And it has high compression rate and short cycle time to ensure high efficiency.
Muitiple Choices
Muitiple choices of garbage drop-off point are available, including hoppers, flipping buckets, etc. Customers can choose the most suitable pattern.
Our Advantages
Shandong RNKJ Environmental Protection Technology Equipment Co., Ltd. is a leading environmental protection technology company in China.
With independent R&D and design capabilities.
All equipment has passed CE, UL, ISO, EAC, 1S09001.2000 certification.

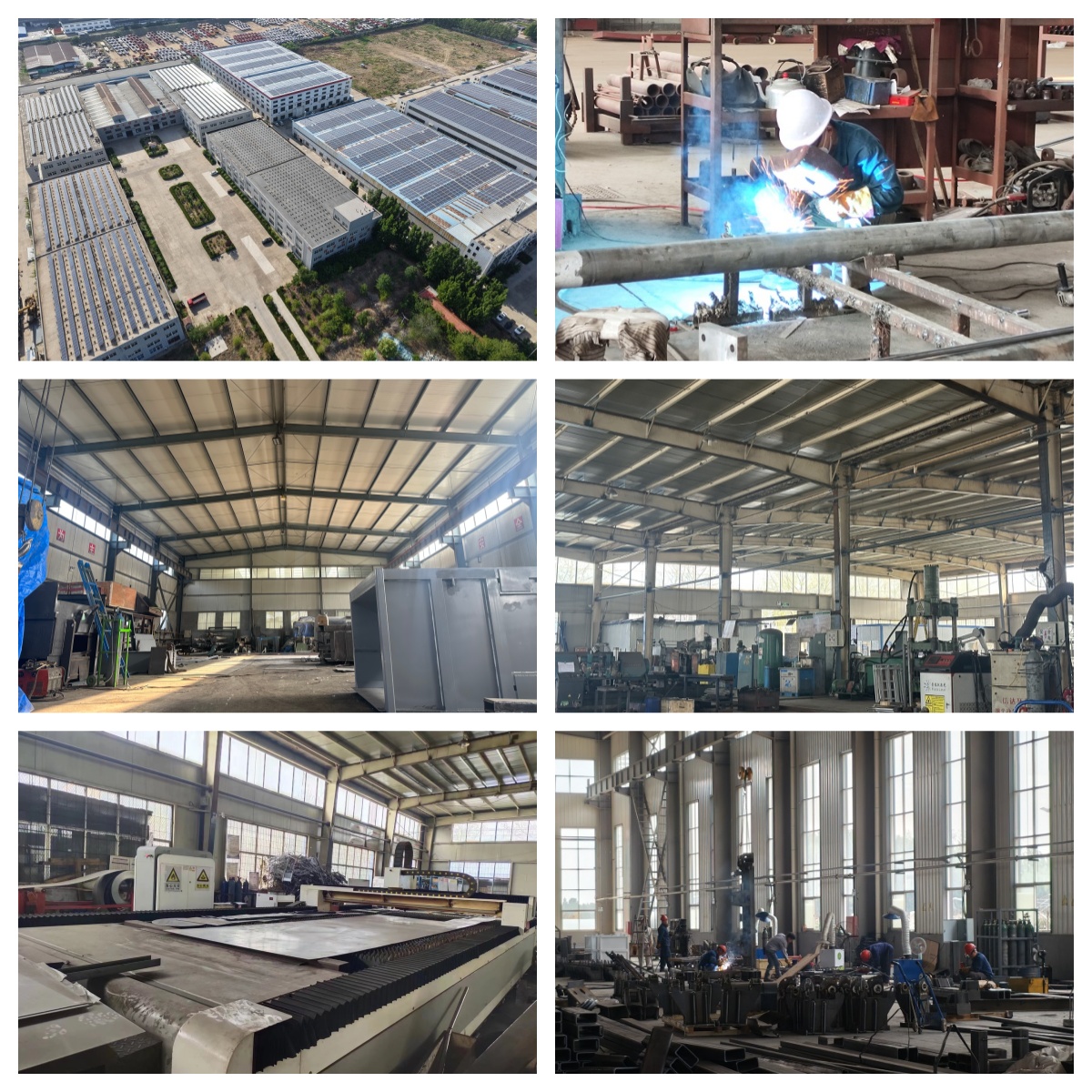

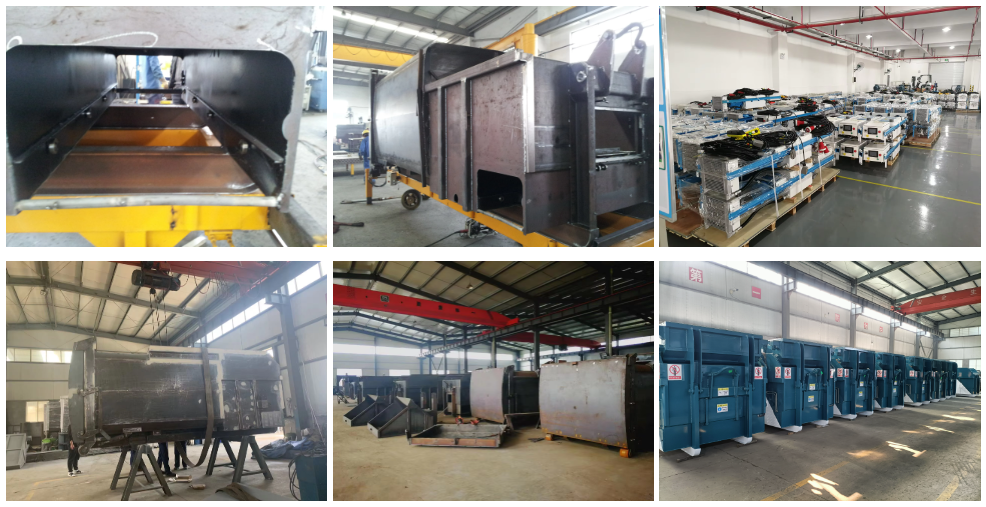

Our factory specializes in the production of garbage collection and transportation equipment, including garbage compactors, underground garbage collection systems, underground garbage compactors, garbage sweepers, road sweepers, hook-type garbage bins, hook-arm trucks, and provides full-process solutions.
Tailor-made solutions are the core of RNKJ.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
