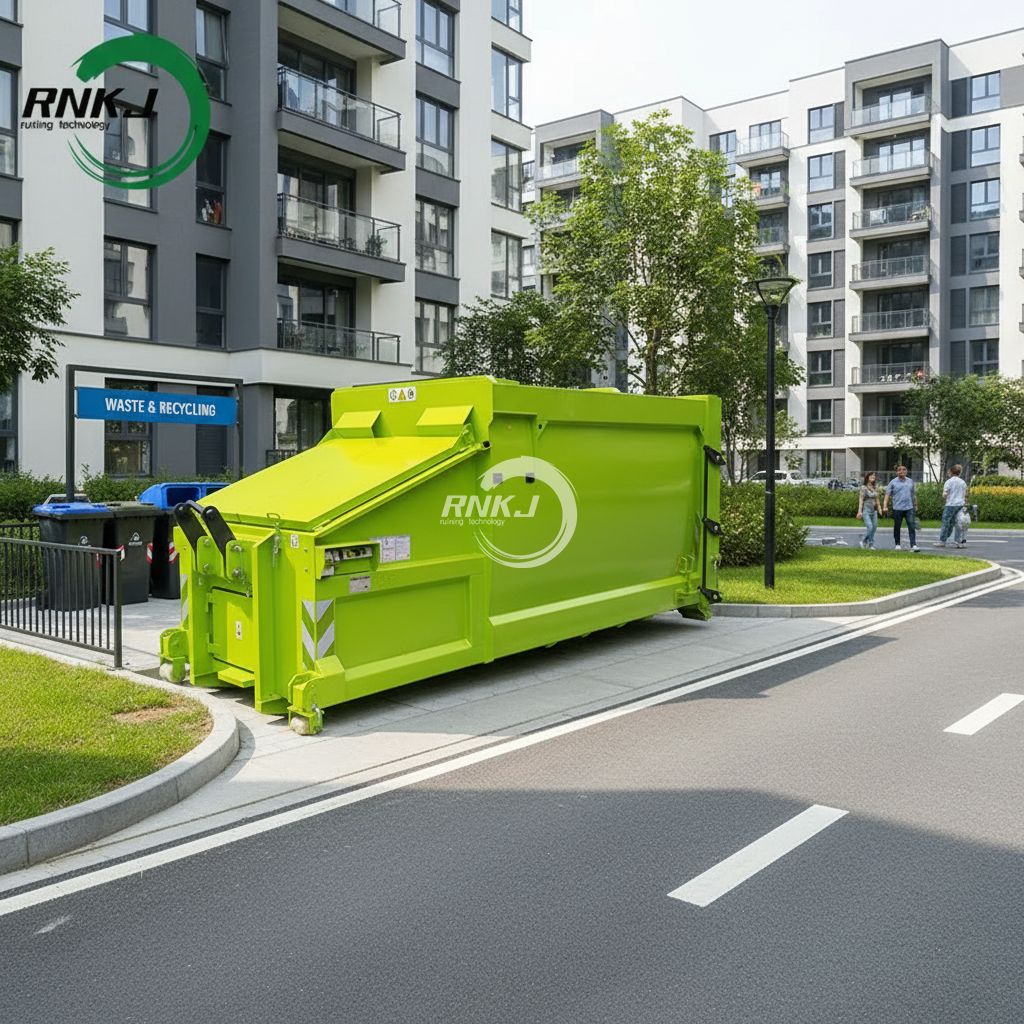

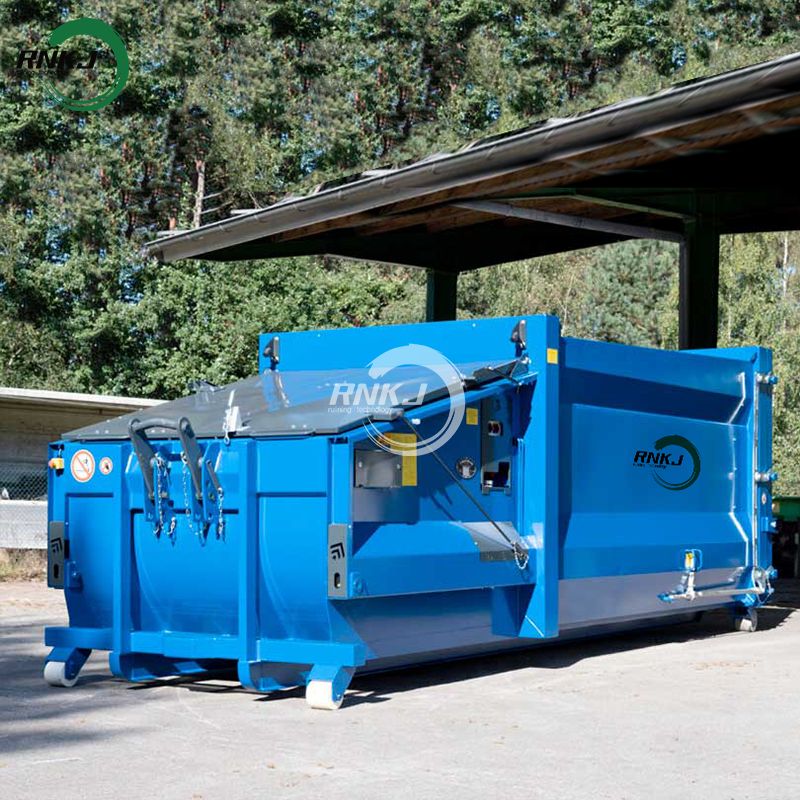

Mobile Rubbish Compactor is a highly integrated environmental sanitation equipment that integrates garbage collection, compression, storage and transportation. It can be lifted and moved as a whole by a dedicated boom truck or towed for movement, without the need for fixed foundations or complex infrastructure. The Mobile Rubbish Compactor does not require fixed installation and can be flexibly deployed near garbage generation points. After completing on-site compression and reduction of garbage, it is then transported to the processing site by a dedicated vehicle, and is widely used in various scenarios such as urban communities, town streets, scenic areas, construction sites, etc.
Product AdvantageHigh flexibility: No need for fixed infrastructure. Deployment locations can be flexibly adjusted according to the amount of garbage generated.
Efficient volume reduction: After compression, the volume of garbage can be reduced by 60% to 80%, significantly reducing transportation costs.
Environmentally friendly and hygienic: The fully enclosed design effectively prevents garbage leakage and odor dispersion, reducing secondary pollution.
Intelligent operation: PLC automatic control, simple operation, reducing labor intensity.
Safe and reliable: Equipped with multiple safety protection devices to ensure the safety of operators.
Core Components and Working PrincipleCore components
Reversing mechanism: Automatically disposes of the garbage in the trash can or hopper, reducing the labor intensity of manual work
Compression mechanism: W-shaped double-curved compression head driven by hydraulic cylinders, efficiently crushing and compressing the garbage
Garbage container: Welded with high-strength wear-resistant steel plates, with a volume ranging from 8 to 20 cubic meters
Hydraulic system: Provides compression power, including oil pumps, cylinders, pipes, and hydraulic oil cooling system
Electrical control system: PLC intelligent control, with fault diagnosis and automatic protection functions
Sealing system: Double lip sealing rubber strips, preventing sewage and odors from spilling out, and a collection tank at the bottom to collect leachate
Work process
Loading stage: The garbage is poured into the compression chamber through the loading port by the flipping mechanism.
Compression stage: The hydraulic system drives the press head to move back and forth, compressing and reducing the volume of the garbage forcefully.
Storage stage: The compressed garbage is pushed into the box for storage. It continues to be compressed until the box is full.
Transit stage:
Integrated type: The entire equipment is lifted to the waste treatment plant by the hook arm vehicle.
Split type: The full box can be quickly replaced, and the empty box continues to operate to improve collection efficiency.
Unloading stage: After arriving at the treatment plant, the garbage is unloaded automatically through the hydraulic system, completing one operation cycle.
Application ScenarioThe Mobile Rubbish Compactor is widely used in the following scenarios:
Urban communities: Garbage collection in residential areas, streets, parks, and commercial plazas
Rural towns and villages: Dispersed residential areas, town streets, addressing the problems of difficult garbage collection and high transportation costs
Special places: Hospitals, schools, factories, tourist attractions and other areas with high requirements for environmental hygiene
Temporary sites: Garbage emergency handling at construction sites, large-scale event sites, and post-disaster reconstruction areas
Environmental protection projects: Front-end compression processing at landfill sites and incineration plants to improve processing efficiency
Technical ParametersPerformance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
FeaturesThe Mobile Garbage Compactor, as the core equipment of modern sanitation systems, with its features of being flexible and mobile, efficient compression, and being environmentally friendly and sealed, is gradually replacing the traditional garbage collection methods and becoming the mainstream choice for garbage disposal in both urban and rural areas. It not only significantly improves the efficiency of garbage collection and transportation, reduces operating costs, but also effectively enhances environmental hygiene conditions, reduces secondary pollution, and provides an important guarantee for building a clean and beautiful environment.
Selection RecommendationBased on the daily waste generation volume:
For less than 40 tons per day: Choose the 8-12 cubic meter specification
For 40-60 tons per day: Choose the 12-18 cubic meter specification
For more than 60 tons per day: Choose the 18-22 cubic meter specification
Based on the type of garbage, select:
Domestic waste: Choose the standard compression density
Industrial waste: Choose the high compression density model
Why Choose a Mobile Rubbish Compactor?
✔️ Lower waste disposal costs and boosted transportation efficiency
✔️ Cleaner living environments and more standardized environmental compliance
✔️ Enhanced operational flexibility and a significantly smoother user experience
Contact us today to get your tailored, exclusive solution!We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services.
If you would like to obtain more customized specifications or purchase this garbage compaction station at factory price, please contact us via website message or WhatsApp(+86-18853809997).
