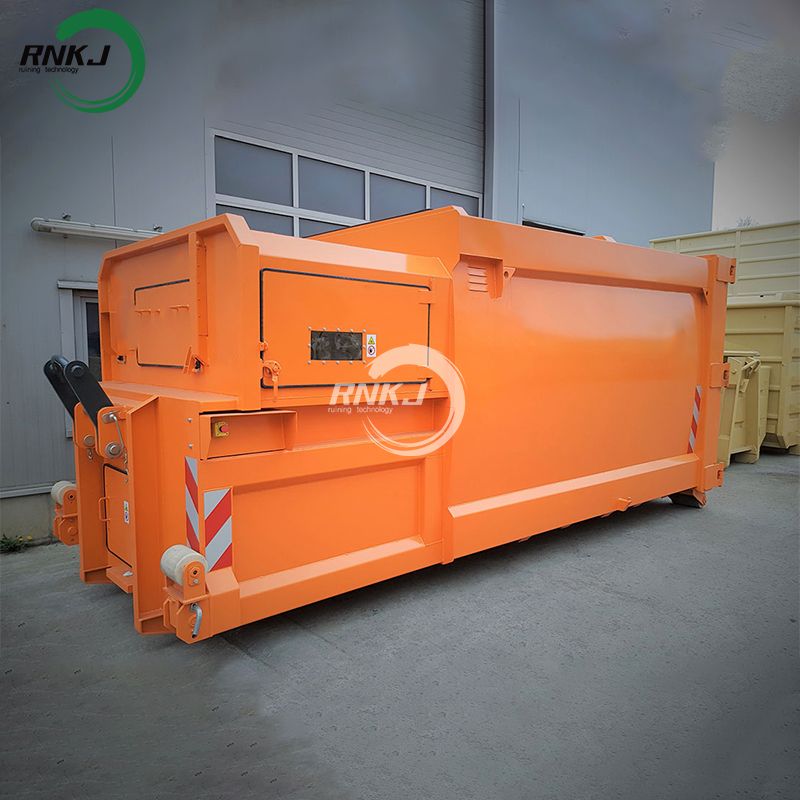

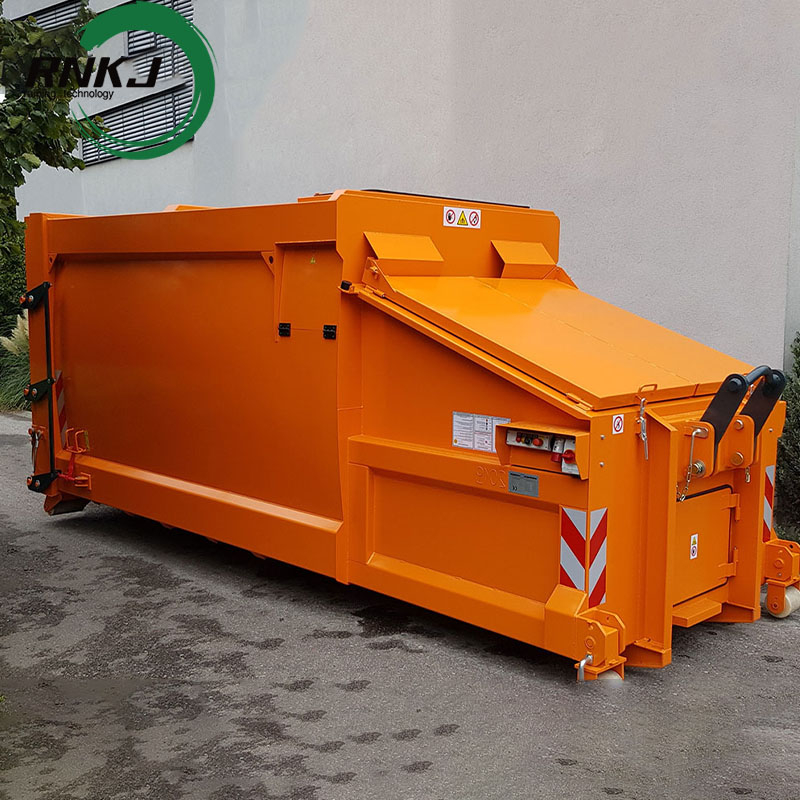

Mobile Rubbish Compaction Station is a highly integrated and fully mobile waste treatment equipment that combines the functions of garbage collection, compression reduction, sealed storage, and transportation into one. It does not require complex civil engineering works and can be flexibly deployed in various waste treatment scenarios. As the core equipment of small and medium-sized waste transfer stations, it can significantly improve the efficiency of waste transfer, reduce secondary pollution, and is a key component of modern sanitation systems.
Product AdvantageEfficient compression: The volume of waste is significantly reduced, the single vehicle's load capacity is increased, and the transportation cost is greatly lowered.
High processing efficiency: The single compression cycle is short, far exceeding the processing efficiency of manual methods.
Strong continuous operation capability: It can operate continuously for 24 hours, meeting the garbage processing needs during peak hours.
No need for civil construction: It can be directly placed on a hardened surface and used, saving construction costs and time.
Overall mobility: It can be quickly lifted by a crane arm vehicle and flexibly transferred between different locations, meeting temporary or emergency requirements.
Small footprint: It only requires about 10-15 square meters of space, suitable for restricted areas such as city centers and community interiors.
Full-process sealing: From loading, compression, transportation, unloading, the garbage is always in a sealed state, effectively controlling the spread of odors and mosquito breeding.
Zero leakage of leachate: Multiple sealing designs, dedicated collection system, preventing the contamination of soil and groundwater by garbage leachate.
Low noise and low vibration: Optimized design of the hydraulic system, low operating noise, not affecting the surrounding environment.
Expandable deodorization: Supports the integration of various deodorization technologies to meet different environmental protection standards requirements.
Multiple operation modes: Flexible and convenient operation, ensuring personnel safety.
Intelligent monitoring system: Real-time monitoring of compression force, box fullness, hydraulic oil temperature, system pressure, etc., automatic alarm for faults.
High-quality components: The core components are from international brands, ensuring long-term stable operation.
Reduce transportation costs: After compression, the volume of the garbage decreases, and the number of transportation trips is reduced by 60-70%, resulting in a significant reduction in logistics costs.
Maintenance is simple: The modular design makes the key components easy to disassemble and replace. Daily maintenance only requires cleaning, checking the seals and hydraulic oil.
Long service life: High-strength steel, high-quality coating. Under normal use, it can last for 8-10 years. With proper maintenance, it can be extended to over 12 years.
Working PrincipleMaterial loading preparation: Operate the material hopper lifting mechanism to lower the lifting hopper and align it with the garbage collection vehicle or the manual loading port.
Garbage input: The garbage enters the compression chamber through the hopper. The hopper can automatically sense the height of the garbage to prevent overflow.
Compression operation:
The hydraulic system is activated, driving the compression head to perform horizontal reciprocating motion to compress the garbage.
The first compression pushes the garbage into the storage box. Subsequent garbage is continuously added, and the push head works in a cycle, gradually compacting the garbage.
During the compression process, the leachate in the garbage flows through the bottom diversion channel into the collection box, achieving solid-liquid separation.
Full-box detection: Using position sensors or pressure sensors to detect whether the box is full. Once the box is full, an automatic alarm will be triggered to give a prompt.
Transportation preparation: Close the hopper, lock the rear door, and ensure that the box is completely sealed.
Overall transportation: The special boom truck connects to the container and lifts the entire compression station to the waste treatment plant.
Discharging operation: At the destination, the boom truck tilts the container, and the hydraulic system drives the push head to push out the compressed garbage as a whole, completing the discharge.
Reset and clean: After the discharge is completed, clean the interior of the box, inspect the seals and the hydraulic system, and prepare for the next round of operation.
Application ScenarioThe Mobile Rubbish Compaction Station is widely used in the following scenarios:
Urban communities and residential areas: Replace traditional garbage bins, solve the problems of garbage pollution and odors, especially suitable for the renovation of old residential areas.
Townships and rural areas: Adapt to the characteristics of decentralized garbage collection, no need for large-scale infrastructure construction, lower the threshold for rural garbage disposal.
Industrial parks and economic development zones: Handle industrial solid waste and household garbage, meet environmental protection requirements, improve the environmental quality of the parks.
Commercial centers and public places: Such as shopping centers, office buildings, squares, parks, etc., handle the large amount of garbage generated in densely populated areas.
Temporary activity venues: Such as large exhibitions, sports events, concerts, etc., provide temporary garbage disposal solutions, and can be quickly evacuated after the event.
Emergency disaster relief scenarios: After natural disasters such as earthquakes and floods, quickly deploy garbage disposal equipment to prevent the spread of diseases.
Scenic areas and ecological protection zones: Without damaging the environment, efficiently handle the garbage generated by tourists, protect the ecological environment.
Technical ParametersPerformance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
FeaturesThe Mobile Rubbish Compaction Station represents an innovative advancement in modern sanitation technology. Through a highly integrated design, efficient compression technology, and strict environmental protection measures, it has revolutionized the traditional waste disposal model. As a self-sufficient equipment, the Mobile Rubbish Compaction Station not only enhances the efficiency of waste processing and reduces operating costs, but more importantly, effectively controls secondary pollution, providing a reliable technical guarantee for building a clean, environmentally friendly, and efficient urban environment. With the continuous improvement of environmental protection requirements and the continuous upgrading of sanitation systems, the Mobile Rubbish Compaction Station will be widely applied globally and become one of the mainstream equipment in the field of waste disposal.
Selection RecommendationSelecting the appropriate size for the Mobile Rubbish Compaction Station is a crucial decision that ensures the efficiency of waste disposal, the suitability of the site, and the economic operation. The size selection should take into account core factors such as the volume of waste to be handled, site conditions, matching of transportation vehicles, and compression efficiency. Here is a comprehensive and detailed guide for size selection.
Daily average waste disposal volume
Basic processing requirements
The larger the processing volume, the larger the required box volume, and the corresponding size of the shape will increase
Types of waste and compression characteristics
Differences in compression ratios for different types of waste:
- Ordinary household waste: Compression ratio 3:1 to 5:1
- Kitchen waste / high moisture content waste: Compression ratio 2:1 to 3:1
- Light and flammable materials, such as plastic: Compression ratio 5:1 to 8:1
The lower the compression ratio, the larger the volume of the container required for the same processing volume
Space limitations of the venue
1. Length × Width × Height of the installation site
2. Operating space
3. Width of the entry and exit passage. The smaller the venue, the more priority should be given to compact designs, such as the 10-12m³ model
Vehicle matching for transfer
1. Rated load capacity of the hook-arm vehicle
2. Height of the hook-pin of the hook-arm vehicle
3. Matching of the lifting capacity of the vehicle and the weight of the container
The volume and weight of the container must be within the carrying capacity of the hook-arm vehicle. For example, a 18m³ container requires a hook-arm vehicle of 20-25 ton class.
Transfer frequency and cycle
1. Transfer interval
2. Demand for peak period processing
The lower the transfer frequency, the larger the volume of the container required to store more compressed waste
Compression efficiency and energy consumption
1. Single compression cycle
2. Unit energy consumption
Large containers usually come with more efficient compression systems, but energy consumption also increases accordingly
The selection of the size for the Mobile Rubbish Compaction Station needs to take into account various factors such as processing requirements, site conditions, and transportation capacity. It should not only meet the current processing needs but also reserve space for future development. It is recommended to conduct on-site measurements and research on garbage production before selecting the model, to ensure that the selected equipment can operate stably and efficiently, environmentally and economically, for a long time.We look forward to your inquiries and are always ready to serve you.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services.
If you would like to obtain more customized specifications or purchase this garbage compaction station at factory price, please contact us via website message or WhatsApp(+86-18853809997).
