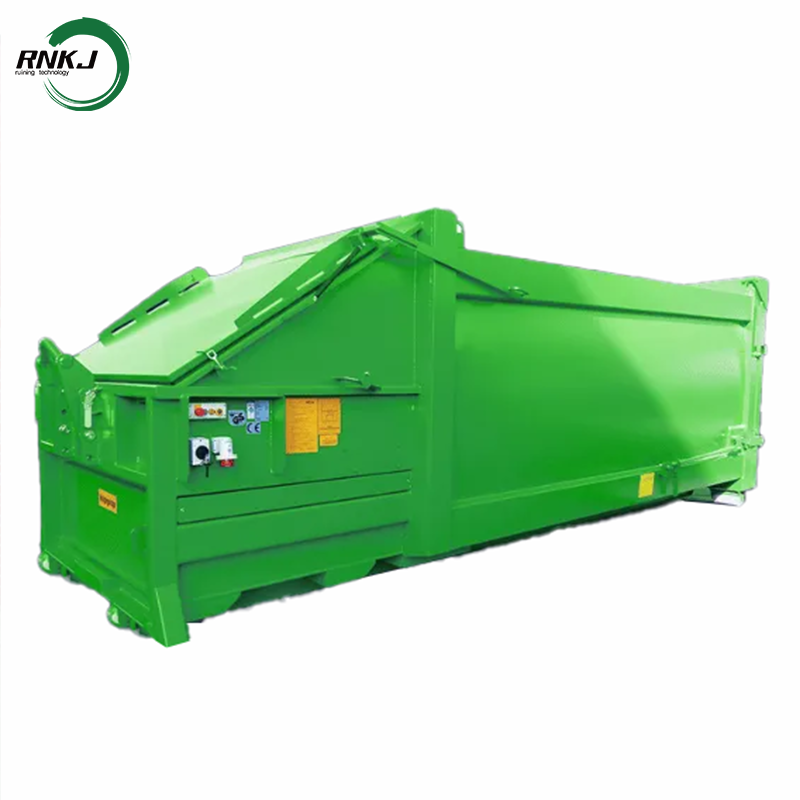

The Mobile Outdoor Trash Compactor occupies a small footprint, conserving land resources. It requires no embedded components for construction, minimizing investment. The compression equipment is clean, efficient, and energy-efficient. Its dedicated plug features a waterproof, plug-in design and comes with a dedicated key for the master controller, ensuring safe operation. The Mobile Outdoor Trash Compactor is flexible and adaptable to various urban and town garbage collection and transfer needs.
Product Advantage
Mobile Outdoor Trash Compactor uses advanced compression technology to compress the volume of garbage to a fraction of its original size, thereby greatly improving transportation efficiency. For example, some models of mobile compression garbage stations can achieve a compression ratio of 4:1 to 5:1, which means that garbage that originally required multiple transportations can now be transported in one go, greatly saving time and labor costs.
.Environmentally friendly and closed design: Mobile Outdoor Trash Compactor adopts a fully closed design, which effectively prevents the scattering of garbage and the spread of odor during the transportation process, avoiding secondary pollution. At the same time, some high-end models are also equipped with a deodorization system and an air purification device to further improve the environmental performance.
Intelligent operation: Modern mobile compression garbage stations are generally equipped with intelligent control systems, which realize the automated management of garbage compression, storage, and transportation. Operators can complete all operations with simple buttons or remote controls, which greatly reduces labor intensity and improves work efficiency.
Flexible mobility: The biggest feature of mobile compression garbage stations is their flexibility. The equipment is usually installed on a movable chassis and can be moved to different locations for operation at any time as needed. This flexibility makes garbage disposal more efficient and convenient, especially in areas with narrow roads and heavy traffic in cities, which reflects its unique advantages.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Product Uses
Usage scenarios
Municipal sanitation
- Garbage transfer station: collect and compress the scattered garbage and transfer it to landfill or incineration plant.
- Street trash can: built-in small compressor to extend the emptying cycle of the trash can.
Commercial and industrial
- Supermarket/catering industry: compress a large number of packaging boxes and kitchen waste to reduce odor nuisance.
- Manufacturing industry: process scrap metal and plastic scraps for easy recycling.
Special scenarios
- Ships and aviation:compress garbage on board or in the cabin to save valuable storage space.
- Disaster emergency: quickly deal with post-disaster ruins and improve rescue efficiency.
Product Operate Guide
Sanitary: Self-contained Mobile Waste Compactor have a built-in fluid collection chamber (sump).
Easy to use: Self-contained Mobile Waste Compactor are easy and safe to operate and drequire no special training.The user throws in the garbage and turns the compactor on with the touch of a button.
Cost-effective: Trash is compacted into blocks ,take up less space, savingyour money on hauling trips.
Product Details
Reasonable Design
The compression head is on the upper side of the tank to avoid liquid backflow and ensure that the cylinder and compression head are not corroded by sewage immersion, and thus ensure that the tank is clean.
Reasonable sewage treatment
Sewage collection box is equipped to prevent sewage leakage.
Sewage can be discharged directly through sewage pump or transported with the tank for disposal.
Standardiztion
Mobile Waste Compactor is applicable for most standard hook arm garbage trucks in the world.
Customization
As a professional factory and manufacturer, we are able to caters to our customers needs in every way, such as color, capacity, dimensions, voltage etc.
Good Performance
Mobile Waste Compactor system adopts high strength steel as main frame to ensure its long service life.
And it has high compression rate and short cycle time to ensure high efficiency.
Muitiple Choices
Muitiple choices of garbage drop-off point are available, including hoppers, flipping buckets, etc. Customers can choose the most suitable pattern.
Product Feature
Diversified collection modes
The Mobile Outdoor Trash Compactor equipment has the characteristics of small footprint, flexible mobility, and novel appearance. It can be equipped with various forms of feeding devices, suitable for bag collection, standard garbage bin collection, manual vehicle collection, small electric vehicle collection, etc.
Small footprint
The equipment has a compact structure, occupies a small area, saves land resources, and has a large storage capacity; Design can be coordinated with the environment based on the surrounding characteristics.
Fully enclosed structure
The equipment adopts a closed structure to ensure that there is no scattering, odor diffusion, or dust during the compression and transportation of garbage, reducing the secondary pollution of garbage to the environment.
Full load alarm mode
When the packing material is 80% full, an automatic alarm will sound, and the operator will operate the button to lift the feeding device to the top of the compression head and cut off all connections.
Our Advantages
Reasonable Design
Structural and mechanical design tailor-made for wet waste.
Fully automatic
Automatic operation with options of bin lifter or tipper to enhance refuse collection efficiency. and reduce labour costs.
High efficiency
High compaction ratio with volume reduction to 75%. Fast compaction cycle, ideal for frequent and regular refuse collection.
Hydraulic system
Hydraulic compaction system with reduced machine wear and high thermal resistance, suitable for tropical climate.
Anti-drip design
Stainless steel double-layered structure and multi-lock of tailgate door ensure 100% leakproof.
Safe & Smart
Visual operating control panel with wireless remote functions to enhance safety and reliability.
In-box design
Tapered sides and rounded guides present in containers to allow complete unloading during infeed.
Integrated chassis design
Integrated body design with hydraulic and mechatronic systems complying with international standards.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
