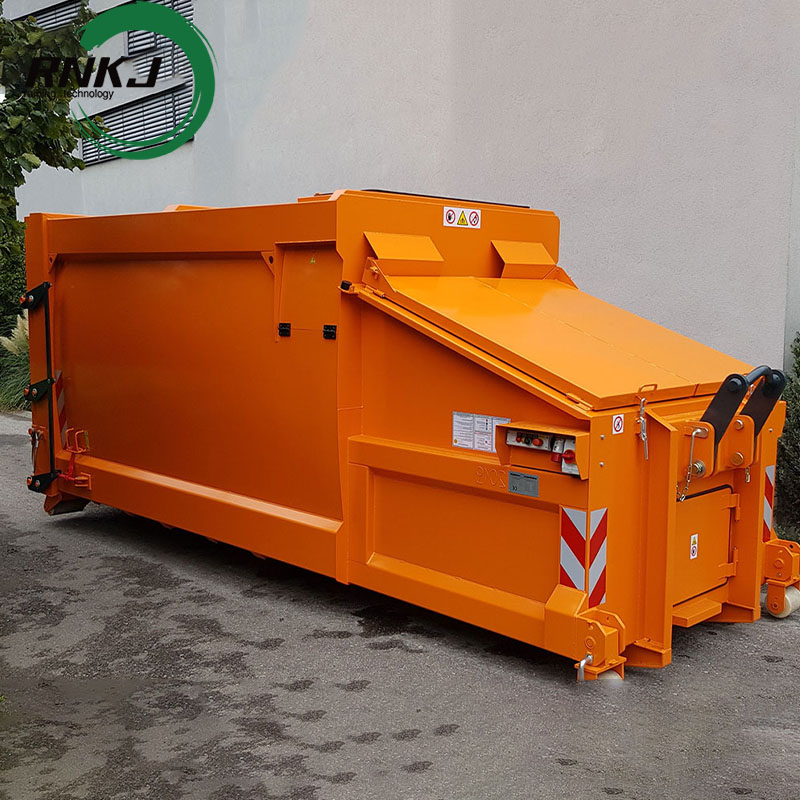

Mobile Garbage Compactor for Hook Lift Transport

The Mobile Garbage Compactor for Hook Lift Transport is a highly integrated garbage handling equipment that can be lifted and transported as a whole by a hook lift truck. It integrates four functions: garbage collection, compression reduction, sealed storage, and convenient transfer. It is used in conjunction with the Hook Lift truck to form an efficient "one-truck multiple-box" transfer mode. No fixed infrastructure is required, and it can be flexibly deployed at various garbage collection points.

Product Advantage

Efficient compression and reduction, reducing transportation costs

High reduction rate, reducing the number of transportation vehicles under the same transportation volume, significantly lowering fuel and labor costs

Increased compression density, the actual loading capacity of the container is 3-5 times that of ordinary garbage bins, improving transfer efficiency

Flexible deployment, strong adaptability

No need for fixed infrastructure. It can be directly placed in open areas, saving construction and land costs

"Multiple containers per vehicle" circular operation. The boom truck can serve multiple compressed containers simultaneously, improving vehicle utilization rate

Fast transfer capability. It can flexibly adjust the placement location according to changes in garbage production volume, especially suitable for temporary construction sites and large event venues

Sealed and environmentally friendly, reducing secondary pollution

The entire process is carried out in a sealed manner, ensuring no spillage of garbage, no odor diffusion, and no dust emission during the compression, storage, and transportation of waste

The leachate is collected and treated centrally to prevent soil and water pollution

Optional spray deodorization and activated carbon filtration systems can be equipped to further improve the working environment

Intelligent control, easy operation

PLC microcomputer control system, realizes automatic continuous compression, and can adjust working parameters according to load

Touchscreen operation interface, directly displays the equipment operation status, and the self-diagnosis function of faults is convenient for maintenance

Optional remote controller, operators can complete all operations within a safe distance, reducing labor intensity

Sturdy and durable, with low maintenance costs

High-strength steel and wear-resistant components, extending service life and reducing maintenance frequency

Modular design, key components can be easily disassembled and replaced, reducing maintenance difficulty

Hydraulic system equipped with efficient coolers and filters, reducing hydraulic oil contamination and prolonging system lifespan

 Working Principle

Basic working cycle

Loading stage: Operators pour the garbage into the hopper, or the garbage in the trash can is automatically discharged by the flipping frame.

Compression stage: The PLC control system activates the compression cylinder, the pusher moves forward, compresses the garbage and pushes it to the bottom of the box, and the leachate is collected through the diversion channel.

Storage stage: The garbage continues to be compressed until the box is full. The system emits a full-box signal, and the compression stops automatically.

Transit stage: The hook lift truck connects to the box, lifts the fully loaded equipment and transports it to the transport vehicle, and transports it in a sealed manner to the treatment site.

Discharging stage: After reaching the treatment site, the hook arm vehicle places the box, the rear door automatically opens, and the compression pusher pushes the compressed garbage out as a whole.

Reset stage: After the discharging is completed, the pusher resets, the rear door closes, and the box waits to be used again.

Key points for hook lift truck docking operation

Place the empty container: The hook lift truck should place the empty compressed container on a flat surface to ensure its stability

Docking preparation: After the container is filled with garbage, the hook-arm vehicle should reverse to the front of the container and extend the hydraulic legs to stabilize the vehicle body

Hook and connect: Extend the hook arm and precisely hook the pull ring of the container, then start the locking device

Lift and load onto the vehicle: Contract the hook arm, smoothly pull the container onto the vehicle chassis, lock the cross lock of the container, and retract the legs

Transport safety: Keep the container sealed throughout the process to avoid garbage spillage and leakage of filtrate

 Structure And Core Component System

Main box body

Core components: Welded structure with high-strength wear-resistant steel plates, hook arm connection interface, leachate collection tank, sealing rubber strips

Functions: Compress and store garbage, compatible with hook arm vehicle connection, leak-proof, odor-proof

Compression mechanism

Core components: Compression push head, compression cylinder, guide rail, limit device

Function: Provides horizontal compression force, compresses and reduces the volume of garbage, the design of the push head ensures uniform compression

Loading System

Core Components: Flip Frame, Lifting Cylinder, Loading Port Cover Plate

Function: Automatically receives garbage, enables rapid dumping of trash from trash cans / trolleys, dust prevention

Back door assembly

Core components: hydraulic locking device, sealing system, discharging mechanism

Functions: Seals the container during compression, prevents leakage during transportation, and automatically opens during discharging.

Hydraulic system

Core components: hydraulic pump, cylinder, oil tank, oil pipe, cooler, filter

Functions: Provide power source to drive all actions such as compression, lifting, locking, etc. The cooling system ensures continuous operation.

Electrical control system

Core components: PLC microcomputer, touch screen, sensors, safety switches, remote controller

Functions: Achieve automatic/manual control, fault self-diagnosis, load dynamic adjustment, safety protection

Safety protection device

Core components: Emergency stop button, overload protection, limit switch, leakage protection, warning light

Function: Prevent accidental operation, protect equipment and personnel safety

Auxiliary environmental protection system

Core components: Spray odor removal device, leachate discharge interface, activated carbon filter

Functions: Reduce odor dispersion, collect and treat landfill leachate, reduce secondary pollution

Technical Parameters

 Key Design Of The Main Box Body

Material selection: High-strength wear-resistant steel and weather-resistant steel are welded together to ensure structural strength

Sealing technology: Double-channel sealing rubber strips and hydraulic locking are used between the box and the rear door. During compression, the filtrate collects centrally through the bottom drainage channel to prevent leakage

Hook arm interface: Strictly following international standards, standard hook arm connection points and rollers are equipped to ensure precise docking and safe transportation with the hook arm vehicle

 Application Scenarios

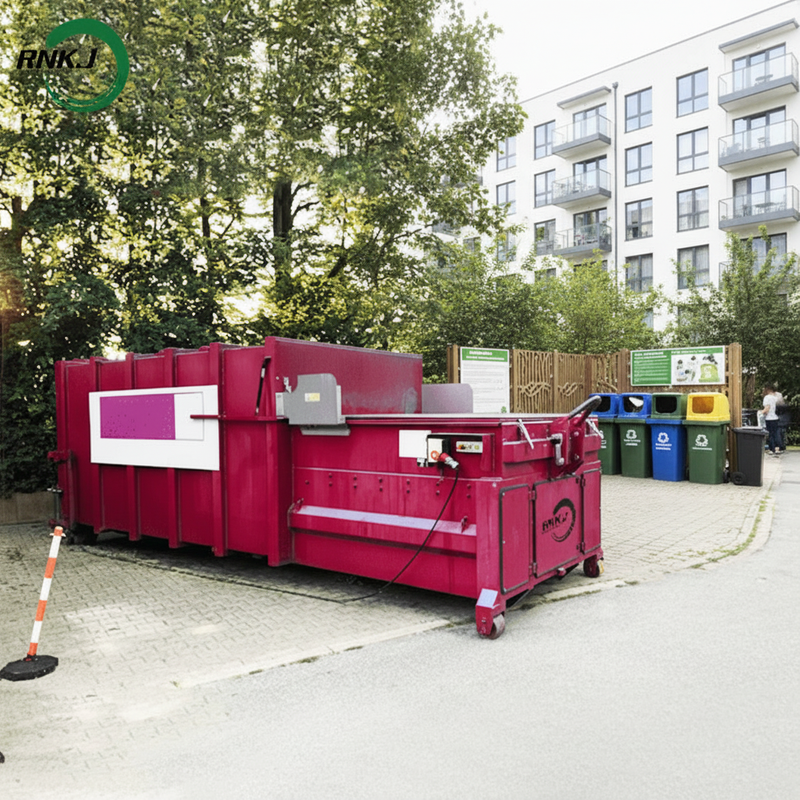

Urban communities and residential areas: Replace traditional garbage collection points, improve living environment

Commercial centers and office parks: Handle large amounts of commercial waste, improve collection efficiency

Hospitals and schools: Safely handle medical waste and campus waste, comply with environmental protection requirements

Industrial parks and factories: Handle industrial solid waste, reduce enterprises' garbage disposal costs

Construction sites and demolition sites: Handle construction waste, move flexibly to adapt to construction progress

Scenic spots and parks: Protect the natural environment, reduce the impact of garbage transportation on tourists

Townships and rural areas: Solve the problem of insufficient infrastructure, improve garbage disposal level

Large event venues: Deploy temporarily, quickly handle a large amount of garbage
