Mobile garbage compaction station is a movable device that integrates garbage collection, compression, and transportation. It has the advantages of high efficiency, environmental protection, and flexibility, and is widely used in urban environmental governance and other fields.
Product Advantage
Mobile garbage compaction station is a mobile device that can collect, compress, and unload garbage. It can reduce the volume of garbage through a compression mechanism, improve transportation efficiency, and reduce secondary pollution.It is usually composed of a garbage collection device, a compression device, a sealed box body, a hydraulic system, and an intelligent control system.
High Compression Efficiency: It can compress garbage to about one - fifth of its original volume, reducing the occupied space and the number of transportation trips.
Environmental Protection: The sealed box body and advanced sealing technology can effectively prevent the leakage of garbage and odors, avoiding secondary pollution during the collection and transportation of garbage.
High Mobility: Unlike fixed garbage stations, mobile garbage compaction stations can be moved to different locations according to needs, which is convenient for dealing with garbage in various scenarios.
Low Cost: It has the advantage of multiple boxes with one vehicle, which can be used cyclically, reducing the use cost. Moreover, it does not require a special complex station building and supporting facilities, saving construction costs.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |

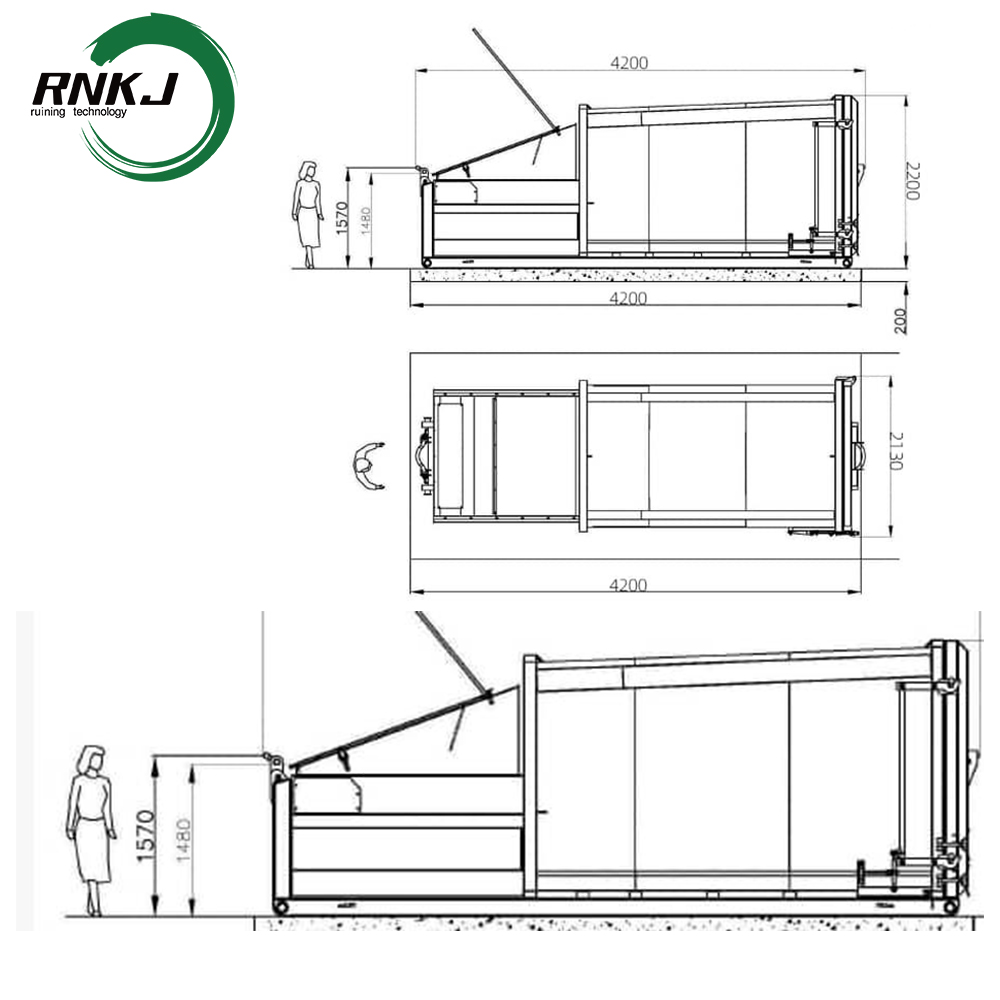

Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Working principle
The mobile garbage compaction station first collects garbage into the device through the garbage collection device. Then, the compression device applies pressure to compress the garbage into a smaller volume. Finally, the compressed garbage is stored in the sealed box body for subsequent transportation.
Application Scenarios
Urban Environment Governance: It is used for street cleaning, community garbage collection, and temporary garbage treatment after large - scale events, which can quickly respond to sudden environmental events.
Construction Site Management: It can efficiently collect construction waste and domestic waste, keep the site clean, and reduce the risk of dust and pollution.
Industrial Waste Treatment: It can compress and pack industrial waste on - site, facilitating subsequent transportation and resource utilization.
Disaster Emergency Rescue: After disasters such as earthquakes and floods, it can quickly clean up debris and garbage, reducing the burden on the disaster - stricken areas.
Key Features & Functions
Volume Reduction: Hydraulic rams compress waste, fitting more into the container.
Self-Contained: Integrates a compactor and container, often with its own power system.
Mobility: Can be picked up by a hook loader truck, transported, and emptied at disposal sites.
Odor Control: Enclosed design minimizes smell and secondary pollution.
Versatile Loading: Accepts waste from small vehicles, handcarts, or tippers.
Types & Applications
Portable/Containerized: Compact units that can be placed in specific spots, then moved.
Vehicle-Mounted: Built onto truck chassis for dynamic collection routes.
Urban Solutions: Small footprint versions suit crowded city streets, schools, and hospitals.
Benefits
Cost Savings: Fewer trips to landfills.
Hygiene: Reduces pests, odors, and spills.
Efficiency: Streamlines waste collection and transport.
Flexibility: Adaptable for different waste volumes and locations.
Choosing a mobile waste compaction station means choosing:
✔️ Lower processing costs and higher transportation efficiency
✔️ Cleaner living environment and more compliant environmental performance
✔️ More flexible operation mode and a more hassle-free usage experience
Let waste disposal say goodbye to complexity and pollution and embrace efficiency and cleanliness! The mobile waste compaction station helps with green development and protects a beautiful environment. Contact us now to unlock the exclusive solution!
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. If you would like to obtain more customized specifications or purchase this garbage compaction station at factory price, please contact us via website message or WhatsApp(+86-18853809997).
