Landscape Underground Garbage Compactors are mainly buried underground, with only the garbage disposal ports or classification bins remaining on the surface. The entire process of garbage collection, compression, and storage is carried out in a closed underground environment, which can reduce the leakage of odors, prevent the breeding of mosquitoes and flies, and cause almost no secondary pollution.
Product Advantage
Sustainable integration design
The ground section will blend with the surrounding environment, eliminating the "dirty, messy and unpleasant" visual impression of traditional garbage stations. It can even become a part of the regional landscape, without damaging the aesthetic appearance of the environment.
Efficient compression, cost reduction
By using high-pressure compression technology, the volume of garbage can be reduced to 1/3 to 1/5 of its original size. This not only saves storage space but also reduces the frequency of garbage collection. Typically, it can lower the garbage transportation cost by about 60%.
Intelligent and environmentally friendly
Some of the equipment are equipped with automatic compression and intelligent monitoring functions, and also come with sealed storage and deodorization systems; the operation is simple, and some can even operate without human supervision.
Technical Parameters
Model | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ³） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Product Effects

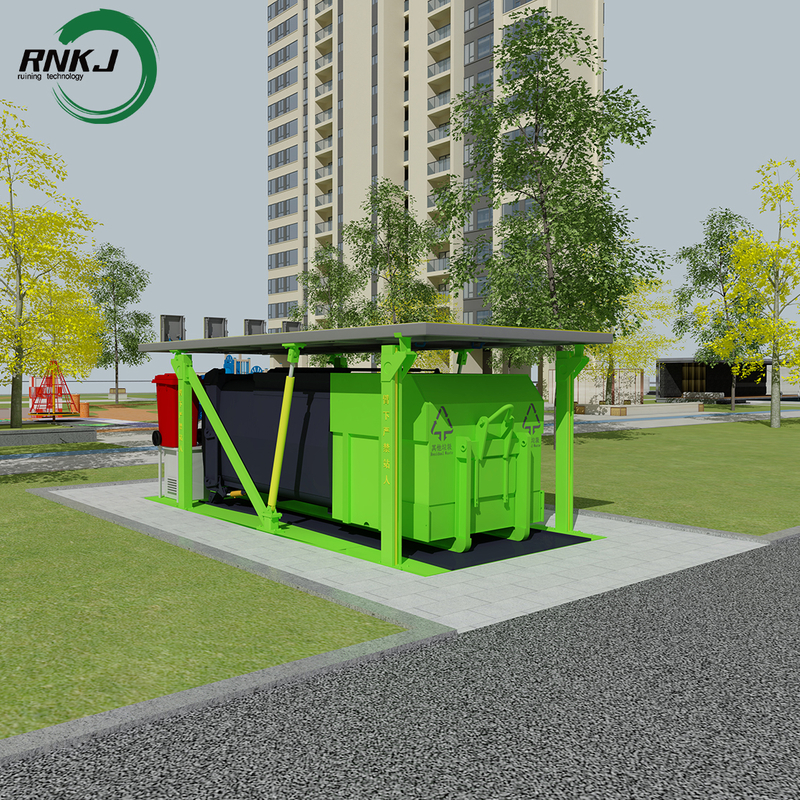

Lifting mode
Landing mode
Feature Of Landscape Underground Garbage Compactors
Invisibility design: The main equipment is fully buried underground, with only the loading ports and landscape greening left on the ground. There is no visual pollution, and it seamlessly integrates with the surrounding environment, completely changing the dirty, messy and poor image of traditional garbage stations.
Efficient utilization of underground space: It does not occupy valuable ground space, solves the problem of difficult site selection for garbage stations in urban central areas and high-density communities, and is particularly suitable for areas with scarce land resources.
Ground multi-functionality: The ground can be planned as parks, squares, green spaces, etc., to transform the garbage stations into scenic areas. Wuhan Environmental Protection Bureau.
Small footprint: With the same processing capacity, the occupied area is only 1/3 to 1/2 of that of traditional garbage stations.
Fully enclosed operation: The entire process of garbage collection, compression and storage takes place in a sealed underground space, effectively isolating odors and pollutants.
Odor control: Equipped with negative pressure odor removal systems, biological washing, plasma disinfection and other technologies, the underground low-temperature environment further inhibits the generation of odors.
Leachate treatment: The wastewater generated by compression is collected through dedicated pipelines and is then treated before being discharged into the urban drainage network or removed by suction trucks to prevent secondary pollution.
Pest and disease control: The underground sealed environment effectively prevents the breeding of mosquitoes, flies and rodents, and cuts off the transmission routes.
Noise isolation: The underground structure has natural sound insulation properties, significantly reducing operational noise and not affecting the lives of nearby residents.
Workflow
Garbage Collection
Residents or sanitation workers dispose of waste into underground sealed containers via ground-level discharge openings. Each opening is fitted with an airtight cover that blocks odors and pests, ensuring waste is fully enclosed and not exposed to the environment.
Compression Initiation
When waste inside the container reaches the preset fill level, the system automatically triggers the compression cycle. A hydraulic system actuates the compression ram, which forces the waste into the storage compartment under high pressure.
Volume Reduction Process
The compression ram exerts intense pressure to eliminate voids in the loosely packed waste, achieving a compression ratio of 3:1 to 5:1. This drastically reduces the overall waste volume, thereby substantially increasing the container’s effective storage capacity.
Airtight Storage
Compressed waste is temporarily stored in the underground sealed container, which is engineered with anti-seepage and anti-corrosion properties. These features prevent sewage leakage and odor emission, maintaining a sanitary underground environment.
Transfer & Docking
Once the container is fully loaded, a lifting system hoists it to ground level and aligns it precisely with a waste transfer truck. The compacted waste is then pushed into the truck by the compression ram, completing the transfer process. Afterward, the container is lowered back underground, restoring the ground surface to a clean, unobstructed state.
How to carry out daily maintenance for the landscape-style underground garbage compactor?
Pre-work inspection
Appearance: The discharge cover plate is closed properly, the pit bottom has no water accumulation or collapse. The lifting frame and safety pin are complete and securely fastened.
Hydraulic: The oil level in the oil tank is between 1/2 and 2/3 of the scale. There is no leakage in the pipelines. The piston rods of the oil cylinders are free from rust and scratches.
Electrical: The electrical control cabinet is not damp or burned. The emergency stop button and remote control device are sensitive. The sensors are not blocked.
Environmental protection: The leachate collection tank has no excessively high liquid level. The suction pump pipeline is unobstructed. The deodorizing agent is sufficient.
Workplace inspection
Listen: No abnormal noises in the pumping station and motors.
Look: The lifting and compression actions are smooth without any jamming. The box body has no leakage or odor leakage.
Check: The oil pressure and current are within the rated range, with no overload alarms; strictly prevent large hard objects from entering the box.
Post-work maintenance
Cleaning: Rinse the discharge port and the remaining garbage inside the box, wipe the piston rod of the oil cylinder and apply anti-rust oil, and remove debris from the diversion channel.
Reset: Return the shovel and the box to their original positions, turn off the power supply, and lock the cover plate of the discharge port.
Recording: Fill in the operation and abnormal conditions of the day.
Regular deep maintenance
Weekly: Tighten bolts, apply lubricating grease to rotating parts, clean the filter screen of the pumping unit.
Monthly: Check and replace deteriorated hydraulic oil and filters; replace aging seals; protect the electrical control cabinet from moisture, calibrate sensors.
Quarterly: Inspect and repair the anti-seepage layer of the pit; clean the odor removal system; repaint the steel structure with anti-rust paint.
Annually: Test the sealing performance of the cylinder; inspect PLC and motors; conduct overall performance testing of the equipment.
Key points for maintaining safety
During maintenance, cut off the main power supply and hang warning signs; when lifting the box body, a safety support pole must be inserted.
Avoid water flushing electrical components; maintenance personnel must wear protective gloves and safety helmets.
Landscape Underground Garbage Compactors: An efficient and environmentally friendly solution for urban sanitation.
