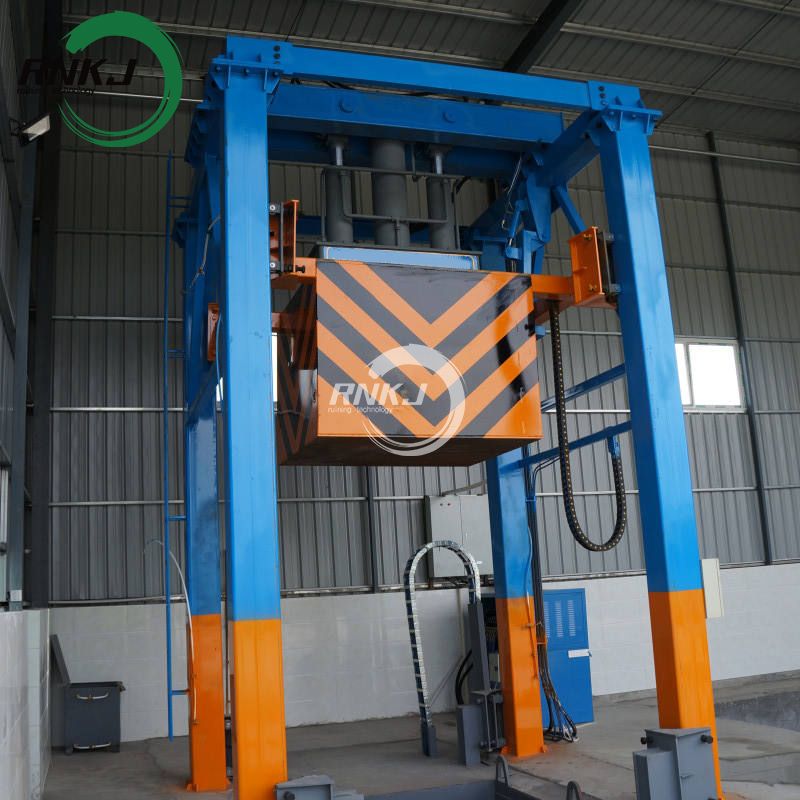

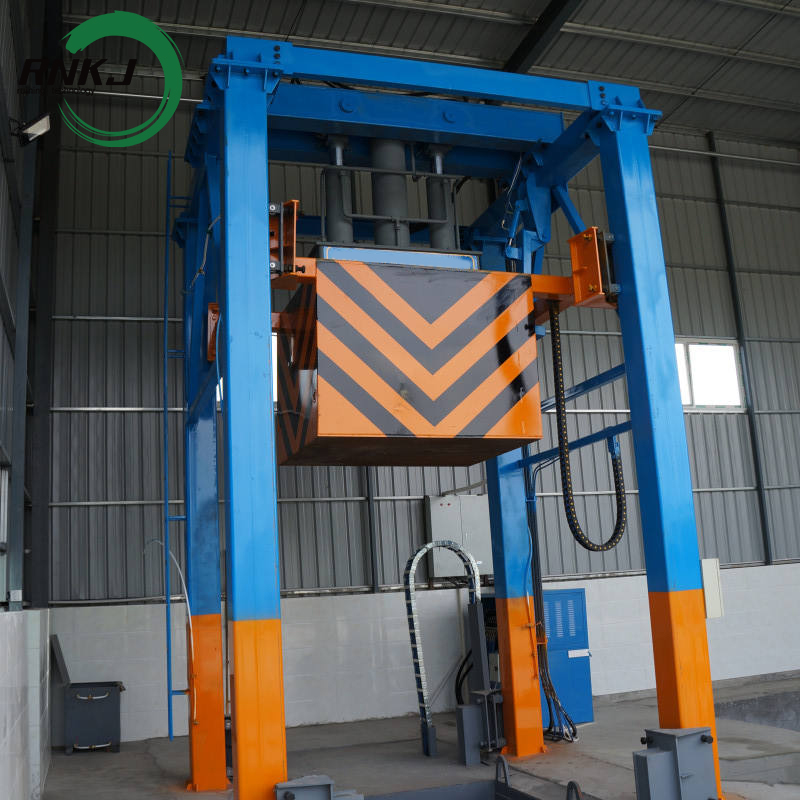

The Hydraulic Vertical Garbage Compactor is a modern waste transfer and processing equipment that uses hydraulic drive and vertical compression methods. It is specifically designed to address the efficient reduction and sealed transportation of loose waste such as municipal solid waste, commercial waste, and industrial solid waste. Through a powerful hydraulic system, it provides downward compression force, compressing loose waste into high-density blocks, significantly reducing the volume of waste, improving transportation efficiency, lowering transportation costs, and achieving the complete sealing, harmless treatment, and reduction of the entire waste processing process.
Product AdvantageThe Hydraulic Vertical Garbage Compactor is a crucial equipment in the garbage collection and transportation system. It is mainly composed of a compression device, a pushing device, a garbage collection box, a hydraulic system, an electrical control system, a sewage system and an odor removal system. This equipment is widely used in urban communities, township garbage transfer stations, industrial parks, large supermarkets, logistics centers and other places. It can handle various types of household garbage, kitchen waste, and light industrial waste, among other loose waste materials. The single-unit daily processing capacity can reach 50 to 100 tons, making it an ideal choice for improving garbage disposal efficiency and enhancing environmental hygiene.
Efficient compression technology, with significant capacity reduction effect
Super large compression force: Utilizing a durable structure, it has high compression force, high compression ratio, and increased garbage density
Sealed and environmentally friendly design, eliminating secondary pollution
Fully enclosed operation: During the processes of compression, storage, unloading and transportation of garbage, it is always in a sealed state, without any garbage leakage or sewage overflow
Leachate collection: A dedicated sewage system is installed at the bottom. The leachate generated during the garbage compression process is collected and flows into the sewage well through the drainage outlet in the pit, effectively preventing secondary pollution at the source
Odor removal and dust suppression system: Optional spray flushing odor removal system and spray dust suppression system can be equipped to effectively suppress odors and dust, improving the working environment
Easy cleaning design: The equipment and site are easy to clean, reducing the breeding of bacteria and minimizing the impact on the surrounding environment
Innovative structural design, suitable for various scenarios
Reversible press head: The press head can be flipped backward during unloading or maintenance to clear the space, reducing the height requirement for the factory building and saving construction costs
High-strength structure: Supported by four high-strength columns, equipped with wear-resistant alloy press heads, with a long service life
Flexible connection: Can be connected with various specifications of garbage transfer vehicles, with strong adaptability, meeting different transfer needs
Intelligent control system, safe and convenient to operate
PLC automated control: Utilizing programmable logic controllers, it enables full-process automated operations. With a single button start, it reduces the labor intensity of sanitation workers.
Human-machine interaction interface: Equipped with a touch screen operation panel, it displays real-time information such as equipment operation status and fault alarms, making the operation intuitive and simple.
Multiple safety protections: It is equipped with overcurrent protection, limit protection, emergency stop buttons, etc., to ensure the safety of operators and equipment.
Working PrincipleThe working process of the hydraulic vertical garbage compressor is a closed-loop operation mode of "feeding → compression → ejection → storage → transportation", with full automation control throughout the process and simple, efficient operation.
Closed feeding: The sanitation workers pour the loose garbage into the compression bin through the feeding hopper. The hydraulic hinged door automatically closes, achieving closed feeding.
Vertical compression: The main compression cylinder drives the press head to compress the garbage from top to bottom. The compression force is high, which squeezes the garbage into a high-density block-like form. At the same time, the leachate in the garbage is squeezed out and discharged into the sewage well through the bottom drainage system.
Pushing the package into the storage bin: After the compression is completed, the pushing device will smoothly push the formed garbage block into the storage bin. The pushing plate will automatically retract, preparing for the next compression cycle.
Continuous operation: Repeat the process of "dumping → compressing → pushing out" until the storage bin is full. Then, it is connected to a dedicated garbage transfer vehicle and transferred to the garbage disposal plant.
Safety Assurance: The equipment is equipped with multiple safety mechanisms such as mechanical safety devices, head retention design, and overload protection, ensuring operational safety.
Technical ParametersCompression Type | Vertical compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Hydraulic four-post lifting |

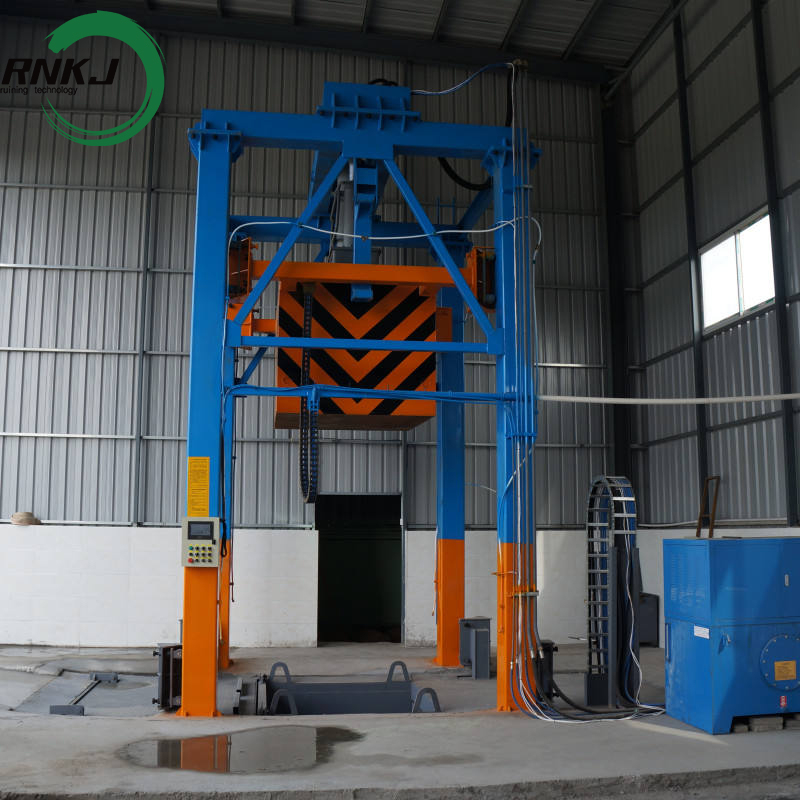

Product Style
|
|
Applicable ScenariosUrban community garbage transfer station: Solves the problem of centralized disposal of residents' household garbage and improves the environmental hygiene level of the community.
Township garbage treatment center: Suitable for centralized compression and transfer of scattered garbage in rural areas, reducing transportation costs.
Industrial park: Handles light waste and packaging garbage generated during industrial production, achieving reduction of industrial solid waste.
Large supermarkets / logistics centers: Handle commercial garbage and packaging waste, improving the utilization rate of the site.
The Hydraulic Vertical Garbage Compactor, as the core equipment for modern waste management, boasts advantages such as efficient compression, closed and environmentally friendly design, intelligent control, and durability. It has become the preferred solution for waste reduction and transfer in urban sanitation, industrial parks, commercial centers, and other places. Choosing the right hydraulic vertical garbage compactor not only significantly reduces waste processing costs and improves transfer efficiency, but also effectively improves environmental hygiene, reduces secondary pollution, and helps achieve the sustainable development goals.
