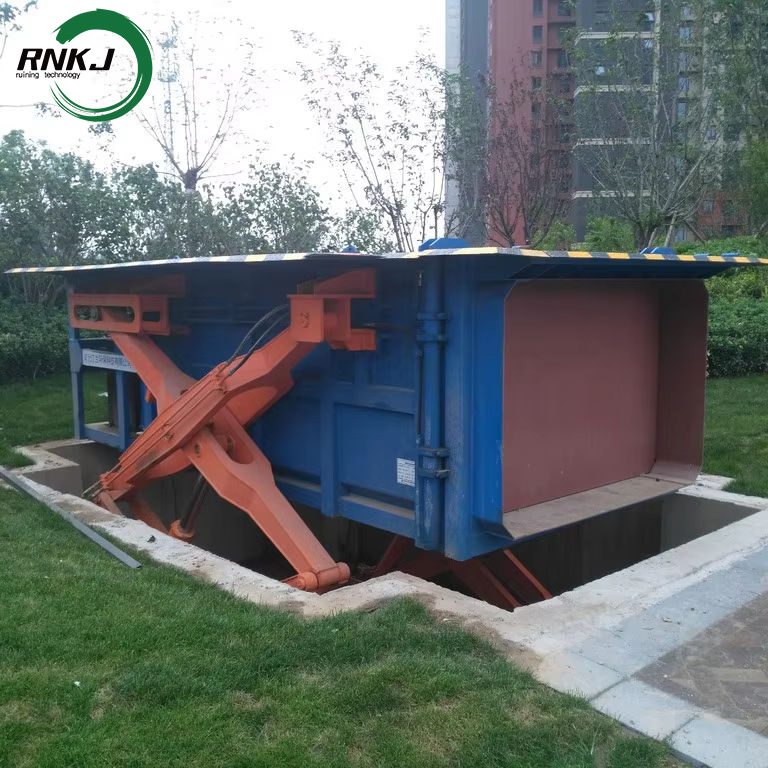

The Hydraulic Underground Horizontal Waste Compression Station is a high-capacity underground waste collection and compression system designed for municipalities, residential communities, commercial districts, parks, tourist attractions, industrial zones, airports, and other public waste collection points. Unlike conventional above-ground waste stations, this system installs the compression chamber below ground, significantly reducing the visual impact, odor, and land occupation while improving waste collection efficiency.
Powered by a hydraulic horizontal compression system, the equipment compresses loose municipal solid waste into a high-density mass inside the underground chamber. The station adopts a scissor lift, allowing the compression chamber to be smoothly lifted to ground level when transportation is required. Instead of removing the compression box, the compressed garbage is hydraulically pushed directly into a docking garbage truck, greatly simplifying waste transfer while reducing secondary pollution.
This advanced Hydraulic Underground Horizontal Waste Compression Station offers a clean, intelligent, and environmentally friendly solution for modern urban waste management.
Main Features of Hydraulic Underground Horizontal Waste Compression StationThe entire compression chamber is installed underground, leaving only the waste feeding opening visible above ground. This design preserves the surrounding landscape and improves the overall appearance of public spaces.
Benefits
Minimal visual impact
More usable ground space
Suitable for landscape-sensitive locations
Better integration with urban architecture
The station utilizes a powerful hydraulic cylinder to compress waste horizontally. Loose garbage is continuously compacted into the rear storage chamber, greatly increasing storage density before transportation.
Advantages
High compression efficiency
Stable hydraulic operation
Reduced waste volume
Lower transportation frequency
Reduced operating costs

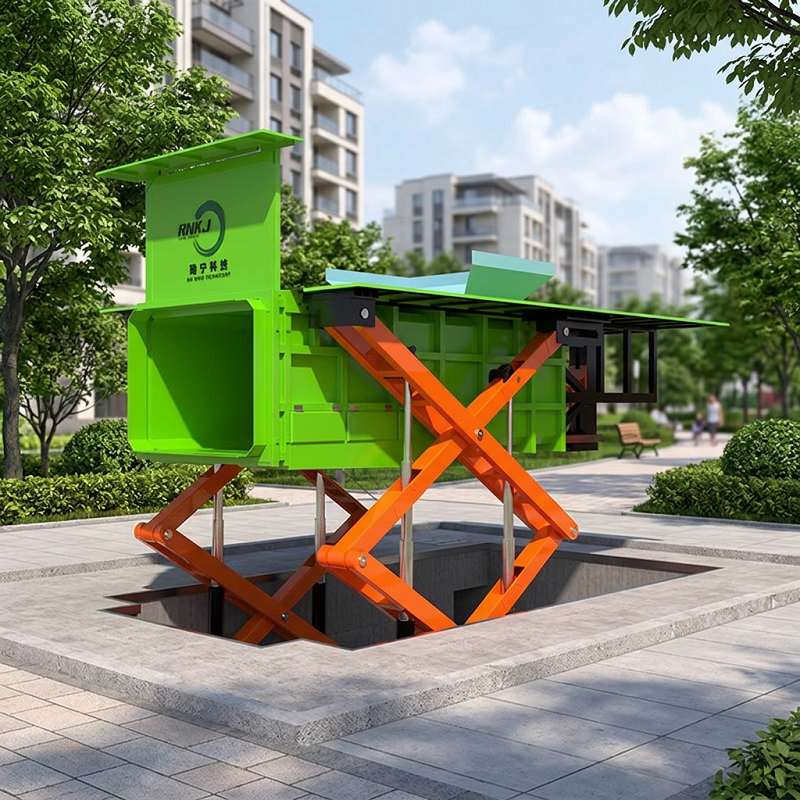

One of the core features of this equipment is its scissor lift elevating mechanism.
When the storage chamber reaches its designed capacity, the hydraulic scissor lift raises the entire compression chamber smoothly to ground level.
Compared with crane lifting or hook lifting structures, the scissor lift provides:
Stable lifting
Strong load-bearing capacity
Accurate positioning
Smooth operation
High safety performance
This design makes daily maintenance and waste transfer simple and efficient.
Unlike detachable container systems, this Hydraulic Underground Horizontal Waste Compression Station uses a hydraulic ejector plate.
After lifting:
A garbage truck docks directly with the discharge end.
The hydraulic push plate pushes the compressed waste into the truck.
The garbage truck transports the compressed waste directly to the treatment plant.
The compression chamber remains fixed to the equipment throughout the process.
Advantages
No container replacement
Faster unloading
Reduced labor intensity
Lower equipment investment
Continuous and reliable operation
The enclosed compression chamber effectively isolates garbage from the outside environment.
It helps reduce:
Odor diffusion
Rainwater infiltration
Mosquitoes and flies
Waste exposure
Wind-blown litter
This greatly improves environmental sanitation around the collection station.
Product AdvantagesLarge storage capacity combined with hydraulic compression significantly increases the amount of waste collected before transportation.
This means:
Fewer truck trips
Lower fuel consumption
Reduced labor costs
Higher daily collection efficiency
Compressed waste occupies much less space than loose garbage.
Higher waste density allows each transportation trip to carry more waste, helping municipalities reduce overall logistics costs.
The underground enclosed design minimizes:
Secondary pollution
Waste leakage
Odor emissions
Noise during operation
This creates a cleaner urban environment.
The hydraulic system features:
Stable operating pressure
Heavy-duty hydraulic cylinders
Reliable sealing components
Long service life
Low maintenance requirements
Optional PLC automatic control can further improve operational safety and efficiency.
The station can be customized according to project requirements.
Optional configurations include:
Compression capacity
Chamber volume
Feeding hopper size
Hydraulic power unit
PLC intelligent control
Automatic monitoring system
Remote control
Full stainless steel feeding hopper
Anti-corrosion coatings
Hydraulic Underground Horizontal Waste Compression Station Working Processhe operation process is straightforward and highly efficient.
Municipal waste collection vehicles or small transfer carts dump loose garbage into the feeding hopper of the underground compression station.
The hydraulic cylinder drives the compression plate forward, compressing the garbage horizontally and pushing it into the storage chamber.
The station continuously repeats the feeding and compression process until the storage chamber reaches full capacity.
Once the chamber is full, the hydraulic scissor lift elevating system raises the compression chamber smoothly to the ground surface.
A garbage truck positions itself directly behind the compression station.
The hydraulic ejector plate pushes the compressed waste directly into the garbage truck.
The garbage truck transports the compressed waste to the waste transfer station, incineration plant, or landfill for final treatment.
After unloading, the compression chamber returns underground and resumes normal operation.
Optional ConfigurationsCustomers can customize the station according to local waste collection requirements.
Available options include:
Different compression capacities
Various chamber sizes
Automatic PLC control
Touch screen interface
Remote monitoring
Automatic fault diagnosis
Hydraulic safety protection
Liquid leakage collection system
Odor control system
Stainless steel hopper
Customized colors and branding
Technical ParametersCompression Type | Horizontal compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Ground gallows, side gallows, four pillars |
Product Style
|
|
Why Choose Our Hydraulic Underground Horizontal Waste Compression Station?High hydraulic compression efficiency
Underground installation saves valuable land
Stable scissor lift elevating system
Compressed waste is hydraulically pushed directly into the garbage truck
Fully enclosed structure reduces odor and pollution
Low transportation and operating costs
Heavy-duty hydraulic system with long service life
Easy operation and maintenance
Suitable for continuous municipal waste collection
Custom engineering solutions available
FAQA Hydraulic Underground Horizontal Waste Compression Station is an underground municipal waste collection system that compresses garbage horizontally using hydraulic power. Once full, the chamber is lifted by a scissor lift, and the compressed waste is hydraulically pushed directly into a garbage truck for transportation.
After lifting the underground compression bin, the hydraulic pushing mechanism transfers compressed garbage directly into the garbage truck for transportation to a waste treatment plant.
It is suitable for most municipal solid waste, including:
Household waste
Commercial waste
Market waste
Packaging waste
Park waste
Public facility waste
Non-hazardous mixed municipal waste
Underground systems offer several advantages:
Better appearance
Less odor
Reduced noise
Improved hygiene
Larger storage capacity
Lower transportation frequency
Better land utilization
Enhanced environmental protection
Yes. We provide customized solutions based on project requirements, including compression capacity, chamber dimensions, control systems, electrical configuration, surface treatment, branding, and other optional features.
