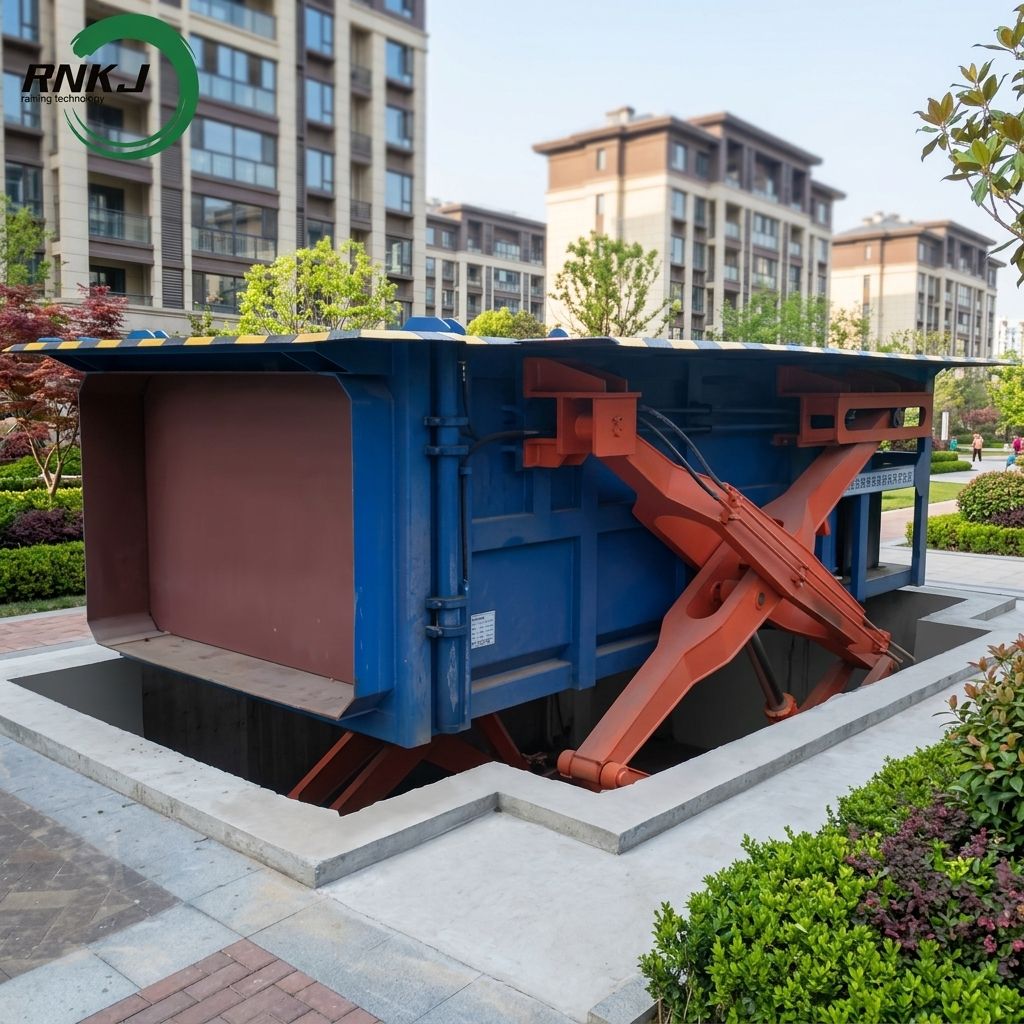

The Hydraulic Underground Horizontal Garbage Compactor is an advanced underground waste compression system designed for high-density garbage collection in urban areas, residential communities, commercial districts, industrial parks, and public facilities. By combining a horizontal hydraulic compression structure, underground installation design, and hydraulic lifting frame system, this equipment provides an efficient solution for reducing waste volume, improving garbage collection efficiency, and optimizing urban environmental management.
Unlike traditional above-ground garbage containers, the Hydraulic Underground Horizontal Garbage Compactor is installed below ground, keeping the garbage storage area hidden while only the feeding platform remains visible. The system uses hydraulic power to compress waste horizontally inside the underground chamber, significantly increasing storage capacity and reducing the frequency of garbage transportation.
The compressed waste can be pushed directly into a garbage truck through the hydraulic pushing mechanism, allowing fast and clean waste transfer without manual handling.
What Is a Hydraulic Underground Horizontal Garbage Compactor?A Hydraulic Underground Horizontal Garbage Compactor is a type of underground garbage compression equipment that uses a hydraulic system to compress loose waste into compact blocks. The main body of the compactor is installed underground, while the compression chamber, hydraulic cylinder, lifting structure, and waste storage bin work together to complete the garbage collection and transportation process.
The equipment is mainly composed of:
Underground compression chamber
Hydraulic compression system
Horizontal compression plate
Hydraulic lifting frame system
Garbage storage container
Waste pushing mechanism
Control cabinet
Garbage truck docking system
Through repeated compression cycles, loose household waste, commercial waste, and municipal waste are compressed into a high-density state, greatly reducing waste volume and improving transportation efficiency.

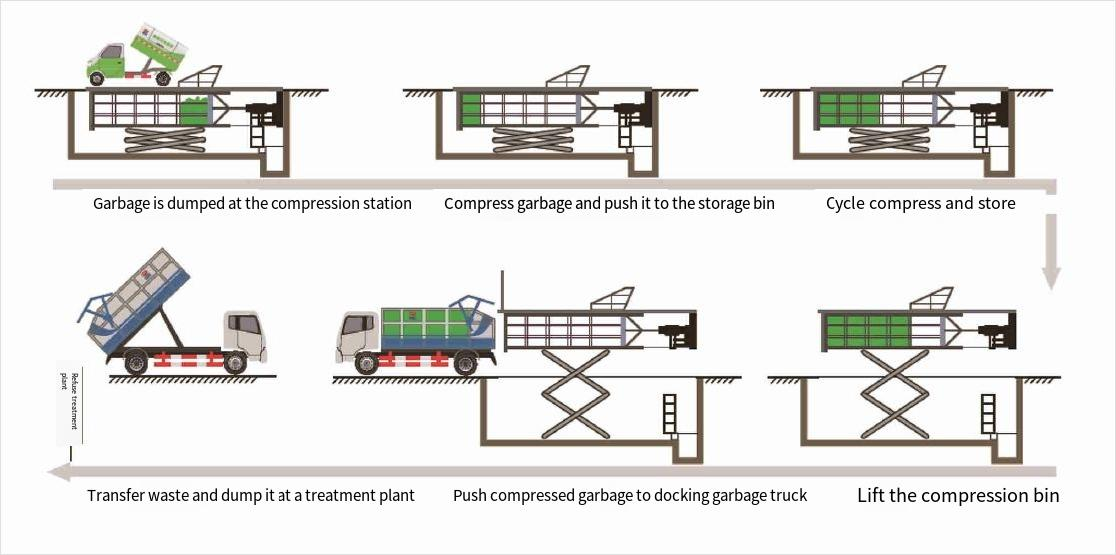

Working Process of Hydraulic Underground Horizontal Garbage CompactorThe working principle of the Hydraulic Underground Horizontal Garbage Compactor includes garbage loading, hydraulic compression, underground storage, lifting, and waste transportation.
Garbage is collected from surrounding areas and dumped into the underground compression station through the feeding opening.
The garbage can come from:
Residential communities
Shopping malls
Hotels
Schools
Office buildings
Industrial areas
Municipal waste collection points
The underground design keeps garbage containers hidden, reducing odor exposure, visual pollution, and occupied space.
After garbage enters the compression chamber, the hydraulic system starts working.
The hydraulic cylinder drives the horizontal compression plate to move forward, pushing and compressing the garbage inside the chamber.
The advantages of horizontal hydraulic compression include:
High compression force
Stable operation
Reduced waste volume
Increased storage capacity
Lower transportation frequency
During continuous operation, garbage is compressed repeatedly until the storage chamber reaches the preset capacity.
After compression, the compacted waste blocks are stored inside the underground garbage container.
The underground storage design provides several benefits:
The equipment is installed underground, which saves valuable surface space and keeps the surrounding environment clean.
Only the garbage feeding area is visible above ground, making it suitable for modern urban landscapes.
The closed underground structure helps reduce:
Bad smells
Garbage exposure
Waste scattering
Pest problems

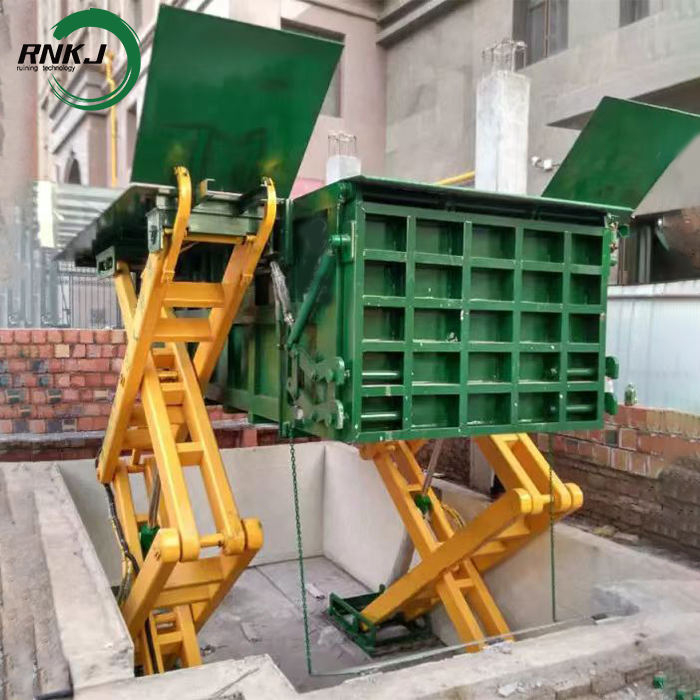

Hydraulic Lifting Frame SystemThe Hydraulic Underground Horizontal Garbage Compactor adopts a hydraulic scissor lifting system to raise and lower the underground compression bin.
The lifting frame works through hydraulic cylinders, allowing the garbage container to smoothly move between underground and ground levels.
During normal operation, the compression bin remains underground. Garbage is continuously loaded and compressed inside the chamber.
When the garbage storage container is full, the hydraulic lifting system activates.
The scissor lifting platform raises the compression bin from the underground pit to the ground level.
After lifting, the compression bin aligns with the garbage collection truck for waste transfer.
The lifting system provides:
Stable vertical movement
Strong load-bearing capacity
Safe operation
Easy maintenance access
Compressed Garbage Discharge and TransportationOne of the key features of the Hydraulic Underground Horizontal Garbage Compactor is that the compressed garbage can be pushed directly into a garbage truck.
After the compression bin is lifted:
The garbage truck is positioned at the discharge side.
The hydraulic pushing mechanism starts.
The compressed garbage block is pushed horizontally.
Waste enters the garbage truck container.
The garbage truck transports the waste to a treatment facility.
This process eliminates the need for manual garbage unloading and improves collection efficiency.
Technical ParametersCompression Type | Horizontal compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Ground gallows, side gallows, four pillars |
Product Style
|
|
Main Features of Hydraulic Underground Horizontal Garbage CompactorThe underground structure provides a cleaner and more attractive waste management solution.
Benefits include:
Small surface footprint
Better urban appearance
Reduced environmental impact
Suitable for high-density areas
The hydraulic system provides strong compression force for different types of waste.
It can handle:
Household garbage
Municipal solid waste
Commercial waste
Mixed waste
The hydraulic compression technology improves waste density and reduces transportation costs.
Compared with vertical compactors, the horizontal compression structure offers:
Continuous compression operation
Larger storage capacity
Smooth waste pushing process
Convenient connection with garbage trucks
The lifting platform uses a hydraulic scissor mechanism, providing reliable underground garbage container lifting.
Advantages:
Stable lifting performance
High safety level
Strong loading capacity
Long service life
The compressed waste can be directly pushed into a garbage collection truck, making the entire waste transfer process faster and cleaner.
Suitable for connection with:
Hook lift trucks
Garbage transport trucks
Waste collection vehicles
Applications of Hydraulic Underground Horizontal Garbage CompactorThe Hydraulic Underground Horizontal Garbage Compactor is widely used in places requiring efficient and clean waste management.
Provides centralized garbage collection while improving community appearance.
Suitable for:
Shopping centers
Restaurants
Hotels
Business districts
Used as modern urban waste compression equipment for smart city projects.
Handles large amounts of industrial and general waste.
Suitable for:
Schools
Hospitals
Airports
Transportation hubs
Advantages Compared with Traditional Garbage Containers| Traditional Garbage Container | Hydraulic Underground Horizontal Garbage Compactor |
|---|---|
| Large exposed garbage area | Underground hidden installation |
| Frequent garbage collection | Reduced transportation frequency |
| Low storage efficiency | High-density compression |
| More odor problems | Closed underground structure |
| Manual handling required | Hydraulic automatic operation |
| Poor appearance | Cleaner urban environment |
Why Choose Hydraulic Underground Horizontal Garbage Compactor?The Hydraulic Underground Horizontal Garbage Compactor combines underground waste storage, hydraulic compression, and automatic garbage transfer technology into one efficient system.
Key advantages include:
High garbage compression ratio
Reduced waste transportation costs
Cleaner urban environment
Space-saving underground installation
Automatic hydraulic operation
Long service life
Easy garbage collection management
It is an ideal solution for modern cities looking for intelligent, efficient, and environmentally friendly waste management equipment.
FAQThe system uses hydraulic cylinders to drive a horizontal compression plate, compressing loose garbage into dense blocks underground. When full, the lifting system raises the compression bin and pushes compressed waste into a garbage truck.
After lifting the underground compression bin, the hydraulic pushing mechanism transfers compressed garbage directly into the garbage truck for transportation to a waste treatment plant.
The hydraulic lifting frame raises and lowers the underground garbage container, allowing easy garbage transfer and equipment maintenance.
The Hydraulic Underground Horizontal Garbage Compactor is suitable for household waste, municipal solid waste, commercial waste, and mixed garbage.
Underground installation saves space, improves city appearance, reduces odor, prevents waste exposure, and creates a cleaner waste collection environment.
