Horizontal Trash Compactor is a waste reduction processing equipment that operates based on horizontal pressure. It uses a hydraulic system to drive the compression head, which forcefully compresses loose waste to significantly reduce its volume. It is the core equipment of the urban and rural domestic waste collection and transportation system. Its core advantages include high compression ratio, good sealing and leak prevention, small footprint, and strong adaptability. It is widely used in various waste transfer stations and centralized treatment points.
Product AdvantageMaximizing space utilization
The horizontal compression method enables the garbage to be evenly subjected to force within the compression chamber. The volume of loose garbage can be compressed to 1/3 - 1/5 of its original size, significantly reducing the space occupation for garbage storage and transportation. For example, the garbage that originally required 5 transfer vehicles can now be transported by 1 vehicle, directly reducing transportation costs.
Adaptable to various types of waste
Whether it is municipal solid waste, industrial packaging waste, or catering kitchen waste, it can handle them efficiently. Especially for fluffy plastics and paper waste, the horizontal compression molding effect is more stable than the vertical type, and the compressed garbage blocks are less likely to become loose.
High degree of automation
Most mainstream products are equipped with PLC control systems, enabling the entire process of material feeding, compression, and discharging to be carried out automatically. Some models also support remote monitoring and fault warning. This not only reduces manual intervention and lowers labor costs, but also avoids potential safety hazards caused by manual operations.
Flexible docking compatibility
It can seamlessly connect with various front-end feeding and rear-end transportation equipment such as bucket feeders, conveyor belts, and garbage transfer vehicles, and is compatible with different scales of waste treatment scenarios - from small community transfer stations to large environmental sanitation processing centers.
Low long-term operating costs
Although the initial investment for the equipment is higher than that of small compressors, in the long run, the reduced transportation frequency, garbage disposal costs, and the manpower savings brought about by automation can quickly recoup the costs. Moreover, the hydraulic system, which is the core component, has a service life of 8-10 years, and the maintenance costs are relatively manageable.
Technical Parameters
Compression Type | Horizontal compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Ground gallows, side gallows, four pillars |
Working Process Feed stage: The garbage enters the compression chamber through the feed opening, and sensors detect the filling volume.
Compression stage: The moving compression plate is driven by the hydraulic system to move horizontally, compressing the garbage to 1/3 - 1/5 of its original volume.
Storage stage: After the compression is completed, the moving plate retreats, and new garbage is continuously filled into the compression chamber, repeating the compression process.
Discharge stage: When the compression chamber is full or reaches the set pressure, the push plate pushes the compressed garbage block into the transfer vehicle or container.
Product Style
|
|
Core StructureCompression system:
Fixed compression plate: Installed vertically, serving as the compression reference surface
Moving compression plate: Moves back and forth along the horizontal track, providing the main compression force
Hydraulic drive unit: Provides the power source
Feed system:
Hopper/Feed port: Supports manual feeding, through conveyor belt or bucket elevator
Pre-treatment device: Optional configuration includes crushing and sorting modules
Control system:
PLC/Touch Panel: Achieve automated operation and pressure regulation
Safety Sensors: Detect parameters such as garbage filling volume and door status
Storage and discharge system:
Compression chamber: Temporarily stores the compressed garbage blocks
Discharge mechanism: Sends the compressed blocks into the transfer container through a push plate or inclined device

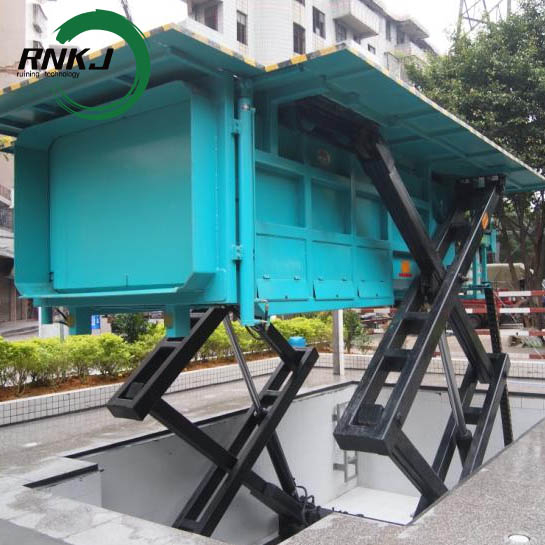

Applicable SceneUrban community / residential area: Underground integrated machine, occupies a small area and does not cause any odor disturbance to residents.
Commercial complexes / Schools / Hospitals: Small integrated machines, suitable for high-frequency, small-volume garbage disposal
Township waste transfer station: Split-type, balancing both processing capacity and transfer efficiency
Scenic area / highway service area: Underground type, aesthetically pleasing and in line with environmental protection requirements
Industrial Park: Heavy-duty split type, suitable for industrial solid waste and high-load operations
Why choose the Horizontal Trash Compactor?Core value: Solving the problem of waste disposal
Maximization of volume reduction: The Horizontal Trash Compactor can compress loose waste to 1/3 - 1/6 of its original volume, directly reducing the space requirements for waste storage and transportation. For example, 10 cubic meters of household waste can be compressed to only 2-3 cubic meters, significantly reducing the frequency of transportation.
Improvement of processing efficiency: Automated feeding, compression, and discharging processes, with a single unit capable of processing 5-100 tons per day, is 10-20 times more efficient than manual processing, suitable for scenarios where waste is generated in concentrated amounts.
Reduction of transportation costs: The density of compressed waste increases to 0.5-0.8 tons per cubic meter, reducing the transportation cost per ton of waste by 40%-60%. In the long run, it can save a significant amount of expenses for the operator.
Scene Adaptation: Precisely Matching Specific Requirements
Among the following scenarios, the advantages of the Horizontal Trash Compactor are particularly prominent:
Urban Domestic Waste Transfer Station: Handling loose and complex residential waste, which is compressed to facilitate sealed transportation and reduce secondary pollution.
Industrial Park: Handling large amounts of industrial packaging waste and scraps, such as plastics and foams, which are fluffy materials. After compression, it can save a significant amount of storage space.
Commercial Complexes/Logistics Warehouses: Responding to the concentrated waste generated during peak periods, quickly compressing and storing it to avoid garbage accumulation affecting operations.
Large Venues/Scenic Areas: During tourist seasons or event periods, efficiently handling the sudden increase in garbage volume to maintain environmental cleanliness.
Long-term benefits: Reducing the cost of waste disposal
Strong equipment durability: The core hydraulic system of the Horizontal Trash Compactor is made of high-strength steel and sealed components. With normal maintenance, its service life can reach 8-10 years, and the annual depreciation cost is relatively low.
Cost savings in labor: Automated operation only requires 1-2 people for monitoring, eliminating the need for manual handling and packaging. One device can replace the work of 5-8 garbage disposal workers.
Compliance and environmental friendliness: The compressed garbage blocks have good sealing properties, reducing leakage and odors during transportation, and comply with the standardized requirements of environmental protection departments for garbage transfer, avoiding compliance risks.
Smooth connection for resource utilization: The compressed garbage blocks are convenient for subsequent incineration power generation, landfill or recycling processing, and can better connect with the resource utilization industrial chain.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
