The High Power Underground Horizontal Garbage Compactor is a modern environmental protection equipment that integrates garbage collection, horizontal compression, cross-up and down lifting, sealed storage, and automatic discharge. Its core advantages lie in the underground concealed design and cross-up and down lifting technology, which enables the entire garbage processing process to be fully enclosed, reduced in volume, and presented in a landscape-friendly manner.
Core Definition Of The ProductThis equipment is the high-end model of a buried garbage compression station, distinct from traditional ground-based and ordinary lifting-type garbage compressors. Its features include:
Underground horizontal compression: The compression mechanism completes the horizontal garbage compaction underground, with stable compression force and significant volume reduction effect.

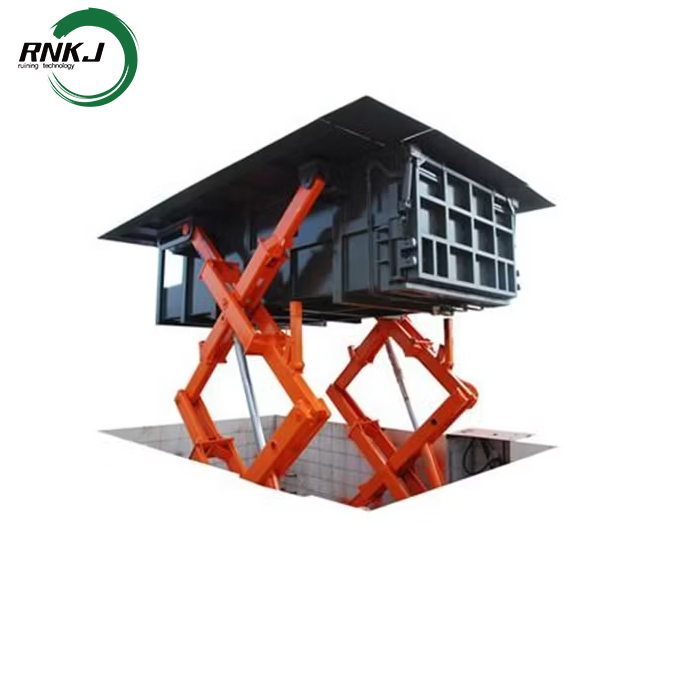

Cross-lifting mechanism: It adopts a cross-bar lifting mechanism, which is more stable in lifting, occupies less space, and the lifting height can be adjusted.

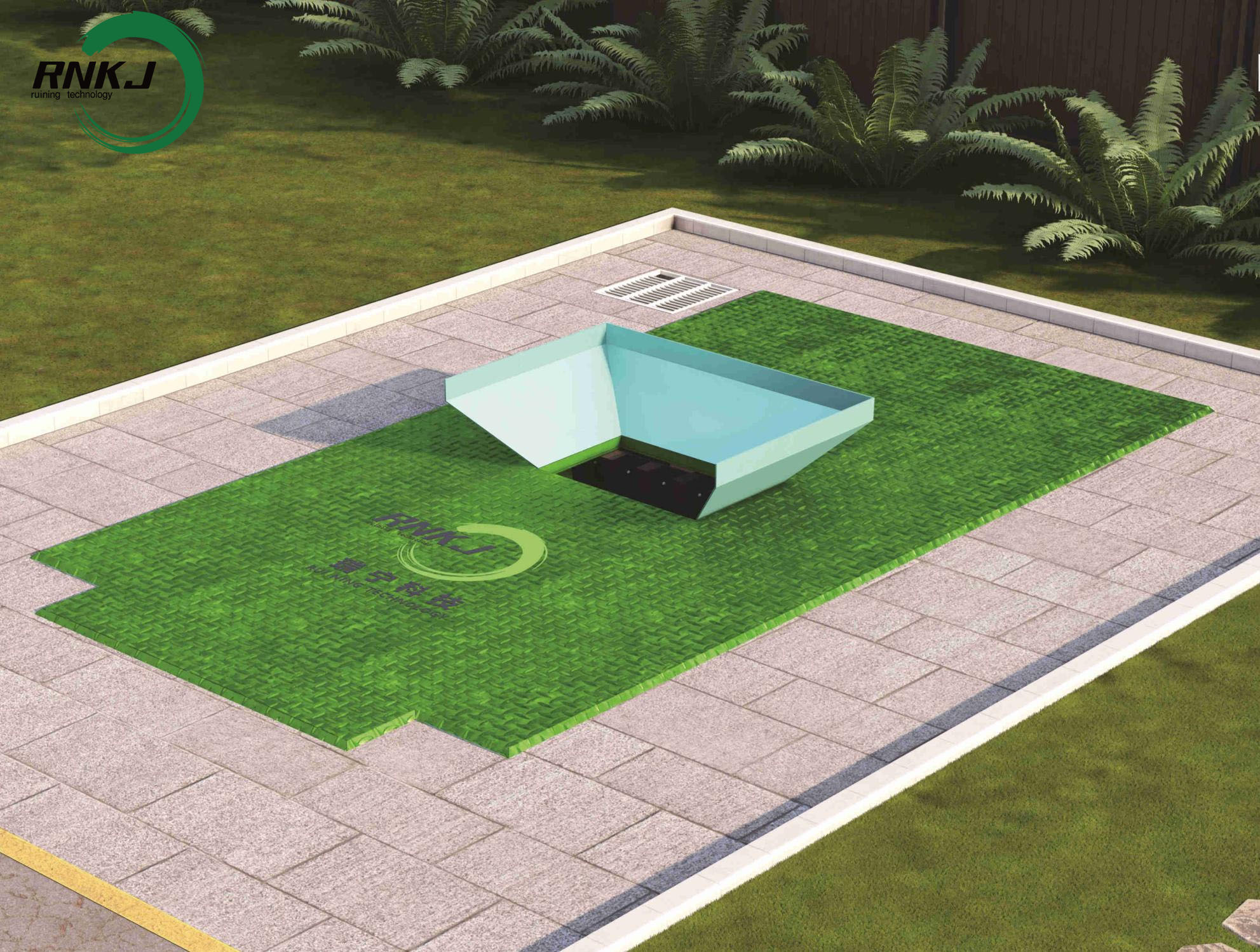

Fully enclosed operation: The main body is deeply buried underground, with only the feeding port and operation panel remaining on the ground. There is no garbage exposure, effectively controlling odors and leachate pollution.
Product positioning: It is suitable for areas with tight land use and high environmental requirements, such as urban communities, commercial centers, parks and scenic spots, government agencies, etc. It is the preferred equipment for landscape-friendly garbage transfer stations.
Product AdvantageUnderground hidden design: Only the loading port is left on the ground, occupying only one-third of the area of a traditional garbage station, saving land resources.
Cross-lifting technology: Compared with four-column lifting, the demand for horizontal space is reduced, suitable for installation in narrow areas.
High-pressure horizontal compression: High compression ratio, reduced garbage volume, significantly lowering transportation costs.
High-density compression: High garbage density, the same box volume can accommodate more garbage, reducing the number of transfers.
Fully enclosed operation: The garbage is completely enclosed throughout the process, effectively preventing odor diffusion, mosquito breeding and secondary pollution.
Zero leakage of leachate: The box is sealed, with a dedicated drainage system, high collection rate of leachate, avoiding pollution of soil and groundwater.
Low noise and low dust: The operation noise is low, equipped with a spray dust suppression device, in line with urban environmental protection standards.
Intelligent control: PLC one-button automatic circulation, remote control operation, one person can manage multiple stations.
Smooth lifting: Cross-arm lifting mechanism, stable center of gravity, smooth lifting, preventing the box from tilting.
Technical ParametersCompression Type | Horizontal compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Ground gallows, side gallows, four pillars |
Run ProcessLoading stage：
The loading door automatically opens, and the collection vehicle倾倒 loose garbage into the underground compression box.
After loading is completed, the door automatically closes, triggering the compression process.
Horizontal compression cycle:
The hydraulic cylinder drives the shovel to move horizontally, applying pressure to the garbage and extracting the moisture from it.
The wastewater flows through the drainage holes at the bottom of the tank, the diversion channel, the sewage well, and the submersible pump and is then discharged into the urban sewage network.
The shovel is reset, waiting for the next feeding, and the cycle of compression continues until the tank is full.
Cross-up and down lifting stage:
After compression is completed, the cross-up and down mechanism is activated, lifting the compressed box body smoothly off the ground.
Precisely align with the garbage transfer vehicle to ensure smooth unloading.
Discharge and reset stage:
The front door of the box automatically unlocks and opens. The compression shovel moves forward again, pushing the compressed garbage into the transfer vehicle.
The shovel is reset, the front door closes, and the cross-lifting mechanism lowers the box smoothly back underground, waiting for the next round of operation.

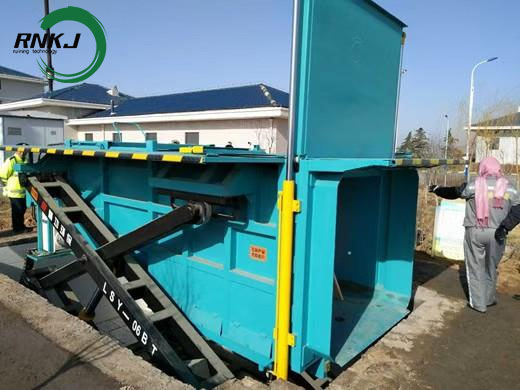

Product Style
|
|
Application Scenarios And Scope Of ApplicationUrban residential community: Limited land, high environmental requirements, stable garbage volume
Recommended model: 6-8 cubic
Business center / office building: High foot traffic, high landscaping requirements, large amount of garbage
Recommended model: 8-10 cubic
Park / Scenic Area: Sensitive area for landscapes, moderate amount of garbage, extremely high environmental protection requirements
Recommended model: 6-8 cubic (optional landscape-style feeding port)
Government agencies / schools: Moderate amount of waste, well-managed, limited space
Recommended model: 6-8 cubic units
Townships / Rural Areas: Garbage is scattered and the transportation distance is long, thus the transportation efficiency needs to be improved.
Recommended model: 10-12 cubic.
Industrial park: Large amount of waste, some of it contains industrial garbage, high compression force required
Recommended model: 10-12 cubic
The High Power Underground Horizontal Garbage Compactor is a technological upgrade product for garbage transfer station equipment. Through the underground hidden design, it solves the problems of large land occupation, environmental pollution and impact on the landscape in traditional garbage stations. At the same time, the cross-up and down lifting technology and high-pressure horizontal compression ensure the efficient operation of the equipment and significant reduction in volume.Choose our High Power Underground Horizontal Garbage Compactor to achieve the goals of reducing, harmlessizing, landscaping and intelligentizing your garbage disposal.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
