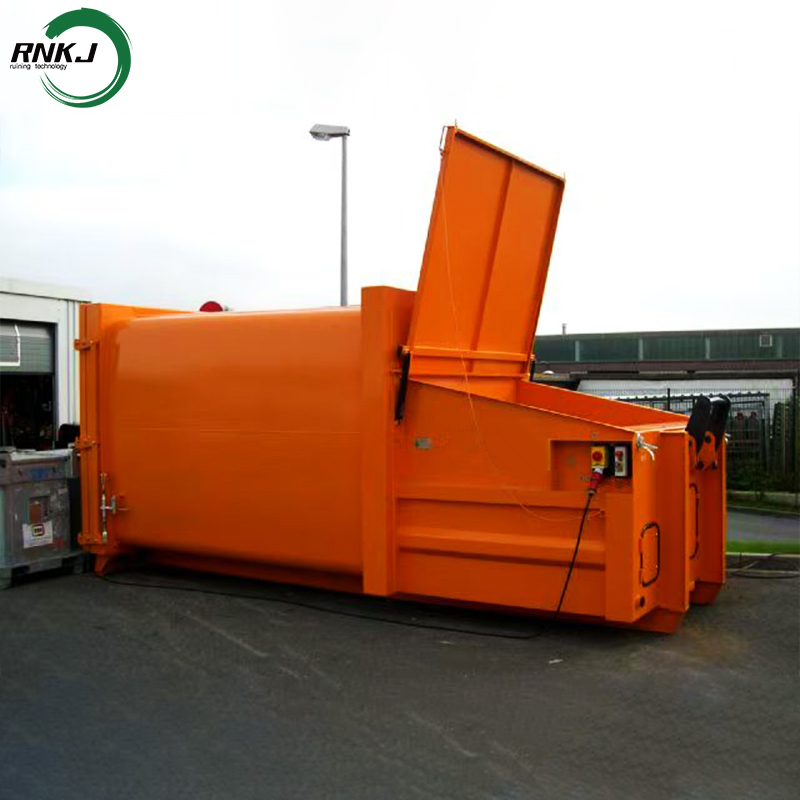

The Heavy-duty Mobile Garbage Compaction Station is a highly integrated and fully transferable environmental sanitation waste treatment equipment that integrates functions such as garbage collection, compression reduction, sealed storage, and transfer discharge.
Unlike fixed-type garbage compression stations, it does not require permanent foundation construction or separate station buildings. It is a flexible and efficient waste collection and transportation solution suitable for various scenarios in urban and rural areas.
Product AdvantageNo need for civil engineering infrastructure. Low investment and quick implementation.
There is no need for a dedicated machine room. Any open space, corner area or idle site can be used for placement.
The compression and reduction effect is strong, significantly reducing transportation costs.
The compression ratio of garbage is high. The fluffy domestic waste and kitchen waste are compressed and densified by hydraulic pressure, resulting in a significant reduction in volume.
Fully sealed design, zero secondary pollution for the environment
The entire machine is fully sealed and welded. The feeding port has a hydraulic flap cover, and the rear door is locked by hydraulic means. There are double layers of sealing rubber strips.
Flexible moving transition, free layout
Compatible with conventional boom trucks, capable of lifting, transporting at any time, and changing the drop-off points at any time
Small in area, saving land resources
Integrated design, the entire machine is compact in size and does not require a large-scale sanitation station.
Multi-functional, with a wide range of applications
Can handle: domestic household waste, wet kitchen waste, commercial waste, garden fallen leaves and branches, market waste, lightweight construction debris, etc.
High degree of automation, saves manpower, simple operation
Supports one-click automatic compression, cyclic operation, remote control, no need for repeated manual garbage disposal
Low operating and maintenance costs, energy-saving and environmentally friendly
The hydraulic system is mature and stable, with moderate motor power and low power consumption. Daily operation energy consumption is low.
Working PrincipleGarbage feeding stage
Place the garbage, bulk garbage, and food waste into the feeding hopper of the equipment;
When the equipment senses the feeding, the hydraulic cover automatically drops to seal, preventing the leakage of garbage odors and blocking the entry of rainwater and debris into the box;
The safety interlock device is activated simultaneously: When the cover is not fully closed, the compression system cannot be started, ensuring the safety of the operation.
Hydraulic force compression stage
The electronic control system is activated, and the drive motor drives the hydraulic oil pump to operate. The hydraulic oil in the hydraulic tank is filtered and pressure-regulated before entering the hydraulic valve group;
The control valve group precisely distributes the oil path. High-pressure hydraulic oil enters the compression main cylinder, pushing the compression push plate to move forward smoothly along the high-strength guide rail;
The push plate forcibly pushes the garbage in the feeding hopper into the sealed storage box, performing horizontal strong compression on the garbage and squeezing the loose garbage into a compact state;
When the set pressure threshold is reached, the hydraulic system automatically maintains pressure and stabilizes pressure to prevent the garbage from rebounding; then the oil path changes, and the oil cylinder drives the push plate to automatically return to the initial position, waiting for the next feeding and compression.
The process of feeding, compression, and return is repeated cyclically, and the garbage is layer by layer compressed and accumulated inside the box.
Automatic warning and locking for full container
A garbage level sensor is installed inside the container. When the garbage is compressed to fill the entire container volume, the sensor triggers a signal;
The equipment emits an audible and visual full-container alarm, and simultaneously locks the compression function, prohibiting further feeding operations;
The rear door of the container maintains a multi-point hydraulic locking seal state, ensuring no gaps throughout the process, preventing garbage from falling during transportation, odor leakage, and leakage of filtrate.
Overall hoisting and transfer
The boom-type garbage transfer vehicle arrives at the site and connects with the boom connection mechanism of the equipment;
Using the mechanical pulling force of the boom vehicle, the entire mobile compression station is hoisted and towed onto the vehicle body at one time;
The entire container is locked in a sealed state throughout the process, without the need to open the container or transfer it, and is directly transported to the garbage disposal plant.
Automatic unloading principle at the station
After being transferred to the processing site, the boom truck lowers the compression box and fixes it;
The operator starts the unloading mode, and after the hydraulic system is unlocked, the box door opens, and the rear door automatically fully opens;
The compression push plate pushes forward again, and the entire solid piece of garbage压实 in the box is pushed out and unloaded at one time；
After unloading is completed， the push plate returns to its original position， and the rear door automatically closes and locks， allowing the equipment to return to its original position for reuse.
Structure And Core Component SystemMain frame and box assembly
Main body: Made of high-strength carbon steel, fully welded, with a fully sealed structure; surface coated with anti-corrosion coating, resistant to rust and corrosion
Compression chamber: Thickened and reinforced steel structure, lined with wear-resistant steel plates, resistant to impact and friction
Storage box body: Fully sealed design, box edge with anti-seepage function, double-layer rubber sealing strips, completely preventing leakage of filtrate
Back box door: Hydraulic-driven opening and closing, equipped with multi-point locking structure, ensuring complete sealing and no leakage or odor diffusion during transportation
Lifting locking mechanism: Compatible with sanitation boom trucks for loading and unloading, equipped with a safety lock, preventing accidental box opening during transportation
Compression pushing mechanism
Compression pushing plate: Made of heavy-duty thick steel plate, equipped with replaceable wear-resistant inserts, ensuring smooth material pushing and low deformation
Hydraulic cylinder: Single cylinder / double cylinder options available
Guiding slide rails: Hardened steel guide rails, ensuring smooth operation of the pushing plate and low friction loss
Feed-in and material input system
Feed hopper / feed opening: A standard large opening, facilitating the direct dumping of bagged garbage and trash bins; optional trash bin flipping feeding mechanism
Hydraulic cover: Automatic hydraulic sealed cover, isolating odors and preventing rainwater from entering; equipped with safety interlock, the equipment is prohibited from performing compression operations when the cover is opened
Pre-compression push plate: For large debris, it pre-crushes and pre-compacts first, improving the overall compression efficiency of the machine
Hydraulic power system
Hydraulic pump: Uses gear pump
Hydraulic oil tank: Large volume, equipped with oil filter, level gauge, and oil temperature sensor
Hydraulic control valve group: Proportional directional valve, precise and controllable operation; standard equipped with overload relief valve, system overload protection
Cooling system: Air-cooled radiator, stabilizes the hydraulic oil temperature within the optimal working range of 40-60℃
Electrical control system
Operation Panel: Dual backup of LCD touch screen and physical buttons, real-time display of system pressure, oil temperature, and operating status
Control Mode: Local panel manual control, remote control, optional fully automatic sensor operation mode
Safety Protection: Emergency stop button, motor overload protection, cabin door interlock protection, fault sound and light alarm system
Percolate liquid collection and treatment system
Diversion grooves: A diversion groove is built into the bottom of the box to automatically collect and gather the compressed sewage and percolate liquid.
Technical ParametersPerformance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Application ScenariosUrban living scenarios
Residential areas: Residential communities, resettlement housing, etc. Replace open-air facilities, occupy less land, have no odor, and reduce garbage collection and transportation.
Scattered areas: Urban-rural fringe areas, urban villages. Set up points flexibly to solve the problems of random garbage stacking and untimely garbage collection and transportation.
Township and rural scenarios
Township streets/marketplaces: No need to build large stations; one machine covers all areas, reducing infrastructure investment.
Rural areas: Mobile transportation.
Commercial and public service scenarios
Commercial district: Includes commercial streets and supermarkets. It is sealed and odor-proof, and the location can be flexibly adjusted.
Agricultural wholesale market: Comes with a system for collecting leachate, solving the problems of wet waste and sewage.
Education and healthcare scenarios
Schools: Safe interlock system, no odor, does not occupy activity space.
Medical institutions / rehabilitation centers: Fully enclosed to prevent odor and bacterial transmission, suitable for classified storage.
Industrial and industrial park scenarios
Industrial factory area: Compression and reduction of space, reduction of transfer vehicle trips, unused open spaces can be utilized for storage.
Logistics and storage area: Centralized compaction and packaging of waste for recycling, reduction of transportation costs.
Infrastructure construction and temporary operation scenarios
Construction sites / municipal renovations: Can be relocated as the site changes, without the need for a fixed foundation.
Remote operation areas: Can be powered by diesel engines, and can operate without city electricity.
Tourism and leisure scenarios:
Tourist attractions: Clean exterior that can be concealed, suitable for multiple points of distribution, without damaging the landscape.
City parks/squares: Quiet and odorless, replacing dirty and messy garbage rooms, without affecting the leisure environment.
Transportation hub scenarios
High-speed railway stations, service areas, etc.: Small in size, highly efficient, and capable of flexibly handling peak passenger flows and increased garbage volumes.
Large-scale temporary event scenarios
Concerts, exhibitions, etc.: Short-term placement, complete removal upon event conclusion.
