The Underground Horizontal Garbage Compactor is a modern sanitation equipment that integrates garbage collection, compression reduction, sealed storage, and automatic transportation. Its core design concept is to bury the entire compression system underground, while only keeping the attractive loading port and operation panel above the ground. This equipment has completely changed the dirty, messy, smelly image of traditional garbage collection stations. Through fully enclosed operations, it achieves zero exposure, zero odor, and zero leakage in garbage disposal, making it an ideal choice for solving garbage disposal problems in urban residential areas, commercial areas, and public places. It is particularly suitable for areas with high requirements for environmental aesthetics and hygiene standards.
As the core transfer equipment of the garbage collection and transportation system, the Underground Horizontal Garbage Compactor can compress the volume of loose household garbage to one-third of its original size, significantly improving transportation efficiency, reducing transportation costs, and reducing secondary pollution during garbage transfer. It is one of the key facilities for urban garbage disposal.
Product AdvantageSmall ground area: Only 20-30 square meters are required, and it can be arranged compatibly with greenery, squares, parking lots and other facilities.
No need to build dedicated houses: Eliminates the investment in the construction of the garbage station building and shortens the construction period.
Efficient utilization of underground space: The box volume ranges from 6m³ to 18m³, with multiple specifications available to meet the garbage volume requirements of different areas.
Transportation cost reduction: The density of compressed garbage increases by 3-4 times, reducing the frequency of transportation, and saving fuel and labor costs.
Reduction in human input: Automated operations allow all tasks to be completed by a single person, eliminating the need for dedicated personnel to be on duty.
Low maintenance cost: The core components have a high level of protection, and installation underground reduces exposure to sunlight, rain and human damage.
Long service life: The box body is made of Q345 high-strength steel, and is treated for overall corrosion prevention. The designed service life is 10 to 15 years.
Multi-level safety protection: anti-hand-clamping design, overload protection, leakage protection, emergency stop button, ensuring operational safety.
Structural CompositionCompression Box System
Material: Q345 high-strength steel, formed by overall welding
Anti-corrosion process: sandblasting for rust removal, epoxy primer protection, resistant to acid and alkali corrosion, suitable for underground humid environment
Sealing design: The box door uses double sealing rings to ensure zero leakage during compression and transportation
Stiffener structure: Uniformly distributed stiffeners inside the box enhance the compressive strength and prevent deformation
Hydraulic power system
Core components: Utilize internationally renowned brands for hydraulic pumps, cylinders, and solenoid valves to ensure stability
Tank capacity: Equipped with an oil temperature control and filtration system to extend the service life of hydraulic oil
Pressure adjustment: Automatically adapt to different types of garbage for efficient compression
Energy-saving mode: Automatically reduces system pressure when unloaded to reduce energy consumption and minimize noise
Lifting mechanism system
Type: Bottom hinge frame type lifting cylinder lifting
Lifting capacity: Can easily lift a total weight of 10-16 tons for the container and garbage
Stability: Automatically maintains a horizontal position during lifting to prevent garbage from shifting or tipping over
Limit protection: Upper and lower limit sensors precisely control the lifting height to avoid damage due to exceeding limits
Electrical control system
PLC programmable controller: Fast response, high control accuracy
Operation mode: Supports on-site button operation and remote control operation
Wastewater treatment system
Anti-clogging design: Drainage outlets are equipped with filter screens, and automatic backwashing is carried out regularly
Level control: Float level gauge automatically controls the start and stop of the sewage pump to prevent dry burning and overflow
Safety protection system
Infrared sensing: Infrared detectors are installed at the feeding port and the lifting area. The machine will automatically stop when personnel approach.
Overload protection: When the compression force exceeds the set value, the pressure will be automatically released to ensure the safety of the equipment and personnel.
Emergency stop: Emergency stop buttons are set in multiple locations on the equipment to ensure quick shutdown in case of abnormal situations.
Electric leakage protection: The electrical system is equipped with leakage circuit breakers to prevent electric shock accidents.
Technical ParametersCompression Type | Horizontal compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Ground gallows, side gallows, four pillars |
Run ProcessGarbage collection stage
Multiple feeding methods are compatible: Supports manual carts, three-wheel dump trucks, small compression trucks and other front-end collection tools for unloading.
The oversized feeding port design facilitates quick dumping and reduces waiting time.
The feeding door automatically senses opening or closing to prevent odor leakage and mosquito and fly breeding.
Horizontal compression process
The compression mechanism consists of a push plate, an oil cylinder, and a support frame. It is powered by a hydraulic system to provide strong thrust.
The push plate moves back and forth horizontally, compressing the loose garbage layer by layer. The squeezed wastewater flows through the drainage holes at the bottom of the box into the drainage channel in the pit, and finally enters the sewage collection tank for treatment before being discharged.
The compression ratio is as high as 1:3, allowing each cubic meter of the box to accommodate 3-4 times the volume of loose garbage, significantly enhancing the storage capacity.
The single compression cycle takes only 45 seconds, with efficiency far exceeding that of traditional compression equipment.
Sealed storage stage
The design of a fully enclosed container ensures that the garbage remains in a sealed space throughout the process, effectively isolating odors, sewage, and the external environment.
The underground constant-temperature environment slows down the decomposition of the garbage, reduces the generation of odors, and inhibits the reproduction of bacteria.
The intelligent liquid level monitoring system continuously monitors the sewage collection situation and automatically starts the sewage pump to prevent the overflow of sewage.
Automatic transfer process
When the container waste reaches the set capacity, the system automatically issues a full container alarm.

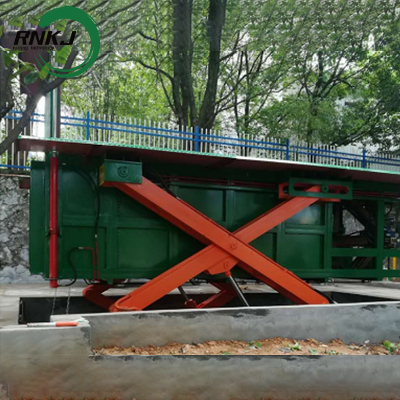

The lifting mechanism is activated, and the entire compressed container is smoothly lifted from the ground to the surface.
Align with the waste transfer vehicle and achieve precise docking.
The hydraulic push plate pushes the compressed and formed waste block into the compartment of the transfer vehicle at one time.
After the unloading is completed, the container automatically resets to the underground pit, closes the feeding door, and enters the next round of operation cycle.
Product Style
|
|
Installation ProcessFoundation excavation: Dig the corresponding-sized foundation pit according to the equipment model. Ensure waterproofing, anti-corrosion, and anti-seepage treatment.
Concrete pouring: Pour the concrete foundation at the bottom, and leave the bolt holes for the anchor bolts.
Equipment hoisting: Use a crane to smoothly place the box into the foundation pit and fix the anchor bolts.
Pipeline connection: Connect the sewage pipe, power line, communication line, and install the sewage pump and control cabinet.
Commissioning and operation: Conduct no-load and load tests, and adjust various parameters to the optimal state.
Ground restoration: Install the discharge port cover plate, carry out greening decoration, and integrate with the surrounding environment.
Choosing the Underground Horizontal Garbage Compactor means choosing a cleaner, more efficient and more sustainable method of waste disposal.
If you want to learn more about the product details, get accurate quotations or watch the on-site demonstration videos, please contact our sales team. We will provide the most suitable waste disposal solution based on your specific needs, helping to upgrade the environmental conditions of your city!
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
