12m³ Underground Horizontal Garbage Compaction Station for Residential Community

The 12m³ underground horizontal garbage compaction station is a fully‑enclosed buried waste disposal solution specially engineered for residential communities, urban residential compounds, property management districts, and densely‑populated living zones. This underground horizontal waste compactor realizes underground storage and on‑site compression of household garbage. After compression, compacted waste blocks are directly pushed out onto the garbage collection truck for transportation, avoiding secondary pollution caused by multi‑step waste transfer. It effectively solves pain points including garbage overflow, bad odors, scattered litter, and noisy waste collection in residential areas, and complies with modern urban environmental sanitation standards.

Different from traditional above‑ground garbage rooms and mobile garbage compressors, the whole main compression body of this 12 cubic meter horizontal garbage compaction equipment is installed below ground level. Only the feeding inlet is exposed on the ground. It saves valuable ground space for residential communities, does not damage the overall landscape of the community, and delivers stable large‑volume waste processing capacity for high‑density residential waste output scenarios.

1. Underground buried installation, beautify community environment

Most functional parts are buried under the ground. There is no bulky above‑ground equipment occupying community public area. It prevents garbage odor spreading outward, reduces visual pollution, and will not interfere with residents’ daily walking and recreation. Suitable for new‑build residential quarters and old‑community environmental upgrading projects.

2. 12m³ large bin capacity, adapt to community daily waste output

12 cubic meters effective compression volume can meet daily garbage collection demand of medium‑sized residential communities with hundreds to thousands of households. It lowers the frequency of garbage truck arrival, reduces traffic disturbance and noise pollution to community residents.

3. Horizontal compression & direct push‑out discharging to garbage truck

Horizontal compaction delivers even compression force for domestic waste. After lifting in place, compacted waste is directly pushed into the garbage truck. No need to lift heavy waste containers. Simplify sanitation workflow, improve waste transfer efficiency, and avoid garbage leakage, dripping sewage during container hoisting and moving.

4. Heavy‑duty scissor lift structure, stable lifting performance

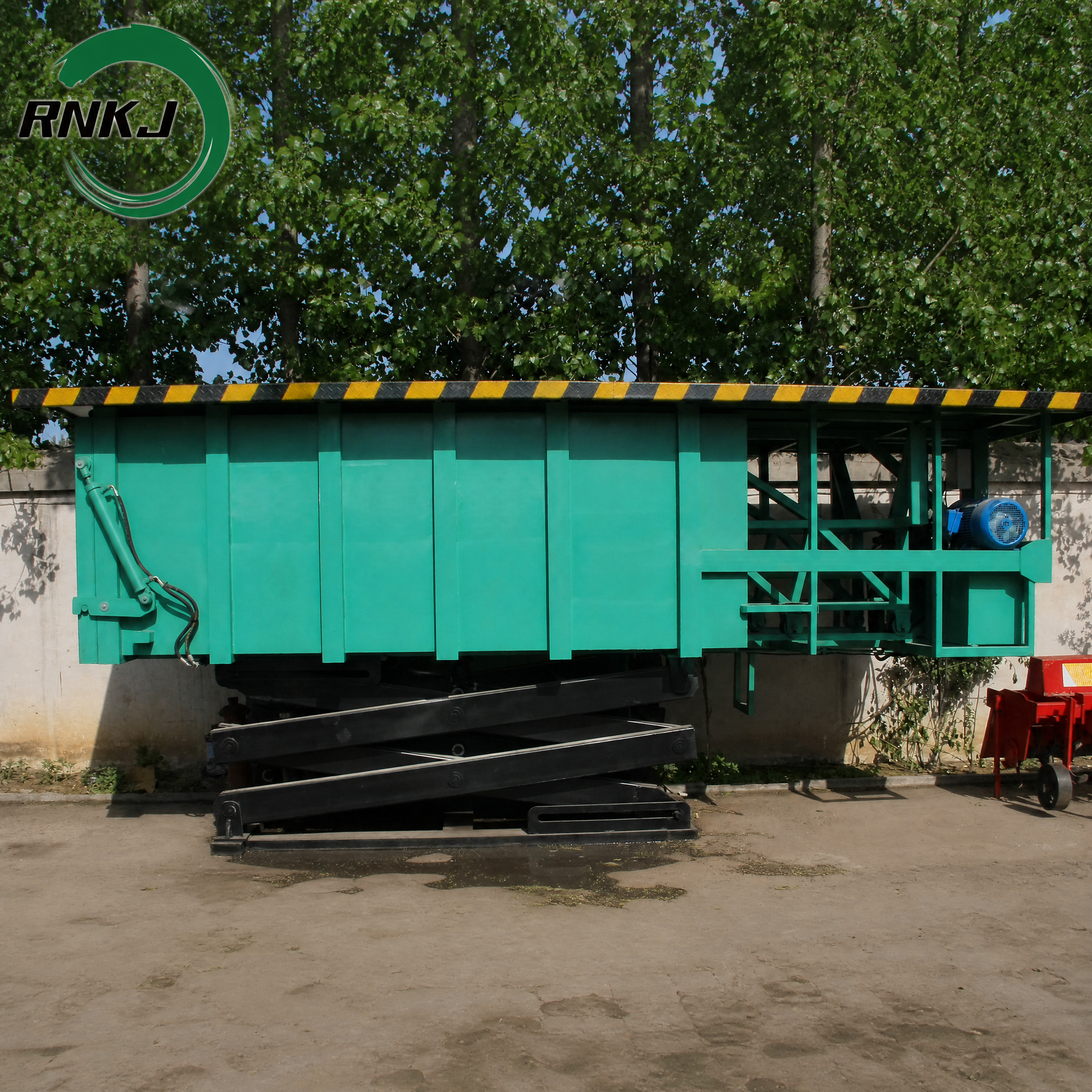

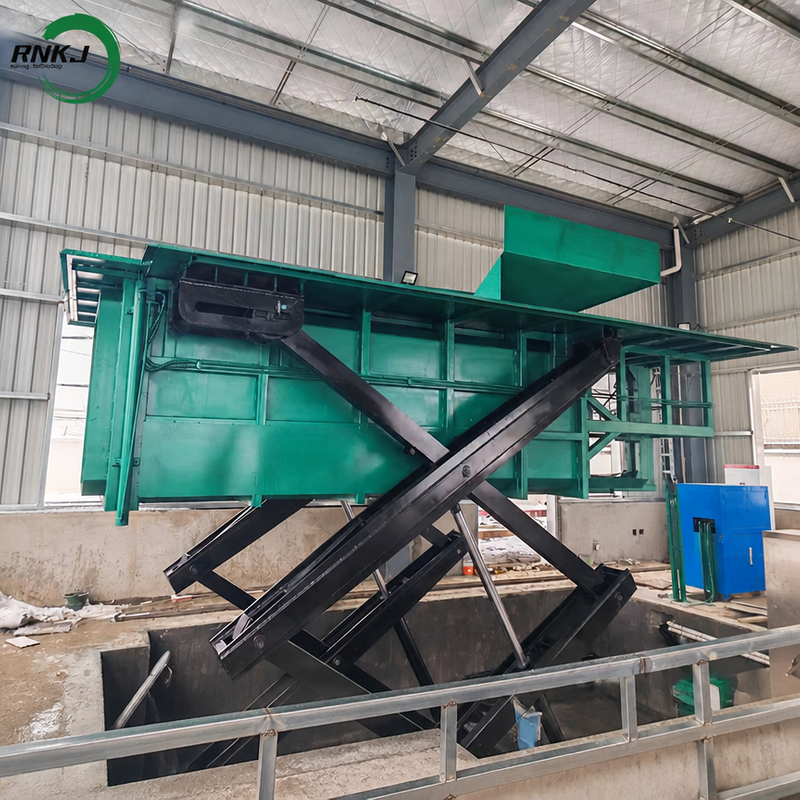

Adopts heavy‑duty scissor lifting support frame as shown in the real‑shot picture. Thickened high‑strength steel plate welding structure bears full load of compression host and compressed garbage mass. Lifting runs steadily, anti‑distortion, long service life, adapts to long‑term continuous sanitation operation.

5. Fully‑enclosed design with sewage collection system

The whole compression chamber is sealed. Waste leachate is collected in the dedicated sewage tank inside the underground pit. Sewage can be drained to municipal sewage pipeline or pumped out for centralized treatment. Effectively control odor and sewage overflow, improve community sanitary conditions.

6. Intelligent hydraulic automatic control system

Equipped with independent hydraulic power unit and electric control cabinet. Support automatic feeding, automatic compression, full‑load alarm, automatic lifting, automatic push‑out discharging, manual emergency operation mode. Operators can finish the whole process with simple button operation, low requirement for operator skills. Over‑pressure protection and safety interlock devices ensure equipment running safety.

7. Low operation noise

Complete operation cycle of the 12m³ underground horizontal garbage compaction station, step‑by‑step working sequence:

Step 1: Garbage Feeding

Residents or sanitation workers throw domestic household waste into the ground feeding hopper. Garbage falls down into the underground 12m³ horizontal compression bin by gravity. The feeding opening stays on ground for convenient daily waste dumping by community users.

Step 2: Horizontal On‑site Waste Compression

Trigger compression procedure by automatic program or manual button. The horizontal compression hydraulic cylinder drives the push plate to move forward inside compression bin, squeeze loose garbage, reduce waste volume. Multiple compression cycles run continuously as more garbage is fed. Compression ratio reaches 3‑4:1, 3~4 cubic meters loose garbage can be compressed into 1 cubic meter compacted mass.

Step 3: Full‑load Signal Prompt

When the 12m³ compression bin reaches full loading status, the sensor triggers full‑load alarm signal. Stop feeding garbage, prepare for discharging operation and call the garbage collection truck to arrive on‑site.

Step 4: Scissor Lifting Host to Truck‑Matching Height

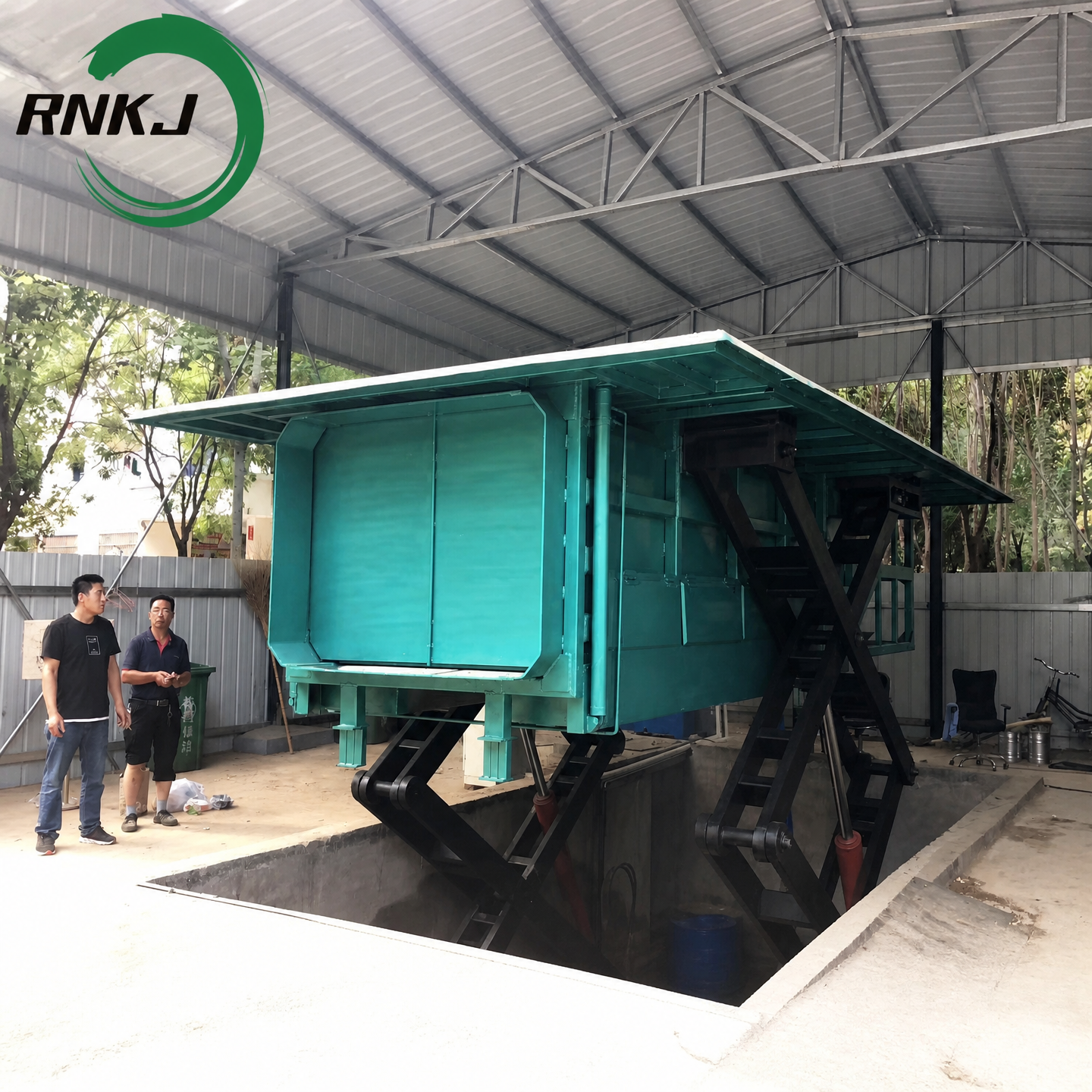

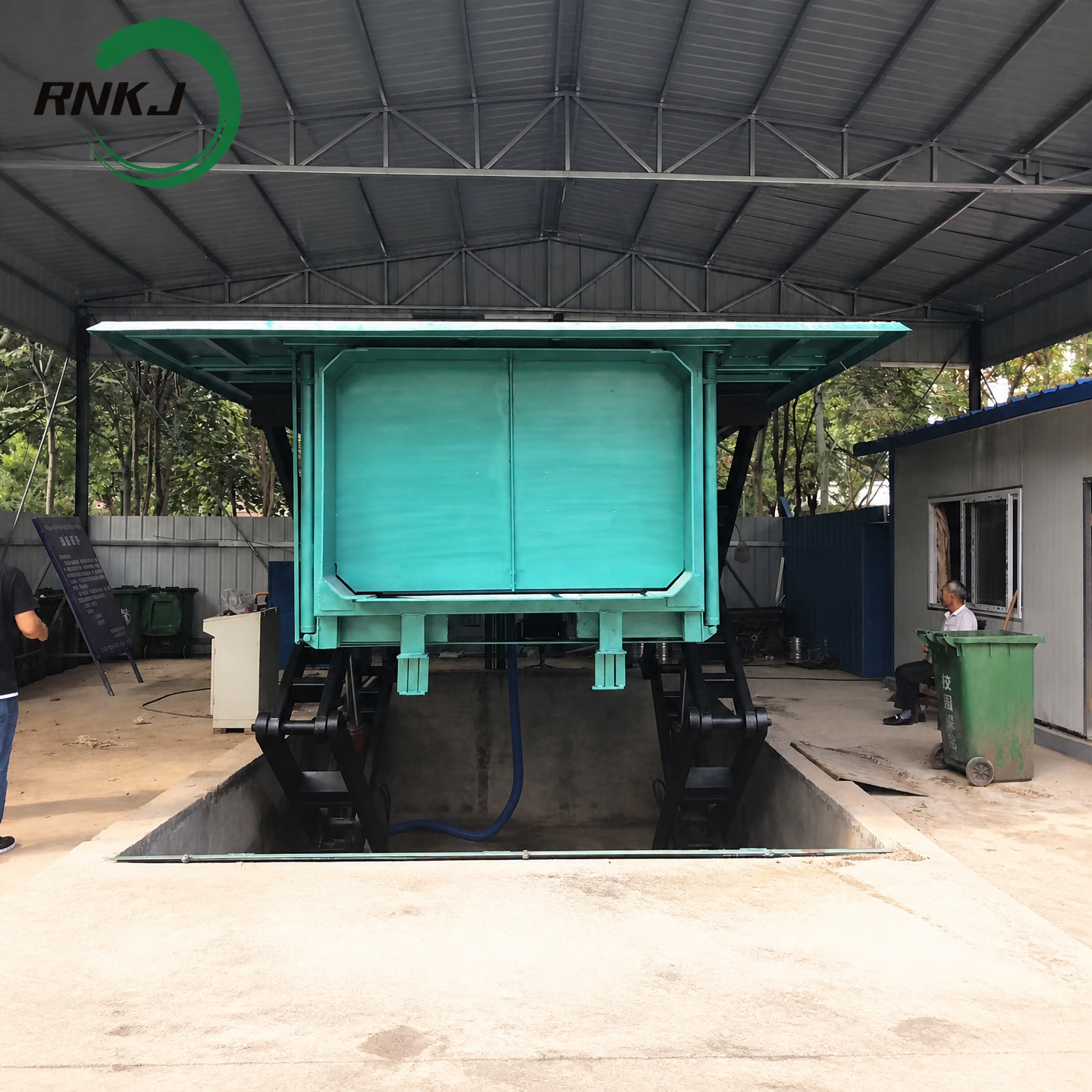

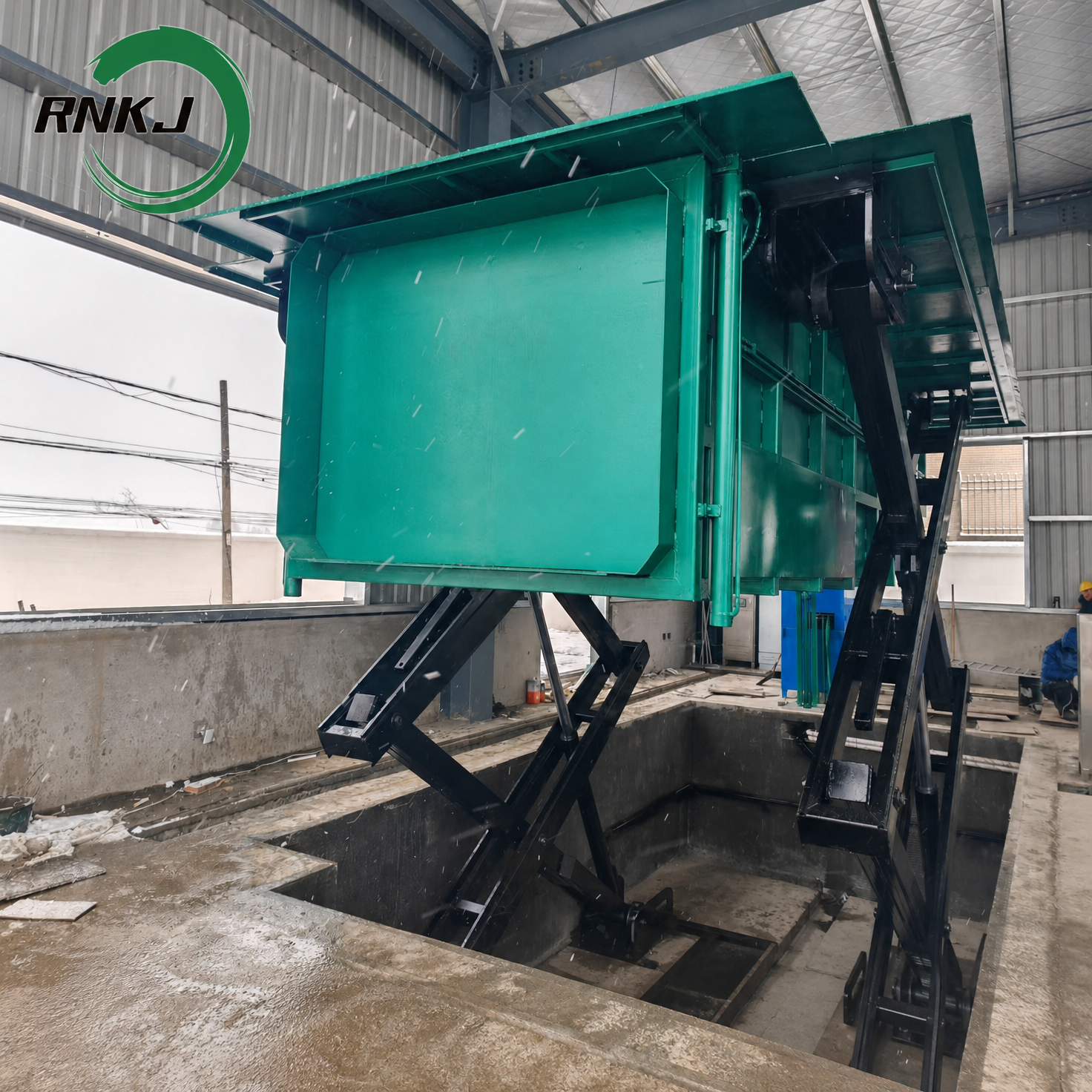

After garbage truck parks in designated discharging position, start lifting procedure. The heavy‑duty scissor lifting platform slowly lifts the whole compression host out of underground pit, rising until the discharging outlet of compression bin aligns exactly with the cargo box height of garbage truck. Lifting stops and locks for discharging.

Step 5: Direct Push‑out Compressed Garbage into Garbage Truck

Start discharging action: the dedicated push‑out hydraulic cylinder extends, pushes the whole compacted garbage block horizontally out from compression chamber directly into the garbage truck carriage. No container hoisting, no secondary transferring, no manual loading needed. The whole discharging process is closed, avoid garbage spilling and sewage dripping.

Step 6: Equipment Reset & Fall Back to Underground Pit

• Large‑scale residential communities, housing estates, apartment compounds

• Old community environmental renovation projects

• Residential area supporting sanitation facilities

• Property‑managed living quarters, mixed‑use residential blocks
