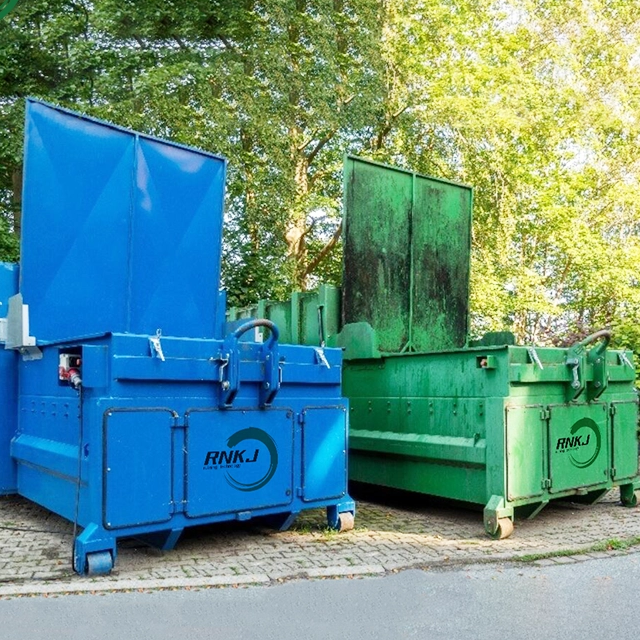

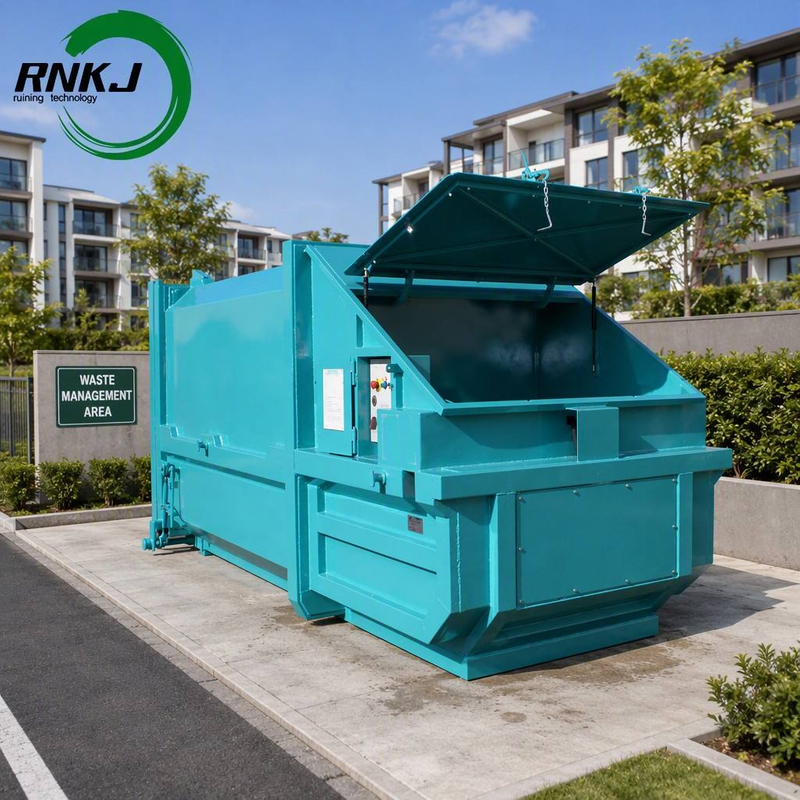

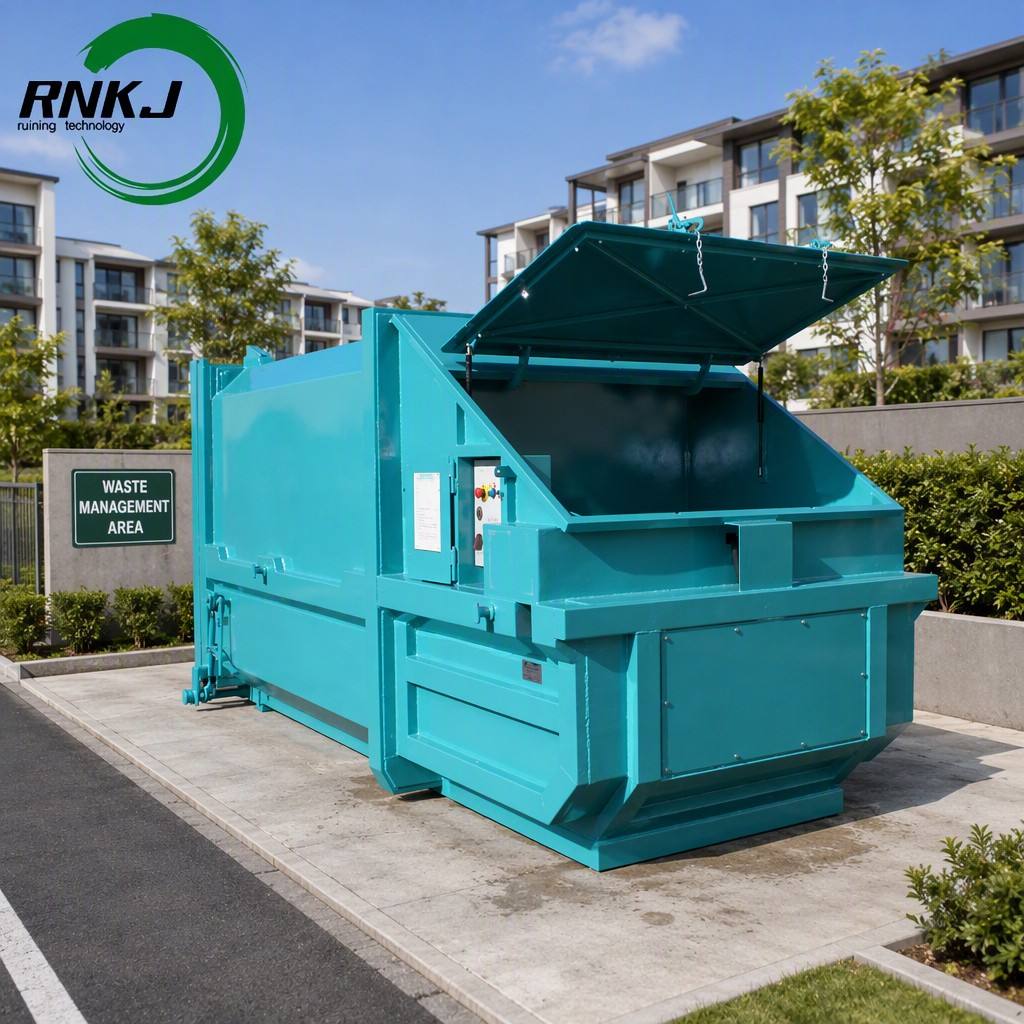

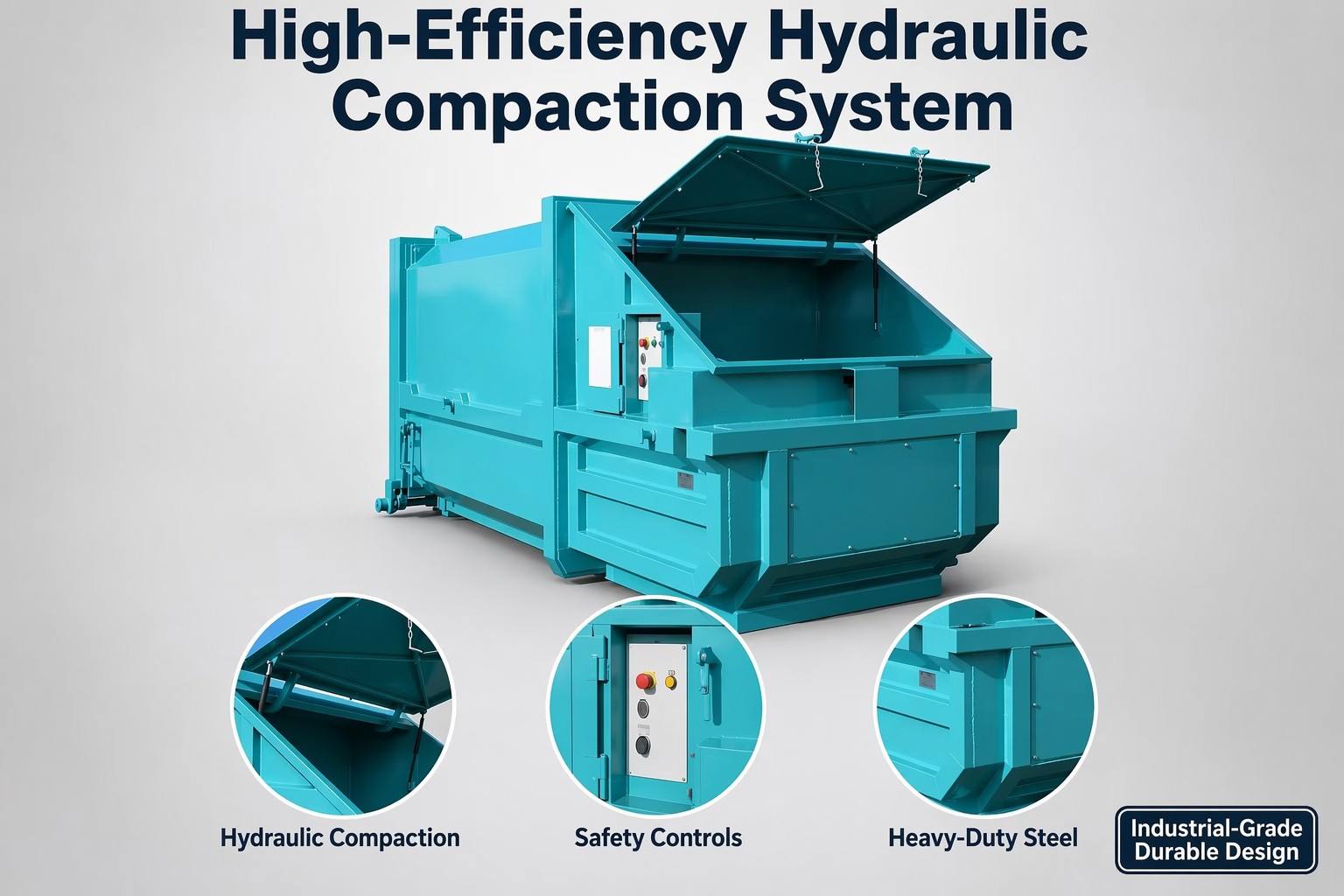

The 12Cbm Mobile Hydraulic Industrial Garbage Compactor is a heavy-duty waste compression system designed for high-volume commercial, industrial, and municipal waste collection. Equipped with a powerful hydraulic compaction mechanism, the unit significantly reduces waste volume before transportation, helping users lower collection frequency, transportation costs, and landfill expenses.
Unlike conventional waste containers, this 12 cubic meter mobile hydraulic garbage compactor combines waste storage and hydraulic compression into one integrated unit. Once the container reaches full capacity, the entire compactor is transported directly by a Hook Lift Truck, eliminating the need for secondary waste transfer and improving operational efficiency.
Designed for continuous outdoor operation, the equipment offers reliable performance, excellent sealing, and a durable steel structure suitable for demanding environments.
Support Customization
Compatible with Hook Lift Truck
Liquid proof construction
Intelligent SMART technology
12Cbm Mobile Hydraulic Industrial Garbage Compactor Specifications| Item | Specification |
|---|---|
| Product Name | 12Cbm Mobile Hydraulic Industrial Garbage Compactor |
| Capacity | 12 Cubic Meters |
| Compression Type | Hydraulic Compression |
| Transportation | Hook Lift Truck |
| Structure | Integrated Mobile Compactor |
| Power Supply | Electric Hydraulic System |
| Application | Municipal, Industrial & Commercial Waste |
| Installation | Ground Surface Installation |
| Mobility | Relocatable |
Key Features of 12Cbm Mobile Hydraulic Industrial Garbage CompactorThe 12Cbm Mobile Hydraulic Industrial Garbage Compactor provides a generous waste storage capacity, making it ideal for locations generating large quantities of municipal solid waste, commercial refuse, packaging waste, and industrial waste.
Its large capacity helps reduce collection frequency while improving overall waste management efficiency.
The industrial hydraulic cylinder delivers strong and consistent compression force, dramatically reducing waste volume before transportation.
Benefits include:
Higher waste density
Increased transportation efficiency
Reduced hauling frequency
Lower operating costs
Better utilization of container space
One of the biggest advantages of this Mobile Hydraulic Industrial Garbage Compactor is its compatibility with Hook Lift Trucks.
After the container is completely filled:
The entire compactor is picked up by the Hook Lift Truck.
No waste needs to be manually transferred.
The full compactor is transported directly to the transfer station or landfill.
After unloading, the same unit is returned to service.
This transportation method simplifies logistics while minimizing handling time and labor costs.
The enclosed structure effectively prevents:
Odor leakage
Rainwater infiltration
Wind-blown litter
Pest infestation
Secondary environmental pollution
The enclosed design helps maintain cleaner public areas while improving sanitation standards.
Manufactured using high-strength structural steel, the compactor is designed for long-term outdoor operation.
Features include:
Corrosion-resistant surface treatment
Wear-resistant compression chamber
Heavy-duty hydraulic cylinders
Reinforced frame construction
Long service life with minimal maintenance
The hydraulic system is controlled through an easy-to-use electrical control panel.
Operators only need to:
Load waste
Start the compression cycle
Continue loading until full
Transport using a Hook Lift Truck
Minimal operator training is required.
Advantages of the 12Cbm Mobile Hydraulic Industrial Garbage CompactorBy compressing waste before transportation, more refuse can be transported in a single trip.
Benefits include:
Fewer transportation trips
Lower fuel consumption
Reduced vehicle wear
Lower labor costs
Higher fleet efficiency
Compared with traditional open dumpsters, this 12Cbm Mobile Hydraulic Industrial Garbage Compactor greatly increases the amount of waste stored before collection.
Municipal sanitation departments can optimize collection schedules while reducing operational costs.
The sealed design minimizes environmental pollution by preventing:
Garbage overflow
Leachate leakage
Bad odors
Fly breeding
Wind scattering
This makes it suitable for public areas where cleanliness is essential.
The combination of hydraulic compression and Hook Lift transportation reduces overall waste management expenses through:
Lower transportation frequency
Reduced manpower
Less equipment downtime
Longer equipment lifespan
Improved operational efficiency
Industrial-grade hydraulic components ensure stable performance even under continuous heavy-duty operation.
The system is designed for years of reliable service with simple routine maintenance.
How the 12Cbm Mobile Hydraulic Industrial Garbage Compactor WorksThe operation process is straightforward and highly efficient:
Municipal workers or facility personnel deposit waste into the loading hopper.
The hydraulic ram compresses the waste into the storage chamber, greatly reducing its volume.
Additional waste is continuously loaded and compressed until the container reaches maximum capacity.
Once full, the Hook Lift Truck lifts and transports the entire 12Cbm Mobile Hydraulic Industrial Garbage Compactor to the designated waste disposal or transfer facility.
The compressed waste is discharged at the disposal site.
The empty compactor is transported back to the collection point and resumes normal operation.
Technical ParametersPerformance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Applications of 8m³ Mobile Waste Compactor
The 12Cbm Mobile Hydraulic Industrial Garbage Compactor is widely used in:
Ideal for city streets, residential communities, and urban sanitation projects.
Handles large volumes of industrial packaging waste and production refuse.
Suitable for:
Shopping malls
Supermarkets
Wholesale markets
Office complexes
Efficiently manages production waste generated during manufacturing processes.
Perfect for handling packaging materials such as:
Cardboard
Plastic film
Cartons
General industrial waste
Supports continuous waste collection in high-traffic public facilities.
Provides hygienic enclosed waste storage for institutional waste management.
Why Choose 12Cbm Mobile Hydraulic Industrial Garbage Compactor?Large 12m³ waste capacity
Powerful hydraulic waste compression
Compatible with Hook Lift Truck transportation
Fully enclosed environmental protection design
Lower transportation and disposal costs
High-strength steel construction
Easy installation and relocation
Stable hydraulic performance
Simple maintenance
Long service life
Ideal for municipal and industrial waste management
FAQ
The compactor provides 12 cubic meters of waste storage capacity, making it suitable for medium- to large-scale waste collection projects.
The entire 12Cbm Mobile Hydraulic Industrial Garbage Compactor is transported using a Hook Lift Truck, allowing quick loading, transportation, unloading, and return to service.
It is suitable for a wide range of solid waste, including:
Municipal solid waste
Commercial waste
Industrial waste
Packaging materials
Plastic waste
Paper and cardboard
General household waste
Hazardous or explosive materials should not be processed unless the equipment is specifically designed for those applications.
Yes. The heavy-duty steel construction and weather-resistant surface treatment make it ideal for long-term outdoor operation.
Routine maintenance mainly includes:
Inspecting hydraulic oil levels
Checking hydraulic hoses and cylinders
Lubricating moving components
Cleaning the hopper and compression chamber
Inspecting electrical control systems
Regular preventive maintenance ensures reliable long-term performance.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services.
If you would like to obtain more customized specifications or purchase this garbage compaction station at factory price, please contact us via website message or WhatsApp(+86-18853809997).
