Underground Trash Station is a waste management device specifically designed for storage and transportation. It only has the function of transportation and does not have any compression function. It adopts a full-container transportation method to achieve efficient waste transportation. It is specially designed for garbage transportation and complies with global standards. It has been customized according to the needs of different regions.

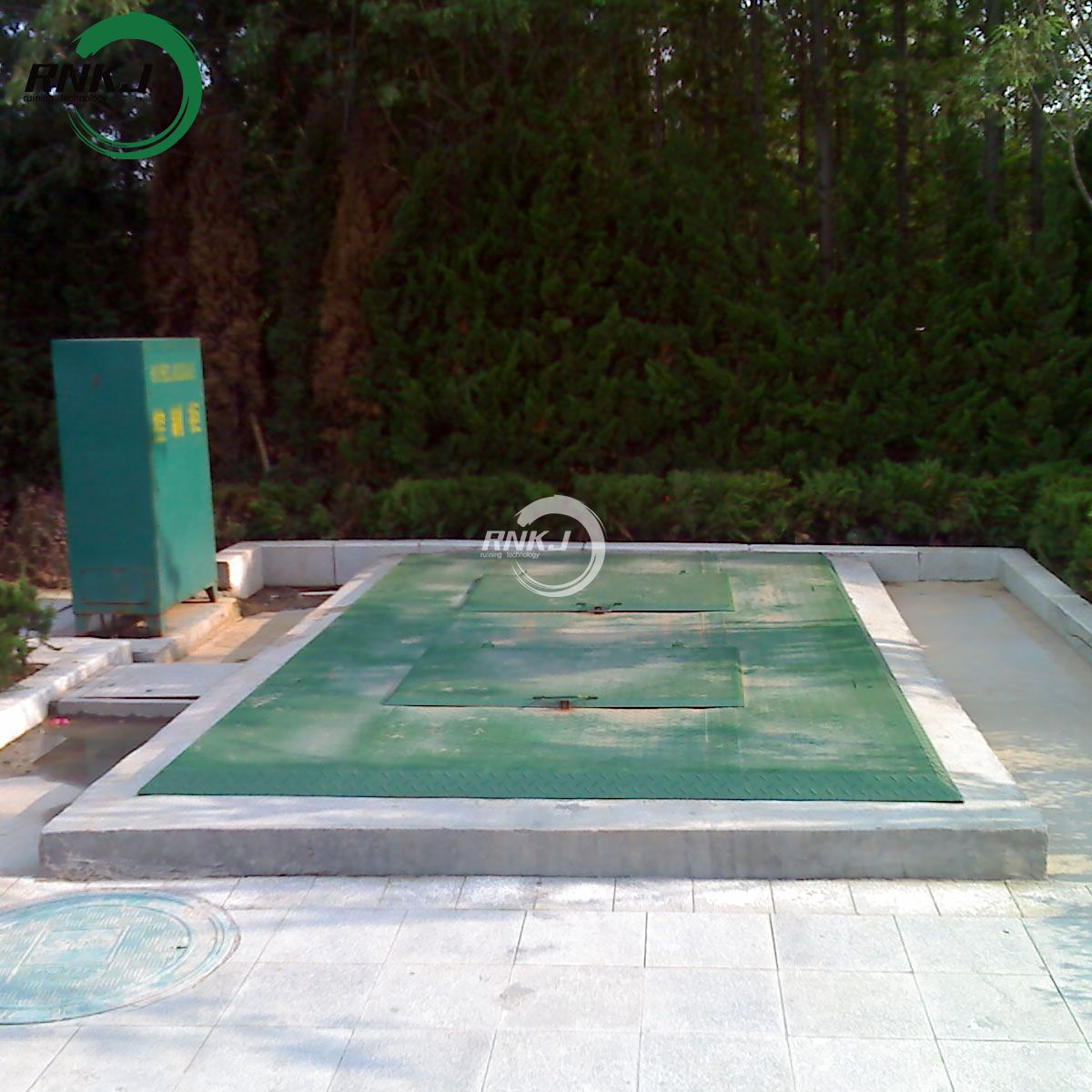

This system provides a concealed and space-saving solution. The main containers are buried underground, with only the ground-level feed ports exposed. This not only significantly enhances the city's aesthetics but also effectively prevents odors, pests, and secondary pollution.
Product AdvantagesUncompressed design: No mechanical compression structure, preserving the original appearance of the garbage, suitable for garbage classification collection scenarios.
Overall box transportation: Eliminates garbage leakage during transportation, reduces secondary pollution, and improves collection efficiency.
Underground installation: Saves land space compared to ground-based garbage stations, beautifying the urban landscape.
Fully sealed protection: Multiple layers of sealing prevent odors, mosquitoes, and rodent infestations, maintaining the cleanliness of the surrounding environment.
The Underground Trash Station is a waste collection facility centered on a sealed, single-container structure. It is primarily installed in low-waste-output scenarios, including residential neighborhoods, schools, hospitals, parks, and small towns. Serving as a primary collection node in urban waste management systems, it enables the transitional storage and transfer of waste from decentralized collection points to centralized transfer stations or treatment facilities.
Unlike waste compression stations, this facility excludes hydraulic compression systems, compression rams, press heads, and corresponding compression control modules. Its simplified structural design results in lower maintenance requirements and operational costs.
Core StructureUnderground storage box: Made of high-quality steel, the main body for storing garbage, featuring anti-corrosion and anti-leakage designs.
Ground waste disposal opening: A waste collection entrance, equipped with foot pedal / sensor activation, and featuring a locking cover plate.
Hydraulic lifting system: Made of high-strength steel, it lifts the entire box vertically to the ground, facilitating transportation operations.
Sealing system: Fully enclosed structure, preventing odors from leaking out and rainwater from seeping in.
Safety protection system: Equipped with emergency stop, overload protection, hand-protection against entanglement, etc.
Control system: Supports manual or automatic operation, and provides real-time monitoring of equipment status.
Equipment foundation pit: Reinforced concrete, equipment bearing foundation, treated for waterproofing and anti-corrosion.
Work Process Garbage storage stage: Garbage is thrown into the underground container through the ground feeding port. The equipment operates in a fully enclosed manner to avoid environmental pollution.

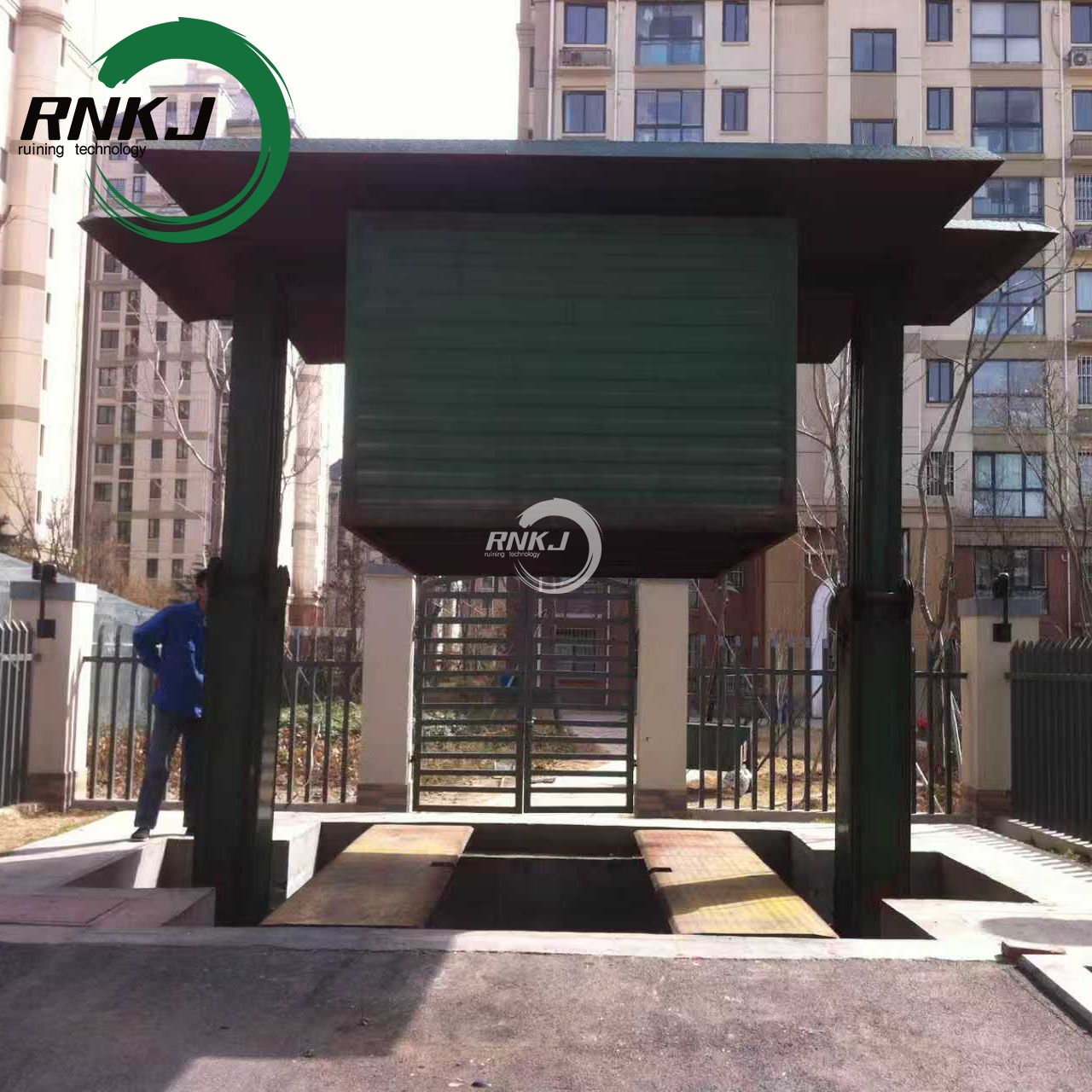

Container lifting: When the garbage in the container reaches the preset capacity, the hydraulic system will vertically lift the entire container to the ground.
Overall container transportation: A garbage collection vehicle equipped with a dedicated lifting mechanism directly lifts and transports the fully loaded container as a whole to the garbage disposal site.
Empty container return: After the container is emptied, the collection vehicle places the clean empty container back into the pit, and the container automatically descends and resets, completing the operation cycle.
Technical ParametersCompression Type | Vertical compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | vertical |
Application ScenariosResidential areas: High-rise residential complexes, villa areas, residential communities
Commercial areas: Shopping malls, supermarkets, dining streets, hotels
Public facilities: Parks, scenic spots, sports venues, airports, railway stations
Industrial parks: Light industry parks, logistics centers, warehouses
Special environments: Coastal areas with high corrosion, high-altitude areas
The overall box transfer mode advantages of the Underground Trash StationPrevent secondary pollution
The garbage is completely enclosed within the box. During transportation, it does not land, does not spill, and there is no leakage of filtrate. This completely avoids the diffusion of odors during transportation, the dripping of sewage, and the scattering of garbage.
The transfer efficiency is much higher.
There is no need for on-site garbage loading, unloading, or material transfer. The cleaning vehicle can directly lift the fully-loaded container, replace the empty container, and then leave the site. The single-station operation time is significantly shortened, and it is particularly suitable for high-density urban areas and scenic spots.
Suitable for non-compressed storage needs
Does not crush or damage the shape of the garbage, compatible with recyclable materials, large-sized garbage, classified garbage and other non-compressible materials. Avoids garbage being crushed and damaged, which leads to leakage of filtrate and reduces the difficulty of corrosion and cleaning of the box.
The equipment has a simple structure and a low failure rate.
It does not have complex components such as a compression mechanism or a conveying mechanism. Only the lifting and sealing structures are retained, resulting in lower maintenance costs and a longer service life.
The work is safer and the environment is cleaner.
There are no exposed garbage or water-stained oil on the ground. The transfer process is fully enclosed and operated mechanically, reducing human contact with garbage, lowering safety risks, and improving the city's appearance and landscape.
Logistics and scheduling are more flexible.
Full containers can be directly transported to the waste treatment plant, while empty containers can quickly return to their original positions. This enables unified scheduling and rotation use at multiple sites.
Stronger sealing performance
The entire box is fully sealed for transportation, ensuring that the garbage does not spill out. This effectively blocks the breeding of bacteria at the source and reduces the spread of diseases.
Underground Trash Station is an efficient, environmentally friendly and aesthetically pleasing solution for garbage collection and transportation. It is particularly suitable for countries that attach great importance to garbage classification, environmental governance and urban environment. The product has a simple structure, low maintenance cost and high customization level. It can meet the usage needs of different countries and regions, complies with global sanitation equipment export standards, and is an ideal choice for garbage management projects.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
