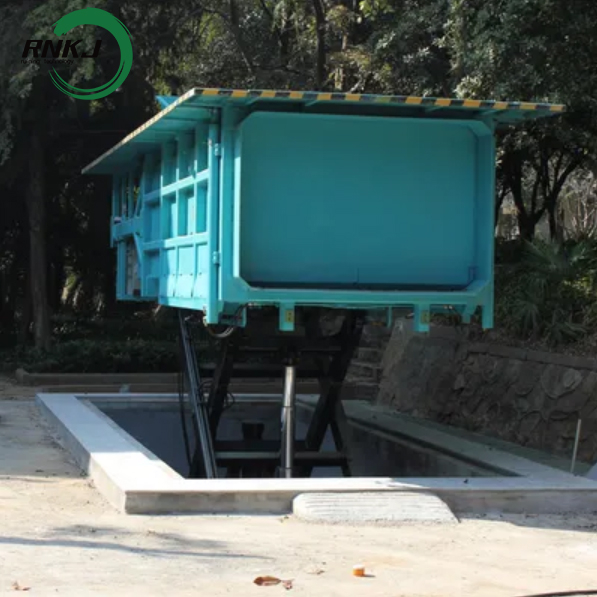

The underground horizontal waste compactor is a waste compression and transfer device buried underground. Its core function is to reduce the volume of waste and transport it efficiently through horizontal compression and lifting. It is commonly found in urban communities, towns, farmers' markets and other scenarios.
Product Advantage
Small footprint: the compression is all operated underground, and only rises when the garbage is transferred;
Small investment in equipment and construction: it can be directly installed in the open air without building a house to save investment and construction period;
Integral box body structure: storage box, horizontal compression part, hydraulic station and unloading are integrated, which improves the operation efficiency and reliability of the equipment, realizes the closed operation of the garbage compression process, is conducive to environmental protection and realizes the remote hydraulic control of the whole machine Require;
Safety hydraulic lock: The lifting mechanism is equipped with a one-way hydraulic lock, and the anti-exposure valve controls the box not to sink in case of emergencies, ensuring the safety of operators;
High configuration load-sensing hydraulic control system: It is equipped with main safety valve, flow control valve, overload valve, pressure compensation valve, oil inlet valve and first-come control valve.
The control system adopts the control system with stable commutation, light operation, and non-interference of each execution element during compound operation, which improves work efficiency; prolongs the service life of equipment; remote hydraulic control replaces traditional electric control, which is safer and more efficient.
Technical Parameters
Compression Type | Horizontal compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Ground gallows, side gallows, four pillars |

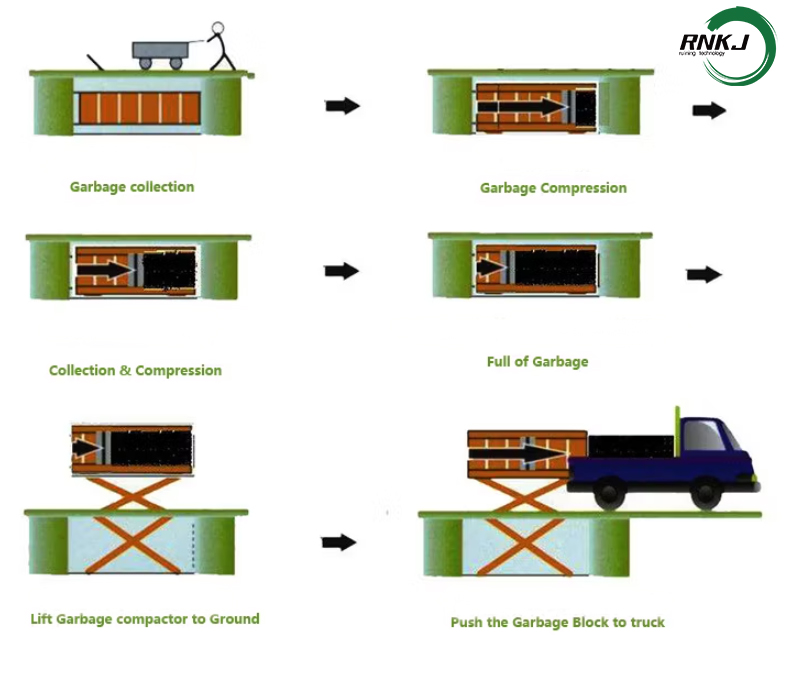

Run Process
1.Waste Collection
Garbage trucks dump loose waste into the feeding inlet of the underground equipment, which then enters the compression chamber.
2.Waste Compression
A hydraulic pusher compresses the waste horizontally, compacting it (compression ratio typically 2-3:1), and pushes it into the storage chamber.
3.Multiple Compressions
The “collection-compression” process is repeated until the storage chamber is full of compacted waste.
4.Lifting and Docking
The equipment uses a hydraulic lifting frame to raise the compression chamber above ground and dock it with the garbage truck.
5.Loading and Resetting
The pusher pushes the waste blocks into the truck bed, and then the compression chamber returns to the ground, awaiting the next round of operation.
Product Style
|
|
Features
Aesthetic Appearance: Underground structure, module design and no building require.
Wide Scope of Application: Because of no building require that is very easy for outdoor position choosing such as on the road side, the corners of the street, the ends of the pavement and the spaces between buildings.
Low Transportation Cost: High compression stress and 3: 1 compression ratio which can be significantly reduce the transportation cost.
Excellent Compactability: Being adopt with PLC programming controller and combined with the dewatering and air exhausting technology on the both side and bottom of storage tank. It can be remarkably reduce the moisture content and increase garbage density.
Six Patents: Adopt the patented technology of "fore-and-aft move while lifting" to ensure good connection between garbage station and transportation vehicle and avoid the garbage dropped into foundation pit.
Friendly Environmental Applicability: The facility compresses the garbage underground and adopts with atomizing deodorant spray technology of deodorization and dedusting, sewage drainage technology to guarantee the friendly environmental applicability.
Reliability: The facility combined with stable PLC auto-controller and electro-hydraulic controlling system and high-performance hardwares to ensure its reliability and easy-to-operate concept.
Long life-time: All structural parts are treated with shot-blasting, rust removing, painting with marine-use high anticorrosive heavy protection paint. The whole facility has good performance for anti-corrosibility and long service life.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
