The Underground Garbage Collection Station is primarily used for the storage and containerized transportation of municipal waste. It is a commonly used sanitation storage and transportation device. It reduces the workload of sanitation workers, completely eliminates secondary pollution generated during waste storage, loading, unloading, and transportation, and effectively reduces the spread of odor and mosquito breeding.

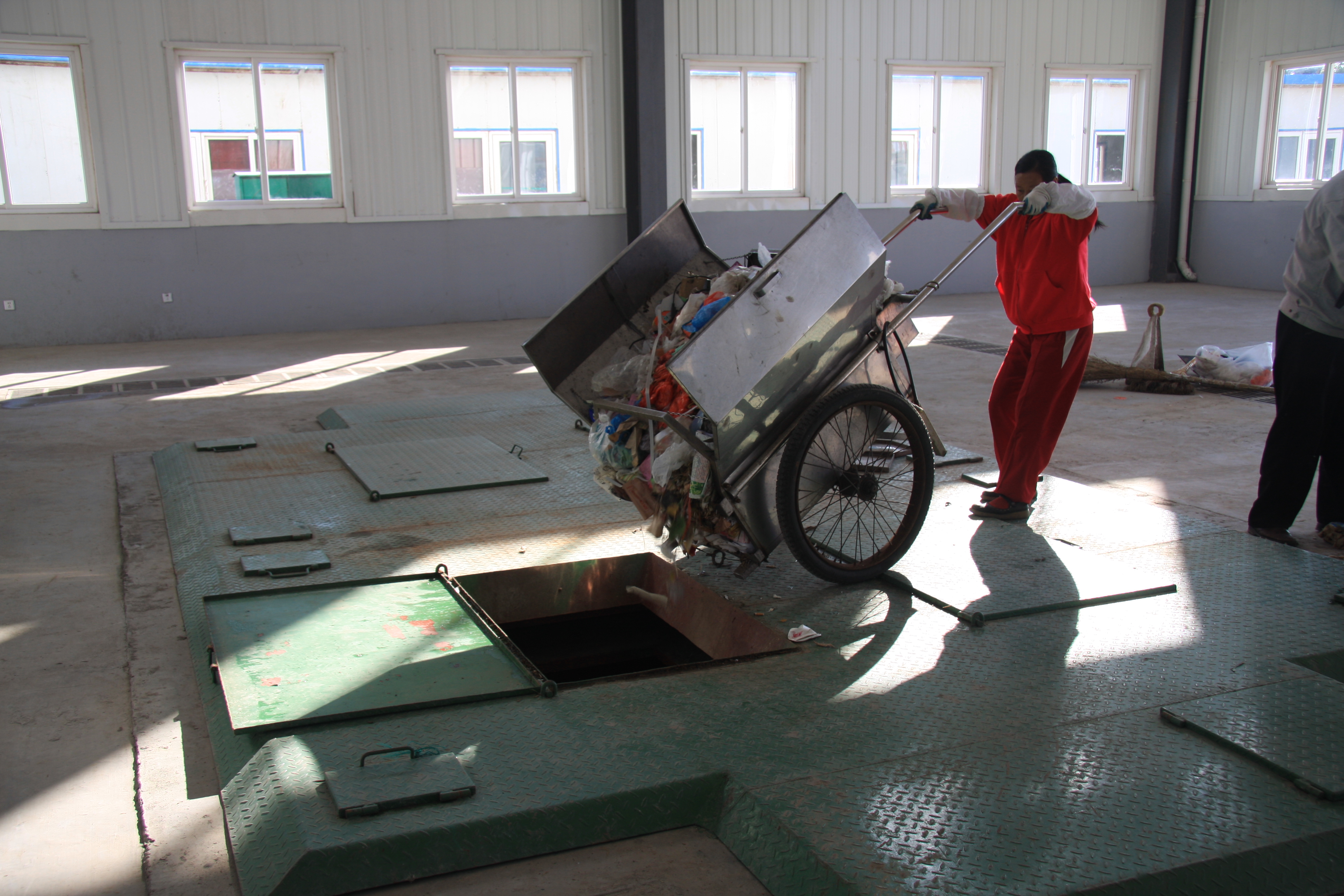

When in use, the Underground Garbage Collection Station is lowered into the ground, with the upper and sealing lids of the garbage bins remaining essentially flush with the ground. It utilizes a dual-bin, dual-station operation.
It can be installed on sidewalks, in green belts, or in vacant corners within residential areas. With a small footprint and no buildings above ground, the Underground Garbage Collection Station improves the urban environment and appearance.
Usage and Operation
I. Precautions Before Operation:
1. Before operation, turn on the power switch of the distribution box and check that the hydraulic oil in the tank is within the operating range.
2. During lifting and lowering, no one should stand or obstruct the area to ensure personal and equipment safety.
3. Before operation, check the waste composition in the container. If the container contains more than 30% construction waste, do not start the machine to avoid overloading and damage to the equipment.
II. Operation Procedure:
1. Press the power start button to start the oil pump.
2. Pull the lift handle to the up position. The lift arm will rise with the heavy waste container and stop at its highest position.
3. With the pallet in the empty position, reverse the vehicle carrying the empty container to the center of the pallet. Operate the lift arm to lower it until the eye on the cantilever beam can hook onto the empty container's lifting shaft. Raise the lift arm to its highest position and drive the vehicle out.
4. Operate the gear motor handle to move the pallet to the loaded container position and stop.

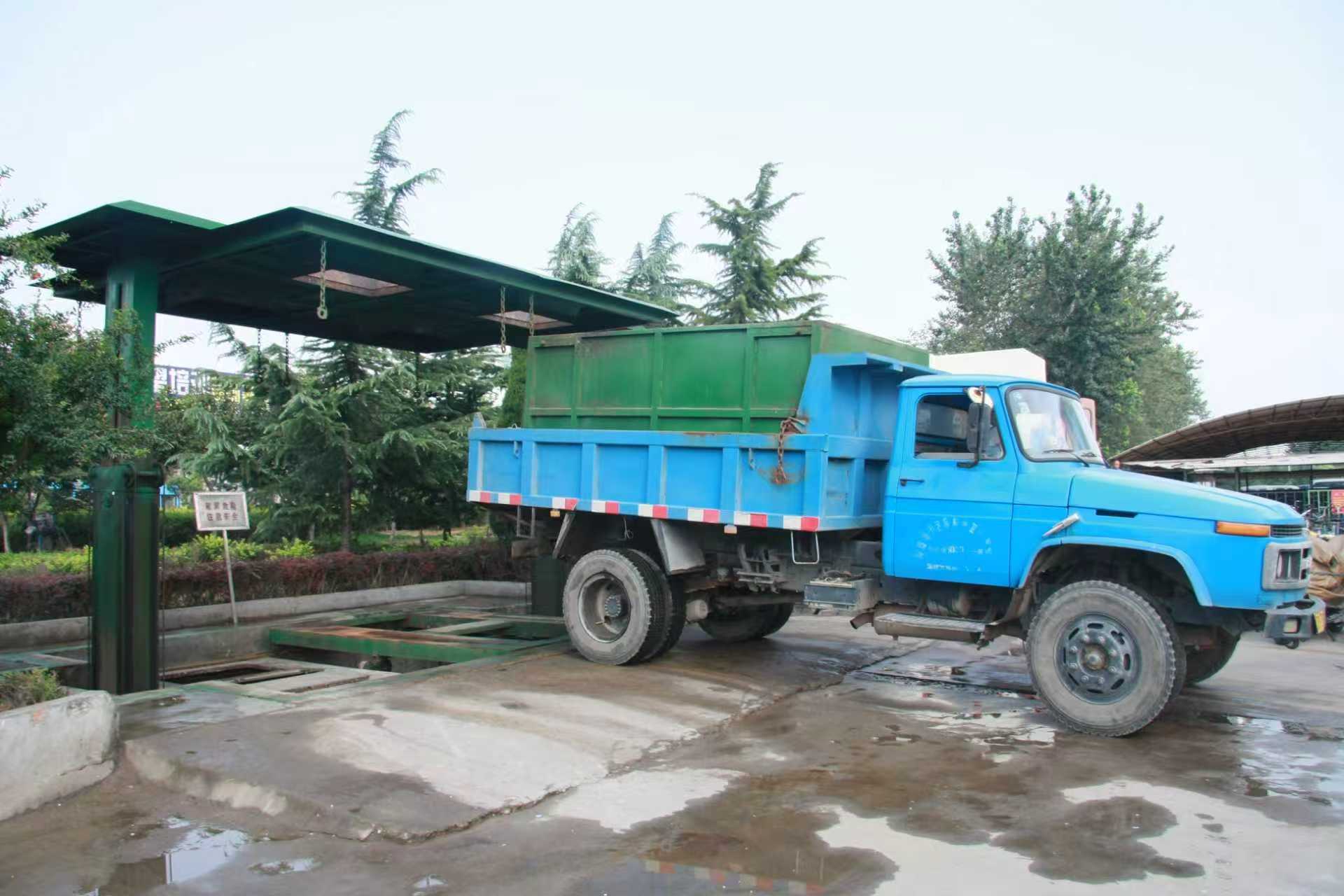

5. Drive the vehicle back to the center of the pallet, as shown in Figure 2. Operate the lift handle to the down position until the loaded container can be placed on the vehicle and the lifting rings can be removed. Remove the four lifting rings, raise the boom to its highest position, hook the chain on the vehicle's front deck to the container's front lifting axle, and drive away.
6. Push the lift handle to the down position, and the equipment, along with the empty container, will drop into the ground.
7. Press the stop button, turn off the power, and lock the pump station control panel. Repeat this cycle.
Product main structure
This machine is mainly composed of lifting arm, crossbeam sealing cover welding, garbage container, vehicle support plate assembly, hydraulic pump station system and gear motor, etc.
Technical Parameters
Power | 5.5KW(Voltage 380V) |
Rotate speed | 1450r/min |
Theoretical displacement | 11.1ml/r |
Rated pressure | 20.6MPa |
Effective volume of the box | 8m³×2 |
Maximum lifting height | 3.3m |
Maximum lifting weight | 6000kg |
Dimensions of the pit (length × width × height) | 90-110s |
Overall machine weight | 6780×3700×2454（mm） |
Number of operators | 4500kg |
Production Technology
Laser cutting
Which is highly accurate and fast compared to traditional cutting processes,and can precisely cut all types of metals.
Laser rust removal
Which is an efficient, energy saving and environmental protection way. It can remove the oil, oxide, rust, etc. on the surface of the object, and will not cause damage to the substrate.
Laser welding
Which is fast, deep, small deformation, better toughness of the weld, and we will detect the equipment after welding.
Paint thickness
We spray one epoxy primer with a thickness of 20-25μm, two coats with a thickness of not less than 75μm, and varnish, if you have other requirements, you can customize the program.
Product Use
1. Classification and Collection
The dual-box design can realize garbage classification (such as "recyclables, other garbage, kitchen waste, hazardous waste, etc.), guide residents or users to put them in by category, and improve the efficiency of subsequent processing.
For example: one box is marked with "recyclables" (storing paper, plastics, metals, etc.), and the other is marked with "other garbage" (storing paper towels, diapers, broken ceramics, etc.).
2. Temporary storage and transfer
As a temporary garbage storage point in communities, parks, commercial areas and other scenes, it avoids environmental pollution caused by open-air garbage stacking, and facilitates regular removal by sanitation departments.
The dual boxes can be used alternately. When one box is full, the other box is activated to ensure the continuous operation of the garbage station and reduce the problem of garbage accumulation during the interval between removals.
FAQ
1. Who are we?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2. How can we guarantee the quality?
Always have pre-production samples before mass production; Always have final inspection before shipment;
3. What can you buy from us?
Trash compactor,Underground garbage compactor,Underground collection system,Hook lift bin,Skip bin,Sweeper,sScrubber.
4. What services can we provide?
Customized bins are accepted.Someone will answer your questions at any time, 24 hours online.We will provide pre-sales and after-sales service
5.What shall we do if we do not have drawings?
Please send your sample to our factory, then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions (Thickness, Length, Height, Width), CAD or 3D file will be made for you if placed order.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
