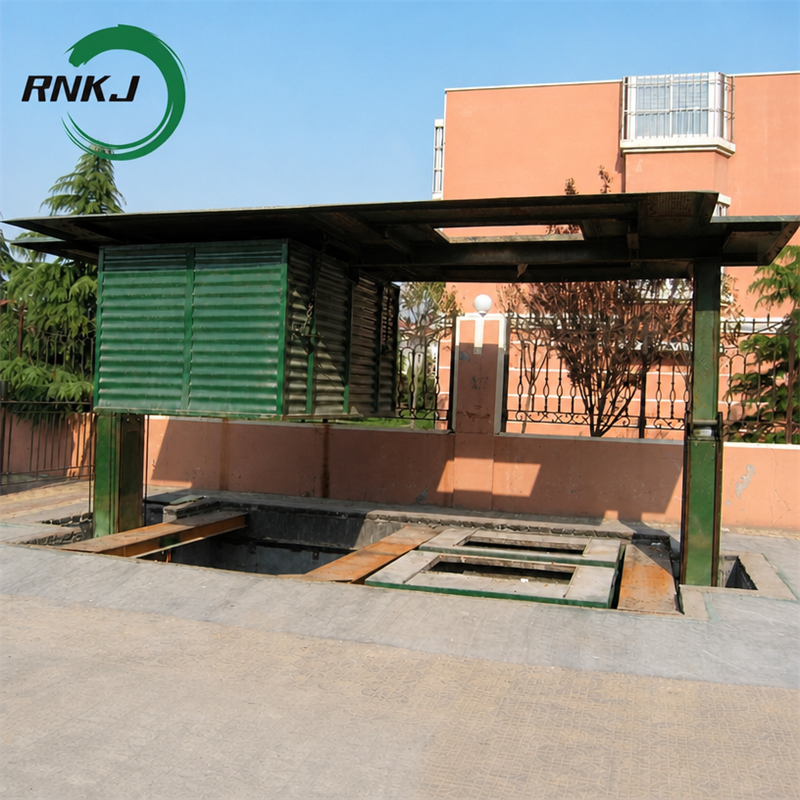

The underground double‑container garbage collection station is a practical underground waste handling solution built for municipal sanitation, residential compounds, townships and public zones. Most of its main assembly sits inside a concrete underground pit. Only feeding hatches and a small operating area stay above ground, which keeps the site neat without bulky above‑ground equipment ruining surrounding landscapes. This unit adopts a dual‑container layout. Two independent heavy‑duty waste boxes are stored underground at the same time. Once one container fills up, the mechanical lifting system hoists the loaded container entirely out of the pit. A regular sanitation transfer truck drives in, picks up the full container and hauls it away for disposal, while an empty replacement container gets lowered back underground to keep waste collection running without long interruptions. The whole‑box truck‑transfer workflow cuts intermediate waste handling steps and lowers risks of waste spillage and odour leakage.
Key Product AdvantagesLandscape‑friendly Footprint: Major hardware stays buried underground. Only compact feeding hatches and canopy show above ground. It fits well in residential areas, parks, town squares and scenic zones without visual pollution.
Dual‑container Continuous Operation: Two‑box design avoids complete shutdown during container swapping. Waste receiving can continue using the second container while one box is transported by truck. Great for locations with steady daily waste output.
Complete‑box Truck Transfer Minimises Secondary Pollution: Waste stays sealed inside containers from collection point all the way to treatment facility. No waste dumping‑and‑shovelling on‑site. This greatly reduces odour spread, garbage scattering and leachate spillage during handling.
Strong & Long‑service‑life Construction: Containers and lifting frames adopt heavy‑duty steel welding. Anti‑rust surface treatment handles outdoor wet environment and waste‑liquid contact. Routine maintenance focuses on hydraulic components, pulley and cable parts. Spare‑part replacement is convenient.
Wide Vehicle Compatibility: Containers are built to match standard municipal waste transfer trucks. Buyers do not need to purchase special custom‑made vehicles. Existing sanitation fleets can perform container haul‑away work, lowering total investment for waste‑management departments.
Flexible Installation: Installed within a prepared concrete pit. No large permanent building is required. It can be deployed in new urban projects or retrofitted into existing communities and town‑level sanitation sites.
What this means in practiceThe site stops smelling. Sealed containers below ground hold odors in. The waste sits in a cool, shaded pit instead of baking in an open bin.
The site stops looking like a waste point. No piles, no overflowing bins, no scattered litter around the hatches. The station reads as a piece of street furniture, not a dump.
You get space back. A station that occupies a few square meters replaces a row of bins. Plazas, courtyards, and sidewalks keep their usable area.
Flies and rodents lose their food source. Waste is closed off below ground. Pests cannot reach it, and there is nothing for them to breed in.
Collection costs come down. Two containers hold more than a fleet of bins. The truck comes less often, and one operator handles the whole transfer without touching the waste.
The system is built to last. Steel, concrete, and hydraulics are all repairable, replaceable parts. This is industrial equipment, not a consumer product with a planned lifespan.
Double-container Design for Flexible Waste CollectionOne of the main advantages of this system is the double-container configuration.
Instead of placing two large garbage containers directly on the street, the containers are installed underground and separated into two independent storage spaces.
For example, a project could configure:
| Container 1 | Container 2 |
|---|---|
| General municipal waste | Recyclable waste |
| Household waste | Commercial waste |
| Mixed waste | Dry waste |
| Waste Stream A | Waste Stream B |
The actual configuration can be determined according to local waste classification policies and project requirements.
This arrangement can also help municipalities organize different waste streams without occupying additional surface area.
Underground Design Saves Valuable Surface SpaceUrban waste collection points often compete with pedestrians, vehicles, landscaping, parking spaces, and commercial activities.
An underground garbage collection station moves most of the storage volume below the ground surface.
This can provide several practical advantages:
Reduced above-ground footprint
Cleaner streetscape
Less visual obstruction
Better utilization of limited urban land
More organized garbage collection points
Easier integration with landscaping
Suitable for residential and commercial developments
Underground container systems are widely used specifically because large waste storage capacity can be positioned below ground while keeping the visible installation relatively compact.
Core Structure & Main Components Technical ParametersPower | 5.5KW(Voltage 380V) |
Rotate speed | 1450r/min |
Theoretical displacement | 11.1ml/r |
Rated pressure | 20.6MPa |
Effective volume of the box | 8m³×2 |
Maximum lifting height | 3.3m |
Maximum lifting weight | 6000kg |
Dimensions of the pit (length × width × height) | 90-110s |
Overall machine weight | 6780×3700×2454（mm） |
Number of operators | 4500kg |
Step‑by‑Step Working Process (Whole‑Container Truck Transfer Mode) Typical Application ScenariosUrban residential communities, housing estates
Township and small‑city municipal sanitation projects
Tourist attractions, public parks, large‑scale plazas
Hospitals, schools, industrial parks and commercial zones
Places where high environmental requirements apply and frequent waste transfer is needed
No Garbage Compression FunctionIt is important to distinguish the Underground Double-container Garbage Collection Station from an underground garbage compactor.
This system is designed mainly for:
Collection + Storage + Lifting + Transportation
It does not primarily rely on a hydraulic compression mechanism to compact the garbage.
Therefore, it is a suitable choice for projects where the main requirements are:
Underground waste storage
Classified collection
Space saving
Landscape-friendly installation
Convenient container lifting
Regular truck transportation
If a project requires significant waste volume reduction before transportation, an underground garbage compression station or underground waste compactor would be a more appropriate solution.
This distinction is important because different waste collection technologies serve different operational requirements. Underground systems can range from simple storage containers to more complex automated or compression-based systems.
Underground Double-container Garbage Station vs. Conventional Garbage Containers| Feature | Underground Double-container Station | Conventional Above-ground Containers |
|---|---|---|
| Storage position | Underground | Above ground |
| Container quantity | Two independent containers | Usually separate individual containers |
| Surface appearance | More concealed | Highly visible |
| Space utilization | High | Relatively low |
| Waste classification | Two-stream configuration possible | Depends on container arrangement |
| Container lifting | Integrated lifting structure | Usually direct collection |
| Truck transportation | Container can be transported after lifting | Usually emptied directly |
| Urban landscaping | Easier to integrate | Greater visual impact |
| Compression function | No | Usually no |
| Best application | Urban, residential, commercial and landscaped areas | General waste collection |
Why Choose a Double-container Underground Waste Collection System?For many urban projects, the challenge is not simply how to collect garbage, but where to store it before transportation.
Traditional above-ground containers can occupy pedestrian space and create an obvious waste collection area.
The Underground Double-container Garbage Collection Station takes a different approach by moving the main storage volume underground.
The result is a waste collection point that combines:
Underground Storage + Dual Collection + Lifting + Truck Transportation
This makes it particularly useful for projects where appearance, land utilization, waste classification, and transportation efficiency all need to be considered together.
FAQIt is an underground waste collection system consisting mainly of two independent garbage storage containers, an underground installation pit, ground-level access points, and a lifting structure.
No. This model is primarily a waste collection and storage system, not a mechanical garbage compactor.
When a container needs to be emptied, it is lifted from the underground pit to the required position and then transported by truck to a designated waste treatment, transfer, recycling, or disposal facility.
The two containers can be used for separate waste streams, different collection areas, or different waste management requirements.
Yes. The double-container structure is suitable for projects requiring separate storage of different types of waste.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
