Underground Double-box Garbage Station

The Underground Double-box Garbage Station is an environmentally friendly collection facility that embeds two separate garbage storage boxes underground. Its core feature is that only the collection ports and operation panels are exposed on the ground, achieving the concealment, odorlessness, and landscaping of garbage collection. Compared with similar products with compression functions, it focuses on the classified storage and convenient transfer of garbage, has a simpler structure and easier maintenance, and is suitable for scenarios where there is a low demand for garbage reduction but a high emphasis on environmental aesthetics.

 Product Core Definition and Design Concept

The Underground Double-Box Garbage Station is a type of underground garbage collection equipment that adopts the "one pit with two boxes" layout. Two independent boxes are installed side by side in the underground pit. The boxes can be lifted and lowered through a hydraulic lifting system. Only the collection outlet and control system are retained on the ground, and there is no garbage compression device.

Design Concept

Space Optimization: Seek space underground, with the ground area being minimal, freeing up the ground space for greening or other purposes.

Environmentally Friendly: Underground sealed storage, taking advantage of the constant temperature property of soil, delaying the fermentation of garbage, reducing the spread of odors, and completely eliminating the problem of traditional garbage stations polluting the surrounding environment.

Convenient Classification: Dual-box design meets the needs of garbage classification, allowing for the separate storage of different types of garbage.

Safe Operation: The height of the collection port matches ergonomics, and when being cleared, the box is raised to the ground, avoiding personnel working in the pit.

Product Advantages

Uncompressed design: No compressed components such as compressed push heads and hydraulic pump sets. The structure is simpler, reducing the failure rate.

Two-box independent operation: Avoid service suspension during cleaning, enhance operational efficiency, suitable for densely populated areas

Fully sealed structure: Double sealing strips are used between the boxes and between the boxes and the foundation pit, ensuring zero leakage of filtrate and zero diffusion of odors.

Landscape integration: Only the discharge outlets that are in harmony with the surrounding environment are retained on the ground. They can be disguised as flower beds, seats, etc., completely eliminating the visual pollution caused by traditional garbage stations.

Safety Assurance: No exposed garbage, to prevent children from coming into contact with it; During transportation, the box is raised to the ground level, eliminating the need for operators to enter the pit, thus eliminating potential safety hazards.

Noise control: No compressed working noise. Only low noise is generated during lifting operations, meeting the noise standards for residential areas.

Precise classification: Dual-box fixed classification to prevent mixed submissions, improving the accuracy of waste sorting, and supporting subsequent resource utilization.

Low construction cost: No compression system, reducing equipment procurement costs

High adaptability: It can be compatible with various existing sanitation and waste collection vehicles, eliminating the need for the installation of dedicated equipment and reducing the cost of upgrading and renovation.

Product Core Structure

Ground system: Disposal cover plate, operation panel, safety guardrail

Residential garbage disposal entrance, featuring anti-theft, anti-odor and anti-rat functions

Underground container system: Two independent storage containers, leachate collection tank, sealing rubber strips

The core of garbage storage, the two containers are independently sealed to avoid cross-contamination; a drainage channel is set at the bottom to collect leachate.

Lifting system: Hydraulic cylinder, lifting platform, guiding mechanism

Smoothly lifting the box body

Control system: PLC control cabinet, touch screen, sensor group

Realize functions such as box lifting and lowering, overflow alarm, leachate liquid level monitoring, and fault diagnosis

Auxiliary systems: Deodorization device, spray cleaning, ventilation system Further enhance environmental protection performance and reduce odors and bacterial growth

 Technical Parameters

Working Process

Garbage Disposal Phase

Residents open the cover plate through the ground disposal opening

Put the classified garbage into the corresponding bins

After disposal, the cover plate automatically closes to ensure sealing and prevent the spread of odors

Storage stage

The garbage naturally accumulates in the underground container without any compression process.

The leachate flows through the drainage channels at the bottom of the container into the collection tank and is regularly discharged by the sewage pump.

The overflow sensor continuously monitors the height of the garbage. When it reaches the set value, an alarm is triggered automatically, notifying the removal of the garbage.

Clearing stage

The sanitation workers arrive at the site and select the containers to be cleared through the operation panel.

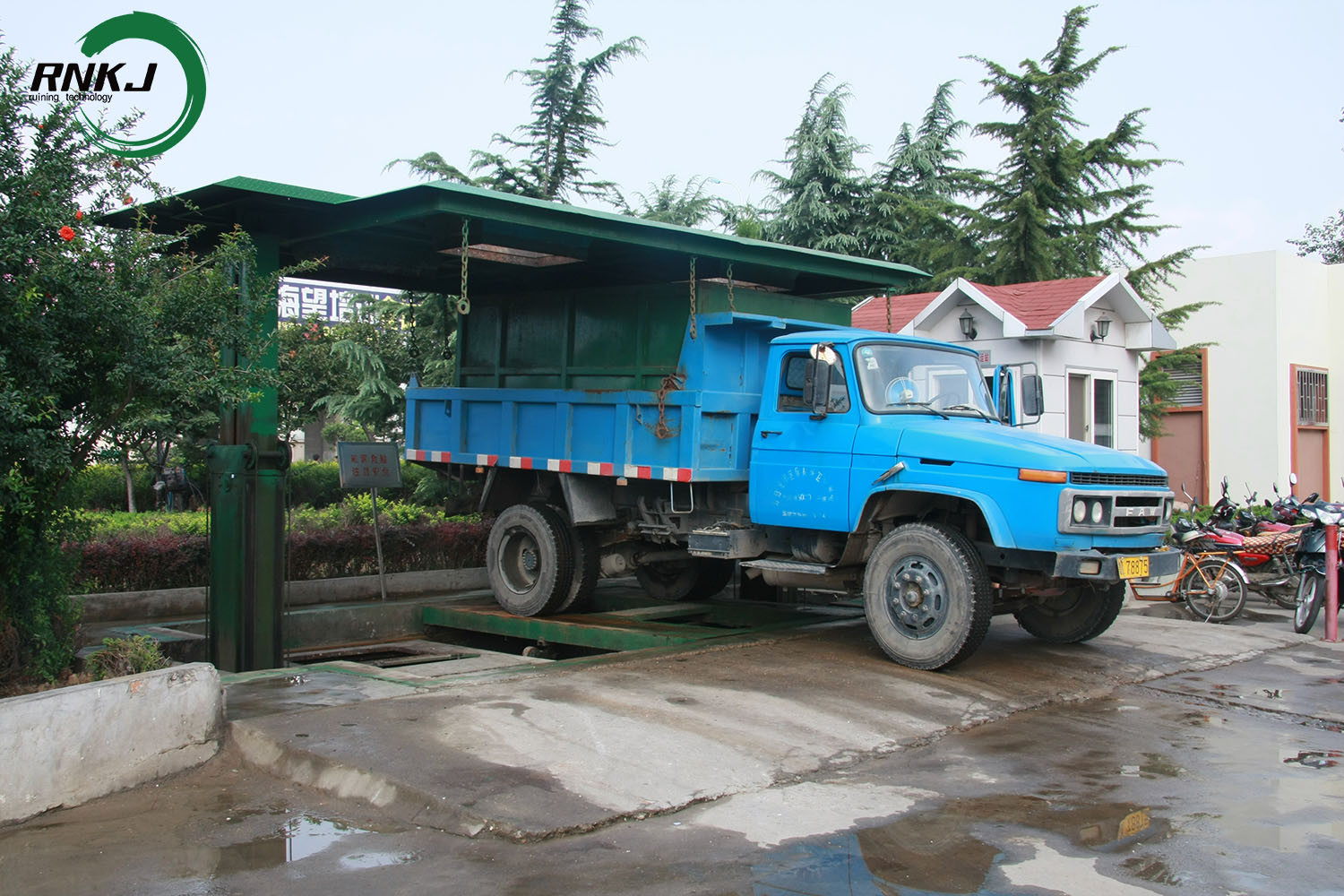

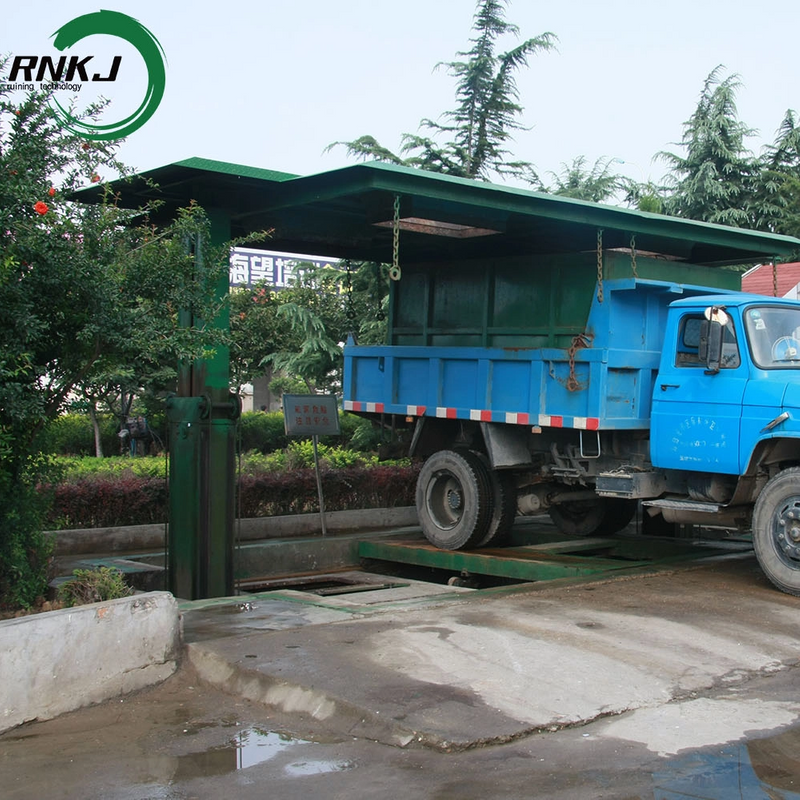

The hydraulic system is activated, and the corresponding containers are smoothly lifted to the ground.

The rear door of the container is opened, and the garbage is directly transported by the grab truck / dump truck.

It is also possible to simultaneously rinse and disinfect the empty containers.

Resetting stage

After the clearance operation is completed, the box body descends to the underground pit and automatically aligns with the sealing position.

The system automatically checks the status of the box body and confirms that the seal is in good condition before entering the standby state.

The other box body can continue to be used, enabling dual-box alternate operation without any clearance waiting time.

 Selection Criteria

Capacity matching: Calculate the total volume based on the service population and the cleaning cycle.

Material selection

In ordinary areas: Preferentially select high-quality carbon steel, which has stronger corrosion resistance.

Function configuration:

Basic configuration: double box + lifting + overflow alarm

Enhanced configuration: feeding port, remote monitoring, automatic deodorization, high-pressure cleaning

Installation conditions: factors such as groundwater level, geological conditions, and surrounding drainage system need to be considered

The RNKJ Underground Double-box Garbage Station is a simple-structured, environmentally friendly and highly efficient garbage collection solution that is easy to maintain and particularly suitable for places that emphasize environmental aesthetics and classification requirements. Its core value lies in the design of underground concealment and dual-box parallel arrangement, which, without sacrificing the convenience of use, solves the problem of environmental pollution caused by traditional garbage stations and reduces construction and operation costs.Contact us to obtain our customized waste disposal solution.
