Underground Double Box Trash Collection Equipment is an advanced underground waste storage system designed for municipalities, residential communities, commercial districts, industrial parks, schools, hospitals, and public spaces. Unlike traditional garbage compression stations, this system does not include a waste compaction function. Instead, it focuses on large-capacity underground waste storage, odor control, visual improvement, and efficient waste collection.
The system adopts a double-box, dual-station configuration, allowing two independent waste containers to operate simultaneously. While one container is being emptied, the other remains available for continuous waste disposal, ensuring uninterrupted service and higher operational efficiency. With most of the waste stored below ground level, the equipment helps create cleaner streets, reduces unpleasant odors, and improves the overall urban landscape.

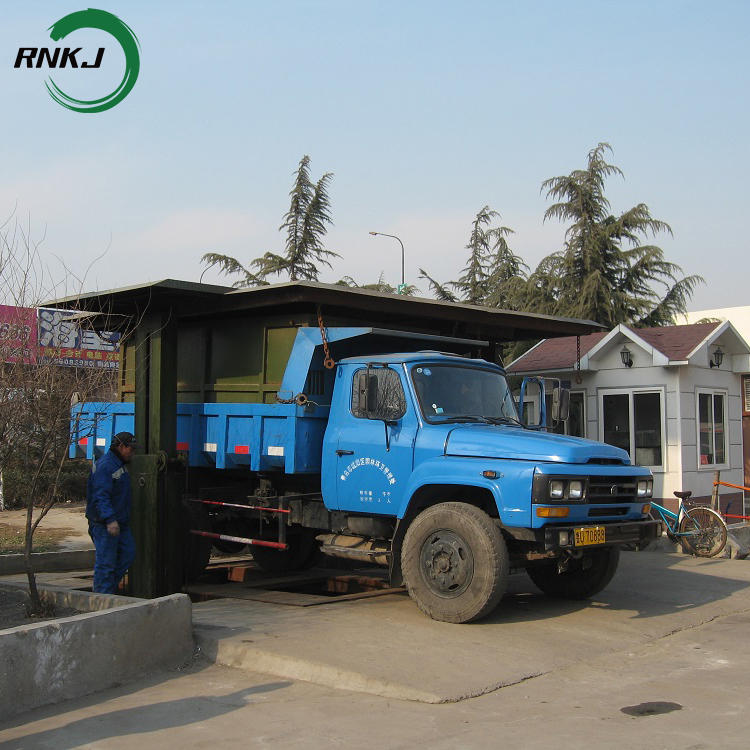

What Is Underground Double Box Trash Collection Equipment?An Underground Double Box Trash Collection Equipment system is a large-capacity underground waste collection facility consisting of two independent waste storage containers installed beneath the ground. The lifting platform raises the containers to ground level during collection, allowing a hook lift truck or crane-equipped collection vehicle to remove the containers for transportation and emptying.
Unlike underground garbage compactors, this equipment is designed exclusively for waste collection and temporary storage without compressing the waste. This simplifies maintenance while providing reliable daily waste management.
Key FeaturesThe system incorporates two underground waste containers that work independently. This configuration significantly improves collection efficiency and minimizes service interruptions during waste transportation.
One container can continue receiving waste while the other is being transported or emptied, reducing downtime and improving operational flexibility.
The underground structure provides substantial waste storage volume, reducing collection frequency and lowering transportation costs.
Since the equipment contains no hydraulic compaction system, it features a simpler mechanical design, lower maintenance requirements, and reduced operating costs.
Keeping waste below ground helps maintain a cleaner environment while minimizing the visual impact of waste collection facilities.

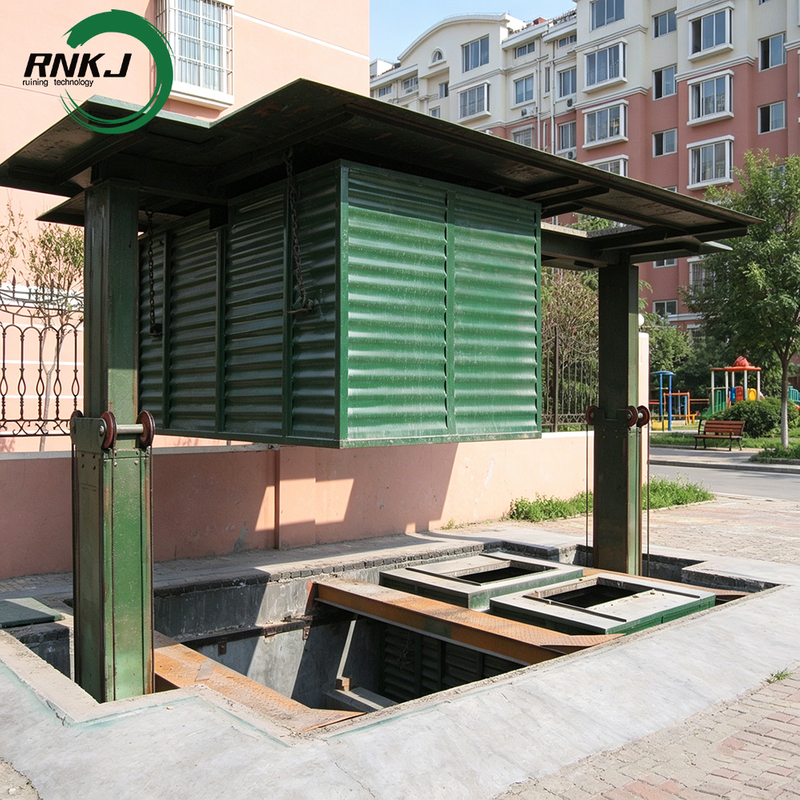

Only the waste inlet and lifting platform remain visible above ground, allowing the installation to blend naturally into parks, communities, campuses, and commercial streets.
The equipment is manufactured from heavy-duty steel with corrosion-resistant surface treatment, ensuring long service life under outdoor operating conditions.
The lifting mechanism raises and lowers the underground containers smoothly for easy maintenance and waste collection.
Technical Parameters
Power | 5.5KW(Voltage 380V) |
Rotate speed | 1450r/min |
Theoretical displacement | 11.1ml/r |
Rated pressure | 20.6MPa |
Effective volume of the box | 8m³×2 |
Maximum lifting height | 3.3m |
Maximum lifting weight | 6000kg |
Dimensions of the pit (length × width × height) | 90-110s |
Overall machine weight | 6780×3700×2454（mm） |
Number of operators | 4500kg |
Advantages of Underground Double Box Trash Collection EquipmentStoring waste underground helps reduce visible garbage accumulation and creates a more attractive public environment.
Underground storage naturally limits odor dispersion compared with traditional above-ground waste collection points.
The dual-container design allows uninterrupted waste disposal even when one container is being serviced.
The large underground capacity enables longer intervals between waste collection cycles, reducing labor and transportation expenses.
Underground storage minimizes exposure to insects, birds, and animals while helping maintain cleaner collection areas.
The two independent containers can be configured for different waste streams, such as:
Household waste
Recyclable waste
Organic waste
General municipal solid waste
This supports local waste separation programs and recycling initiatives.
Working PrincipleThe operation of the Underground Double Box Trash Collection Equipment is straightforward and efficient:
Residents dispose of waste through the above-ground waste inlet.
Waste falls directly into one of the underground storage containers.
Both containers independently collect and store waste.
When one container reaches capacity, the lifting platform raises it to ground level.
A hook lift truck or compatible lifting vehicle transports the full container for emptying.
The second container continues operating throughout the collection process.
After emptying, the container is returned underground and resumes service.
Because there is no waste compaction process, the equipment offers simple operation, reliable performance, and reduced maintenance requirements.
Technical Advantages| Feature | Benefit |
|---|---|
| Double-box design | Two containers operate independently for continuous service |
| Dual working stations | Improved collection efficiency |
| Underground installation | Saves surface space and improves appearance |
| Large storage capacity | Fewer collection trips |
| No compression system | Lower maintenance costs |
| Durable steel structure | Long service life |
| Corrosion-resistant coating | Suitable for outdoor environments |
| Stable lifting mechanism | Safe and reliable operation |
| Easy maintenance | Simple structure with fewer wearing parts |
| Customizable configuration | Adaptable to various project requirements |
Customization OptionsWe provide customized solutions according to different project requirements.
Available customization includes:
Underground container capacity
Container dimensions
Waste inlet design
Lifting platform size
Surface cover style
Color customization
Anti-corrosion coating
Electrical control system
Hydraulic lifting configuration
Safety protection devices
Why Choose Our Underground Double Box Trash Collection Equipment?As a professional manufacturer of municipal waste management equipment, we provide reliable underground waste collection solutions with strict quality control and extensive project experience.
Our advantages include:
Professional engineering design
Custom manufacturing solutions
Heavy-duty structural fabrication
High-quality hydraulic lifting systems
International quality standards
Factory direct pricing
Fast production and delivery
Global installation guidance
Comprehensive after-sales support
Available Waste Collection ModesThe equipment can be configured to support different waste management strategies.
Both underground containers are used for general household waste, maximizing storage capacity.
Each container is assigned to a different waste category, such as:
Recyclable Waste
Household Waste
Organic Waste
Dry Waste
General Municipal Waste
This configuration supports municipal waste separation and recycling initiatives.
Suitable Collection VehiclesThe Underground Double Box Trash Collection Equipment can be matched with various municipal collection vehicles according to customer requirements, including hook lift trucks, crane-equipped trucks, or other compatible lifting vehicles. This flexible compatibility allows the equipment to integrate easily into existing municipal waste collection systems while reducing investment in additional transportation equipment.
FAQNo. Underground Double Box Trash Collection Equipment is a non-compaction waste collection system designed for underground storage and efficient waste transportation.
The dual-container configuration allows one container to remain operational while the other is being emptied, ensuring uninterrupted waste collection.
The equipment is suitable for municipal solid waste, household waste, recyclable materials, and other non-hazardous waste streams.
When a container becomes full, the lifting platform raises it to ground level, where it is collected and transported by a hook lift truck or other compatible lifting vehicle.
Yes. The two independent containers can be assigned to different waste categories, making the system suitable for waste separation and recycling programs.
Yes. We can customize container capacity, structural dimensions, lifting systems, colors, waste inlets, and other specifications to meet local project requirements.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
