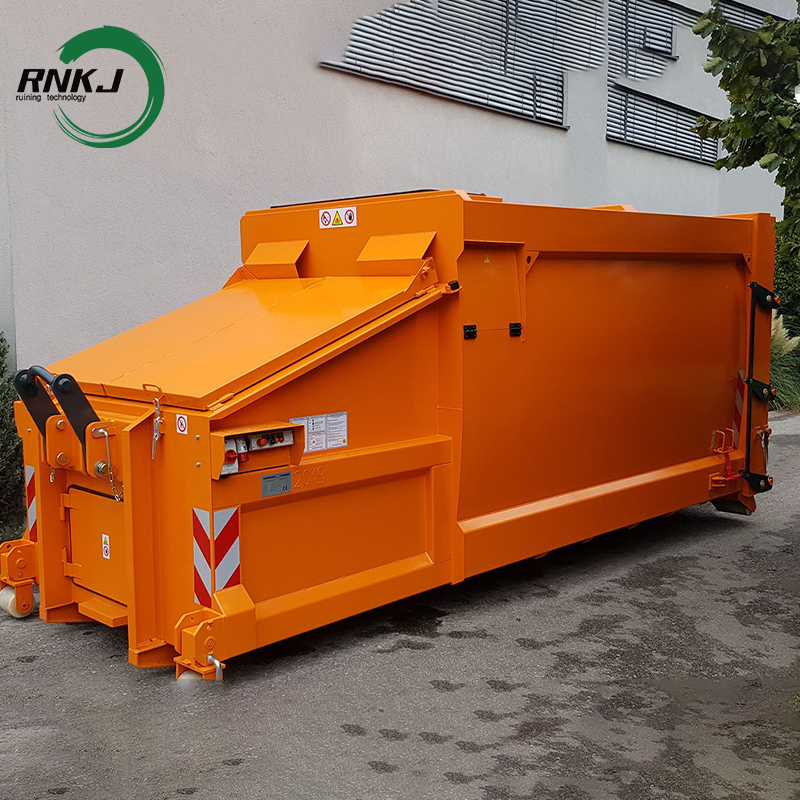

The mobile waste compaction station is a specialized environmental protection equipment that integrates waste collection, compression reduction, and sealed transportation. It does not require a fixed installation foundation and can be flexibly moved to the waste generation site to complete the operation. Its core function is to address the problems of traditional waste collection, such as "loose volume, low transportation efficiency, and heavy secondary pollution".
Through compaction technology, the volume of waste can be reduced to 1/3 - 1/5 of the original size, significantly improving transportation efficiency and reducing processing costs. It is a key equipment in urban and rural environmental sanitation management.
Product Advantage
Efficient capacity reduction, cost reduction directly:
A compression ratio of 1/3 to 1/5 can reduce loose garbage by 30% to 70%, reducing the number of transfer vehicles, significantly reducing costs, and offering high value for money.
Sealed protection, eliminating pollution:
Full sealed box + centralized sewage collection system, addressing issues such as garbage leakage, dust dispersion, and mosquito breeding. From collection to transportation, there is no odor or leakage.
Flexible and adaptable, suitable for all scenarios:
No need for fixed installation. It is applicable in various scenarios such as urban communities, muddy construction sites, remote towns, and emergency sites.
Easy to operate and simple to maintain:
Dual-mode operation of manual and remote control, real-time monitoring on large screens. It is easy to learn and operate, and can be easily operated without a professional team. The components are of high-end quality, with a low failure rate.
One machine for multiple uses, suitable for various types:
Domestic waste, construction waste, industrial waste, etc. Specialized boxes can be replaced. Whether it is a densely populated commercial area community or an industrial park with concentrated production capacity, one device can meet diverse needs, and has strong versatility.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Working principle
Feeding stage: Loose garbage is poured into the feeding port of the box by hand or with a garbage collection vehicle. The feeding port is equipped with a splash-proof baffle to prevent garbage from spilling.
Compaction stage: The hydraulic system is activated, and the compaction push plate is pushed towards the inner side of the box under high-pressure drive, applying continuous pressure to the garbage, extracting the moisture from the garbage and making it compact and tightly packed, significantly reducing its volume.
Storage stage: After the compaction is completed, the push plate returns to its original position. The process of feeding and compaction is repeated until the box reaches its rated loading capacity. At this point, the equipment automatically issues a full-bin alarm.
Transferring and discharging stage: The equipment is moved to the garbage disposal site through the traveling system. The discharging hydraulic device is activated, the tail discharge door is opened, and the push plate is pushed again to push the compressed garbage blocks out as a whole, completing the operation cycle.
Features
Efficient capacity reduction, cost reduction: The compressed garbage volume is significantly reduced, which can decrease the number of transfer vehicles by 30% to 70% and lower costs.
Sealed and environmentally friendly, eliminating pollution: The fully sealed box design collects wastewater centrally, effectively preventing garbage leakage, odor dispersion, dust, and mosquito breeding, and avoiding secondary pollution.
Flexible and adaptable: No need for fixed installation. It can be flexibly moved according to the distribution of garbage generation points, and is suitable for different terrains and working environments, especially for decentralized garbage collection needs.
Easy operation and simple maintenance: The operation is simple and easy to master; key components (such as the hydraulic system and engine) use high-quality parts, with a low failure rate and a long maintenance cycle.
Multi-functional compatibility: By replacing the dedicated box (such as an anti-corrosion box or a high-temperature resistant box), different types of garbage can be handled, with strong versatility.
Operating and Maintenance Notes
Operating Specifications:
Before operation, check the hydraulic system pressure, tire/track condition, and whether the sewage tank is emptied to ensure the equipment is free of faults.
When feeding materials, avoid mixing in metal chunks or large debris to prevent damage to the compaction push plate and box.
During compaction, prohibit personnel from approaching the feed inlet and discharge door to avoid accidents.
When operating remotely, keep the remote control distance within 5 meters to ensure stable signal.
Maintenance Points:
Regularly check the hydraulic oil level and purity, and replace the hydraulic oil and filter element once a year.
Clean the interior of the box and drainage holes to prevent residual garbage from causing corrosion or blockage.
Regularly inspect the walking system and repair or replace worn parts in time.
When the equipment is idle for a long time, park it in a dry and ventilated place, empty the hydraulic oil and sewage tank, and perform rust prevention treatment.
Choosing a mobile waste compaction station means choosing:
✔️ Lower processing costs and higher transportation efficiency
✔️ Cleaner living environment and more compliant environmental performance
✔️ More flexible operation mode and a more hassle-free usage experience
Let waste disposal say goodbye to complexity and pollution and embrace efficiency and cleanliness! The mobile waste compaction station helps with green development and protects a beautiful environment. Contact us now to unlock the exclusive solution!
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
