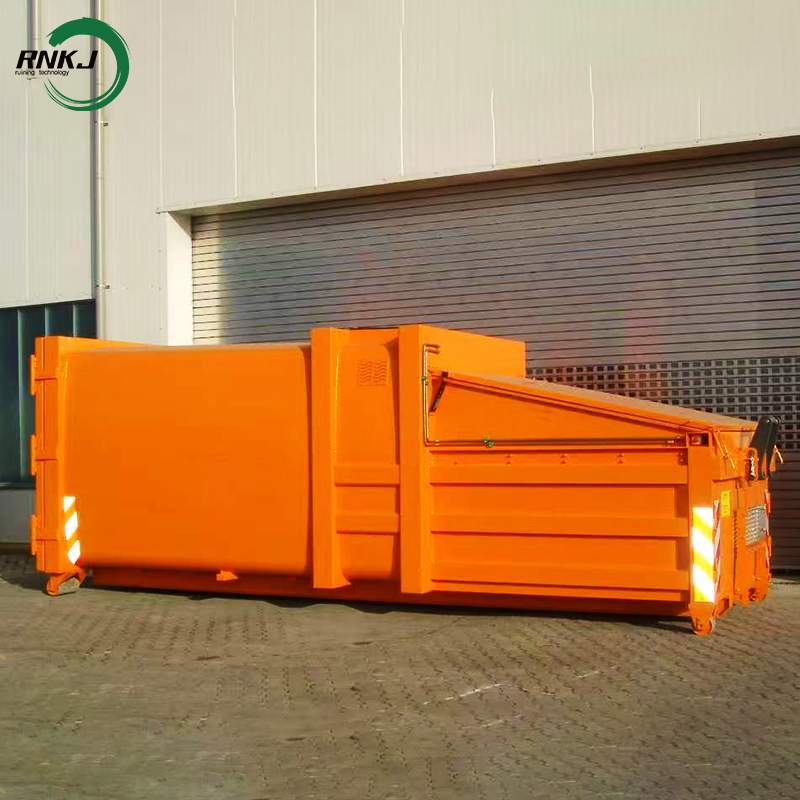

Mobile Trash Compressor is a kind of environmental sanitation equipment that integrates the functions of waste collection, compression and transportation. The whole structure is a movable box-like design, and it does not require a fixed infrastructure site. It can directly be driven to the waste generation point, complete the waste compression operation, and then be towed or lifted by a special vehicle for transfer to the waste treatment site. It has extremely high flexibility.
Product Advantage
High flexibility: Not restricted by the site. It can operate in scattered areas such as residential communities, business districts, construction sites, etc. It is particularly suitable for areas in old cities or temporary activity venues where fixed stations cannot be built.
Efficient capacity reduction: The compression ratio can reach 3:1 to 5:1, significantly reducing the number of garbage transport vehicles, and lowering transportation costs and exhaust emissions.
Environmental friendliness: The sealed design prevents garbage from leaking and odors from spreading. Some models are equipped with odor removal and sterilization systems to avoid secondary pollution.
Installation is convenient: No complex infrastructure required. It can be put into use immediately upon arrival, significantly shortening the project implementation period.
The operation is simple: with high automation levels, operators can get started with minimal training, thereby reducing labor costs.
Structural Composition
Compression main body: It consists of the compression cylinder, the push head, and the compression chamber. It is the core component for reducing the volume of garbage. It utilizes the hydraulic system to provide strong pressure, compressing the garbage to 1/3 - 1/5 of its original volume.
Storage box: Used to store the compressed garbage. The material is mostly high-strength steel, featuring anti-leakage and anti-corrosion properties.
Hydraulic control system: Controls the operation of actions such as compression and discharging, supporting both manual and automatic operation modes.
Power system: Some models are equipped with diesel generators, enabling them to operate independently in areas without external power supply.
Auxiliary devices: These include bucket flipping mechanism, odor removal spray system, sewage collection tank, etc., enhancing the convenience and environmental friendliness of the operation.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Working Principle
Garbage disposal: Through the loading system, the garbage brought by trash bins, rickshaws or small vehicles is poured into the compression chamber.
Compression and reduction: The compression head moves horizontally, forcefully compressing the garbage, removing the water and air from the garbage and increasing its density.
Storage and waiting: The compressed waste is stored in a sealed container and waits for the collection vehicle to come and take it away.
Quick transfer: The telescopic vehicle lifts the garbage-filled containers as a whole and transports them to the disposal site.
Discharge handling: At the terminal processing site, the rear door is opened through the hydraulic system, and the compressed garbage blocks are pushed out as a whole for landfilling, incineration or resource utilization.
Features
Environmental protection and hygiene: The entire process is sealed, preventing the exposure of garbage, dust dispersion, and odor leakage, achieving "zero transfer, no landing, and no pollution"
Flexible and mobile: The position can be adjusted flexibly according to the amount of garbage generated. The separated vehicle compartment mode significantly improves the turnover efficiency
Cost savings: No large-scale civil engineering is required, the construction period is short, and the operating cost is 30%-60% lower than that of traditional stations
Intelligent and convenient: High degree of automation, simple operation, and some models support remote monitoring and data management
Application Scenarios
Urban communities / residential areas: Small in size, flexible in location selection
Townships / rural areas: No need for fixed infrastructure, can be continuously collected, reducing construction costs
Industrial parks / commercial areas: Large processing capacity, can reduce transportation frequency, lowering logistics costs
Scenic spots / schools / hospitals: Fully enclosed design, no odor or leakage, maintaining environmental cleanliness
Emergency handling: Can be quickly deployed at temporary garbage collection points in post-disaster situations, large-scale events, etc.
The differences between Mobile Trash Compressor and Stationary Trash CompressorMobile Trash Compressor
Mobility: Extremely high, can be relocated at any time
Construction period: 1-3 days (ready for use once equipment arrives)
Floor area: Small (15-30 square meters)
Investment cost: Low (mainly for equipment purchase)
Applicable scale: Small and medium-sized (daily processing capacity 5-80 tons)
Secondary pollution: Low (fully enclosed transportation)
Stationary Trash Compressor：
Mobility: Fixed and immovable, unable to be relocated
Construction period: 3-6 months (requires civil construction)
Land area: Large (50-200 square meters)
Investment cost: High (including civil construction, equipment, and supporting facility)
Applicable scale： Large (daily treatment capacity of over 100 tons)
Secondary pollution： High (multiple transfer links)
Opting for a Mobile Trash Compressor to selecting:
✔️ Reduced waste treatment expenses and enhanced transit efficiency
✔️ A cleaner residential setting and more standardized environmental compliance
✔️ Greater operational flexibility and a much smoother user experience
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services.
If you would like to obtain more customized specifications or purchase this garbage compaction station at factory price, please contact us via website message or WhatsApp(+86-18853809997).
