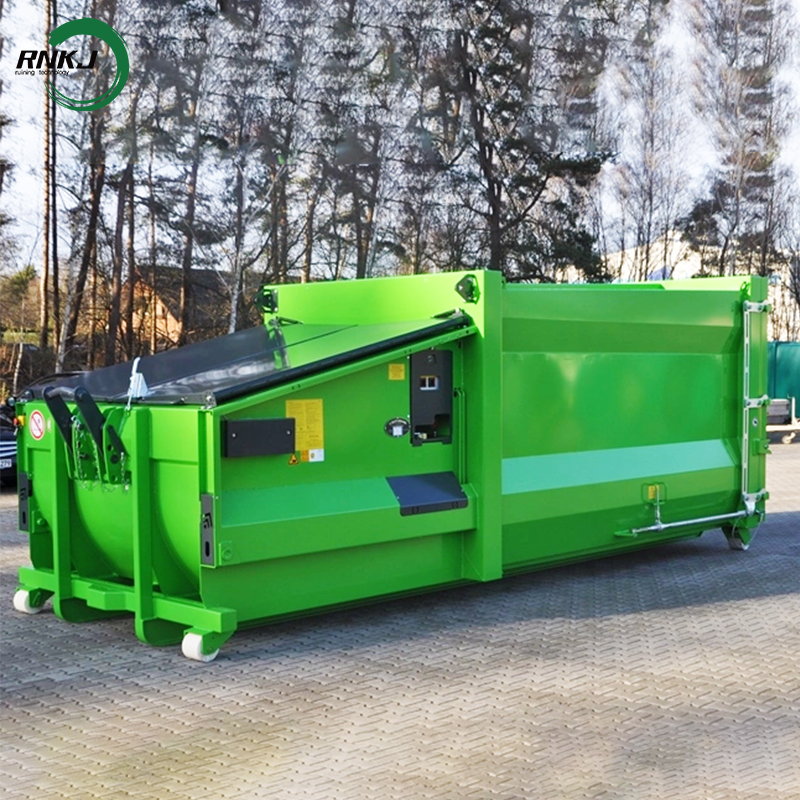

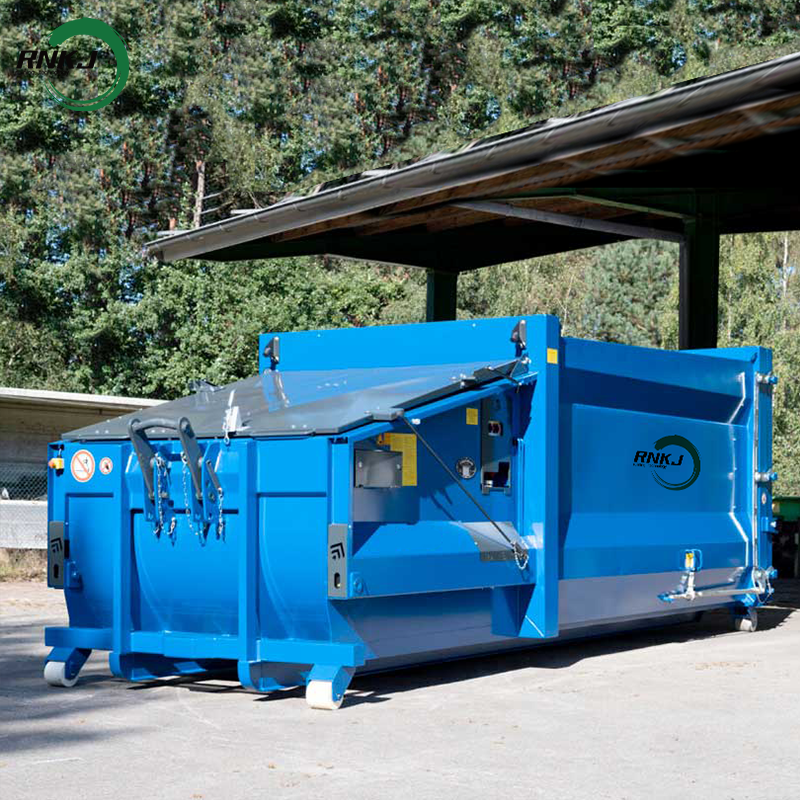

The Mobile Trash Compaction Station, also known as the Mobile Garbage Compressor or Integrated Mobile Garbage Compaction Box, is an independent solid waste management system that can be installed on trucks or trailers. It integrates garbage collection, compression, storage, and sealed transportation, and does not require a permanent foundation. It is widely used in decentralized scenarios to reduce garbage volume, lower transportation costs, and eliminate secondary pollution. It is the core equipment for small to medium-sized waste transfer and on-site treatment.
Product Advantage
High flexibility: No need for fixed infrastructure, can be quickly deployed in communities, streets, construction sites, etc., adaptable to narrow spaces, and reducing transfer links.
Efficient capacity reduction: After compression, the density is high, with a reduction rate of approximately 50%, reducing transportation frequency and costs.
Environmentally friendly sealing: The entire process is sealed, without garbage leakage, odor diffusion, centralized sewage treatment, and elimination of secondary pollution.
Intelligent and convenient: PLC automatic control, remote monitoring and fault warning are possible, simple operation, low maintenance cost.
Vehicle compartment separation: One vehicle with multiple compartments for circular transportation, significantly improving turnover efficiency, suitable for multi-dispersed site operations.
The hydraulic-driven Mobile Trash Compaction Station performs horizontal cyclic compaction operations with high compaction density. It is equipped with an independent hopper and a truck, facilitating efficient turnover, and an optional automatic feed hopper is also available.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Working principle
Loading: The small collection vehicle pours the garbage into the hopper, and the lifting mechanism flips the hopper, allowing the garbage to enter the compression chamber.
Compression: The hydraulic system drives the compression head to repeatedly squeeze the garbage, reducing its volume and increasing its density. The wastewater is discharged through the bottom drainage outlet.
Storage and Transportation: When the box is fully loaded, the boom truck lifts the box onto the transportation vehicle and transports it to the treatment plant; it supports "box separation", allowing empty boxes to be quickly replaced for continued operation.
Discharging: After arriving at the treatment plant, the hydraulic control opens the rear door, the compression head pushes out the garbage, completing the discharge, and then returns to the cycle of use.
Structural composition
The entire machine is composed of the box assembly, the compression mechanism, the feeding system, the hydraulic system, the electrical control system, the sealing and safety devices, and other core components.
Box assembly: The entire box is welded with high-strength weather-resistant steel, including the storage compartment and the rear door. The rear door is equipped with a liquid-controlled dual locking hook and sealing device to prevent leakage during transportation. A sewage outlet is set at the bottom to achieve solid-liquid separation and prevent sewage from seeping out.
Compression mechanism: The core components are the compression head and the compression cylinder. It repeatedly squeezes the garbage through horizontal movement to increase its density.
Loading system: Bucket + lifting mechanism, capable of performing automatic loading in bucket-style or bucket-shaped manner, suitable for discharging from small collection vehicles, and some models come with automatic buffering to prevent impact.
Hydraulic system: Includes hydraulic pumps, motors, cylinders, control valves, etc. It mostly adopts load-sensitive variable system. The single pump operates with energy saving when unloaded and boosts pressure with dual pumps when under load. Some are equipped with forced air cooling and temperature control.
Electrical control system: Mainly controlled by PLC. It can perform manual/automatic cycle operations. Equipped with sensors, emergency stop, power lock and other safety devices.
Sealing and environmental protection device: Fully enclosed structure + odor removal component. During compression and transportation, there is no spillage or odor diffusion. Wastewater is collected and treated centrally.
Typical Applications
Small - to medium - sized waste transfer stations in urban communities, towns, scenic spots, office buildings, and shopping malls (daily throughput ≤ 80 tons).
Temporary waste treatment for construction sites, industrial parks, exhibitions, and sports events.
Areas without fixed stations, replacing open - air waste stacking to improve environmental quality.
Development TrendsIntelligent Upgrading: Integration of IoT and AI technologies for remote monitoring, dynamic compaction rate adjustment, and predictive maintenance.
New Energy Adoption: Electric or hydrogen - powered drives to reduce carbon emissions, in line with carbon neutrality goals.
Modular & Multifunctional Design: Integration of crushing and preliminary sorting modules to adapt to waste classification and improve resource recovery rates.
Lightweight & Corrosion Resistance: Use of high - strength wear - resistant/weather - resistant steel to reduce weight, extend service life, and lower maintenance costs.
Opting for a Mobile Trash Compaction Station to selecting:
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. If you would like to obtain more customized specifications or purchase this garbage compaction station at factory price, please contact us via website message or WhatsApp(+86-18853809997).
