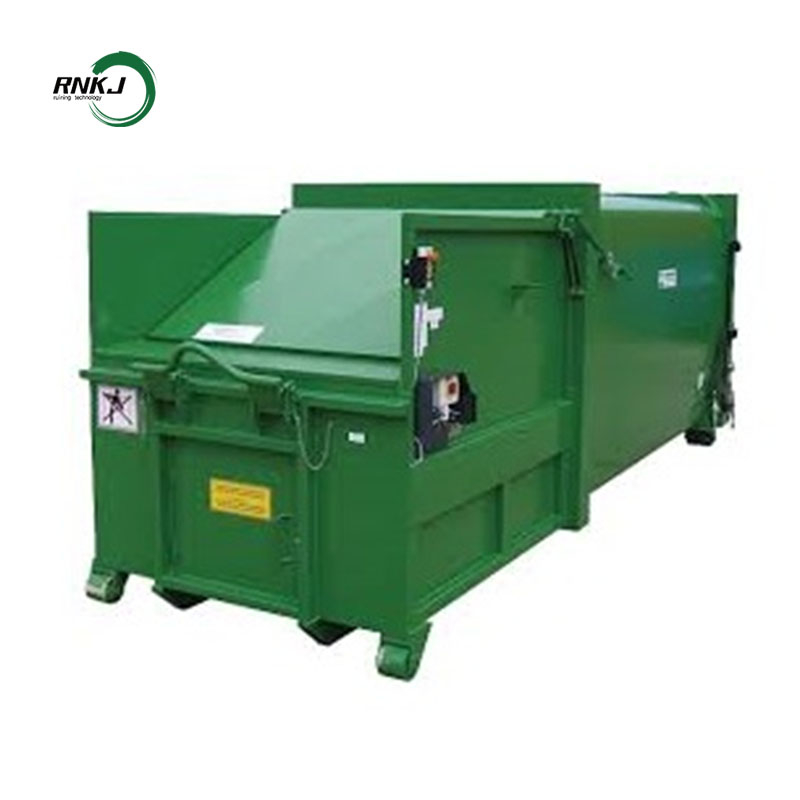

Mobile Refuse Compactor is a device that reduces the volume of garbage and optimizes garbage disposal through high-pressure compression technology. It is widely used in urban sanitation, industrial waste management, commercial places and home scenes.
Product Advantage
High-pressure compaction: Compress loose garbage (such as domestic garbage, plastics, cartons, etc.) to 1/4 of the original volume through hydraulic or mechanical pressure, significantly reducing the occupied space. Improve transportation efficiency: After compression, the density of garbage increases, the single transportation volume increases by 2-3 times, and the logistics cost is reduced.
Sealed design: The garbage is sealed during the compression process to reduce the spread of odor and the breeding of mosquitoes. Liquid infiltration management: Some models are equipped with sewage collection tanks to prevent the leakage of corrupt liquids from polluting the environment.
Modular design: The pressure parameters can be adjusted for different types of garbage to avoid mixed pollution. Compatible containers: Adapt to standard trash cans or customized containers for subsequent transportation.
Intelligent control: supports timed compression, induction start and remote monitoring.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Operation Process
Step 1 : Load the garbage Open the feeding port and manually or via the conveyor belt feed the loose garbage to the full-load line(indicated by the sensor).
Step 2 : Start compression Select the automatic mode: The sensor triggers the pressure head to press down, and this cycle repeats multiple times until the preset pressure or volume is reached. Manual mode: Set the compression times or pressure threshold through the control panel.
Step 3 : Remove the garbage blocks After the compression is completed, the gate at the bottom of the box opens, pushing out the lumps of garbage into the transfer container.
Step 4 : Cleaning and Maintenance The cavity is flushed with a high-pressure water gun to clean up the residues. Check the hydraulic oil level and the condition of the sealing ring.
Product Uses
Residential Areas: Empty and compress trash from bins to prevent odors from accumulating in the community.
Commercial Areas/Office Buildings: Frequent collection of mixed waste from restaurants and offices to prevent overflow and attract insects.
Municipal Roads/Parks: Use trash cans and small garbage stations to quickly clean up litter and maintain cleanliness in public areas.
Industrial Parks: Handle industrial scraps and packaging waste; some vehicles are compatible with slightly corrosive waste. Compressed waste is transported directly to designated landfills or recycling stations within the industrial park.
Large Event Sites: For events such as concerts, exhibitions, and sporting events, collect large amounts of disposable waste after the event to quickly restore the site to its original condition.
Hospitals/Health Institutions: Use specialized vehicles with sealing and disinfection functions to handle medical waste to prevent the spread of germs; transportation must meet medical waste transportation standards.
Product Details
I. Scientific Design for Safety and Cleanliness: The compression head is cleverly positioned above the tank, fundamentally eliminating the risk of liquid backflow. This design not only avoids corrosion problems caused by prolonged immersion of the compression head and cylinder in sewage, but also effectively keeps the tank's internal cavity clean, reducing maintenance costs and extending equipment lifespan.
II. Efficient Sewage Treatment to Eliminate Leakage Risks: The equipment is equipped with an independent sewage collection tank for centralized collection of sewage generated during compression, strictly preventing leakage and environmental pollution. Sewage supports two treatment methods: direct on-site discharge via an internal sewage pump, or transportation with the tank to a designated location for unified treatment, flexibly adapting to different operational scenarios.
III. Standardized Compatibility for Major Global Vehicle Models: The mobile garbage compressor is designed strictly according to international standards, seamlessly connecting with hook-lift garbage trucks from most brands worldwide. No additional modifications are required for rapid mounting and operation, significantly improving equipment versatility and reducing user procurement and adaptation costs.
IV. Deeply Customized Services to Meet Individual Needs
As a professional manufacturer, we offer comprehensive customization solutions, including core parameters such as equipment color, volume (5-20m³ optional), dimensions, and voltage (220V/380V/customizable). We can tailor-make exclusive solutions based on the client's industry characteristics (e.g., municipal, property, industrial), operating environment, and special functional requirements.
V. Superior Performance and Multiple Options to Improve Operational Efficiency
High-Strength Structure: The main frame is welded from Q355B high-carbon steel, with a compressive strength exceeding 300MPa, ensuring the equipment remains undeformed and undamaged during high-frequency compression operations, with a service life exceeding 8 years.
High-Efficiency Compression System: Compression ratio up to 1:4.5, single cycle time only 45 seconds, daily processing capacity up to 80-150 tons, 30% higher efficiency than traditional equipment.
Diverse feeding methods: Offers various feeding port designs such as tipping bucket, hopper, and side loading to adapt to different material types such as bagged waste, bulk waste, and industrial waste, meeting the diverse operating habits of customers.
Product Feature
Mobile Refuse Compactor uses an advanced PLC microcomputer control system, supporting remote operation, automatic compression, and a high compression ratio. It is suitable for semi-wet, wet, and solid waste, with a capacity range of 6 to 20 cubic meters. Features include a waterproof structure, compatibility with hook-lift garbage trucks, automatic fire suppression, deodorization, and ventilation systems. It is equipped with high-pressure water jet cleaning, remote monitoring, and other functions, and features a durable hydraulic-electric isolation design.
FAQ
1. What is your Warranty?
We provide 1 Year Warranty.
2. May l buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
3. What's the leading time?
Standard models are in stock, customized models are 30-40 days
4. How will you deliver my goods to me?
Available by sea and rail.
5. What is the quality of your products?
We provide unrivaled Quality - Very rigorous testing process for Incoming Quality Control, input Process Quality Control, and Final Quality Control for every piece.We follow QC test procedure, and do 100% FQC to ensure your satisfaction.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
