Horizontal Waste Compactor is an overall or partially underground environmental sanitation facility. It combines the efficiency of horizontal compression technology with the concealment of underground layout, and is mainly used for garbage collection, compression and transportation in communities, towns, parks and other scenarios.
Product AdvantageEnvironmentally friendly and aesthetically pleasing: The entire operation is conducted underground, with no exposed garbage or visual pollution. It effectively controls odors and mosquito and fly breeding.
Space-saving: The ground area required is only about 20 square meters. No large-scale civil engineering is needed, making it suitable for urban communities with limited space.
Highly efficient and energy-saving: The compressed garbage has a high density, reducing the number of transfers, and lowering transportation costs and carbon emissions.
Easy to operate: One-button intelligent control allows a single person to complete the entire process of disposal, compression, lifting, and transportation.
Safe and reliable: Multiple hydraulic protection and limit devices ensure stable operation and low maintenance costs.
Technical Parameters
Compression Type | Horizontal compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Ground gallows, side gallows, four pillars |
Working Process Concealed layout: The main body of the equipment is completely buried underground in a pit, with only the feed inlet and the cover plate exposed above the ground. It can be coordinated with the surrounding environment for decoration, and is virtually invisible from a visual perspective.
Horizontal compression: After the garbage is placed in, the horizontal hydraulic push plate will compress the garbage, reducing its volume to one-third of its original size, thereby significantly improving the storage efficiency.

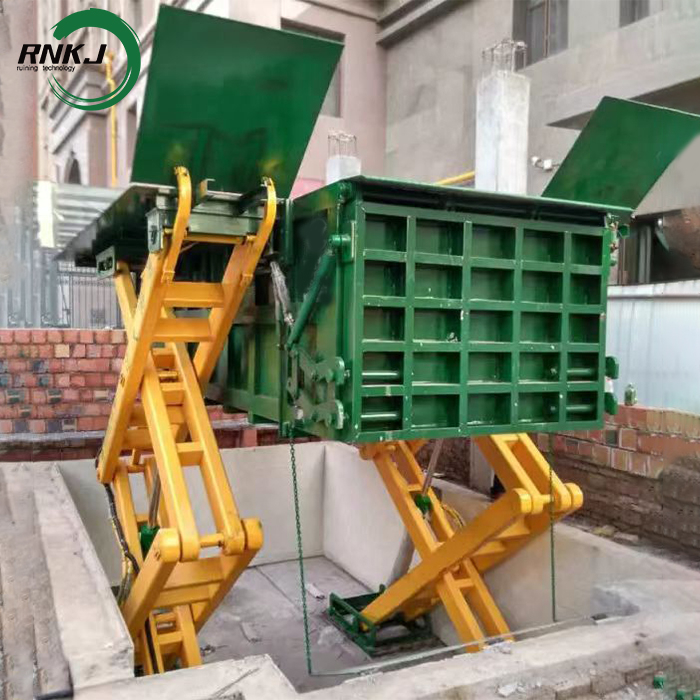

Lifting and moving: Once the box is filled with goods, the hydraulic lifting device will lift the box from the ground to above the ground, aligning it with the garbage transport vehicle to complete the garbage transportation process; then the box will fall back underground, returning to its concealed state.
Wastewater and odor control: The filtered liquid produced by compression is discharged through pipes in the underground pit into the sewage network. The constant temperature environment underground can also reduce the decomposition of garbage and the spread of odors.
Product Style
|
|
Core StructureUnderground compression main chamber
It is equipped with horizontal compression cylinders, compression push heads, and garbage storage boxes, all of which are located underground in the pit. Only the feeding port is exposed on the ground.
The box adopts a fully sealed design, combined with pit waterproofing and odor collection systems.
Ground intelligent feeding unit
Equipped with a classified discharge port with an automatic lid-opening function, supporting multiple opening methods.
Has an overflow warning sensor, capable of monitoring the garbage storage volume in real time.
Automation control system
The start and stop, compression, and material pushing of underground equipment are all operated remotely through the ground control cabinet.
It has a self-diagnosis function for faults and can automatically trigger emergency maintenance passage lighting and ventilation.
FeatureConcealed layout, environmentally friendly
The main compression box and lifting mechanism of the Horizontal Waste Compactor are all buried in the underground pit. Only the feeding port and the cover plate are exposed on the ground, which can be coordinated with the surrounding landscape for decoration.
Fully enclosed operation, no garbage exposed, effectively enhancing the overall aesthetics of communities, scenic areas, etc.
Efficient compression, significant weight reduction
By using horizontal hydraulic compression technology, the volume of household waste can be reduced to one-third of its original size, significantly improving the storage efficiency of the container.
After compression, the density of the waste is high, reducing the number of transfer operations, and lowering transportation costs and carbon emissions.
Outstanding environmental performance
The underground constant-temperature environment can slow down the decomposition of garbage, effectively control the spread of odors and the breeding of mosquitoes and flies.
The filtrate generated by compression is discharged into the sewage network through pipes in the underground pit, avoiding secondary pollution.
The fully enclosed structure can prevent garbage from scattering and sewage from seeping out, meeting modern environmental protection requirements.
Saves space and has strong adaptability
The operation space on the ground only requires about 20 square meters. No large-scale civil engineering is needed, making it particularly suitable for areas with tight space constraints such as urban old residential areas and commercial zones.
Different-sized containers of various specifications can be selected flexibly according to the amount of garbage, adapting to different-scale garbage collection requirements.
Convenient operation, safe and reliable
Equipped with an intelligent control system, it supports one-click operation, allowing a single person to complete the entire process of garbage disposal, compression, lifting, and transportation.
Multiple hydraulic protection and limit devices ensure stable operation, with low failure rate and low maintenance cost.
After the lifting mechanism lifts the box to the ground, it can seamlessly connect with a standard garbage transfer vehicle, resulting in high transfer efficiency.
Wide application scenarios
Suitable for places with high requirements for environmental aesthetics and hygiene, such as urban communities, schools, hospitals, parks, scenic spots, etc.
Also applicable to garbage transfer points in towns, streets, industrial parks, etc.
Applicable SceneHigh-density urban core area: Completely hidden underground, it does not occupy the commercial or green space on the ground, avoiding conflicts between garbage disposal facilities and the high-end commercial atmosphere.
High-end ecological community: From the root, it eliminates the unpleasant smell, noise and visual pollution of garbage stations, ensuring the quality of community living.
Transportation hub area: The underground layout can achieve 24-hour continuous operation, avoiding garbage accumulation that affects passenger passage.
City parks and scenic spots: The underground treatment mode can avoid the damage to the natural landscape caused by garbage stations, ensuring the tourist experience during visits.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
