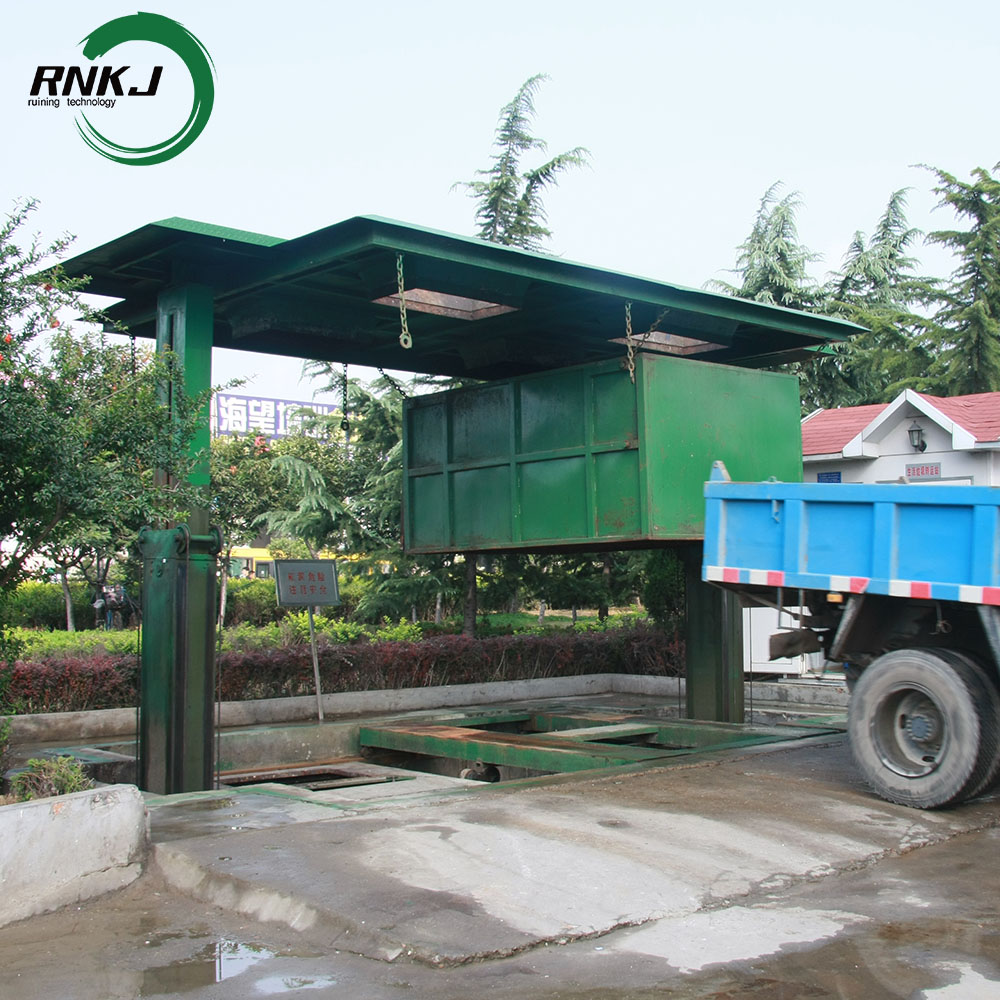

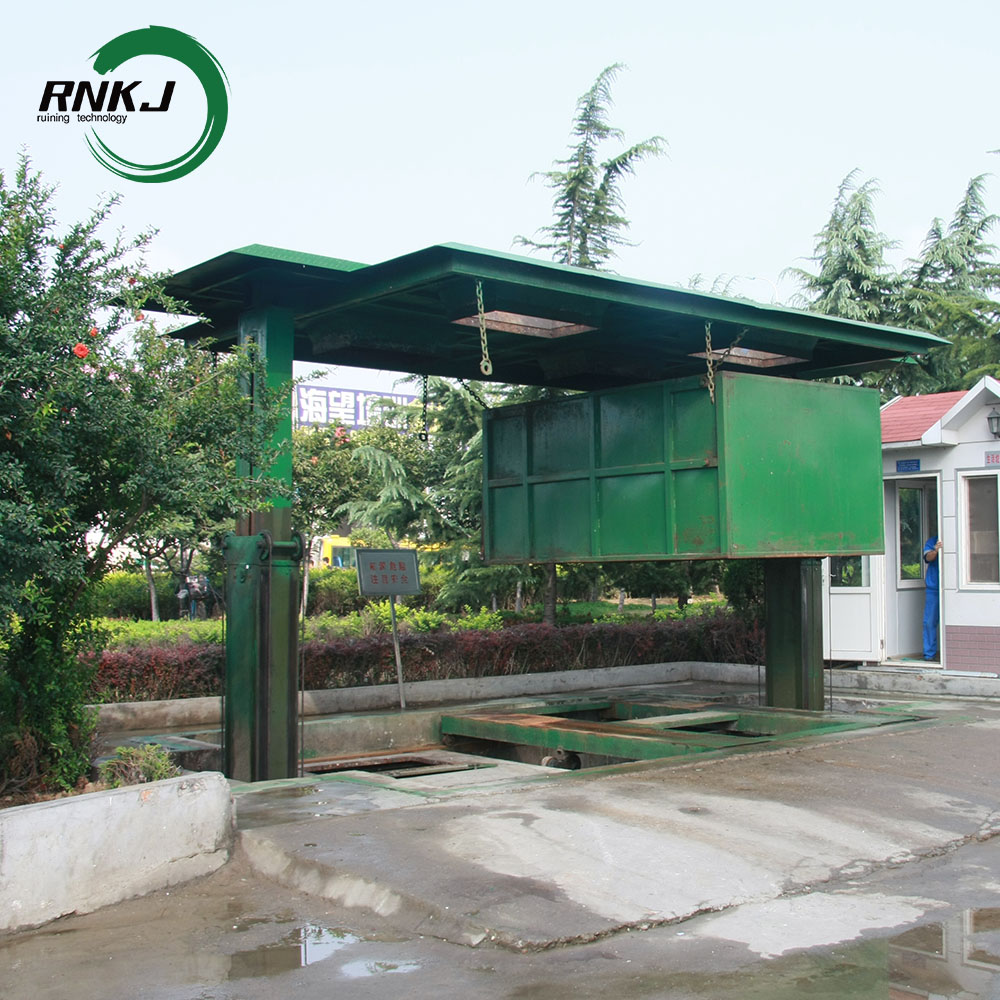

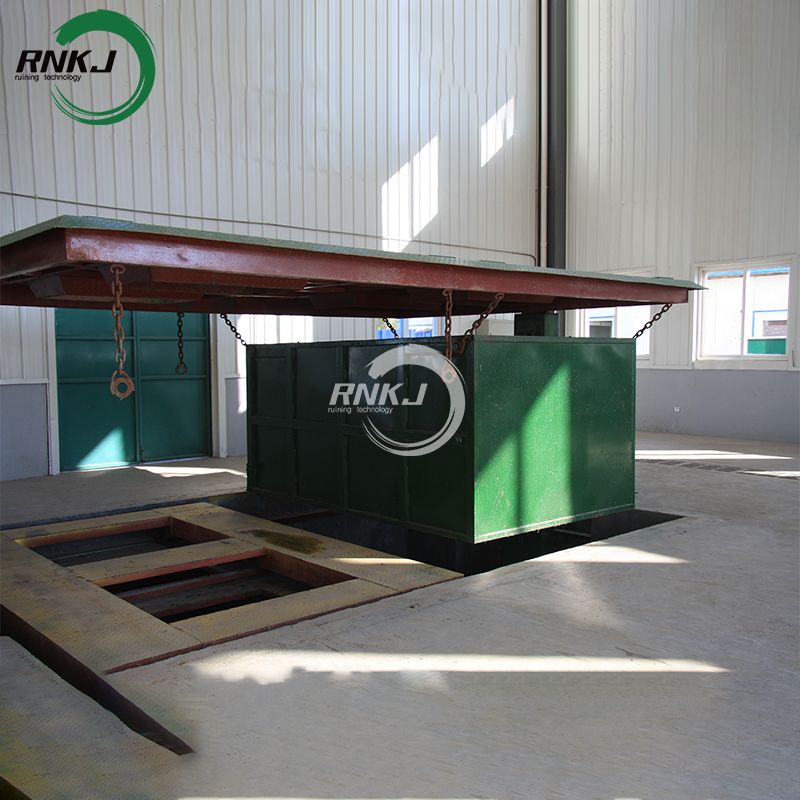

Double Box Trash Station is a type of environmental sanitation infrastructure without garbage compression function. Its core consists of two independent boxes, mainly used for the classification collection, temporary storage and transfer connection of domestic waste. It does not have the capacity for volume reduction and compression. It is widely applied in communities, towns and small commercial areas with clear classification requirements and moderate waste generation, serving as a lightweight solution for waste treatment.
Product AdvantagesStructural and cost advantages
Simple structure: No compressed mainframe, hydraulic system or electrical control system, resulting in low failure rate and low maintenance cost.
Low construction cost: The height requirement for the station building is low, reducing the cost of civil engineering, and it is suitable for renovation in old urban areas.
High flexibility: The box can be moved independently and the box combination can be adjusted according to the requirements of garbage classification.
Environmental protection and usage advantages
Clear classification: Dual-box physical isolation, completely avoiding mixed garbage, improving classification accuracy.
Good sealing performance: Fully sealed design, effectively controlling odors and secondary pollution.
Low noise and no energy consumption: No compression operation noise, energy-saving and environmentally friendly.
High safety: No high-pressure hydraulic components, low operational risks, suitable for use in densely populated areas.
Operational and management advantages
Efficient cleaning: The use of two containers alternately reduces the waiting time for cleaning and improves the transportation efficiency.
Easy maintenance: Few components, easy to clean. Daily maintenance only requires checking the seals and the leachate system.
High compatibility: Compatible with 1-3 ton boom trucks, seamlessly integrating with the existing sanitation transportation system.
Product Core structure Double-box main body: Two independent sealed compartments, each storing different types of garbage.
Dual garbage input ports: Garbage disposal channels, usually located on the front or side of the box.
Sealed box door: Outlet for discharging garbage during cleaning and transportation.
Leachate collection system: Collects the leachate produced by the garbage.
Support frame: Supports the box and facilitates vehicle lifting and transportation.
Identification system: Guides correct classification of garbage disposal.
Technical ParametersPower | 5.5KW(Voltage 380V) |
Rotate speed | 1450r/min |
Theoretical displacement | 11.1ml/r |
Rated pressure | 20.6MPa |
Effective volume of the box | 8m³×2 |
Maximum lifting height | 3.3m |
Maximum lifting weight | 6000kg |
Dimensions of the pit (length × width × height) | 90-110s |
Overall machine weight | 6780×3700×2454（mm） |
Number of operators | 4500kg |
Definition and Core PositioningCore definition: Adopting a dual-box independent design, equipped with two feeding ports, it enables the source classification collection and sealed temporary storage of two different types of garbage.
Functional positioning:
Replace the traditional open garbage bins, achieving closed and categorized garbage collection
As a small-scale garbage transfer node, connecting the front-end collection and back-end transfer processes
Solve garbage pollution, reduce environmental problems such as garbage odor, mosquito breeding, etc.
Different from compression-type garbage stations: no compression device, no hydraulic system, simpler structure, lower energy consumption
Working Principle Classification disposal: Different types of garbage are placed into corresponding bins through the double feeding ports.
Closed storage: The garbage is stored in the bins in a sealed manner, and the leachate flows into the dedicated collection device.
Transport connection: When the bin is about to overflow, it is lifted and transported as a whole by a dedicated garbage truck.
Bin replacement: After transportation, the empty bins are placed back in their original positions to continue the collection task; the full bins are transported to the waste treatment station.
Applicable Scenarios Community / Residential Area: Particularly suitable for demonstration areas of garbage classification
Township / Rural Area: With low garbage generation, no need for compression and reduction of volume
Small Commercial Area: Concentration area of catering businesses, enabling separation and collection of kitchen waste from other garbage
Scenic Area / Park: High environmental requirements, requiring sealed collection and with an appropriate amount of garbage
Old Urban Area Renovation: Limited space, difficult to build large-scale compression stations
What aspects does the environmental design of the Double Box Trash Station cover?Fully sealed and odor-proof, preventing the spread of odors
The entire box is sealed and welded. The feeding port is equipped with an automatic closing and sealing cover, ensuring that the garbage does not spill out.
A rubber sealing strip and locking mechanism are added to the rear door to prevent the leakage of odors and the breeding of mosquitoes and flies.
Collection of leachate and prevention of leakage, protecting water and soil
The bottom of the box is treated with a full welding process to prevent leakage, and there are no weld seam leaks.
A collection tank and a drainage valve are set at the bottom, specifically for collecting the leachate from garbage, and it is uniformly discharged and treated to prevent direct infiltration into the soil and pollution of groundwater.
Dual-box physical separation, facilitating source classification
The two boxes are completely separate and can be used to store food waste, other garbage, or recyclables respectively.
This helps avoid mixed packaging and contamination at the source, enhances the utilization rate of resources, and reduces the pressure at the end of the processing.
Low energy consumption / Zero energy consumption, low-carbon and environmentally friendly
No compression motor, no hydraulic system, it consumes very little electricity.
Manual / Simple electric opening lid is sufficient for use, and the carbon emissions during operation are extremely low.
Rainproof design, reducing sewage generation
The top can be equipped with a rain shelter / rain cover to prevent rainwater from entering the box,
avoiding the mixing of rainwater with garbage to produce more leachate.
Easy to clean and disinfect, hygienic and environmentally friendly
The inner wall is smooth with no dead corners, facilitating cleaning and disinfection,
reducing the growth of bacteria and mold, and minimizing hygiene risks.
Environmentally friendly and durable materials, reducing secondary pollution
Using anti-corrosion carbon steel or stainless steel, they are resistant to corrosion and have a long lifespan.
They are not prone to rusting and falling off, thus avoiding dust and rust water from polluting the environment.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
