The Custom Large Capacity Underground Garbage Collection Station is a space-saving and environmentally friendly waste collection solution designed for modern residential communities, commercial streets, schools, hospitals, parks, municipal sanitation projects, hotels, restaurants, markets, and other locations where conventional above-ground garbage bins occupy valuable public space.
Unlike traditional waste collection points that place large containers directly on the ground, this Underground Garbage Collection Station stores the main waste containers below ground level. Only the compact waste feeding openings and necessary access structures remain visible above the surface. This creates a cleaner streetscape while providing a large-capacity centralized waste storage solution.

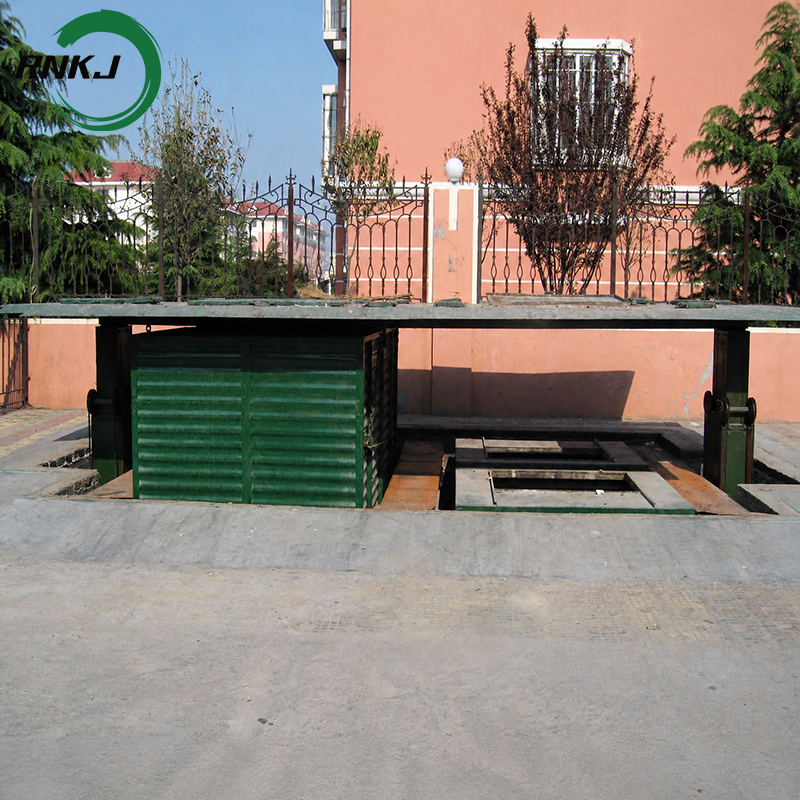

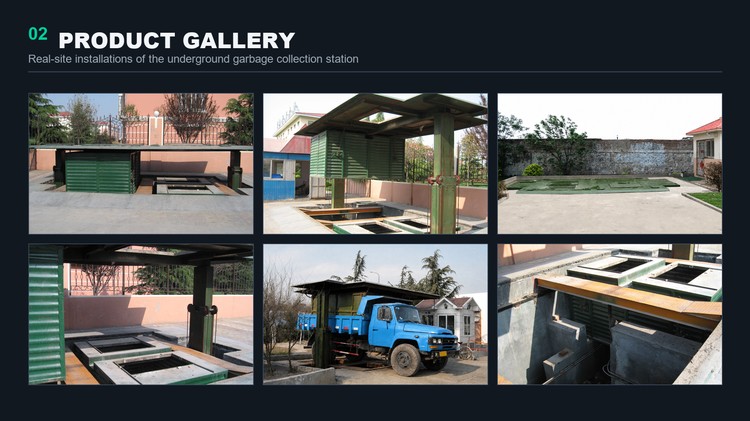

The station shown in the project images uses a dual-container configuration, allowing waste collection capacity to be distributed between two collection containers. The underground structure is equipped with a mechanical lifting system that raises the collection container to ground level when it needs to be emptied. After lifting, the container can be connected with a suitable sanitation vehicle for efficient removal and transportation.
What Is an Underground Garbage Collection Station?An Underground Garbage Collection Station is a centralized waste storage and collection system in which garbage containers and major storage components are installed below ground.
The above-ground section mainly provides the waste disposal interface, while the collection containers remain hidden underground. When the containers approach their collection level, the lifting mechanism raises them to the surface so that sanitation personnel can perform collection and transportation operations.
This configuration is particularly suitable for projects where space utilization, appearance, hygiene, and efficient waste collection are important.
Compared with conventional outdoor garbage bin areas, underground collection systems can significantly reduce the visible footprint of waste storage. Underground placement is also commonly used to help control odors and improve the appearance of residential and public areas.
Custom Large-Capacity Design for Different ProjectsOne of the main advantages of this Custom Underground Garbage Collection Station is its flexible configuration.
The station can be designed according to the customer's required waste capacity, site dimensions, waste generation volume, collection frequency, vehicle configuration, and surrounding landscape.
The underground structure can be customized for:
Different waste storage capacities
Single-container or dual-container configurations
Different underground pit dimensions
Different lifting heights
Different container sizes
Different ground-level feeding openings
Different decorative finishes
Different safety protection configurations
Different lifting and control systems
Different waste collection vehicle requirements
For high-density residential communities or commercial areas with significant daily waste generation, a large capacity underground garbage collection system can provide centralized storage while minimizing the amount of ground space occupied by waste facilities.
Dual-Container Underground Waste Collection DesignThe product shown in the images adopts a dual container design, providing two independent collection positions within one underground waste collection area.
This configuration is useful for projects that require higher collection capacity or separate waste collection. For example, the two containers can be configured for different waste streams depending on the local waste management strategy.
Possible configurations include:
General municipal waste
Recyclable waste
Organic waste
Dry waste
Mixed household waste
Other locally defined waste categories
A dual-container underground garbage collection station can also help reduce the need to install multiple conventional garbage bin areas throughout a development.
For waste sorting projects, separate containers can be assigned to different waste categories, making the collection point easier to manage. Underground collection systems are widely used as centralized collection points because larger containers can replace multiple smaller above-ground bins while requiring less visible space.

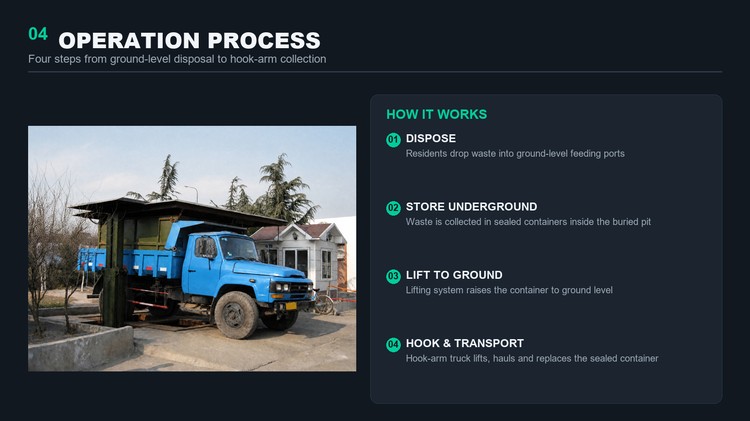

How Does the Underground Garbage Collection Station Work?The operating process is simple and designed around efficient mechanized waste collection.
Residents, employees, customers, or sanitation workers place waste through the designated ground-level waste feeding openings.
The feeding points are positioned at approximately ground level, allowing users to dispose of waste without directly accessing the underground collection container.
After disposal, the waste falls into the collection container located below ground.
The main storage area remains hidden underground, helping keep bulky containers, waste accumulation, and related equipment away from pedestrian sightlines.
When the underground container reaches the required collection level, the lifting system is activated.
The lifting platform and mechanical lifting components raise the collection container from the underground pit to ground level.
The lifting system shown in the product details includes components such as the lifting winch, pulley system, chain suspension system, and supporting lifting structure.
After the collection container is lifted, the container can be connected to a compatible waste collection or transport vehicle.
The system is designed with hook-lift truck compatibility and dedicated connection points, allowing the full collection container to be handled mechanically rather than relying on workers to manually move heavy waste containers.
After collection, the container is transported to the designated waste transfer, treatment, recycling, or disposal facility.
This lifting-based collection approach can reduce manual handling and make waste collection more systematic. Underground container systems commonly use lifting or crane-based emptying to improve collection efficiency and reduce the physical handling of waste.

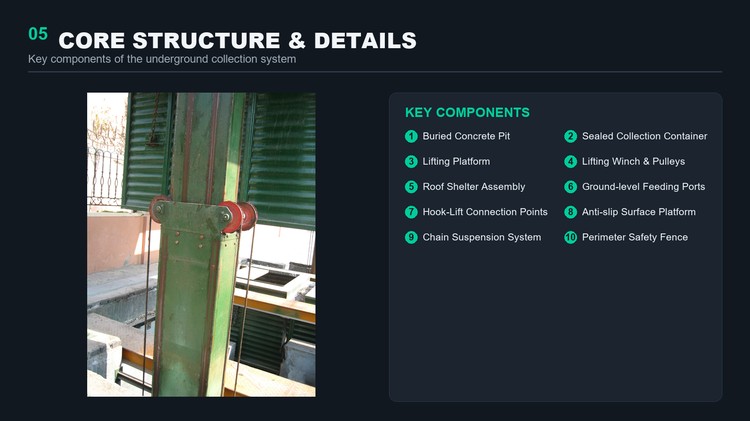

Core Structure and ComponentsThe Underground Garbage Collection Station combines an underground civil structure, collection containers, lifting equipment, safety components, and waste feeding facilities.

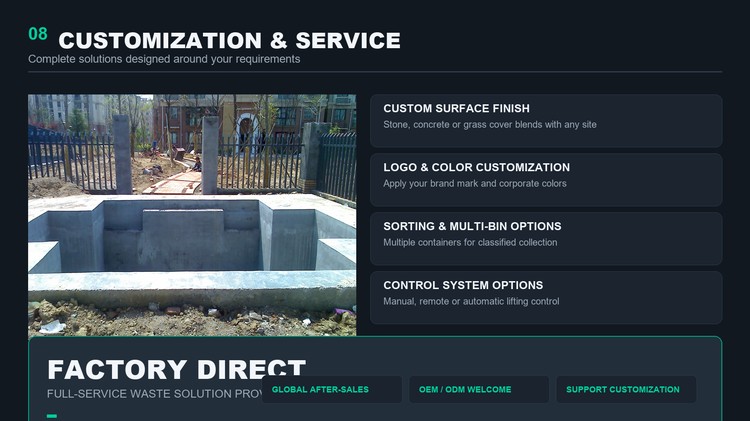

The buried concrete pit forms the main underground installation area. It provides structural support for the collection station and creates the space required for underground container storage and lifting operations.
The pit dimensions can be customized according to the selected container configuration and project requirements.
The lifting platform supports the collection container and moves it vertically between the underground storage position and the ground-level collection position.
A stable lifting platform is important for safe and reliable container handling.
The roof shaft assembly connects the underground structure with the ground-level waste feeding area.
Its design can be adapted to different surrounding environments and architectural requirements.
Dedicated connection points allow the collection container to interface with suitable transportation equipment.
This makes the system particularly suitable for projects already using hook lift trucks for waste transportation.
The chain suspension system works together with the lifting mechanism to raise and lower the underground collection container.
The waste container provides enclosed underground storage for collected waste.
A sealed underground configuration can help limit direct exposure of waste to the surrounding environment and support better odor and hygiene management. Underground storage also benefits from the naturally cooler ground environment, which can help reduce odor development compared with exposed above-ground storage.
The winch and pulley components provide the mechanical force required to lift the container.
The lifting mechanism can be selected and configured according to container weight, lifting height, operating frequency, and project requirements.
The feeding port is the main interface used by residents, employees, or sanitation workers.
It can be designed with different sizes, materials, finishes, and visual styles to match the surrounding environment.
Safety protection is incorporated around the underground opening and lifting area to reduce operational risks when the collection container is raised or removed.
The electrical and safety system coordinates lifting operations and provides controlled operation of the equipment.
Additional safety and control functions can be configured according to the project's requirements.
Technical Parameters
Power | 5.5KW(Voltage 380V) |
Rotate speed | 1450r/min |
Theoretical displacement | 11.1ml/r |
Rated pressure | 20.6MPa |
Effective volume of the box | 8m³×2 |
Maximum lifting height | 3.3m |
Maximum lifting weight | 6000kg |
Dimensions of the pit (length × width × height) | 90-110s |
Overall machine weight | 6780×3700×2454（mm） |
Number of operators | 4500kg |

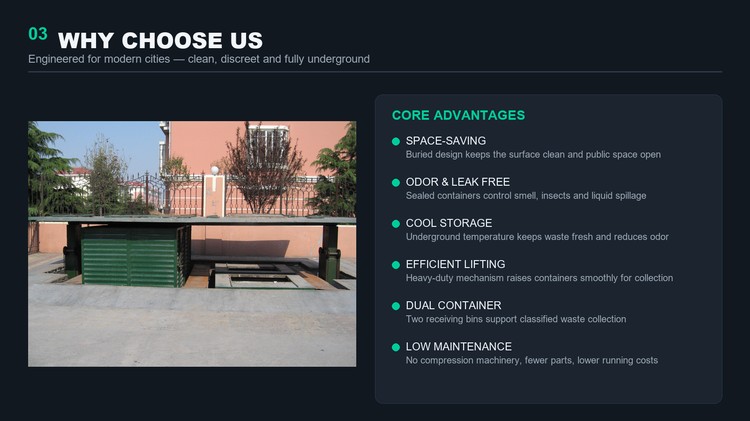

Key Advantages of the Underground Garbage Collection StationThe biggest feature of this system is that the main waste storage area is located underground.
Instead of occupying a large visible area with conventional garbage containers, the project can maintain a relatively clean ground surface with only the necessary waste disposal structures remaining visible.
This makes the solution particularly suitable for:
High-density residential communities
Urban streets
Commercial developments
Public squares
Parks
Schools
Hospitals
Hotels
Municipal projects
Underground waste systems are specifically valued for their ability to provide larger storage capacity with a smaller visible footprint.
Traditional above-ground waste collection areas can become visually cluttered when multiple garbage containers are installed together.
By moving the major collection equipment underground, the Underground Garbage Collection Station creates a more organized and visually integrated waste disposal area.
The ground-level structures can also be customized to match surrounding landscaping, buildings, paving, and architectural styles.
Waste stored in an enclosed underground environment is less exposed to direct sunlight, wind, animals, and pedestrians.
The cooler underground environment can help reduce odor development, while sealed designs can further limit odor escape.
This makes the system a practical option for residential areas and other locations where waste odor is a major concern.
The station is designed for centralized waste collection rather than relying on numerous small outdoor garbage bins.
The large capacity underground garbage collection station can be engineered according to the expected daily waste volume and required collection frequency.
A larger capacity means the project can potentially reduce the number of collection points and optimize the overall waste collection layout.
The integrated lifting system allows the underground collection container to be raised to ground level for collection.
This eliminates the need to manually drag heavy containers from deep underground and provides a more efficient mechanized collection process.
The product configuration shown in the images is designed to work with hook lift truck transportation.
Once the underground collection container is lifted, the truck can handle the container for transportation to the next waste management facility.
This makes the station suitable for municipal sanitation systems that already operate hook lift vehicles.
The dual-container design provides additional flexibility for high-volume projects and waste classification.
Depending on the project requirements, the two containers can be used for different waste streams or simply provide additional storage capacity.
The major collection containers and mechanical components are concentrated within a dedicated underground structure.
The equipment layout is designed to provide access to important components for inspection, maintenance, and servicing.
Compared with systems that require numerous above-ground bins distributed across a site, centralized underground collection can simplify the overall waste collection point layout.
Applications of Custom Underground Garbage Collection StationThe product is designed for a wide range of locations where large-capacity waste collection and an attractive environment are required.
Ideal for apartment complexes, residential estates, villas, and high-density communities.
The underground design reduces the visual impact of waste collection areas and keeps bulky garbage containers away from common pedestrian spaces.
Shopping streets and commercial developments often need convenient waste disposal without allowing large garbage containers to dominate the streetscape.
An underground collection station provides a centralized solution with a cleaner appearance.
Schools, hospitals, and other institutions require organized waste collection points with efficient sanitation management.
The enclosed underground configuration helps keep waste storage away from heavily used public areas.
Parks and landscaped areas require waste collection equipment that does not interfere with the surrounding environment.
The customized surface structure can be designed to integrate with landscaping and architectural features.
The system is well suited for municipal waste collection infrastructure where large-capacity centralized storage, mechanized handling, and efficient transportation are required.
Hotels, restaurants, and hospitality facilities can generate substantial amounts of daily waste.
A centralized underground waste collection station provides a dedicated storage point while keeping waste containers hidden from guests and visitors.
Markets can generate high volumes of mixed waste during operating hours.
A large-capacity underground collection station can provide centralized storage and reduce the number of visible waste containers.
The system can also be applied to rural villages and community projects where centralized waste collection is required but available ground space needs to be used efficiently.
Customization OptionsEvery installation site has different requirements, which is why this Custom Large Capacity Underground Garbage Collection Station can be configured according to the project.
The visible surface components can be customized to match the surrounding environment.
Possible options include:
Custom colors
Decorative metal panels
Landscape-compatible finishes
Architectural finishes
Custom cover plates
Project-specific appearance
The station can be customized with customer logos, project identification, colors, warning labels, and other visual elements.
This allows the waste collection facility to maintain a consistent appearance with the surrounding development.
The system can be configured for different waste collection requirements.
For example, separate containers can be assigned to recyclable and general waste, or multiple waste categories can be incorporated into a larger centralized collection project.
Different control configurations can be selected according to the project requirements, including manual, electric, hydraulic, or customized control solutions.
Container dimensions, lifting height, lifting capacity, and connection structure can be customized according to the actual site and transportation vehicle.
FAQIt is a waste collection system that stores garbage containers below ground, reducing visible waste facilities and saving surface space.
The capacity can be customized according to waste volume, container size, and project requirements.
Yes. Dual-container and multi-container configurations are available for higher capacity or waste classification.
A mechanical lifting system raises the container to ground level for collection and transportation.
Yes. The collection container and connection structure can be customized for hook lift truck transportation.
Yes. Surface finishes, colors, logos, covers, and other visible components can be customized.
It is suitable for residential communities, commercial streets, parks, schools, hospitals, hotels, markets, and municipal sanitation projects.
Yes. Enclosed underground storage reduces direct exposure to sunlight, wind, and the surrounding environment, helping improve odor and hygiene management.
