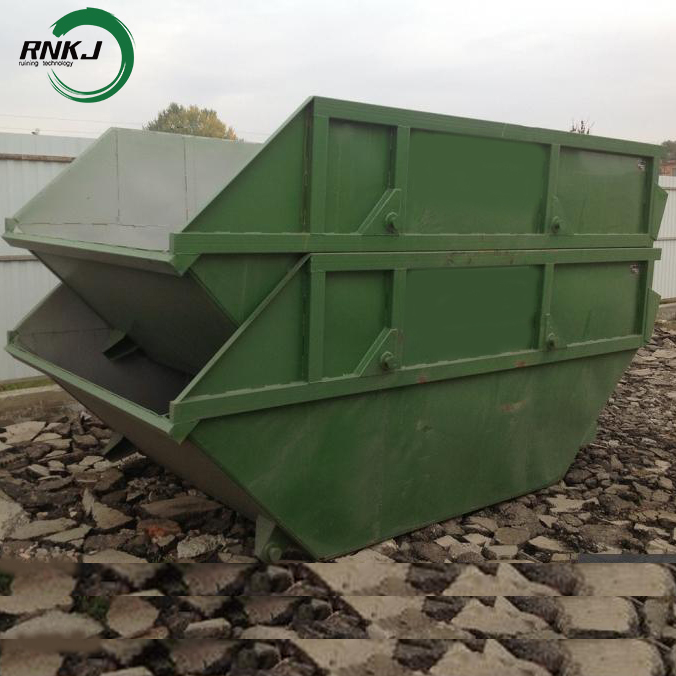

The Construction Skip Bin is a heavy-duty open or closed garbage container specifically designed for construction, demolition and large-scale renovation projects. It is used for temporarily storing and transporting large amounts of construction waste, demolition debris and various construction waste materials. It is an indispensable waste management equipment on construction sites, and with its sturdy and durable structure, large capacity design and convenient lifting and transportation methods, it becomes the core tool for efficiently handling construction waste.
RNKJ has hundreds of styles of Skip Bin.We can design & produce any Skip Bin according to customer's requirement. Our Tech. Dpt. can also provide the temporary design drawings for your confirmation. OEM is also available.
Definition And Core FunctionDefinition
A skip bin or dumpster is a large, mobile garbage container specifically designed for loading heavy construction materials and waste. It is transported and unloaded using a dedicated skip truck or roll-off truck.
Core Functions
Temporary Storage: Provides a centralized and secure waste storage area for construction sites, maintaining a clean and orderly environment on the site
Efficient Collection: Reduces the number of manual transports, improves the efficiency of waste collection, and reduces safety hazards on the site
Convenient Transportation: Standardized design facilitates lifting and transportation, enabling quick transfer from the construction site to waste disposal sites or recycling centers
Environmental Treatment: Promotes the classification and recycling of construction waste, reduces landfill volume, and aligns with the concept of sustainable development
Product TypeOpen Top Skips
The top is completely open, making it easy to load waste from any angle. On both sides, there are usually inclined walls for facilitating the insertion of materials. It is suitable for most construction and demolition projects and is suitable for quick loading and unloading of various construction waste.
Closed Skips
With a lockable lid, it prevents rainwater from seeping in, unpleasant odors from escaping, and waste from overflowing, enhancing safety. Suitable for transporting lightweight and easily airborne waste (such as wood chips, dust), or for valuable materials that require security protection.
Hooklift Skips
Equipped with dedicated hook points, it can be quickly loaded and unloaded as well as transported by the hook arm truck. The structure is sturdy. It is suitable for large construction projects, industrial waste disposal, and is suitable for frequent replacement and long-distance transportation.
Roll-on/Roll-off Skips
The bottom is equipped with rollers, which can be rolled up and down through the truck's hydraulic system. The capacity is usually larger. It is suitable for large-scale demolition projects and major infrastructure projects, and is suitable for handling extremely large amounts of waste.
Specialty Skips
Customized designs, such as partitioned classified trash bins and leak-proof liquid waste bins. Suitable for specific types of waste disposal, such as concrete, soil, liquid waste, etc.
Capacity RangeMini Skips (Miniature Type)
2 - 4 m³ (0.7 - 1.4 cubic yard): For small renovations, garden modifications, and partial demolition.
Small Skips (Small)
5 - 6 cubic meters (1.8 - 2.1 cubic yard): Single-room renovation, kitchen / bathroom remodeling
Medium Skips (Medium Size)
7-10 cubic meters (2.5-3.5 cubic yard): Whole house renovation, small construction projects
Large Skips (Large)
12 - 15 m³ (4.2 - 5.3 cubic yard): Large-scale expansion projects, commercial renovations
Industrial Skips (Industrial Type)
20 - 40 m³ (7 - 14 cubic yard): Large-scale demolition, industrial waste disposal
Load-bearing CapacityStandard Duty: Suitable for lightweight construction waste such as wood, plastic, gypsum board, etc., with a load capacity of approximately 1-3 tons
Heavy Duty: Enhanced structural design, suitable for heavy objects like bricks, concrete, soil, etc., with a load capacity of approximately 5-8 tons
Super Heavy Duty: Thickened bottom steel plate, reinforced frame, suitable for extremely heavy objects like large concrete blocks, steel, etc., with a load capacity of up to 10 tons or more
Material Composition And Structural Characteristics1. Core material
Carbon steel: The main material for most skip bins, it has excellent strength. The thickness is usually above 3.0mm, and the bottom can reach 4-6mm to withstand the pressure of heavy objects.
Wear-resistant coating: The surface is usually coated with anti-rust primer and wear-resistant topcoat, which extends the service life and prevents corrosion.
2. Structural Design Features
(1) Main Frame
Rectangular Box: Classic design, maximizing storage space, facilitating stacking and transportation
Trapezoidal Structure: Some models have a slightly narrower top than the bottom, enhancing structural stability and preventing tipping
Reinforcing Strips: Longitudinal and transverse reinforcing strips are welded to the sides and bottom of the box, enhancing load-bearing capacity and preventing deformation
(2) Loading and Fixation Devices
Lifting Lugs: Strong lifting ears are welded to both sides of the box, used to connect the chains or hooks of the truck for safe lifting
Hook Arm Connection Point: The unique connection structure of the hook-arm type skip bin, precisely matching the truck hook arm system
Rollers: The bottom of the roll-on roll-off skip bin is equipped with heavy-duty rollers, facilitating movement on the truck platform
(3) Design Features
Slopes: Typically, slopes are designed at both ends of the box, facilitating the sliding of waste materials by workers and reducing physical effort
Safety Edges: The top edges of the box are polished or edge-wrapped to prevent injuries to workers
Drainage Holes: Some models have drainage holes at the bottom, preventing water accumulation and reducing the weight of transportation
Removable Side Panels: A few special models are designed with removable side panels, facilitating the loading of extremely long or wide materials
Support Customization
Use: Semi-wet, wet and solid waste.
Technical ParametersProduct name | Skip Bin & Gantry Bin |
Material | Mild steel , in China we usually use Q235, which similar tograde 250(AU5)A283(USA).we can also use Q345 whichsimilar to grade350 |
Size Range | Size from 2 cubic meter to 8 cubic meter |
Thickness of plates used | 3mm M/S plate for sides and 4mm M/S for floor. Thicker plates are available based on your requirements. |
Other specifications | (1) Casters; (2) Lids; |
Options | (1). RHS 100*50*4 are used for top rails, and top edge of plate continuous welded to RHS (2). one piece forged lifting lugs(39mm) |
Painting | We will paint each bin you order in your company colours, enhancing your company image with great looking bins. Two times of |
Main Application Scenarios Construction: Construction waste disposal for new residential buildings, commercial buildings, and infrastructure projects
Demolition projects: Large amounts of demolition waste generated from house demolition, bridge demolition, and road renovation
Renovation and remodeling: Renovation, expansion, and remodeling projects for residences, offices, and shops
Industrial production: Factory waste, line replacement, and equipment dismantling resulting in industrial waste
Large-scale cleanups: Post-disaster cleanups, site cleanups, warehouse emptying, and other large-scale waste disposal tasks
Product Type
Types Of Waste That Can Be AccommodatedBrick and concrete: bricks, rubble, concrete blocks, stone fragments and other heavy objects.
Wood waste: construction wood, formwork, scaffolding, old furniture, etc.
Metal waste: reinforcing bars, steel, aluminum alloy, scrap iron, etc.
Lightweight materials: gypsum board, insulation materials, plastic, cardboard, packaging materials, etc.
Soil and gravel: soil excavated, sand, gravel, etc.
Green waste: trees, shrubs, lawns, branches, etc.
The Construction Skip Bin is the core equipment for waste management in the construction industry. Its sturdy and durable steel structure, diverse specifications and models, as well as convenient lifting and transportation methods, make it an ideal choice for handling various construction waste. From the mini type of 2m³ to the industrial grade of 40m³, from open to closed, from standard load-bearing to super heavy-duty design, the skip bin can meet the needs of different scales and types of construction projects.Contact us immediately to obtain exclusive discount offers, or get a waste disposal solution that is more suitable for you.
