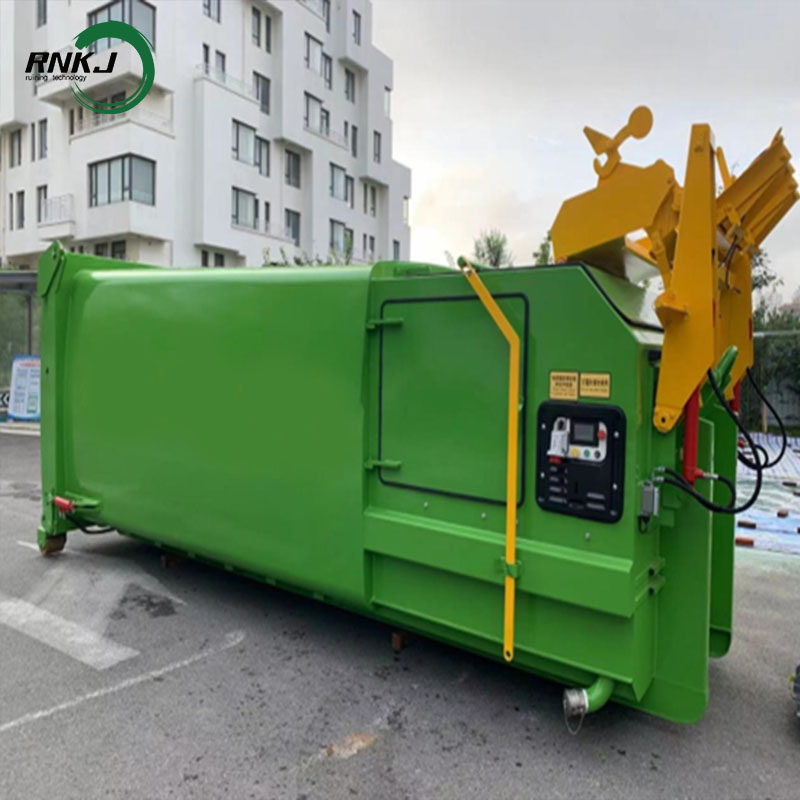

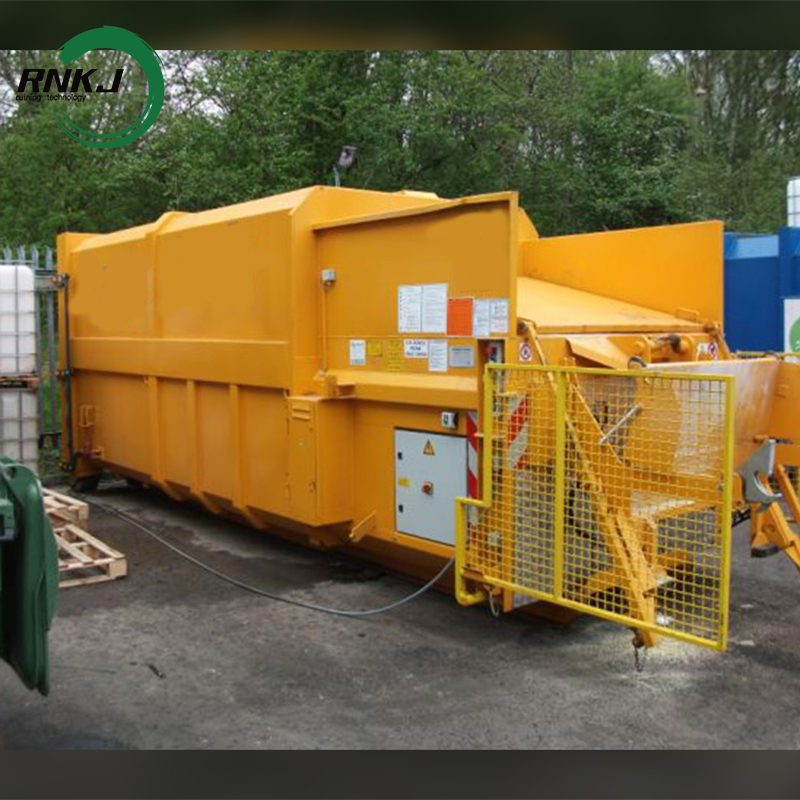

Bucket Garbage Compression Station

Bucket Garbage Compression Station is an integrated, environmentally friendly waste transfer system, a core component of urban/industrial park waste collection and transportation systems.

Its core functions include automatic tipping and horizontal compression storage. A hydraulic tipping mechanism connects to standard garbage bins, tipping them over for unloading. A hydraulic pusher then compacts the waste, reducing its volume. The sealed enclosure effectively prevents odor diffusion and wastewater leakage. Once full, the station can be transported to a waste treatment plant by hook-lift truck.

Bucket Garbage Compression Station has a small footprint, a daily processing capacity of 30-100 tons, and advantages such as intelligent operation and good pollution control. It is widely applicable to communities, industrial zones, commercial areas, and other areas with moderate daily waste production, effectively improving waste collection efficiency and reducing transfer costs.

Product Advantage

High space utilization: By compacting the waste, the volume is reduced, increasing waste storage capacity by 3-5 times compared to traditional non-compacted collection, significantly saving land area for waste stations.

Environmentally friendly: The enclosed bin design reduces odor emissions and insect breeding. The closed feeding and compaction process reduces pollution to the surrounding environment and improves the working environment of the waste station.

High degree of automation: The hydraulic and electrical systems work together to automate or semi-automate operations such as bin tipping, compaction, and unloading, reducing manual labor intensity and simplifying operation.

Flexible adaptability: It can be adapted to waste collection bins of different capacities, suitable for various scenarios such as communities, villages, and small waste transfer stations. It can be fixedly installed or used with a mobile chassis for flexible deployment.

Low transfer costs: The high density and small volume of compacted waste reduces the number of waste transfer vehicles, lowers transportation costs, and reduces the risk of secondary pollution during transportation.

Workflow

Waste Feeding: The tipping mechanism grabs the waste collection bin, lifts it above the feed inlet, and tilts it to pour the waste into the feeding area of the compaction chamber.

Waste Compaction: Once a certain amount of waste accumulates in the feeding area, the hydraulic system drives the compaction pusher plate forward, applying pressure to the waste, compacting it, and pushing it into the chamber to create feeding space. This process can be repeated multiple times until the chamber is full of compacted waste.

Waste Transfer: After compaction, the unloading gate is opened, and a waste transfer vehicle connects to the unloading port to transport the compacted waste to landfills, incineration plants, or other treatment terminals. After unloading, the unloading gate is closed, and the equipment enters the next work cycle.

Structural Components

Feeding and Tilting Device: Equipped with a hydraulically driven tilting mechanism, this device grabs wheeled garbage collection bins and dumps the garbage into the compaction station. The mechanical arm and hydraulic cylinders of the tilting mechanism are the core actuators, ensuring stable tilting and unloading of the garbage bins.

Compaction Chamber: A long, enclosed box, this is the main space for garbage compaction. It contains a compaction pusher plate, driven by a hydraulic system, which reciprocates along the length of the chamber to compact the incoming garbage.

Hydraulic System: Includes a hydraulic pump, cylinders, control valves, and piping, providing power for tilting and compaction. Precise drive and control of each mechanism are achieved through the pressure transmission of hydraulic oil.

Electrical Control System: Equipped with operating buttons, indicator lights, and a control box, this system controls the start, stop, sequence, and safety protection of various equipment actions. Some equipment may have automated program control functions.

Unloading Door: A sealed door at the end of the hopper, which can be opened after compaction to facilitate the docking and transfer of compacted waste by garbage trucks. It is typically secured by a hydraulic or mechanical locking mechanism to ensure a tight seal when closed.

Support and Moving Components: The bottom is equipped with outriggers or rollers (some models are movable). The outriggers provide stable support when the equipment is stationary, while the rollers facilitate short-distance movement or relocation of the equipment.

 Technical Parameters

Feature

High-efficiency and energy-saving hydraulic drive technology: Utilizing customized high-pressure hydraulic control, it ensures stable thrust of the compression pusher while optimizing energy consumption. Simultaneously, the wear-resistant sealing design of hydraulic components improves down-time.

Full-area sealing and anti-fouling technology: The silo body adopts a "double sealing strip + anti-leakage collection tank" structure: the feeding port and the tipping bucket's contact surface are sealed with wear-resistant rubber, and the silo bottom has an anti-leakage coating and a collection tank. Combined with the micro-negative pressure design inside the silo, it achieves 100% prevention of sewage leakage and over 90% odor isolation, technically eliminating secondary pollution.

Intelligent integrated control technology: Equipped with a PLC controller and touch screen, it can automatically complete the entire process of "tip-unloading-compression-locking," with a single cycle ≤45 seconds. A built-in fault diagnosis module can monitor parameters such as hydraulic pressure and motor temperature in real time, automatically issuing warnings and recording fault points when abnormalities occur, reducing the difficulty of manual maintenance.

Adaptive Compression Structure Technology: The compression pusher adopts an arc-shaped, segmented compression design, which fits into the dead corners of the bin to improve the filling rate, with a compression ratio of up to 5:1; the tipping mechanism is compatible with standard garbage bins of 660L-1100L, and also supports customized docking with collection containers of different sizes.

Usage Notes

- Do not compress sharp items (such as glass shards, metal tools), or flammable and explosive items (such as batteries, lighters). This is to prevent damage to the equipment and potential safety hazards.

- For kitchen waste, it is recommended to drain the water as much as possible before compressing to reduce leakage and unpleasant odors.

- Regularly clean the box and the pressing disc to prevent the accumulation of garbage from breeding bacteria.

- For electric models, pay attention to power safety. Avoid operating with wet hands. Turn off the power when not in use for a long time.

Typical Application Cases

Community Scenario: A 10m³ small compaction station was installed in an old urban residential area to replace traditional open-air garbage pits. It processes 30 tons of garbage per day, with zero leachate leakage, and odor complaints from surrounding areas decreased by 95%.

Industrial Park Scenario: A 22m³ compaction station was installed in a manufacturing park to handle industrial waste from the workshops. After compression, the frequency of transfer decreased from 3 times per day to 1 time per day, reducing transfer costs by 60%.

What are the key considerations when purchasing a Bucket Garbage Compression Station?

Matching Processing Capacity and Compression Performance

First, calculate the daily waste generation of your target area. Follow the principle of "leaving a 10%~20% margin" when selecting a model: 30~50 tons per day, choose a small machine with 8~12m³; 60~80 tons per day, choose a medium machine with 18~22m³; over 90 tons per day, choose a large machine with 28~30m³.

Pay attention to the compression ratio and compaction density, as these two indicators directly determine the transfer frequency and cost.

Check Sealing and Anti-fouling Capacity

Prioritize models with double-sealed feed inlets and anti-seepage coatings and liquid collection tanks in the hopper. Ensure compliance with the anti-leakage requirements of waste transfer station technical specifications.

If high odor control is required, an additional micro-negative pressure deodorization system with activated carbon filtration can be selected.

Site Compatibility and Equipment Connection

Measure the site area: Small machines require ≥20㎡, medium machines ≥30㎡, large machines ≥40㎡, while also allowing space for hooklift truck turning and parking.

Confirm the compatible garbage bin sizes for the tipping mechanism and whether the compactor box matches the docking dimensions of the existing hooklift truck.

Assess the Intelligence and Ease of Maintenance

Prioritize PLC-controlled fully automatic models that support one-button completion of bin tipping, compaction, and locking processes, reducing manual operation; models with automatic fault diagnosis functions can reduce the difficulty of later maintenance.

Pay attention to the brand and warranty period of core components, prioritizing models with easily procurable spare parts to reduce maintenance costs.

We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
