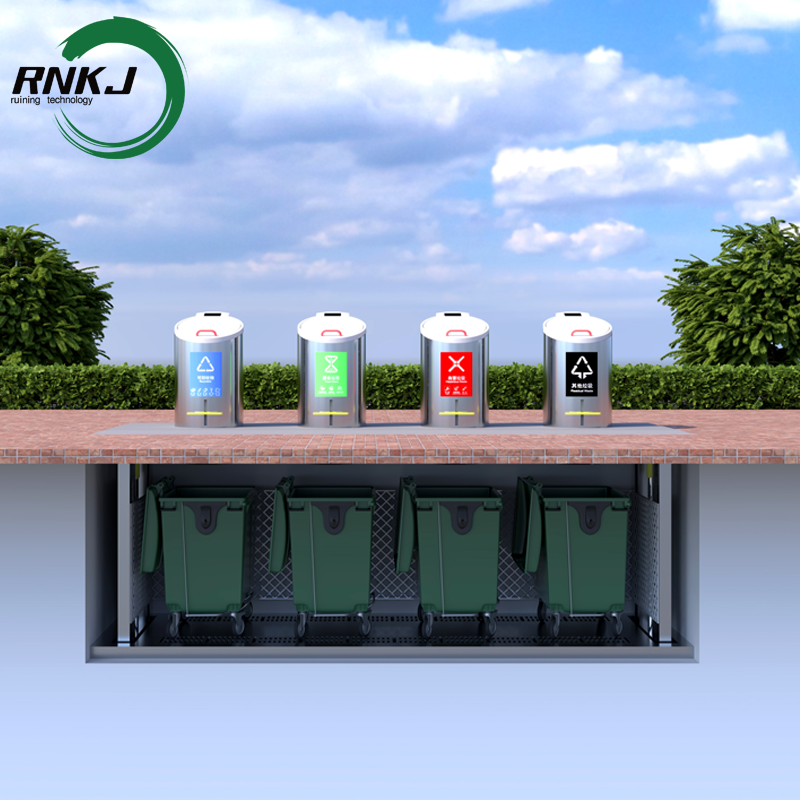

The Underground Waste Storage System is a waste collection and disposal system that shifts the process from "open-air on the ground" to "closed underground spaces", and combines intelligent technology to achieve efficient, hygienic and environmentally friendly waste treatment. Its core lies in using modular design and intelligent control to address the problems such as odor, space occupation and poor hygiene that exist in traditional ground-based garbage collection points. This system is commonly found in newly built residential areas, high-density communities or urban core areas.
The garbage volume can be selected according to customer needs 1100L/660L/240L garbage can, which can be used in a variety of layouts such as 1 barrel, 2 barrels, 4 barrels or 6 barrels.
Product Advantage
Built for Durability and Fail-Safe Design
Unlike traditional Underground Waste Storage System, our pneumatic power system is installed above ground rather than buried.This design prevents the system from being exposed to sewage and waste, reducing the risk of failures and significantly enhancing both service life and ease of maintenance.At the same time, the above-ground placement minimizes the impact of external environmental factors, ensuring more reliable performance, especially in areas with heavy rain or wastewater.
Comprehensive customization of materials and functions
Whether it’s the input port material, size, appearance, or special features like corrosion resistance and fire protection, everything can be tailored to your exact needs.
Advanced Smart Features
We offer a variety of intelligent solutions, including overflow alerts, visual indicators, and automatic locking.For more advanced needs, our network modules allow seamless integration with dedicated servers and mobile apps for real-time monitoring and remote control.
Reinforced Materials for Greater Durability
Our Underground Waste Storage System are built with thicker materials than those commonly used on the market, ensuring enhanced strength, durability, and stability.This added robustness makes them more resistant to damage over time and better suited for harsh environments.
Product Parameters
Model number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Features
Material and appearance:
Garbage sorting bins are usually made of high-quality engineering materials, such as high-quality electrolytic galvanized sheet with a thickness of ≥ 1.0mm, which is characterized by durability, lightweight and flexibility.On the surface treatment, outdoor plastic powder high-temperature electrostatic spraying is used, and the surface coating is sturdy, not easy to peel off, and has strong UV resistance and weather resistance.
Functionality:
The garbage sorting bin is designed with clear classification labels, such as recyclable materials, hazardous waste, and other waste, to facilitate users to dispose of them correctly.
Applicability and environmental friendliness:
Garbage sorting bins are suitable for collecting waste or handling raw materials in various public places, greatly improving work efficiency.
Color and identification:
The box identification adopts UV resistant, wear-resistant, and sandwich printed garbage signs, with diverse colors and a brightness that can maintain for more than 3 years.
Product Operate Guide
1. Activate the hydraulic system when the trash can is full.
2. Lift the platform smoothly until the bottom of the trash can is flush with the ground.
3. Manually hauling out full trash cans and unloading trash directly into trash collection trucks.
4. Place empty cans in their original trash can locations.
Product Effects
Lifting mode
Landing mode
The structure of Underground Waste Storage System includes classification publicity kiosks,garbage feeding devices, lifting devices, power systems, sewage systems, deodorization systems, pit foundations, etc.
Its advantage is that all garbage cans fall into the ground, good concealability , effectively reduce visual pollution, followed by convenient garbage dumping, less odor, and so on. The garbage volume can be selected according to customer needs 1100L/660L/240L garbage can, which can be used in a variety of layouts such as 1 barrel, 2 barrels, 4 barrels or 6 barrels.
You will receive our full range of personalized customized services, including to site design, packaging, equipment matching, customized procedures, etc,
When you purchase equipment from RNKJ. May wish you to start from a small transaction, experience the products and services from us.
FAQ
1.Are you a manufacturer or trader?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2.What is your payment term?
We accept T/T, L/C at sight, Western Union, Paypal etc.
3.How long is the validity of quotation?
Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market.
4.What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days. It depends on the order quantity.
5.Do you provide OEM/ODM service?
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
6.How can we ensure quality?
The final inspection is always carried out before shipment.
7.How to install the equipment after purchasing?
We will provide a professional installation video to illustrate. A manual is available as well.
8.Do you offer a guarantee?
Yes, we guarantee our product for one year. After-sales service support and technical support are both provided.
9.What is your MOQ?
1set.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
