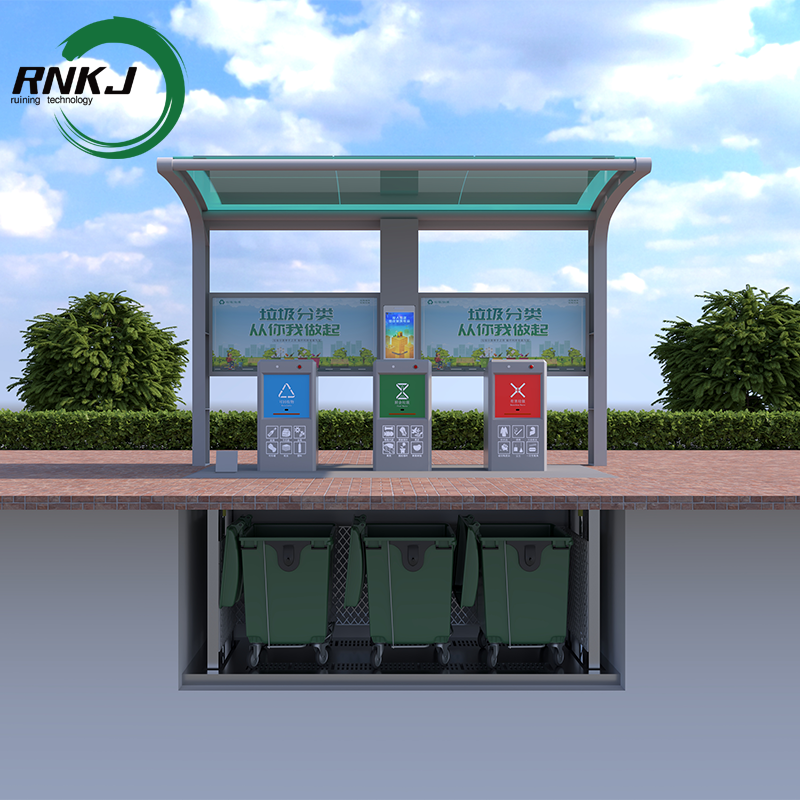

Underground waste management system is a waste management method that stores waste underground. This method offers advantages such as reduced leakage, protection from natural disasters, resistance to structural damage, and reduced visual impact.
Underground waste management system is a completely underground waste disposal system suitable for separate waste collection. It is space-saving and discreet, capable of handling waste generated by multiple households and supporting a variety of waste sorting methods.
Product Advantage
Rain Proof
Features：
Reduced Surface Impact: The system minimizes the need for multiple waste bins on streets, thereby reducing visual clutter and odor.
Improved Efficiency: Automated collection processes reduce the frequency and cost of waste pickup and can lead to more efficient waste management.
Environmental Benefits: By reducing the number of garbage trucks needed, underground waste systems can lower greenhouse gas emissions and traffic congestion.
Hygiene and Safety: These systems can improve overall cleanliness and hygiene in urban areas and reduce the risk of accidents associated with waste collection.
Product Parameters
Model number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Features
Product performance
Enhanced Urban Aesthetics & Space Saving
By placing waste containers below ground level, these systems drastically reduce visual clutter and free up valuable sidewalk and street space. This creates a more pleasant and uncluttered urban landscape, improving the overall appearance of public areas.
Improved Hygiene & Odor Control
Sealed underground containers effectively contain odors and prevent leakage, attracting fewer pests (like insects, rodents, and birds) compared to traditional above-ground bins. This leads to a cleaner, more sanitary environment around waste collection points, reducing public health risks.
Increased Capacity & Collection Efficiency
Underground systems typically feature large-volume containers. This allows for less frequent collection trips compared to standard bins that overflow quickly, optimizing collection routes and reducing fuel consumption and associated emissions from collection vehicles.
Encourages Waste Sorting
Designed with separate chutes for different waste streams (e.g., general waste, recyclables, organic waste), these systems make it easier and more intuitive for residents to sort their waste at the point of disposal. This promotes higher participation rates in recycling and composting programs.
Run process (240L/6barrels）
The feeding ports (Model A/B) are labeled according to hazardous waste, recyclable waste, food waste (wet waste), and other waste (dry waste), so that residents can sort waste according to the labeling; when the garbage cans are full of garbage, the hydraulic system is activated, and the lifting platform is smoothly lifted up to the bottom of the garbage cans and the ground level, and then manually drags out the full garbage cans,directly unloading the garbage into the garbage collection truck, and then placing the empty barrels The empty bin is then placed in the original bin position.

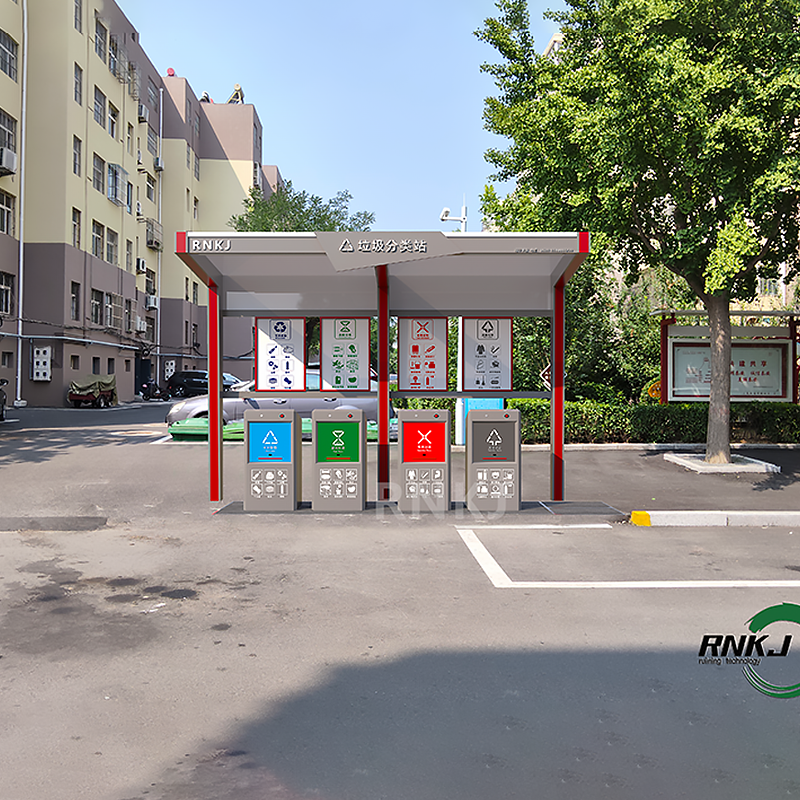

Landing effect:

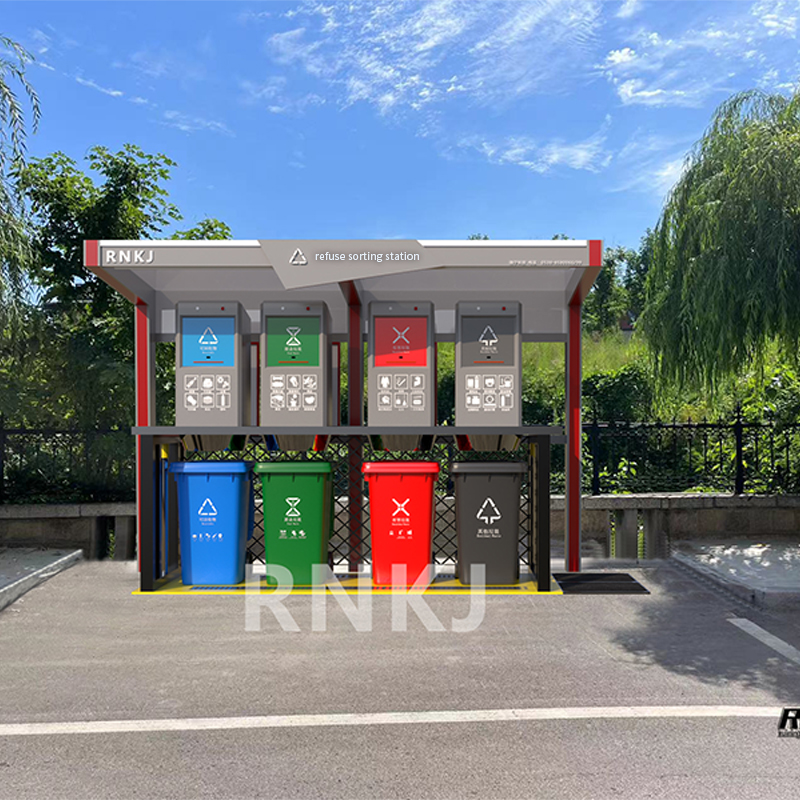

Lift effect:
Transit effect:
Product Operate Guide
Through the feed opening (which comes in various configurations), a funneling port is equipped below the feed opening to prevent waste spillage during the waste feeding process.
When the waste inside the bin reaches the preset capacity, the sensor detects the signal, triggers an overflow alert, and the overflow indicator lights up, prompting timely waste removal.Upon the waste collection vehicle's arrival, press the remote button to activate the platform control switch. The power unit engages, raising the lifting platform to ground level, positioning the bin for convenient transfer to the vehicle.
After the waste is emptied, push the bin back onto the platform and secure it. Use the remote control to lower the platform into the underground pit, then turn off the power unit.
Product Effects
Lifting mode
Landing mode
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
