Traditional ground garbage collection points often have problems such as exposed trash cans, accumulated garbage, and disordered signs, which damage the cleanliness of the streets.

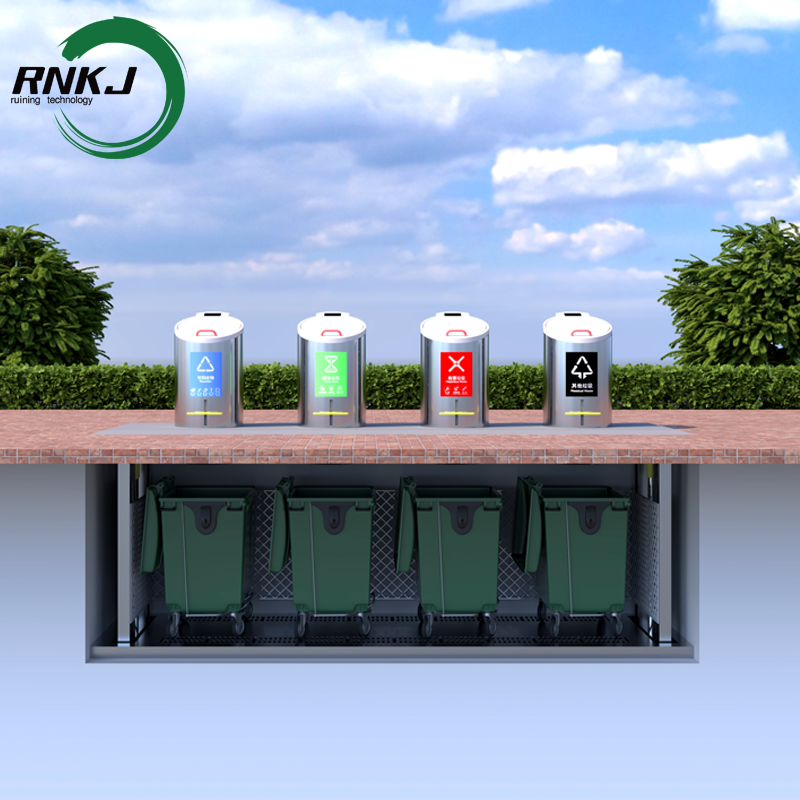

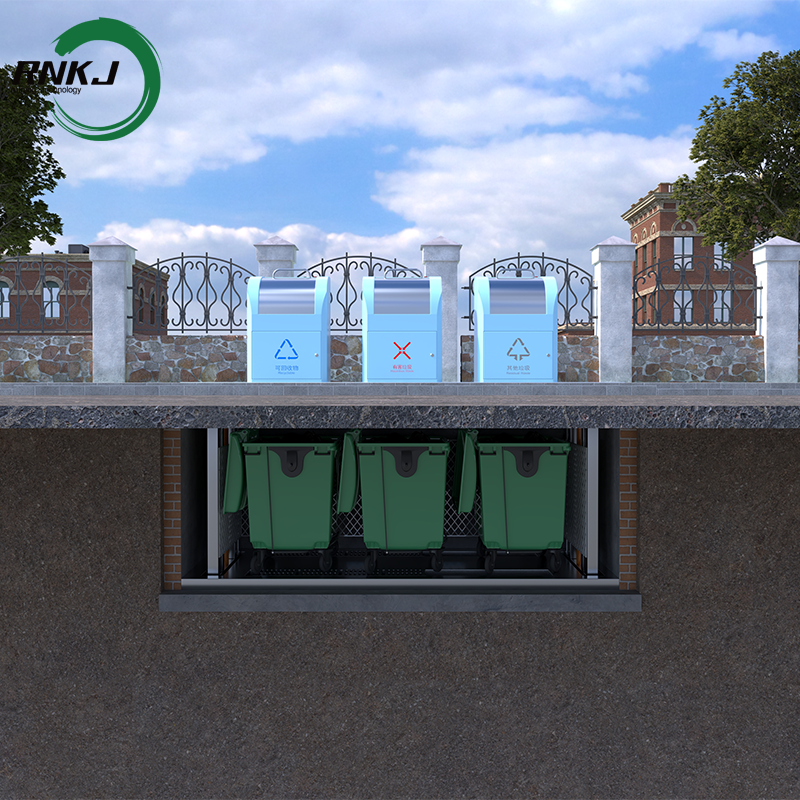

The Underground Waste Collection System only retains small collection ports (or intelligent collection terminals) on the ground, while hiding most of the facilities. This can significantly improve the visual environment of the city, enhance the aesthetics and livability of residential and commercial areas.
The garbage volume can be selected according to customer needs 1100L/660L/240L garbage can, which can be used in a variety of layouts such as 1 barrel, 2 barrels, 4 barrels or 6 barrels.
Product AdvantageThe Underground Waste Collection System features a compact footprint that maximizes usable surface area by situating storage bins below ground level. This design helps maintain clean, unobstructed public spaces and reduces visual pollution. By relocating waste storage underground, communities can enjoy aesthetically pleasing environments without compromising on capacity or functionality.
Equipped with automated lifting, compaction, and sensor technologies, the Underground Waste Collection System ensures efficient waste consolidation and minimal manual intervention. Sensors trigger alerts for pickup when bins reach capacity, optimizing collection schedules, reducing labor costs, and preventing overflow. Real-time monitoring enhances operational efficiency and responsiveness.
The Underground Waste Collection System significantly improves hygiene by enclosing waste in sealed compartments, minimizing exposure to pests, odors, and contaminants. The underground storage reduces bacterial growth and the spread of unpleasant smells, making it ideal for high-traffic public areas and residential complexes that demand high sanitation standards.
Product ParametersModel number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Video
Features
The garbage classification bins are usually made of high-quality engineering materials, featuring durability, portability and flexibility. For surface treatment, outdoor-grade plastic powder is used and treated through high-temperature electrostatic spraying to form a robust coating, which can resist peeling, ultraviolet radiation and harsh weather conditions.
Equipped with clear classification labels, this garbage sorting bin enables users to handle garbage accurately and conveniently.
These boxes are suitable for various public places for garbage collection or raw material processing. They significantly enhance operational efficiency while meeting environmental requirements.
This box features UV-resistant and wear-resistant laminated printed garbage classification labels. There are multiple color options available, and the brightness of the labels can remain for over 3 years.
Product Operate Guide1. Activate the hydraulic system when the trash can is full.
2. Lift the platform smoothly until the bottom of the trash can is flush with the ground.
3. Manually hauling out full trash cans and unloading trash directly into trash collection trucks.
4. Place empty cans in their original trash can locations.
Product Effects
Lifting mode
Landing mode
Why use the Underground Waste Collection System?It enables centralized and standardized classification, reducing the problem of mixed disposal. The collection stations have clear classification disposal outlets, along with guiding signs, which can help people accurately distinguish between kitchen waste, recyclables, and hazardous waste, avoiding secondary mixing after classification.
It improves the recycling rate and turns waste into resources. Centralized collection makes it easier to uniformly transport and process recyclables (such as paper and plastic), reducing resource waste; at the same time, it can separately store hazardous waste, reducing the risk of environmental pollution.
It improves environmental hygiene and reduces hazards. Most collection stations have shading and sealing designs, which can reduce the spread of garbage odors, prevent mosquito breeding, and prevent secondary pollution caused by scattered garbage or rainwater erosion.
It facilitates management and transportation, and reduces costs. After the garbage is centrally stored, the transportation vehicles can perform efficient and targeted transfers, reducing the frequency of transportation and the repetition of routes, and lowering labor and material costs.
ApplicationThe Underground Waste Collection System is ideal for city centers and public parks where space is limited and cleanliness is critical. By placing waste containers below street level, municipalities can maintain pedestrian-friendly zones and reduce littering, while automated collection minimizes disruptions during peak hours.
For apartment complexes and gated communities, the Underground Waste Collection System provides residents with an efficient, odor-controlled waste disposal option. The system’s large capacity and easy access support high resident usage, reduce frequent collection needs, and improve overall neighborhood hygiene.
Shopping malls, business parks, and entertainment venues benefit from the Underground Waste Collection System by managing high volumes of waste discreetly and efficiently. The system’s automation and large storage capacity ensure that waste does not accumulate on storefronts or common areas, enhancing customer experience.
In industrial parks and corporate campuses, the Underground Waste Collection System supports organized waste segregation and disposal. Its durable design withstands heavy usage and diverse waste types, while remote monitoring ensures timely servicing without manual checks.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
