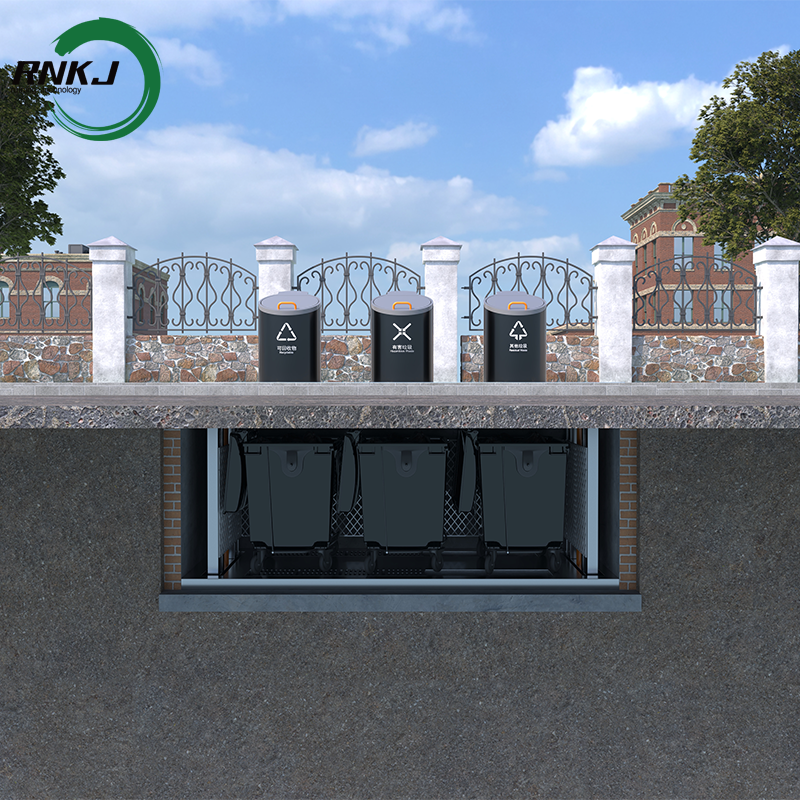

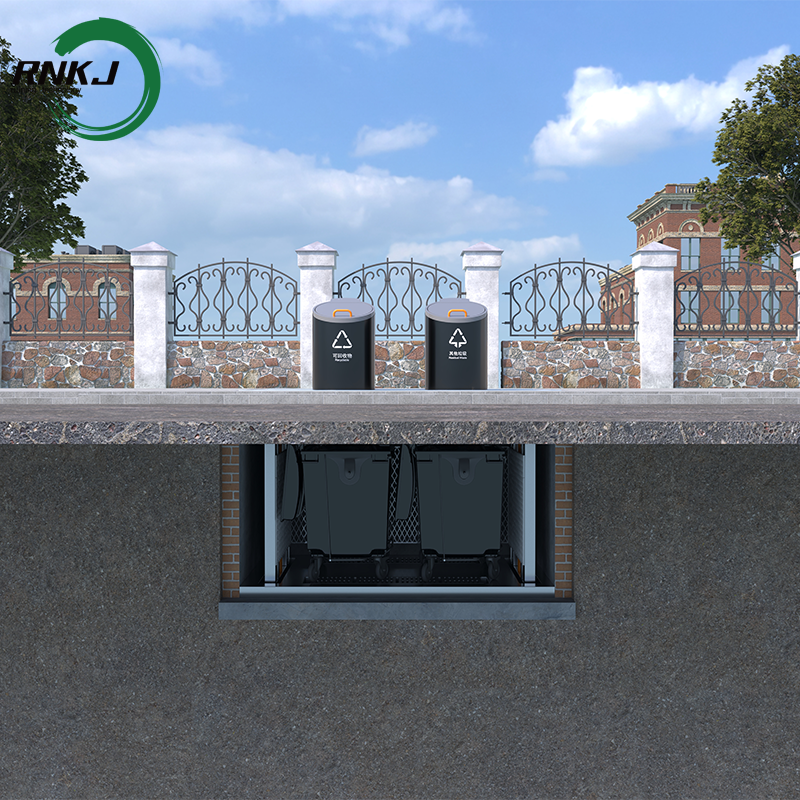

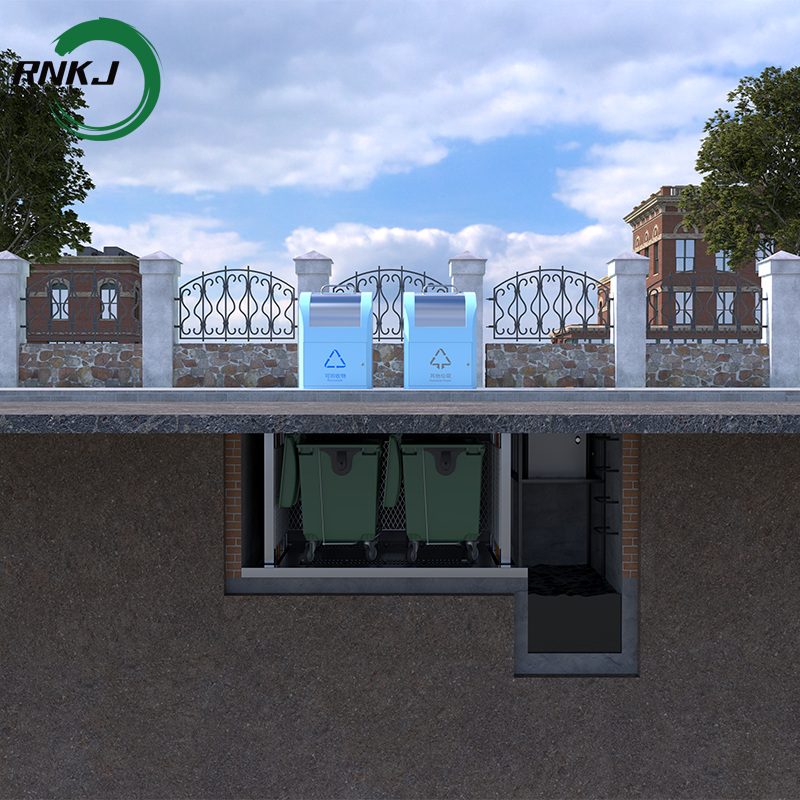

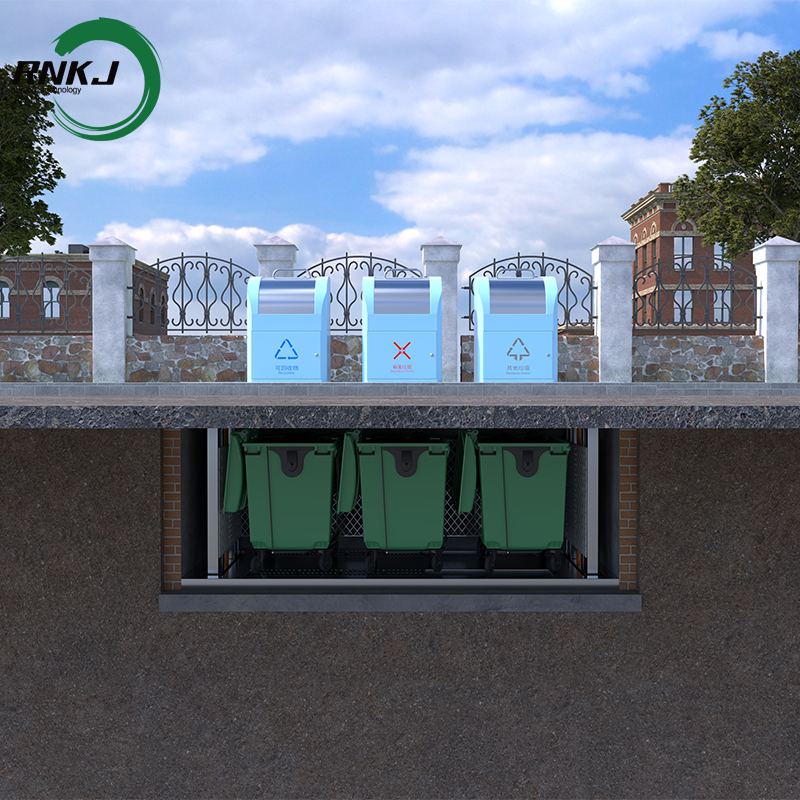

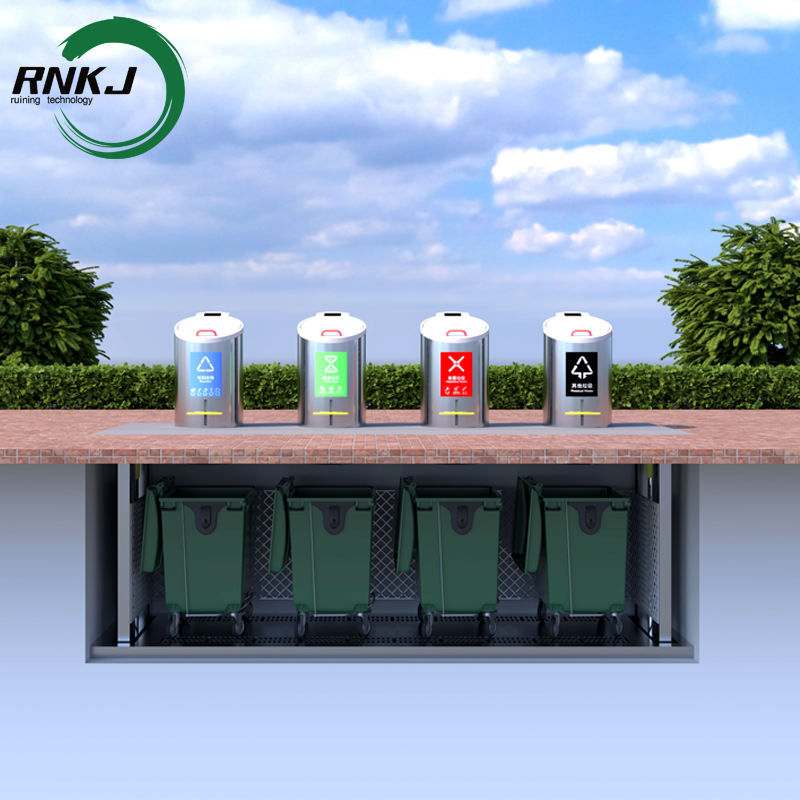

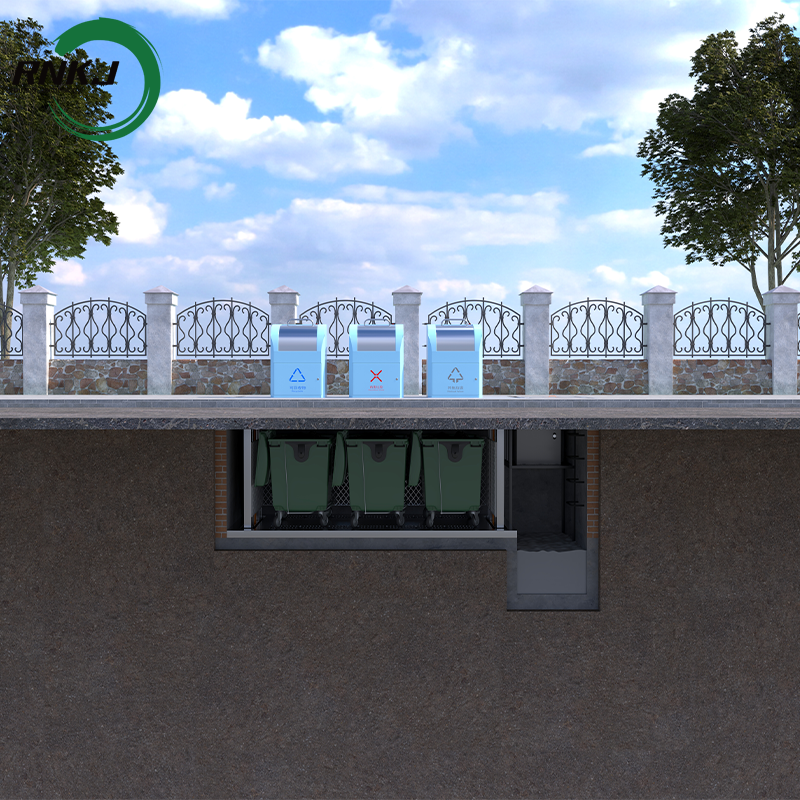

Underground Trash Sorting System is an intelligent classification device that hides garbage collection facilities underground. Its core lies in using underground space and intelligent equipment to solve the problems of traditional garbage facilities such as occupying a large area, emitting odors, and being messy and dirty.
Product Advantage
Underground Trash Sorting System is an integrated lifting system equipped with advanced intelligent components - such as overflow sensors, which will automatically alert the sanitation team when the waste reaches the preset capacity. Additionally, there is an automatic sensing mechanism that can automatically open and close the waste inlet.
1.The Underground Trash Sorting System is stable in performance, reliable in operation, convenient for cleaning, low in usage cost, small in size and exquisite in appearance, occupies less space and saves space.
2. The Underground Trash Sorting System is a type of trash bin that can be buried underground. It can effectively prevent mosquitoes from flying into the ground, thus maintaining the cleanliness and hygiene of the environment.
3. The inlet and outlet are more tightly sealed. The smelly garbage, after undergoing fermentation treatment, can produce useful substances.
Features：
Optimized Space Utilization: Minimizes ground-level footprint by integrating waste storage vertically.
Enhanced Capacity Flexibility: Accommodates bins of virtually any size, increasing overall waste volume.
Efficient, Labor-Saving Removal: Streamlines collection processes to reduce manual effort and turnaround time.
Intelligent Monitoring & Management: Real-time sensors and automated alerts ensure proactive oversight and maintenance.
Structural Composition
The Underground Trash Sorting System consists of underground garbage bins, a hydraulic lifting device, an above-ground loading port and a platform. The entire system adopts the hydraulic scissor-type lifting principle. When it is necessary to remove the garbage from the bins, the scissor-type lifting device will rise, making it convenient to take out the garbage.
Product Components
Waste Disposal Unit
Underground sorting and disposal port integrated with intelligent sensing and sorting guidance capabilities.
Underground Piping System
Consisting of conveying pipes, suction valves, and exhaust valves, it serves as the core of the negative pressure waste transportation channel.
Underground Collection Bin
Sealed container equipped with real-time waste volume monitoring functionality.
Intelligent Control System
Integrates sensors, video surveillance, and a cloud management platform to enable equipment status monitoring, data statistics, and remote scheduling.
Sorting Equipment
Equipped with sorting labels to achieve precise waste classification.
Processing Center Facilities
Comprises waste compression equipment, storage containers, and deodorization and leachate treatment devices, ensuring environmental friendliness throughout waste transfer and processing.
Product Parameters
Model number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Material & Appearance
Constructed from premium engineering-grade materials, namely high-quality electrolytic galvanized steel sheets. It achieves exceptional durability while retaining a lightweight design. The surface is treated with a long-lasting finish via high-temperature electrostatic spraying of outdoor-grade plastic powder. This coating offers strong resistance to chipping and peeling, paired with excellent UV protection and prolonged weather durability.
Functionality
Fitted with clearly marked classification compartments. These compartments guide users effectively, facilitating precise waste sorting for proper disposal.
Durability & Sustainability
Designed for reliable waste collection in diverse public environments. It boosts operational efficiency and promotes environmental sustainability through standardized waste sorting.
Color Coding & Identification
Features high-visibility compartment labels that are UV-resistant and abrasion-proof. Offered in multiple color options, the labels maintain vivid hues and clear readability for more than 3 years.
Work Process
Product Effects
Lifting mode
Landing mode
Our Underground Trash Sorting System are built with thicker materials than those commonly used on the market, ensuring enhanced strength, durability, and stability.This added robustness makes them more resistant to damage over time and better suited for harsh environments.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
