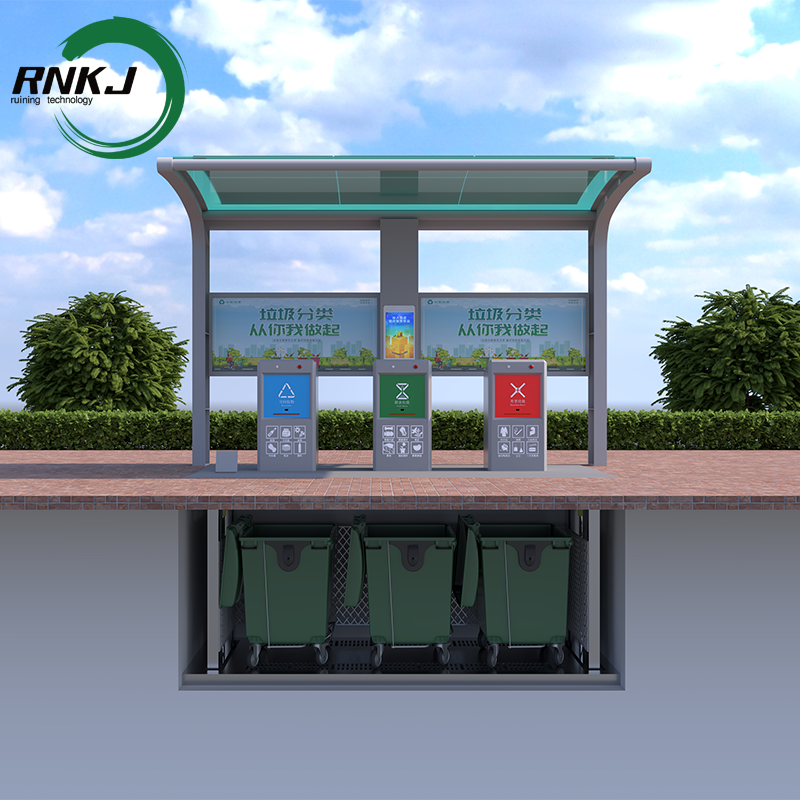

Underground Trash Management System are innovative and environmentally friendly devices that place the core facilities for waste sorting and storage underground, with only sorting and disposal openings and operating devices remaining on the ground. This achieves an organic combination of waste sorting and collection, efficient space utilization, and environmental aesthetics, and is a new solution for the refined management of urban waste.
Product Advantage
Highly efficient space utilization: Occupying only a small area above ground, the underground space enables large-capacity waste storage, perfectly suited for urban areas with limited land.
Strong environmental aesthetics: The absence of large surface waste containers completely eliminates the visual pollution of accumulated waste, significantly improving the landscape quality of streets and residential areas.
Excellent odor control: The relatively enclosed underground space facilitates centralized odor treatment, effectively improving surrounding air quality.
Reliable rain and moisture protection: The underground structure reduces direct rainwater intrusion, and combined with drainage facilities such as sump pumps, ensures long-term stable operation of the equipment.
Upgraded safety and hygiene: Deep underground burial reduces exposed surfaces, significantly lowering the risk of mosquito breeding and disease transmission.
Features：
Intelligent Operation: Equipped with inductive switches and switch buttons, the disposal process is convenient and efficient.
Hydraulic Drive for Convenience: Featuring a hydraulic system, underground trash cans can be raised and lowered with a single button, eliminating the need for manual handling during trash collection, saving time and labor.
Modular Design: The number of sorting slots (e.g., recyclable, hazardous, kitchen waste, other) and the corresponding number of underground trash cans can be flexibly configured according to specific needs.
Comprehensive Supporting Facilities: Includes a power unit to ensure equipment power supply, a water pump to address the risk of underground water accumulation, and end-to-end support to ensure equipment stability.
Product Application
Residential Communities: Addressing the issues of traditional garbage stations—"land occupation, odor, and poor aesthetics"—and improving the quality of life in residential communities.
Commercial Districts: Maintaining cleanliness in areas such as pedestrian streets and commercial districts, meeting the aesthetic and hygiene requirements of commercial settings.
Parks and Scenic Spots: Helping to create a visually pollution-free ecological landscape, meeting the environmental image requirements of cultural and tourism settings.
Schools, Hospitals, and Other Public Places: Standardizing garbage sorting practices and creating a clean and healthy public environment.
Product Parameters
Model number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Features
Material & Appearance:
Constructed from premium engineering-grade materials, notably high-quality electrolytic galvanized steel sheet (≥1.0mm thickness). This ensures exceptional durability while remaining lightweight.Features a robust surface finish achieved through outdoor-grade plastic powder applied via high-temperature electrostatic spraying. The resulting coating is highly resilient, resistant to chipping, peeling, and exhibits superior UV resistance and long-term weather durability.
Functionality:
Designed with clearly marked classification compartments (e.g., Recyclables, Hazardous Waste, General Waste) to guide users and facilitate accurate waste disposal.
Durability & Sustainability:
Engineered for reliable waste collection in diverse public environments, enhancing operational efficiency and promoting environmental responsibility through proper sorting.
Color Coding & Identification:
Utilizes highly visible, UV-resistant, and wear-resistant compartment labels produced using sandwich printing technology.Offers distinct color variations, maintaining color vibrancy and legibility for over 3 years.
Work Process
Sorted Disposal: Users dispose of waste through ground-level sorting slots (e.g., marked recyclable, hazardous, etc.), and the disposal doors can be opened via sensor switches or push-button switches.
Underground Storage: Waste falls into corresponding underground bins, achieving "sorted storage and physical separation."
Waste Collection: When the bins are nearly full, a hydraulic system raises the underground bins, and after the waste truck completes loading and unloading, the bins are lowered back to their original positions.
Equipment Maintenance: Regularly inspect core components such as the power unit, hydraulic system, and water pump, and clean the ground-level disposal slots to ensure long-term efficient operation of the equipment.
Product Effects
Lifting mode
Landing mode
FAQ
1. How about your delivery time?
Generally, it will take 20 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
2. Can you customize the product according to my requirements?
Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
3. What is the price of your product?
We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price
also depends on your special needs. To know the exact price, please contact us!
4. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
5: What service can I get from you?
We provide lifelong tracking service and one year free warranty for all of our products.Meanwhile we provide free training and technical support to guide you repair your product.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
