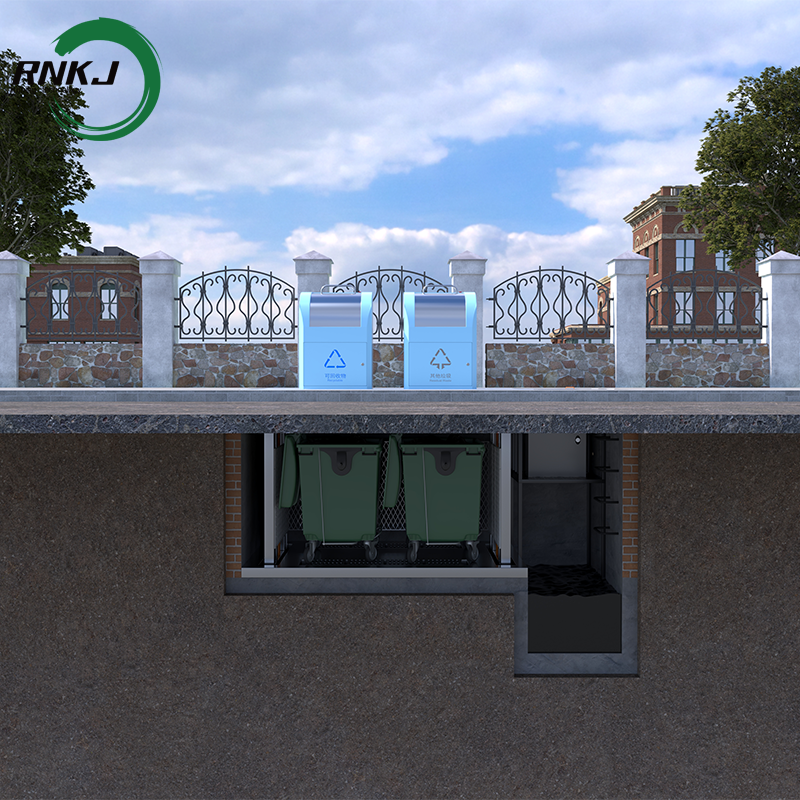

Underground Hydraulic Waste Collection System

An Underground Hydraulic Waste Collection System is an advanced underground waste storage and lifting solution designed to improve the efficiency, cleanliness, and appearance of municipal solid waste collection. Unlike traditional above-ground waste bins, this system stores multiple waste containers below ground level and uses a hydraulic lifting mechanism to raise the containers to the surface during waste collection.

The system is widely used in residential communities, commercial complexes, public parks, tourist attractions, hospitals, schools, industrial parks, airports, railway stations, and smart cities, providing a modern and environmentally friendly waste collection solution.

Supporting 240L, 660L, and 1100L wheelie bins, the Underground Hydraulic Waste Collection System offers flexible capacity options to meet different waste generation requirements while maximizing underground space utilization.

 Why Choose an Underground Hydraulic Waste Collection System?

As cities continue to grow, conventional waste collection methods face several challenges:

• Overflowing garbage bins

• Unpleasant odors

• Pest and rodent infestation

• Visual pollution

• High labor costs

• Limited installation space

An Underground Hydraulic Waste Collection System effectively solves these issues by relocating waste storage underground while allowing easy access through an automatic hydraulic lifting platform.

Compared with traditional above-ground waste bins, underground systems provide:

• Larger storage capacity

• Cleaner surroundings

• Better odor control

• Higher collection efficiency

• Improved public sanitation

• Enhanced urban landscape

 Main Components of the Underground Hydraulic Waste Collection System

The system is composed of multiple integrated hydraulic and mechanical components that ensure reliable and safe operation.

1. Hydraulic Lifting Cylinders

Heavy-duty hydraulic cylinders provide smooth vertical lifting of the entire waste container platform.

Features include:

• Stable lifting performance

• Low maintenance

• High load-bearing capacity

• Long service life

• Anti-corrosion treatment

The hydraulic lifting system can easily raise multiple fully loaded waste bins for emptying.

2. Balance Chain System

A high-strength chain of equilibrium synchronizes the lifting movement.

Benefits include:

• Smooth operation

• Stable platform movement

• Reduced mechanical stress

• Improved operational safety

3. Equipment Lifting Platform

The galvanized steel lifting platform supports all waste bins simultaneously.

Characteristics:

• Heavy-duty structural steel

• Anti-rust coating

• Large load capacity

• Long operating lifespan

4. Guide Pulley System

Guide pulleys maintain accurate lifting alignment while reducing vibration.

Advantages:

• Quiet operation

• Reduced wear

• Improved stability

• Lower maintenance costs

5. Hydraulic Power Unit

The hydraulic power unit serves as the system's core.

Features include:

• High-efficiency hydraulic pump

• Low energy consumption

• Automatic control

• Stable pressure output

• Reliable performance under continuous operation

6. High-Pressure Spray Deodorizing System (Optional)

To improve sanitation, an optional deodorizing module automatically sprays disinfectant after waste collection.

Functions:

• Odor suppression

• Bacteria reduction

• Fly control

• Improved hygiene

Especially suitable for:

• Food markets

• Restaurants

• Residential communities

• Hospitals

7. Automatic Fire Protection System (Optional)

Safety is enhanced through an automatic fire extinguishing device installed inside the underground chamber.

Features include:

• Automatic temperature detection

• Fire suppression

• Emergency protection

• Improved operational safety

8. Sewage Drainage Pump

Liquid waste generated inside the chamber is automatically discharged through the sewage pump.

Benefits:

• Prevents water accumulation

• Keeps the chamber dry

• Reduces corrosion

• Simplifies maintenance

 Product Parameters

 Video

 Flexible Waste Bin Capacity Options

The Underground Hydraulic Waste Collection System supports multiple standard wheelie bin sizes.

The number of containers can be customized according to customer requirements.

The modular design allows future expansion without replacing the entire system.

 Product Advantages

Space-Saving Design

Underground installation frees valuable surface space and improves land utilization.

Suitable for:

• Urban streets

• Scenic areas

• High-end residential communities

• Public squares

Large Storage Capacity

Underground systems typically offer significantly greater storage volume than traditional outdoor bins, reducing collection frequency and lowering transportation costs.

Improved Urban Appearance

Only the waste inlets remain visible above ground.

Benefits include:

• Cleaner streets

• Better landscape integration

• Higher property value

• Improved city image

Odor Reduction

Lower underground temperatures combined with optional deodorizing equipment significantly reduce unpleasant odors.

Better Hygiene

The enclosed underground chamber minimizes:

• Mosquitoes

• Flies

• Rodents

• Secondary pollution

Safe Hydraulic Operation

The hydraulic lifting mechanism provides:

• Stable lifting

• Low noise

• Automatic control

• Emergency stop protection

• Long service life

Easy Maintenance

The system is designed for convenient maintenance.

Inspection ladders, access doors, and modular hydraulic components simplify servicing and reduce downtime.

Energy Efficient

The hydraulic power unit operates only during lifting, resulting in very low daily electricity consumption.

 Working Principle of the Underground Hydraulic Waste Collection System

The waste collection process is simple, efficient, and fully hydraulic.

Step 1: Daily Waste Disposal

Residents deposit household waste into above-ground waste inlets.

Different colors can be used for waste classification:

• General waste

• Recyclables

• Organic waste

• Hazardous waste

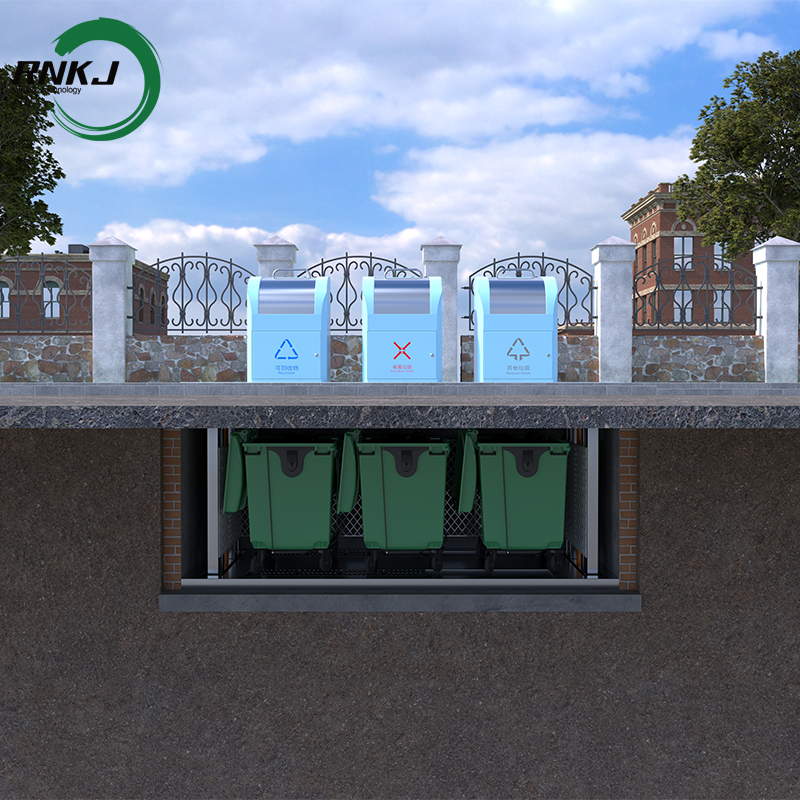

Step 2: Underground Storage

Waste falls directly into the underground wheelie bins.

Underground storage provides:

• Lower internal temperature

• Reduced odor emission

• Slower bacterial growth

• Better environmental protection

Step 3: Hydraulic Lifting

When collection is required, the hydraulic lifting system raises the entire platform to ground level.

Collection workers can then remove the waste bins using standard lifting trucks without entering the underground chamber.

Step 4: Waste Transportation

The full bins are emptied into garbage collection vehicles and returned to their original positions.

The hydraulic platform lowers automatically after collection.

 Product Effects

Lifting mode

Landing mode

 Typical Applications

The Underground Hydraulic Waste Collection System is suitable for a wide range of waste management projects.

Typical installation locations include:

• Residential communities

• Smart city projects

• Municipal streets

• Shopping centers

• Hospitals

• Universities

• Hotels

• Airports

• Railway stations

• Public parks

• Tourist attractions

• Office buildings

• Industrial parks

• Logistics centers

• Government facilities

 Optional Customization

To meet different project requirements, multiple customization options are available:

• 240L / 660L / 1100L waste bins

• 2-bin, 3-bin, or 4-bin configurations

• Stainless steel or galvanized steel structure

• Custom waste inlet designs

• Intelligent weighing system

• RFID identification

• Full-level monitoring sensors

• IoT remote monitoring

• Automatic deodorization

• Fire extinguishing system

• PLC automatic control

• Customized colors and branding

 Why Invest in an Underground Hydraulic Waste Collection System?

As cities increasingly adopt smart infrastructure and sustainable waste management practices, the Underground Hydraulic Waste Collection System has become a preferred solution for municipalities, property developers, and waste management companies. By combining underground storage with hydraulic lifting technology, it delivers a cleaner environment, higher collection efficiency, reduced operating costs, and an improved urban landscape.

Whether your project requires 240L, 660L, or 1100L underground waste bins, this system can be tailored to your specific needs, providing a reliable, durable, and future-ready waste collection solution for modern cities.

 FAQ

What waste bin sizes are available?

Our Underground Hydraulic Waste Collection System is compatible with three standard wheelie bin sizes:

• 240L Waste Bin

• 660L Waste Bin

• 1100L Waste Bin

The system can be configured with two, three, four, or more bins depending on your waste collection requirements. Custom configurations are also available.

How does the hydraulic lifting system work?

The hydraulic power unit drives heavy-duty lifting cylinders that raise the underground platform to ground level whenever waste collection is required. After the waste bins are emptied by a standard garbage truck, the platform automatically lowers the bins back into the underground chamber, ensuring safe and efficient operation.

What are the advantages of an underground waste collection system?

Compared with conventional above-ground garbage bins, an Underground Hydraulic Waste Collection System offers several advantages:

• Saves valuable surface space

• Improves the appearance of streets and public areas

• Reduces unpleasant odors

• Prevents pests and rodents

• Increases waste storage capacity

• Lowers waste collection frequency

• Improves public hygiene

• Supports waste sorting and recycling

• Reduces long-term operating costs

Is the system suitable for waste separation and recycling?

Yes. The system can be equipped with multiple waste inlets and separate underground bins for different waste streams, such as:

• General Waste

• Recyclable Waste

• Organic Waste

• Glass

• Paper

• Plastic

• Hazardous Household Waste

This makes it an ideal solution for municipalities implementing waste separation programs.

Can the Underground Hydraulic Waste Collection System be customized?

Absolutely. We provide complete customization services, including:

• 240L, 660L, or 1100L bin compatibility

• Two-bin, three-bin, four-bin, or multi-bin configurations

• Galvanized steel or stainless steel construction

• Customized waste inlet designs

• PLC automatic control system

• Intelligent weighing system

• Full-level monitoring sensors

• RFID identification

• Automatic deodorizing system

• Fire extinguishing system

• Company logo and color customization

OEM and ODM services are also available.
