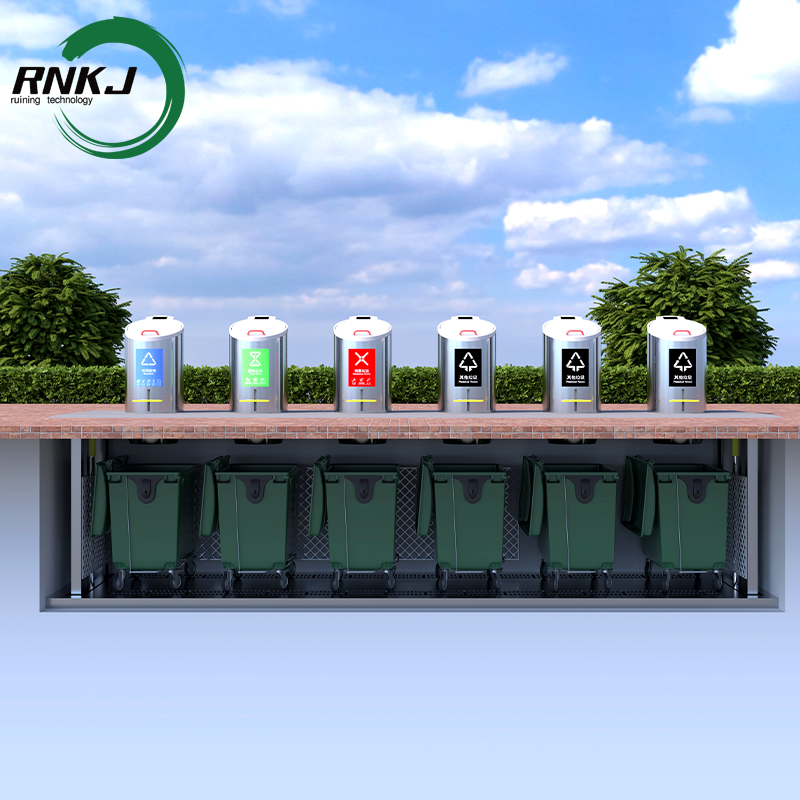

The structure of Underground Garbage Sorting System includes classification publicity kiosks,garbage feeding devices, lifting devices, power systems, sewage systems, deodorization systems, pit foundations, etc.
Its advantage is that all garbage cans fall into the ground, good concealability , effectively reduce visual pollution, followed by convenient garbage dumping, less odor, and so on. The garbage volume can be selected according to customer needs 1100L/660L/240L garbage can, which can be used in a variety of layouts such as 1 barrel, 2 barrels, 4 barrels or 6 barrels.
Product AdvantageBy situating primary sorting and storage components below ground level, the Underground Garbage Sorting System preserves valuable surface space and maintains clean, unobstructed public and residential areas. The integrated Underground Waste Collection System further minimizes above-ground clutter, enhancing site aesthetics and public hygiene.
Enclosed sorting chambers and underground storage reduce exposure to pests, odors, and contaminants. The Underground Waste Collection System integration further ensures sealed waste transfer, significantly improving sanitation standards in high-traffic locations such as commercial hubs and residential districts.
Equipped with Utilizing Internet+ technology, the Underground Garbage Sorting System provides real-time monitoring of fisystem status, and maintenance alerts. Integration with the Underground Waste Collection System improving responsiveness and optimizing collection schedules.
Product ParametersModel number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Video
Features
Garbage sorting bins are usually made of high-quality engineering materials, such as high-quality electrolytic galvanized sheet with a thickness of ≥ 1.0mm, which is characterized by durability, lightweight and flexibility.On the surface treatment, outdoor plastic powder high-temperature electrostatic spraying is used, and the surface coating is sturdy, not easy to peel off, and has strong UV resistance and weather resistance.
The garbage sorting bin is designed with clear classification labels, such as recyclable materials, hazardous waste, and other waste, to facilitate users to dispose of them correctly.
Garbage sorting bins are suitable for collecting waste or handling raw materials in various public places, greatly improving work efficiency.
The box identification adopts UV resistant, wear-resistant, and sandwich printed garbage signs, with diverse colors and a brightness that can maintain for more than 3 years.
Product Operate Guide1. Activate the hydraulic system when the trash can is full.
2. Lift the platform smoothly until the bottom of the trash can is flush with the ground.
3. Manually hauling out full trash cans and unloading trash directly into trash collection trucks.
4. Place empty cans in their original trash can locations.
Product Effects

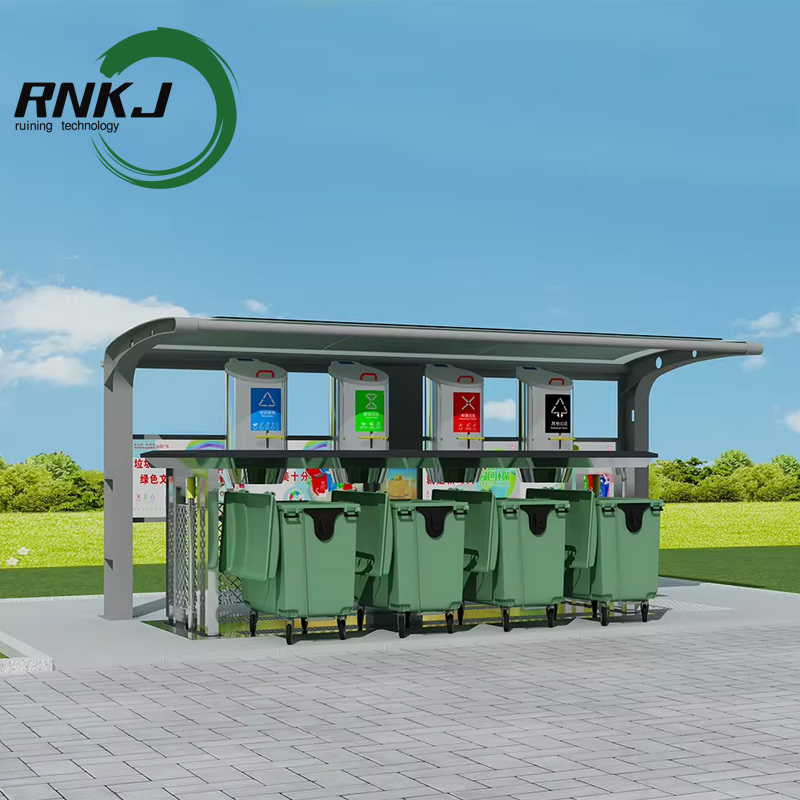

Lifting mode
Landing mode
ApplictionThe Underground Garbage Sorting System is ideal for city centers where waste volumes are high and mixed streams are common. By integrating with the Underground Waste Collection System, municipalities can optimize sorting at source, improve recycling rates, and reduce collection time, enhancing urban cleanliness and operational efficiency.
For housing complexes and mixed-use developments, the Underground Garbage Sorting System offers residents convenient, hygienic waste separation. Paired with the Underground Waste Collection System, it maintains tidy outdoor spaces and reduces frequent truck visits, benefiting both residents and property managers.
In shopping centers and commercial hubs, effective waste segregation is crucial. The Underground Garbage Sorting System ensures proper classification before storage in the Underground Waste Collection System, minimizing cross-contamination and streamlining waste logistics in high-traffic environments.
Industrial parks with diverse waste streams benefit from the sorting precision and robust construction of this system. Integrated with the Underground Waste Collection System, it manages large volumes with minimal manual handling, improving safety and recycling compliance.
FAQ1.Are you a manufacturer or trader?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2.What is your payment term?
We accept T/T, L/C at sight, Western Union, Paypal etc.
3.How long is the validity of quotation?
Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market.
4.What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days. It depends on the order quantity.
5.Do you provide OEM/ODM service?
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
6.How can we ensure quality?
The final inspection is always carried out before shipment.
7.How to install the equipment after purchasing?
We will provide a professional installation video to illustrate. A manual is available as well.
8.Do you offer a guarantee?
Yes, we guarantee our product for one year. After-sales service support and technical support are both provided.
9.What is your MOQ?
1set.
