Underground Garbage sorting Booth structure includes sorting kiosk, garbage feeding port device, lifting platform, power unit, sewage system, deodorization system, pit foundation, etc.
Underground Garbage sorting Booth advantage is that the garbage cans are all dropped into the ground, which is well hidden and effectively reduces the visual pollution, and secondly, the garbage is easy to dump, with less odor, and the garbage volume can be selected according to the customer's needs, such as 1100L/660L/240L. Trash cans, 4 or 6 barrels can be used. Various layouts.
The new Underground Garbage sorting Booth, according to the harmful garbage, recyclable garbage, food waste (wet garbage), other garbage (dry garbage), for the classification of garbage collection, mainly applicable to: parks and scenic spots, residential districts, hospitals, schools and so on.
Product AdvantageFully enclosed anti-pollution
The garbage is stored underground in a sealed manner throughout the process. The soil maintains a constant temperature to inhibit fermentation, reducing odors and minimizing the breeding of mosquitoes and flies. The anti-leakage design prevents any sewage from overflowing, and the surrounding ground remains dry and tidy.
Intelligent and efficient, with hassle-free management.
Automatic lid opening detection, overflow warning, remote monitoring. The frequency of cleaning and transportation is reduced, lowering labor and transportation costs.
Save space, beautify the environment
Underground concealed design, reduced surface area occupation, only leaving a clean discharge outlet, which can be integrated into landscape planning, without visual pollution, suitable for renovation of old residential areas and high-density urban areas.
Safe and durable, suitable for various scenarios
The entire machine is resistant to corrosion and rust, with a long service life; multiple safety protection devices ensure safe operation; modular design is suitable for various scenarios such as communities, parks, schools, and commercial squares.
Low-carbon and environmentally friendly, sustainable development.
Optional solar power supply to reduce operational energy consumption; sealed storage of garbage to decrease carbon emissions.
Product ParametersModel number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Features
Ground Disposal Area
Disposal Port Unit: Standardly equipped with 4 categories, customized with high-quality materials, surface coated with anti-rust and antibacterial layer, scratch-resistant and corrosion-resistant; the size of the disposal port is suitable for daily garbage disposal.
Intelligent Sensing Panel: Integrated with infrared sensing and LED indicator lights; sensing distance, automatically opens the lid when approached, closes after disposal with a delay; indicates and guides for classified disposal.
Underground storage area
Underground foundation pit and sealed pit position: 2.0 - 2.5 meters underground depth, constructed with high-strength concrete, with anti-corrosion and anti-seepage treatment on the inner wall to reduce seepage and pollution of soil and groundwater.
Classification trash cans: 4 independent 660L/1100L standard trash cans, made of high-density polyethylene, resistant to acids and alkalis, anti-corrosion, recyclable; each trash can has strong load-bearing capacity, suitable for hydraulic lifting load requirements.
Lifting platform and guide rails: Steel platform for carrying trash cans, combined with heavy-duty guide rails and balance brackets, ensuring smooth lifting; the platform is equipped with anti-slip patterns to prevent the trash cans from shifting.
Hydraulic lifting system
Hydraulic unit: Equipped with silent hydraulic pumps, voltage customized according to requirements. The lifting speed is safe, the operation is stable and the noise is low.
Safety devices: Equipped with hand-free sensor, emergency stop button, overload protection; upon sensing any foreign object during the lifting process, the machine will immediately stop to prevent accidents.
Operating mode: Supports local buttons and remote control. When clearing, lift the bucket with one button, and it will automatically settle after disposal. The operation is simple.
Product Performance collection mode
The new landscape buried garbage compactor station improves environmental hygiene while enhancing the overall image of the city, which is different from the garbage sorting service station or garbage kiosk on the ground, i.e., it adopts the environmentally friendly underground sorting collection mode.
Optional pitches
According to the customer's demand, it can choose various modes of feeding port, such as garbage classification feeding port, barrel turning device, large garbage opening device, etc., which is convenient for garbage collection vehicles and cleaning personnel to dump garbage; garbage enters into the feeding port and falls into the underground garbage collection station directly, and the fully closed structure reduces odor leakage, mosquitoes and flies, and the pollution of the environment.
deodorization system
After the opening of the feeding port, dumping of garbage and the opening of the upper cover of the lifting platform, deodorizing liquid is sprayed underneath the upper cover of the platform to remove the odor generated during the transfer of garbage, which greatly improves the situation both visually and perceptually.
noise mitigation
The landscape buried trash compactor station is also equipped with a rubber protective mat on the feeding port to minimize the noise caused by collision.

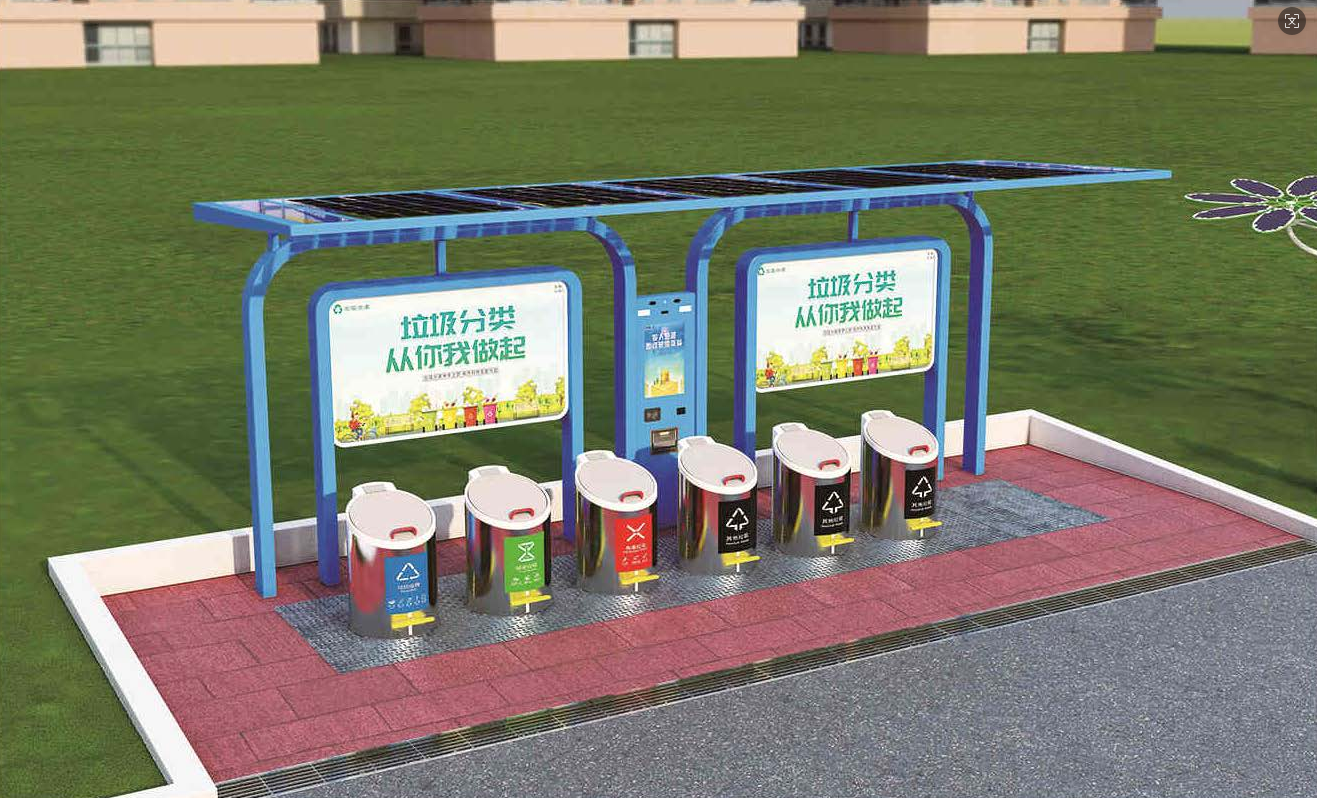

Run process Landing effect:

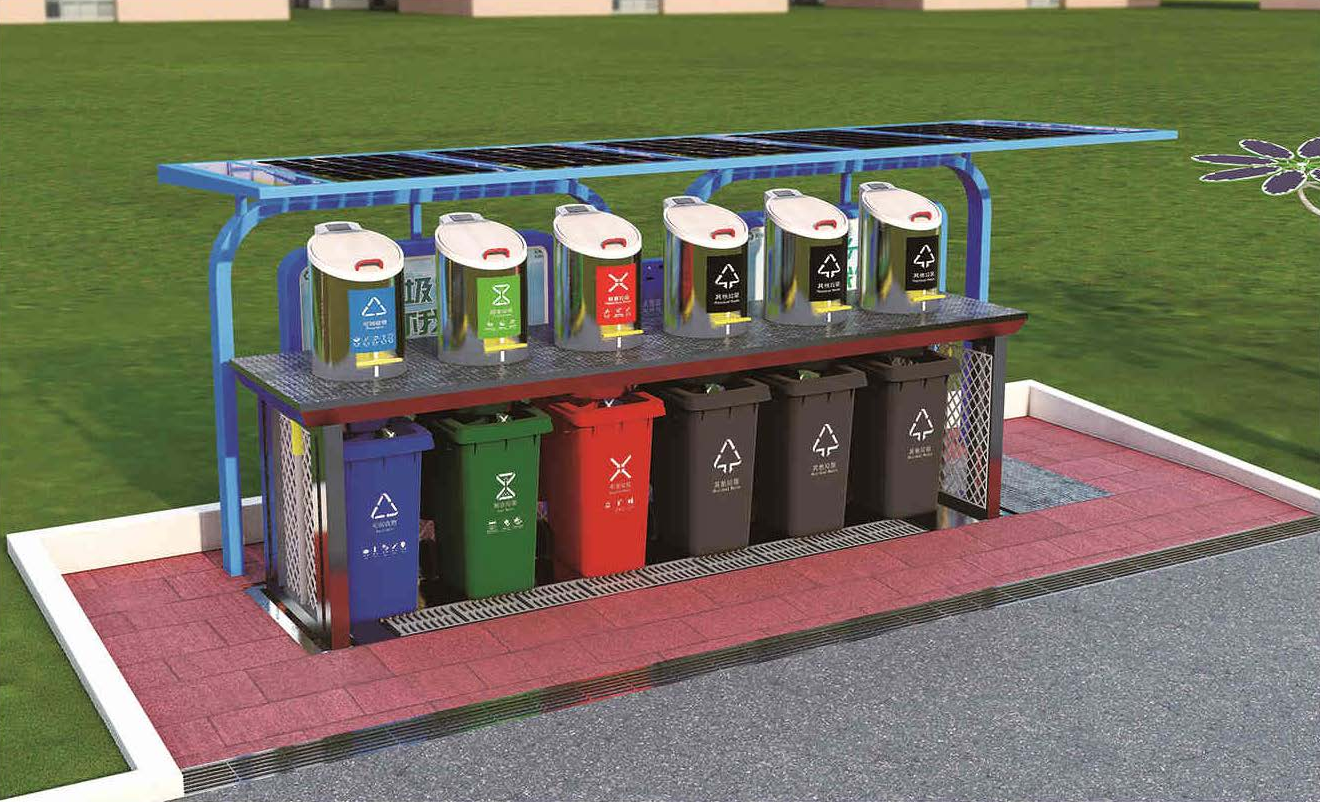

Lift effect:

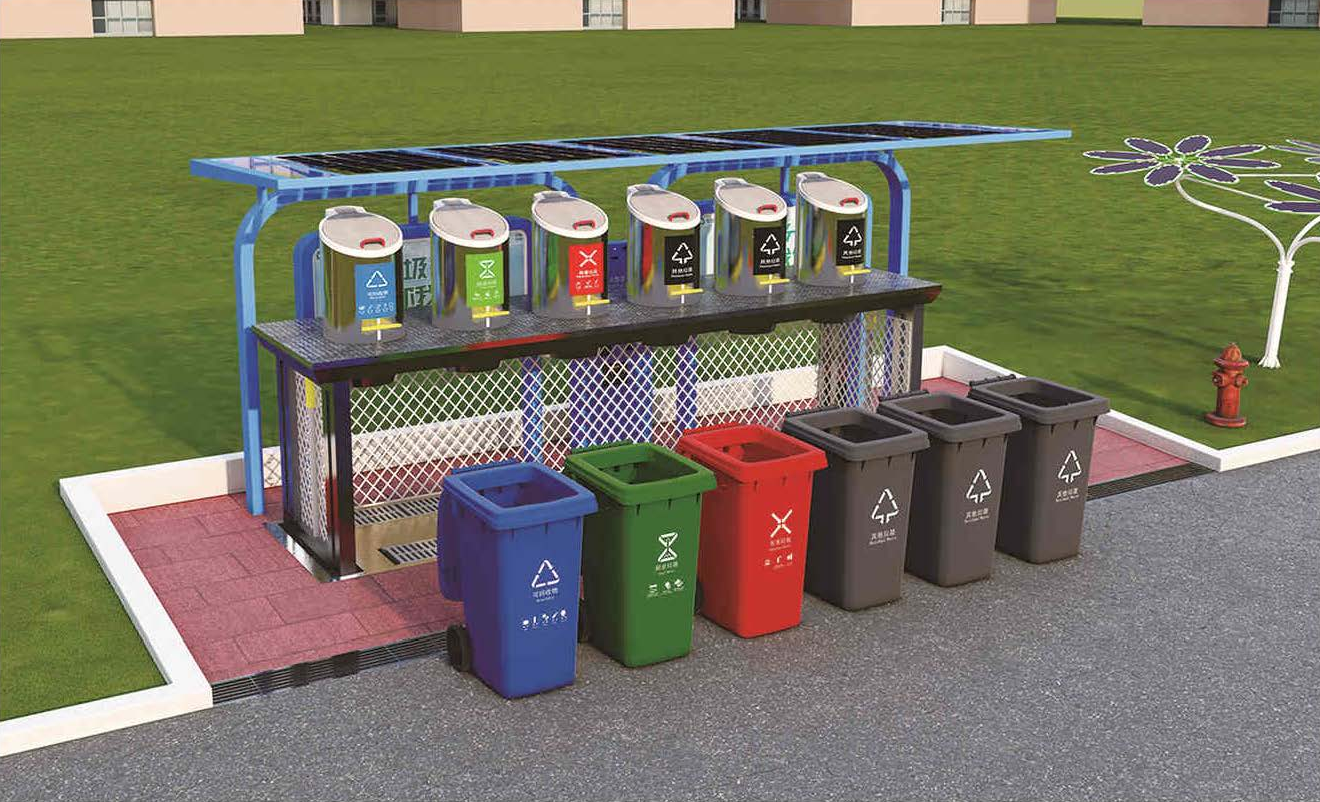

Transit effect:
Product Operate GuidePlacement stage: Residents approach the placement opening, the infrared sensor automatically opens the lid, guiding the sorting of waste, the garbage is placed in the bin and then the lid closes after a delay, and the garbage falls into the underground sealed bin for storage.
Storage stage: The underground compartment is sealed and deodorized, the leachate is collected, real-time overfill monitoring is carried out, maintaining a clean environment.
Collection stage: When the garbage in the bin reaches 85%, the system automatically issues an alert, personnel operate on-site, the hydraulic system lifts the bin to the ground, the sanitation vehicle connects for collection, after the collection is completed, the bin body automatically sinks back underground, and the equipment resets and waits.
Product Effects
Lifting mode
Landing mode

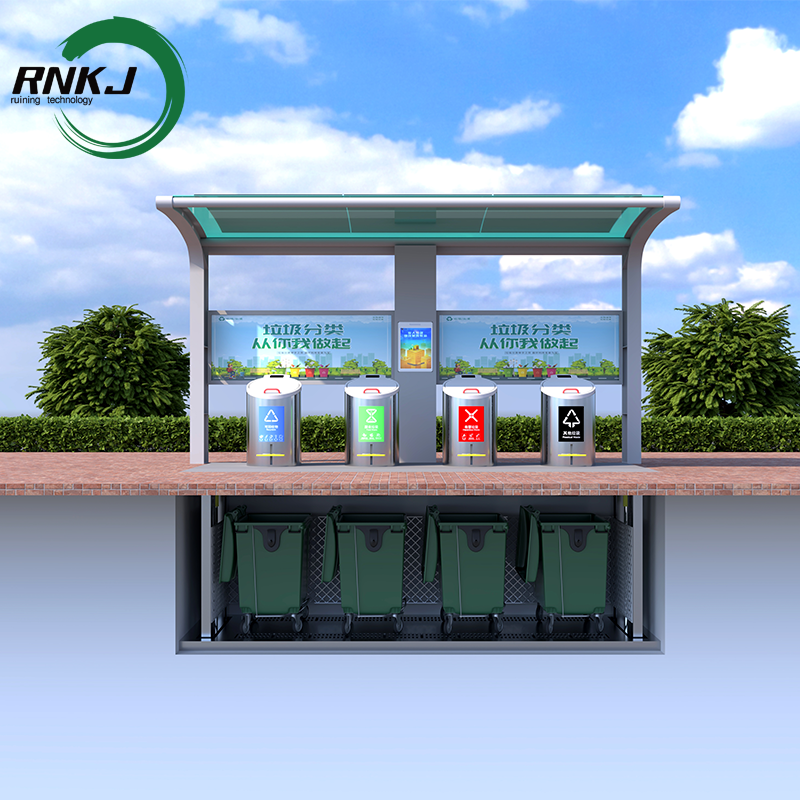

The structure of Underground Waste Storage System includes classification publicity kiosks,garbage feeding devices, lifting devices, power systems, sewage systems, deodorization systems, pit foundations, etc.
Its advantage is that all garbage cans fall into the ground, good concealability , effectively reduce visual pollution, followed by convenient garbage dumping, less odor, and so on. The garbage volume can be selected according to customer needs 1100L/660L/240L garbage can, which can be used in a variety of layouts such as 1 barrel, 2 barrels, 4 barrels or 6 barrels.
You will receive our full range of personalized customized services, including to site design, packaging, equipment matching, customized procedures, etc,
