The Underground Garbage Collection System is a modern waste management solution that offers significant advantages in terms of urban space utilization, environmental quality, waste sorting efficiency, and resident experience. The system is equipped with sensors that monitor the fill levels of each sorting unit in real time, and coordinates waste collection vehicles through an IoT platform to prevent overflow and improve collection efficiency. The enclosed design of the Underground Garbage Collection System reduces the “dirty, messy, and unsanitary” issues associated with traditional garbage collection points, improves residents' acceptance of garbage sorting, and indirectly enhances their participation enthusiasm.
The garbage volume can be selected according to customer needs 1100L/660L/240L garbage can, which can be used in a variety of layouts such as 1 barrel, 2 barrels, 4 barrels or 6 barrels.
Product Advantage
Product Parameters
Model number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Features
Materials and Exterior Finish
Waste sorting bins are generally constructed from premium engineering-grade materials—for instance, top-tier electrolytic galvanized steel sheets with a minimum thickness of 1.0mm. These materials are distinguished by their durability, light weight and structural flexibility.
In terms of surface treatment, high-temperature electrostatic spraying of outdoor-grade plastic powder is applied. The resulting surface coating is robust and peel-resistant, boasting excellent UV protection and weather durability.
Functional Design
Waste sorting bins are equipped with clearly marked classification labels (e.g., recyclables, hazardous waste and residual waste), enabling users to sort and discard waste properly.
Applicability and Eco-friendliness
These bins are well-suited for waste collection and raw material handling across a wide range of public venues, significantly enhancing operational efficiency.
Color Scheme and Labeling
The bin’s identification system employs UV-resistant, wear-proof, sandwich-printed waste classification signs. Available in a rich array of colors, the signs’ vibrancy can be retained for over 3 years.
Product Operate Guide
Initiate the operation of the hydraulic system as soon as the waste bin has been completely filled with garbage.
Elevate the supporting platform in a steady, gradual manner, continuing the upward movement until the base of the waste bin is perfectly aligned evenly with the ground surface.
Physically remove the fully loaded waste bins by hand, and then empty all the contained trash directly into the designated waste collection vehicles parked nearby for disposal.
Return each of the emptied waste bins to their respective initial placement positions where they were originally stationed before being moved.
Product Effects

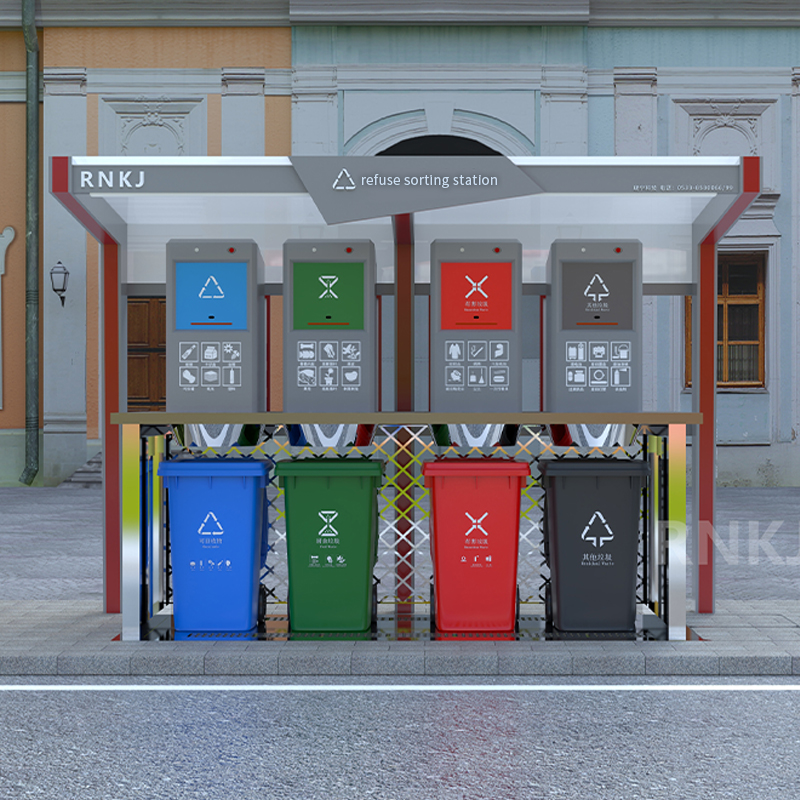

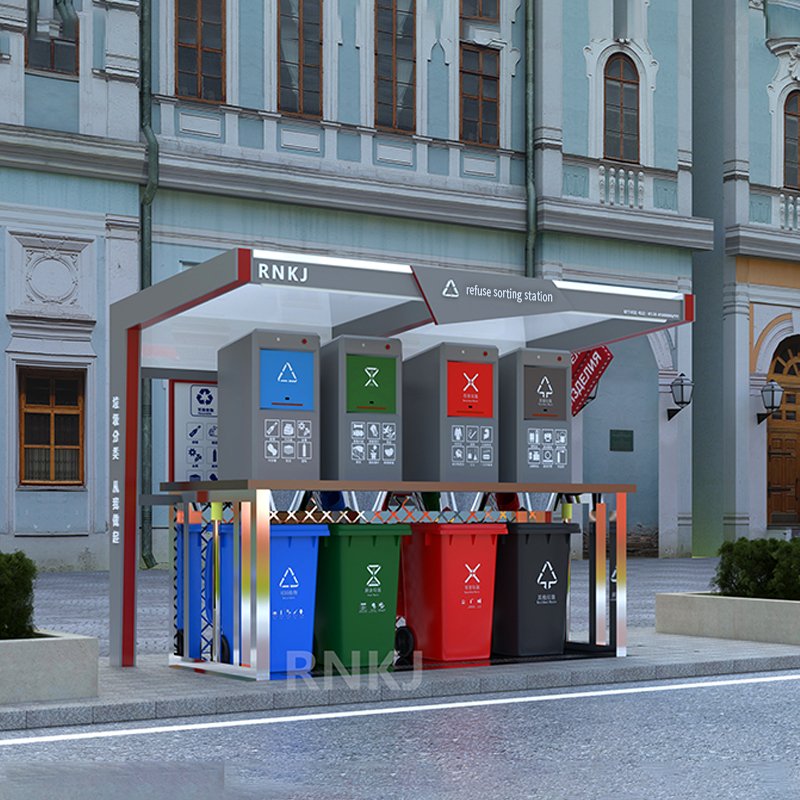

Lifting mode

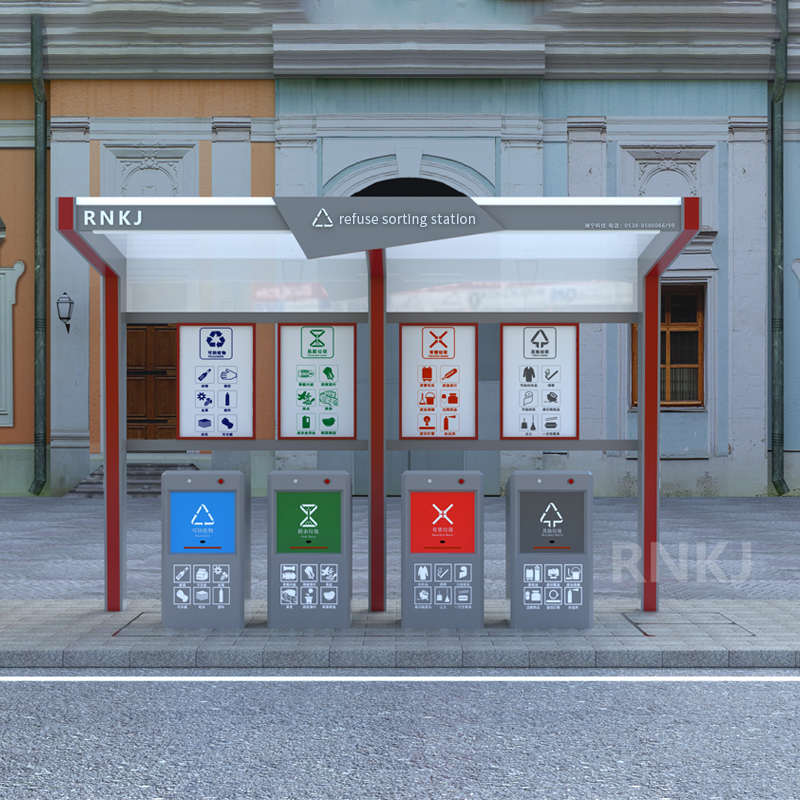

Landing mode
Our Factory
Application scenarios
The core advantages of the Underground Garbage Collection System are space saving, closed-loop transportation for reduced pollution, and efficient and controllable waste sorting. It is primarily suitable for areas with high requirements for space, environment, and waste sorting standards.
High-Density Urban Residential Areas: Including older communities and newly built high-rise residential buildings. These areas have limited ground space; traditional garbage bins tend to accumulate, emit odors, and obstruct fire lanes or pedestrian space. The Underground Garbage Collection System allows for discreet collection through ground-level disposal openings, with waste transported via underground pipes or containers. This does not affect residents' passage and improves the community's sanitation, making it particularly suitable for densely populated central urban areas.
Shopping Malls, Pedestrian Streets, and Office Building Clusters: These areas have high foot traffic, generate waste quickly and in large quantities, and the types of waste are diverse. The Underground Garbage Collection System can quickly collect waste, preventing overflowing ground-level bins from negatively impacting the commercial image.
Scenic Spots, Parks, and Historical and Cultural Districts: These areas have strict requirements for visual aesthetics; too many ground-level garbage bins can damage the natural or cultural landscape. The Underground Garbage Collection System requires only small, concealed disposal openings, with garbage transported entirely underground. This satisfies tourists' garbage disposal needs while protecting the overall aesthetics of scenic areas and historical districts.
Suitable for parks with clear garbage sorting requirements, such as electronics industrial parks, biomedical parks, and light industrial manufacturing parks. The Underground Garbage Collection System can be specifically designed with separate collection channels for industrial waste, recyclable materials, and hazardous waste, achieving separation of industrial and domestic waste, reducing the risk of hazardous waste leakage, and improving resource recycling rates.
In rainy and coastal cities: The Underground Garbage Collection System prevents garbage from being washed away by rainwater, reducing the risk of garbage flowing into sewers or water bodies.
In cold regions: The relatively stable underground environment prevents garbage bins from freezing and garbage from becoming frozen and difficult to collect, ensuring efficient garbage collection in winter.
We offer bespoke services covering a range of personalization options, including color choices, sizes, and branding. Our experienced team is ready to conduct an assessment to provide you with a comprehensive solution and quote perfectly tailored to your requirements.
