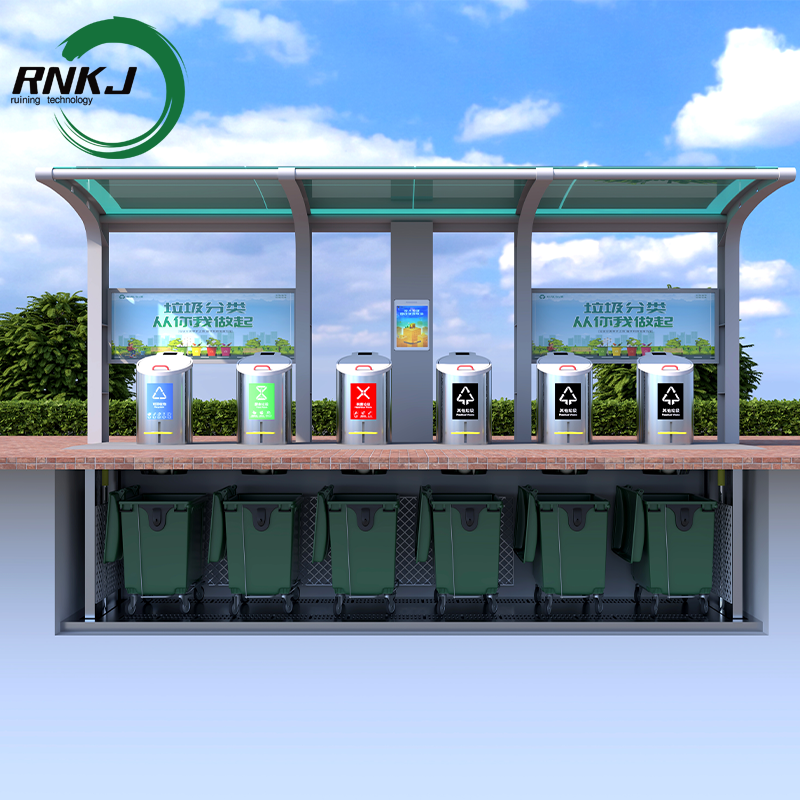

Underground Garbage Collection Storage System is a new type of waste disposal facility that is constructed based on underground space and integrates mechanized transportation, intelligent monitoring, sealed storage, and multiple classifications. Its core lies in relocating the traditional ground-level garbage collection points to underground, through technological optimization to solve the environmental, space, efficiency, and classification problems of traditional garbage collection. It is widely applied in urban new districts, high-density residential communities, commercial complexes, and other scenarios.
The garbage volume can be selected according to customer needs 1100L/660L/240L garbage can, which can be used in a variety of layouts such as 1 barrel, 2 barrels, 4 barrels or 6 barrels.
Product Advantage
1、Optimizing the visual senses：Outdoor adaptability, small footprint on the ground, saving space on the ground, can match the surrounding environment, collecting garbage on the ground, eliminating visual pollution and beautifying the environment.
2、Cost saving:Durable equipment, low failure rate, long service life, high efficiency, low labor and late use costs;
3、Good closure:Fully enclosed odor is not easy to spread, inhibit mosquitoes and flies, to avoid picking up the reverse pickup, to prevent secondary pollution.
4、Highly Intelligent：Utilizing Internet+ technology, it is equipped with automatic overflow device, temperature control device, video monitoring, automatic or foot pedal or swipe card induction lid opening and so on.
5、Environmentally friendly:Various types of energy sources, such as environmentally friendly solar energy, wind energy, and so on.
6、Highly adaptable, can be used in conjunction with most existing collection systems; several times the volume of traditional waste collection, high degree of automation
Product Parameters
Model number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Features
Save floor space: The equipment is fully buried underground, not occupying any floor space. It is suitable for scenarios with tight spaces such as urban cores and high-density communities.
Closed-loop classification process: Through underground pipelines or sealed containers for zone division, it realizes the classified storage and transportation of recyclables, kitchen waste, etc., reducing mixed transportation.
Optimize environmental experience: The sealed design isolates odors and mosquitoes, avoids secondary pollution caused by open garbage stacking, and reduces noise interference.
Improve transfer efficiency: Some systems are equipped with negative pressure transportation or automated lifting devices, reducing manual handling and shortening the garbage retention time.
Adapt to urban planning: It can be coordinated with underground pipelines, parking lots and other infrastructure, meeting the aesthetic and functional requirements of modern urban construction.
Product Operate Guide
1. Disposing of garbage
At the designated disposal points with classification labels, the garbage should be placed in the corresponding disposal slots according to the classification standards such as "recyclables, kitchen waste, hazardous waste", etc.
2. Automatic processing by equipment
After disposal, the intelligent equipment will temporarily store, weigh or conduct intelligent sorting of the garbage, completing the initial centralized management.
3. Garbage collection vehicle docking
When the equipment is fully loaded, the garbage collection vehicle arrives at the disposal point and docks with the intelligent equipment through a dedicated interface, transferring the classified garbage to the garbage collection vehicle.
4. Transport to processing terminal
After the garbage collection vehicle completes loading, it will transport the classified garbage to the corresponding end processing sites (such as recycling stations, kitchen waste treatment plants, etc.) to complete the entire closed-loop process.
Product Effects

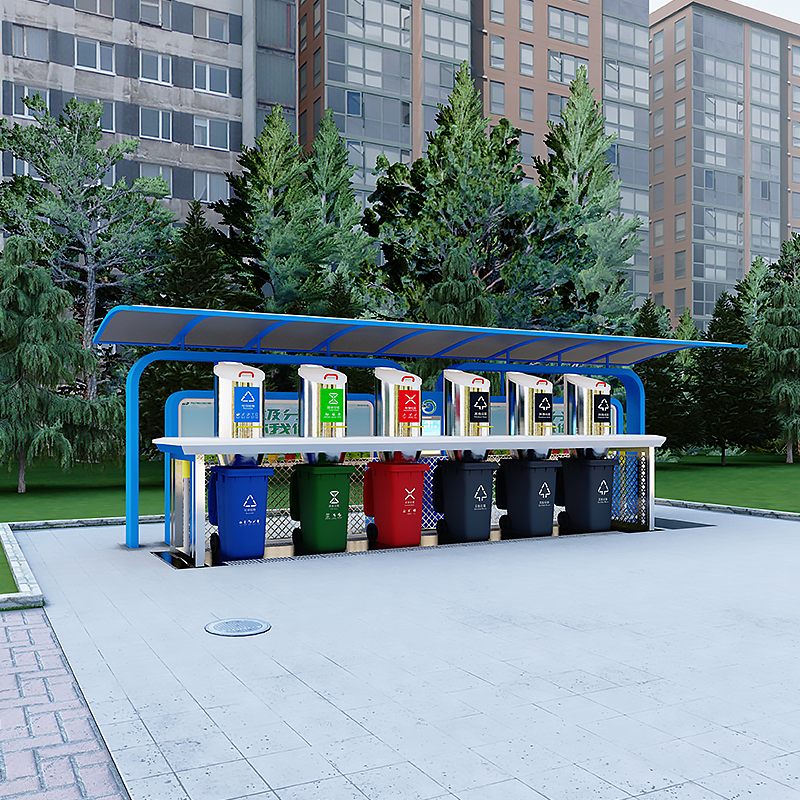

Lifting mode

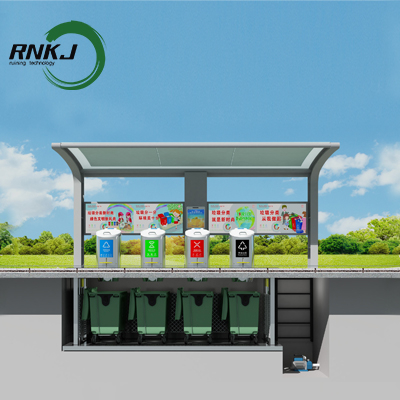

Landing mode
Application scenario
Urban core area / CBD: The land is extremely valuable, so garbage collection points should not occupy commercial or transportation spaces. At the same time, the area should be kept clean and tidy.
High-density residential communities: High-rise and super-high-rise communities have a large population and generate a lot of garbage. A sealed system can reduce the impact of odors and noises on residents.
Cultural tourism scenic spots / parks: With a large number of visitors, garbage is scattered and can cause visual pollution. The underground system can maintain the integrity of the scenic area landscape.
Hospitals / schools / office buildings: High requirements for environmental hygiene and epidemic prevention are necessary. Garbage needs to be processed quickly to avoid cross-contamination, and the ground space is mainly used for core functions.
New urban areas / smart city demonstration zones: As infrastructure support, they are in line with the construction concepts of green cities and intelligent management. They can be planned in coordination with other underground facilities.
Renovation projects of old urban areas: The original spatial layout is tight. The underground system does not need to occupy additional ground space, and is suitable for meeting the needs of improving the environment after the renovation.
We are a senior equipment manufacturer with professional production equipment such as CNC laser cutting machines, CNC bending machines, and machining centers, which can ensure the quality and exquisite appearance of our products.
We support customized drawings . We have a strong technical team and professional welding personnel. Looking forward to working with you.
