Underground Garbage Collection Sorting System is an intelligent sanitation facility that integrates garbage storage and sorting functions partially or entirely underground. It achieves sealed and categorized collection and transportation of garbage through an underground pipeline network. Compared to the traditional ground-based garbage collection model, it can reduce the exposure of ground garbage, save ground space, significantly improve garbage processing efficiency, reduce the pollution risk of garbage to the environment, and also effectively enhance the living environment experience of residents.
Product Advantage
The garbage is stored underground in a sealed manner. Combined with anti-seepage, anti-corrosion structures and ozone disinfection and deodorization systems, it can effectively prevent the leakage of odors, inhibit the breeding of mosquitoes and flies, avoid the contamination of soil and groundwater by the leachate from the garbage, and reduce secondary pollution at the source.
The underground large-capacity storage tanks can reduce the occupation of ground space. They are particularly suitable for densely populated residential areas, commercial districts, or parks and scenic spots with high landscaping requirements. Only small discharge ports are retained on the ground, resulting in minimal visual disturbance.
The underground lifting-type equipment uses a hydraulic system to automatically lift the barrel. The cleaning vehicle can directly hook onto it for dumping, eliminating the need for manual handling, resulting in an efficiency increase of over 30%.
The ground facilities are concealed and have a simple design, which can blend naturally with the surrounding buildings and green landscapes, avoiding the disorderly stacking of traditional trash cans that would otherwise detract from the city's aesthetics.
Closed storage reduces the deterioration of garbage and the leakage of waste, minimizing the damage to equipment and the surrounding environment, prolonging the service life of the facilities, and reducing the subsequent maintenance costs.
According to the customer's demand, it can choose various modes of feeding port, such as garbage classification feeding port, barrel turning device, large garbage opening device, etc., which is convenient for garbage collection vehicles and cleaning personnel to dump garbage.
Working Principle

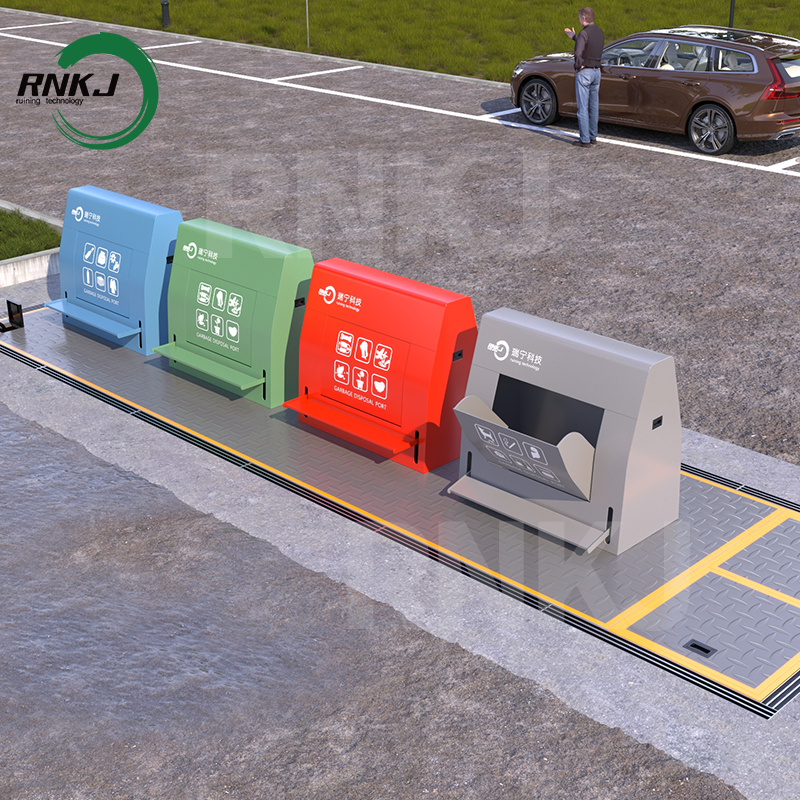

Ground-based disposal: Four classification disposal ports are set on the ground, including recyclables, kitchen waste, other garbage, and hazardous waste. The disposal covers can be opened by infrared sensing or manually. Residents complete the classification disposal.

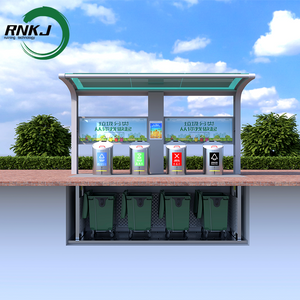

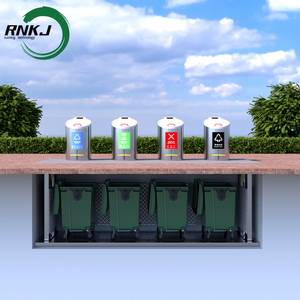

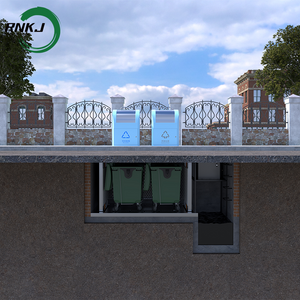

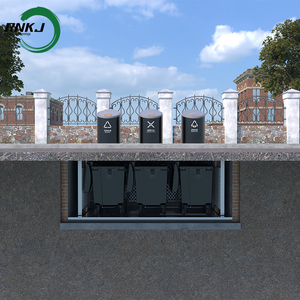

Underground storage: The garbage directly falls into the underground sealed storage tanks. The tank bodies are equipped with anti-leakage and anti-corrosion structures. Some equipment also integrates ozone disinfection, high-pressure deodorization, and sewage diversion systems to prevent the underground environment from being polluted.
Automatic transportation connection: When the underground storage tanks are overfilled or reach the preset transportation time, the tank bodies are lifted to the ground through hydraulic/ mechanical lifting systems. It is convenient for the transportation vehicles to directly hook and dump, and then lowered back underground.
Product Components
1. Ground Disposal and Operation Unit
Placing ports with classification labels: Corresponding to different types of garbage, some have sensor-opening or foot-operated opening designs to avoid hand contact.
Operation Console: Used for manually controlling the lifting of the bucket and viewing the equipment status.
Anti-odor Sealing Device: The placing ports are equipped with closed sealing covers, and an activated carbon filter is built-in to prevent odors from overflowing from underground.
2. Underground Storage and Elevating Unit
Sealed Storage Tank: Made of leak-proof and corrosion-resistant materials, it is equipped with ozone disinfection and high-pressure deodorization modules. The bottom is equipped with wheels for easy movement.
Hydraulic/Mechanical Elevating System: Drives the storage tank to complete the automatic cycle of "underground storage → ground connection and transportation → underground reset", without the need for manual handling.
Underground Pit and Anti-seepage Structure: Concrete-filled pit, equipped with waterproof and anti-seepage layers to prevent the pollution of soil and groundwater by the leachate from the garbage.
Leachate Drainage Device: Collects the wastewater seeping out of the storage tank, temporarily stores it, and then regularly transports it or conducts on-site pre-treatment.
Product Parameters
Model number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Feature
Sealed and environmentally friendly: The garbage is mainly stored underground in a sealed manner, effectively preventing odors from escaping and suppressing the breeding of mosquitoes and flies, and avoiding the contamination of soil and groundwater by leachate from the garbage.
Intelligent and efficient: It has functions such as automatic lid opening detection, overflow alarm, automatic lifting, and traceability identification, guiding correct disposal.
Sustainable for the environment: The ground only retains small disposal openings and operation areas, significantly reducing the occupation of ground space, and can be integrated with the surrounding landscape to enhance the aesthetic appeal of the city.
Safe and reliable: Underground storage reduces the risk of fires, rodent infestations, and virus transmission caused by exposed garbage. Some equipment is also equipped with life detection and automatic fire extinguishing systems.
Product Effects

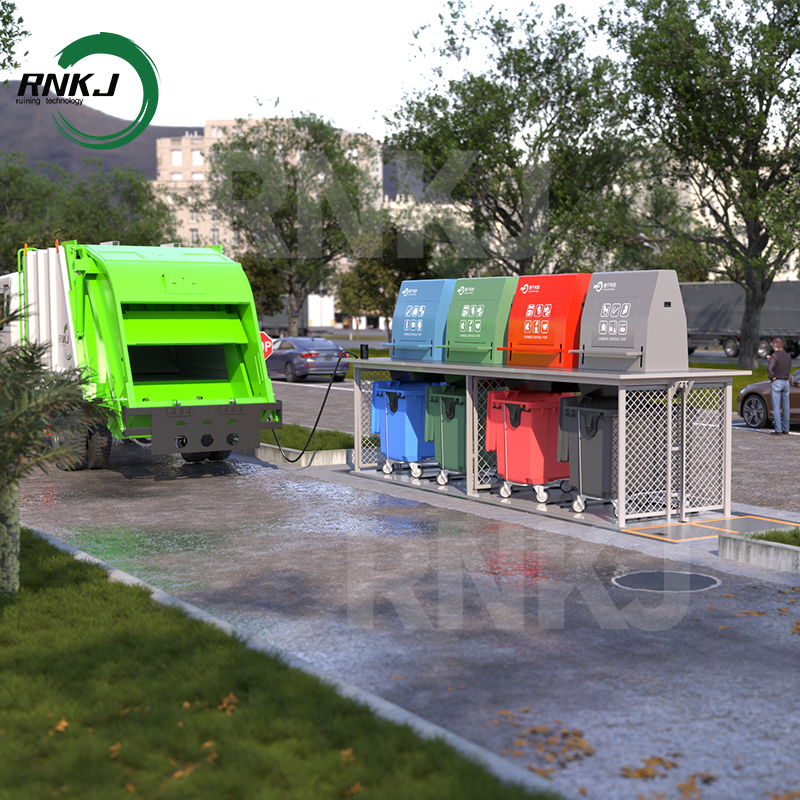

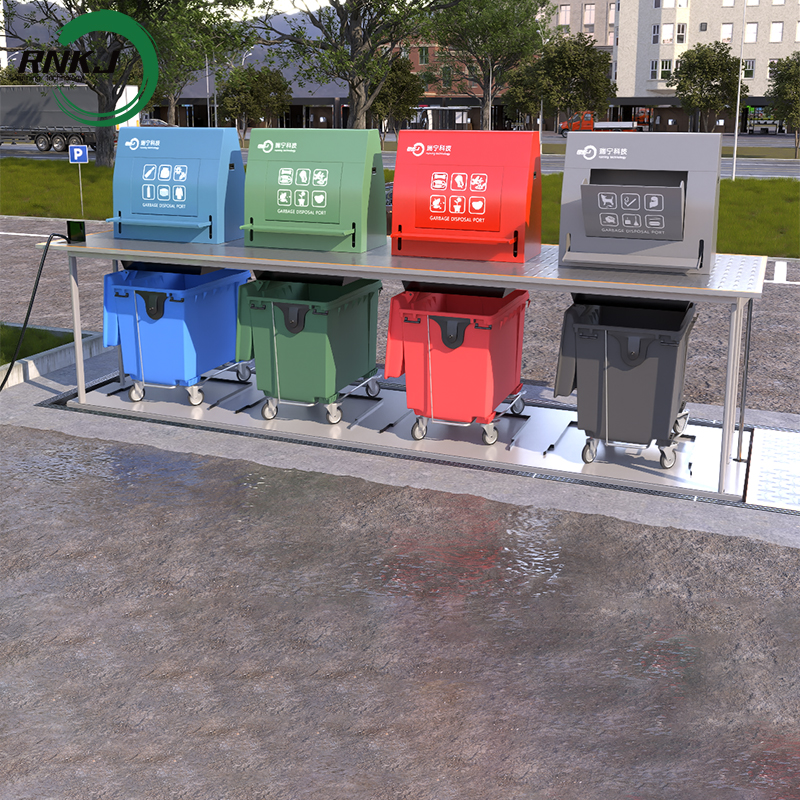

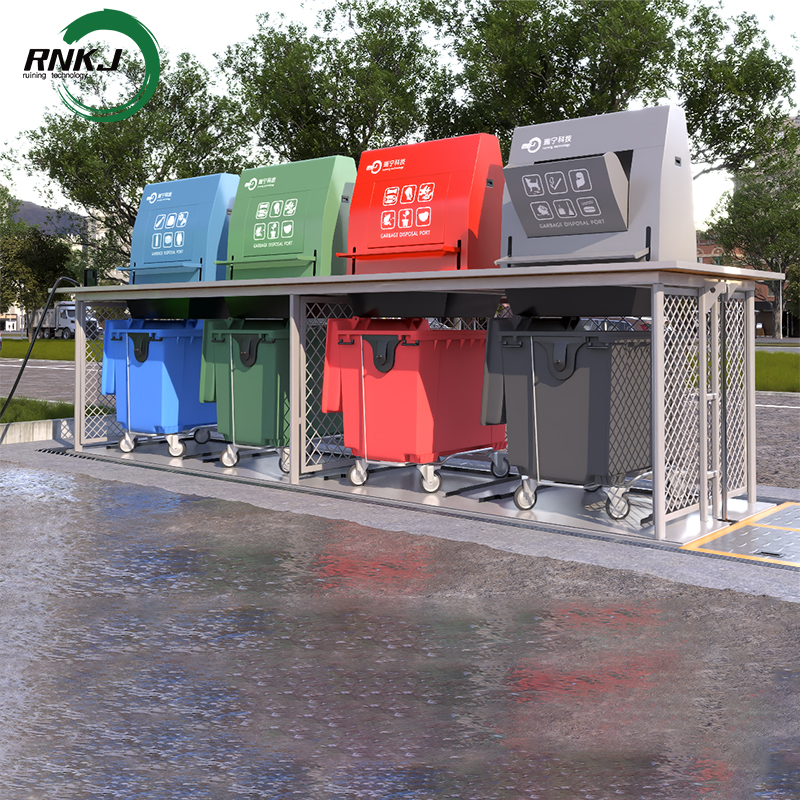

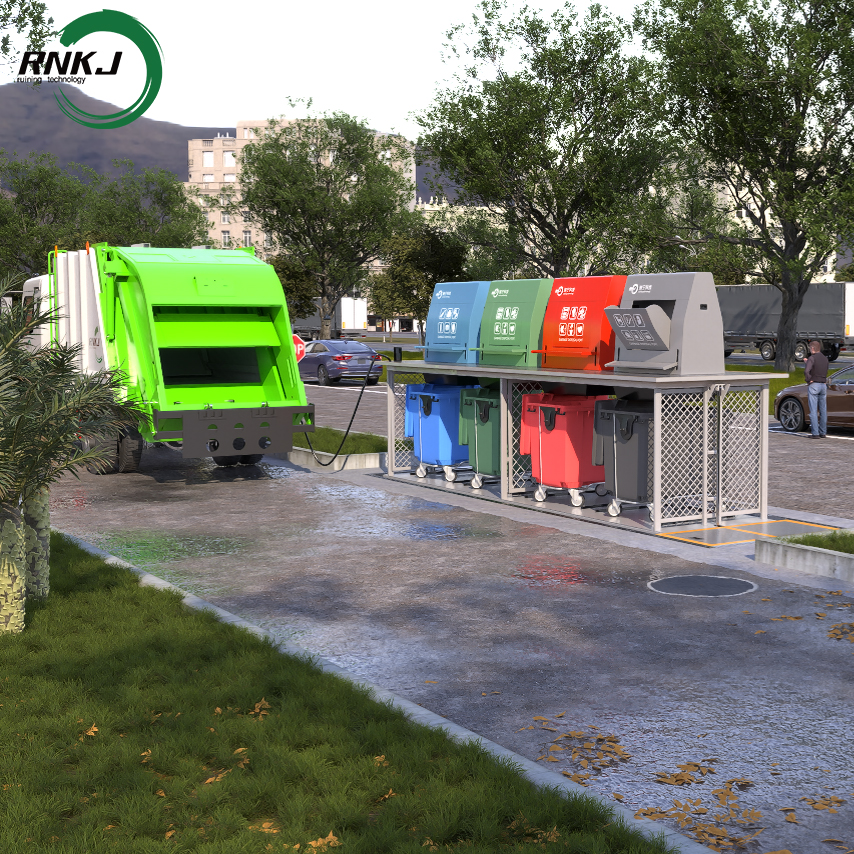

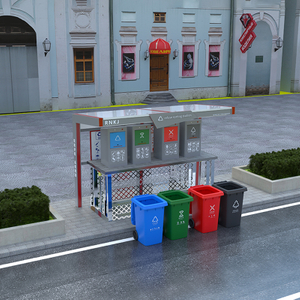

Lifting mode

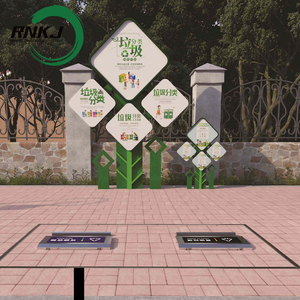

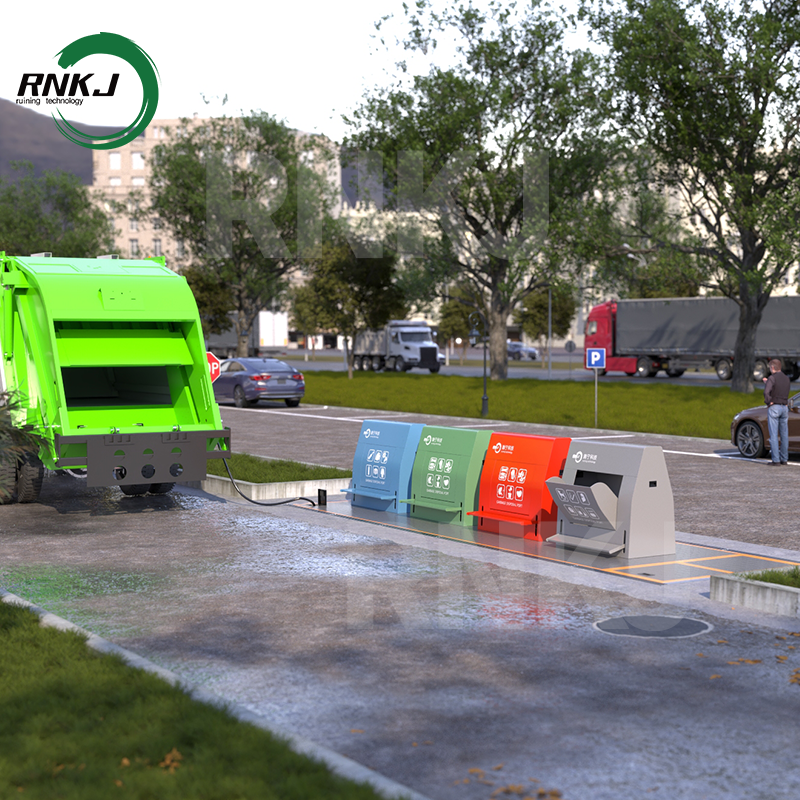

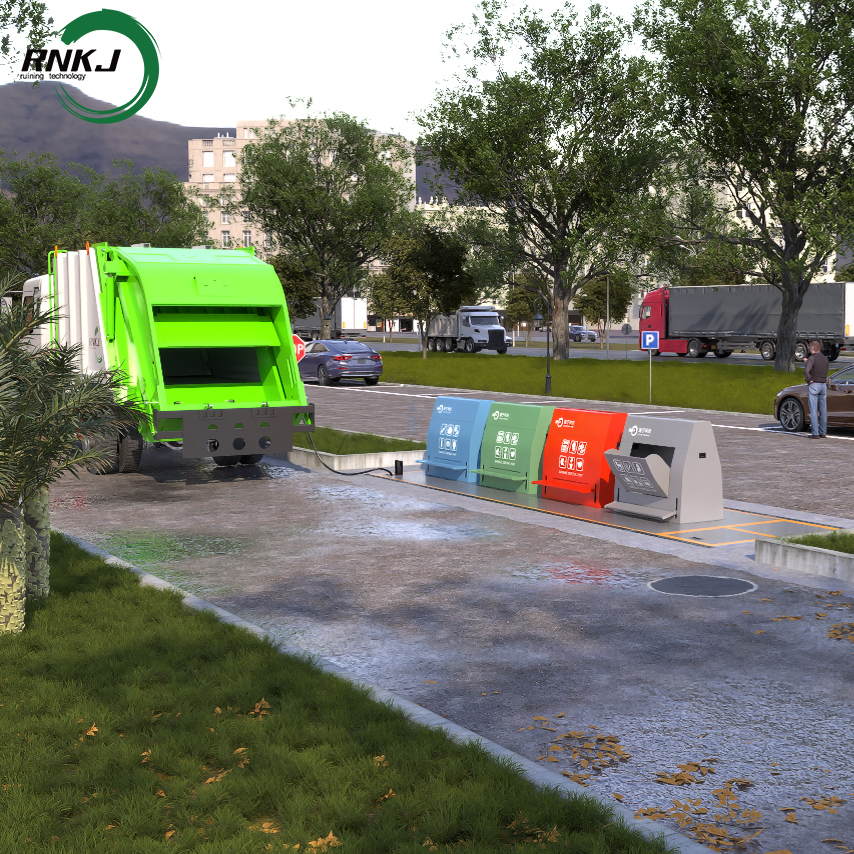

Landing mode
Underground Garbage Collection and Sorting System is an innovative waste management solution that combines the underground collection, storage and preliminary processing of waste. By shifting the core waste handling procedures from the surface to underground spaces, it effectively resolves the issues of above-ground waste buildup, foul odor diffusion and land occupation inherent to traditional waste management methods.
It is commonly used in densely populated urban residential areas, commercial complexes, park scenic spots, industrial parks, etc., or in places that have high requirements for environmental aesthetics and hygiene standards.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
