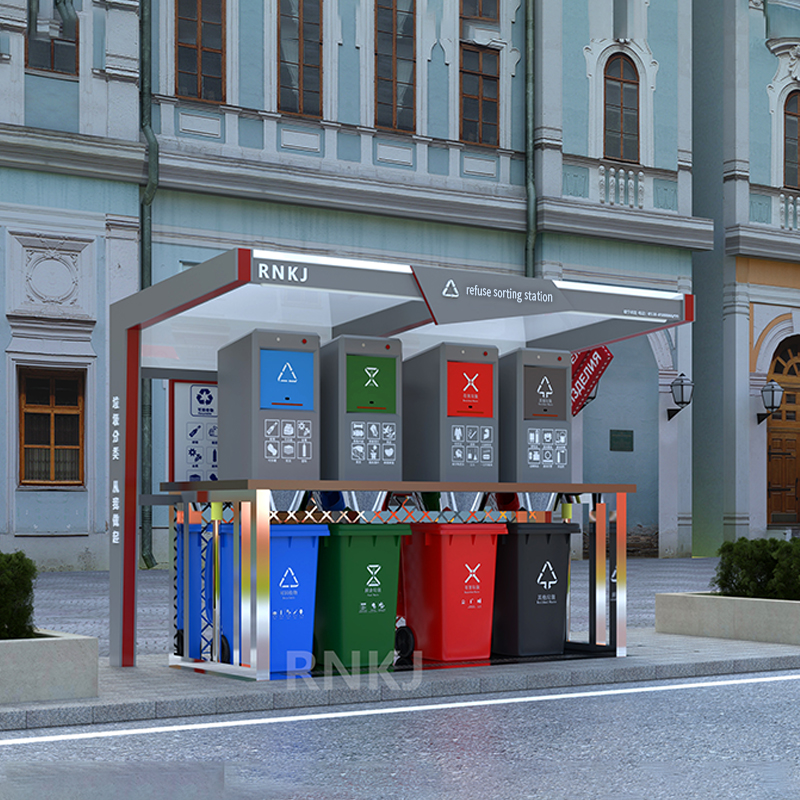

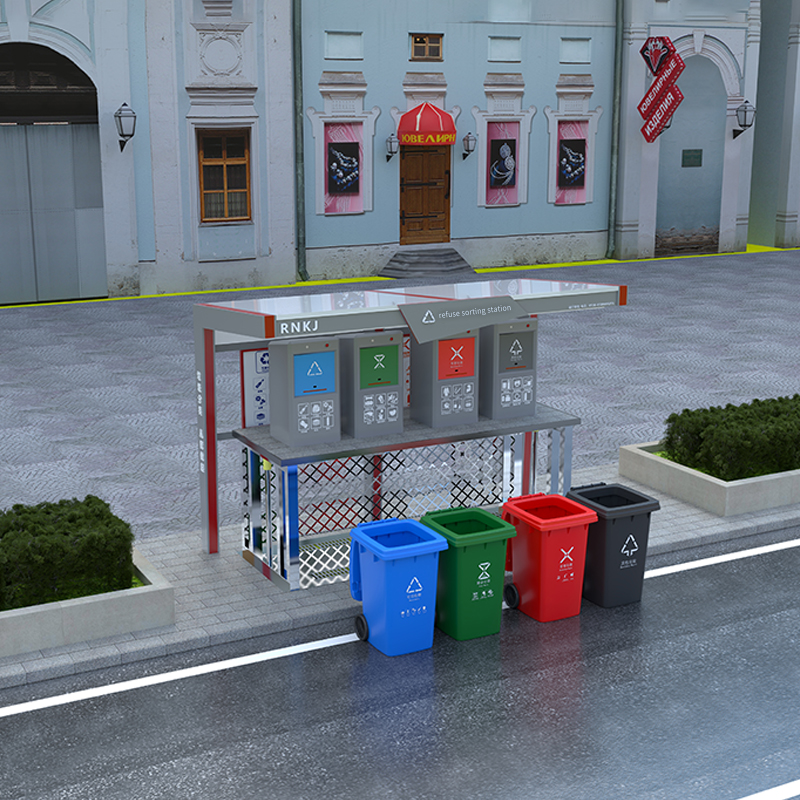

The underground garbage classification collection booth is a modern garbage disposal facility that combines on-ground collection and underground storage. The core idea is to transfer the storage part of garbage to underground space, while only keeping the areas for classification guidance, garbage collection, and equipment operation on the ground. It is mainly applied in urban communities, commercial complexes, schools, parks and other densely populated areas with high requirements for environmental cleanliness. By integrating functions such as classification publicity, sealed collection, automated transportation and environmental protection treatment, it solves the problems of large ground space occupation, heavy odor, easy attraction of insects and impact on aesthetics of traditional ground garbage bins, and realizes the reduction in volume, improvement in quality, environmental protection and efficiency of garbage classification collection.
Product Advantage
Saving floor space
The core storage area of the underground garbage classification collection booth is located underground (with a depth usually ranging from 1.5 to 3 meters), and only 1-2 square meters of collection ports and information booths need to be set up on the ground, significantly reducing the occupation of public space on the ground, especially suitable for high-density communities or commercial core areas with scarce land resources.
Improve the surrounding environment
The garbage is stored underground in sealed containers. The underground garbage classification collection booths are equipped with odor removal and sewage discharge systems, which can effectively reduce the spread of odors, mosquito breeding and garbage scattering problems, avoiding the "smelly in summer, dirty in rainy days" situation of traditional trash cans, and enhancing the cleanliness and aesthetics of the surrounding environment.
Reduce the labor intensity of garbage collection
The Underground Garbage Classification Collection Booth is equipped with an automated lifting device. During the collection process, there is no need for manual handling of the heavy garbage bins (especially the 1100L large-capacity bins). It is only necessary to lift the underground garbage bins to the ground through the equipment and then load them onto the vehicle, significantly reducing the labor intensity of the sanitation workers and improving the collection efficiency.
Strengthen the effect of classification guidance
Set up dedicated "classification information kiosks" on the ground, which can clearly display contents such as the garbage classification guidelines, collection times, and responsibility labels. Combined with clearly marked collection points, residents will be able to identify more easily when they are disposing of the garbage, reducing the "mixed disposal" phenomenon and achieving garbage classification.
Enhance safety and hygiene
The garbage is not exposed on the ground, preventing children from coming into contact with it and pets from rummaging through it. At the same time, it reduces direct contact between the garbage and the air, lowering the risk of bacterial transmission. The underground pit is treated with anti-corrosion and anti-seepage measures, which can prevent the leakage of garbage from polluting the soil and groundwater.
Features：
Reduced Surface Impact: The system minimizes the need for multiple waste bins on streets, thereby reducing visual clutter and odor.
Improved Efficiency: Automated collection processes reduce the frequency and cost of waste pickup and can lead to more efficient waste management.
Environmental Benefits: By reducing the number of garbage trucks needed, underground waste systems can lower greenhouse gas emissions and traffic congestion.
Hygiene and Safety: These systems can improve overall cleanliness and hygiene in urban areas and reduce the risk of accidents associated with waste collection.
Product Parameters
Model number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Features
Material and appearance:
Garbage sorting bins are usually made of high-quality engineering materials, such as high-quality electrolytic galvanized sheet with a thickness of ≥ 1.0mm, which is characterized by durability, lightweight and flexibility.On the surface treatment, outdoor plastic powder high-temperature electrostatic spraying is used, and the surface coating is sturdy, not easy to peel off, and has strong UV resistance and weather resistance.
Functionality:
The garbage sorting bin is designed with clear classification labels, such as recyclable materials, hazardous waste, and other waste, to facilitate users to dispose of them correctly.
Applicability and environmental friendliness:
Garbage sorting bins are suitable for collecting waste or handling raw materials in various public places, greatly improving work efficiency.
Color and identification:
The box identification adopts UV resistant, wear-resistant, and sandwich printed garbage signs, with diverse colors and a brightness that can maintain for more than 3 years.
Product performance
collection mode
The new landscape buried garbage compactor station improves environmental hygiene while enhancing the overall image of the city, which is different from the garbage sorting service station or garbage kiosk on the ground, i.e., it adopts the environmentally friendly underground sorting collection mode.
Optional pitches
According to the customer's demand, it can choose various modes of feeding port, such as garbage classification feeding port, barrel turning device, large garbage opening device, etc., which is convenient for garbage collection vehicles and cleaning personnel to dump garbage; garbage enters into the feeding port and falls into the underground garbage collection station directly, and the fully closed structure reduces odor leakage, mosquitoes and flies, and the pollution of the environment.
deodorization system
After the opening of the feeding port, dumping of garbage and the opening of the upper cover of the lifting platform, deodorizing liquid is sprayed underneath the upper cover of the platform to remove the odor generated during the transfer of garbage, which greatly improves the situation both visually and perceptually.
noise mitigation
The landscape buried trash compactor station is also equipped with a rubber protective mat on the feeding port to minimize the noise caused by collision.
Product Operate Guide
1. Activate the hydraulic system when the trash can is full.
2. Lift the platform smoothly until the bottom of the trash can is flush with the ground.
3. Manually hauling out full trash cans and unloading trash directly into trash collection trucks.
4. Place empty cans in their original trash can locations.
Product Effects
Lifting mode
Landing mode
Our Services
Pre-sales & after-sales service
Pre-sales services：24-hour online service to provide you with convenient online remote service. With professional technical research and development personnel to provide you with personalized customized services, according to your needs for feasibility analysis, confirm the specifications parameters, as a technical assistant, in a timely manner for you to do a good job in the production of products to follow up, reliable quality testing and the necessary certificates to provide.
After-sales service：Online product installation tutorials, professional technical teacher online service, necessary door-to-door installation, core components warranty, the use of the process of Q&A, regular tracking of the use of equipment and so on.
You will receive our full range of personalized customized services, including to site design, packaging, equipment matching, customized procedures, etc,
When you purchase equipment from RNKJ. May wish you to start from a small transaction, experience the products and services from us.
FAQ
1.Are you a manufacturer or trader?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2.What is your payment term?
We accept T/T, L/C at sight, Western Union, Paypal etc.
3.How long is the validity of quotation?
Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market.
4.What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days. It depends on the order quantity.
5.Do you provide OEM/ODM service?
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
6.How can we ensure quality?
The final inspection is always carried out before shipment.
7.How to install the equipment after purchasing?
We will provide a professional installation video to illustrate. A manual is available as well.
8.Do you offer a guarantee?
Yes, we guarantee our product for one year. After-sales service support and technical support are both provided.
9.What is your MOQ?
1set.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
The underground garbage classification collection booth is a modern garbage disposal facility that combines on-ground collection and underground storage. The core idea is to transfer the storage part of garbage to underground space, while only keeping the areas for classification guidance, garbage collection, and equipment operation on the ground. It is mainly applied in urban communities, commercial complexes, schools, parks and other densely populated areas with high requirements for environmental cleanliness. By integrating functions such as classification publicity, sealed collection, automated transportation and environmental protection treatment, it solves the problems of large ground space occupation, heavy odor, easy attraction of insects and impact on aesthetics of traditional ground garbage bins, and realizes the reduction in volume, improvement in quality, environmental protection and efficiency of garbage classification collection.
Product Advantage
Saving floor space
The core storage area of the underground garbage classification collection booth is located underground (with a depth usually ranging from 1.5 to 3 meters), and only 1-2 square meters of collection ports and information booths need to be set up on the ground, significantly reducing the occupation of public space on the ground, especially suitable for high-density communities or commercial core areas with scarce land resources.
Improve the surrounding environment
The garbage is stored underground in sealed containers. The underground garbage classification collection booths are equipped with odor removal and sewage discharge systems, which can effectively reduce the spread of odors, mosquito breeding and garbage scattering problems, avoiding the "smelly in summer, dirty in rainy days" situation of traditional trash cans, and enhancing the cleanliness and aesthetics of the surrounding environment.
Reduce the labor intensity of garbage collection
The Underground Garbage Classification Collection Booth is equipped with an automated lifting device. During the collection process, there is no need for manual handling of the heavy garbage bins (especially the 1100L large-capacity bins). It is only necessary to lift the underground garbage bins to the ground through the equipment and then load them onto the vehicle, significantly reducing the labor intensity of the sanitation workers and improving the collection efficiency.
Strengthen the effect of classification guidance
Set up dedicated "classification information kiosks" on the ground, which can clearly display contents such as the garbage classification guidelines, collection times, and responsibility labels. Combined with clearly marked collection points, residents will be able to identify more easily when they are disposing of the garbage, reducing the "mixed disposal" phenomenon and achieving garbage classification.
Enhance safety and hygiene
The garbage is not exposed on the ground, preventing children from coming into contact with it and pets from rummaging through it. At the same time, it reduces direct contact between the garbage and the air, lowering the risk of bacterial transmission. The underground pit is treated with anti-corrosion and anti-seepage measures, which can prevent the leakage of garbage from polluting the soil and groundwater.
Features：
Reduced Surface Impact: The system minimizes the need for multiple waste bins on streets, thereby reducing visual clutter and odor.
Improved Efficiency: Automated collection processes reduce the frequency and cost of waste pickup and can lead to more efficient waste management.
Environmental Benefits: By reducing the number of garbage trucks needed, underground waste systems can lower greenhouse gas emissions and traffic congestion.
Hygiene and Safety: These systems can improve overall cleanliness and hygiene in urban areas and reduce the risk of accidents associated with waste collection.
Product Parameters
Model number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Features
Material and appearance:
Garbage sorting bins are usually made of high-quality engineering materials, such as high-quality electrolytic galvanized sheet with a thickness of ≥ 1.0mm, which is characterized by durability, lightweight and flexibility.On the surface treatment, outdoor plastic powder high-temperature electrostatic spraying is used, and the surface coating is sturdy, not easy to peel off, and has strong UV resistance and weather resistance.
Functionality:
The garbage sorting bin is designed with clear classification labels, such as recyclable materials, hazardous waste, and other waste, to facilitate users to dispose of them correctly.
Applicability and environmental friendliness:
Garbage sorting bins are suitable for collecting waste or handling raw materials in various public places, greatly improving work efficiency.
Color and identification:
The box identification adopts UV resistant, wear-resistant, and sandwich printed garbage signs, with diverse colors and a brightness that can maintain for more than 3 years.
Product performance
collection mode
The new landscape buried garbage compactor station improves environmental hygiene while enhancing the overall image of the city, which is different from the garbage sorting service station or garbage kiosk on the ground, i.e., it adopts the environmentally friendly underground sorting collection mode.
Optional pitches
According to the customer's demand, it can choose various modes of feeding port, such as garbage classification feeding port, barrel turning device, large garbage opening device, etc., which is convenient for garbage collection vehicles and cleaning personnel to dump garbage; garbage enters into the feeding port and falls into the underground garbage collection station directly, and the fully closed structure reduces odor leakage, mosquitoes and flies, and the pollution of the environment.
deodorization system
After the opening of the feeding port, dumping of garbage and the opening of the upper cover of the lifting platform, deodorizing liquid is sprayed underneath the upper cover of the platform to remove the odor generated during the transfer of garbage, which greatly improves the situation both visually and perceptually.
noise mitigation
The landscape buried trash compactor station is also equipped with a rubber protective mat on the feeding port to minimize the noise caused by collision.
Product Operate Guide
1. Activate the hydraulic system when the trash can is full.
2. Lift the platform smoothly until the bottom of the trash can is flush with the ground.
3. Manually hauling out full trash cans and unloading trash directly into trash collection trucks.
4. Place empty cans in their original trash can locations.
Product Effects

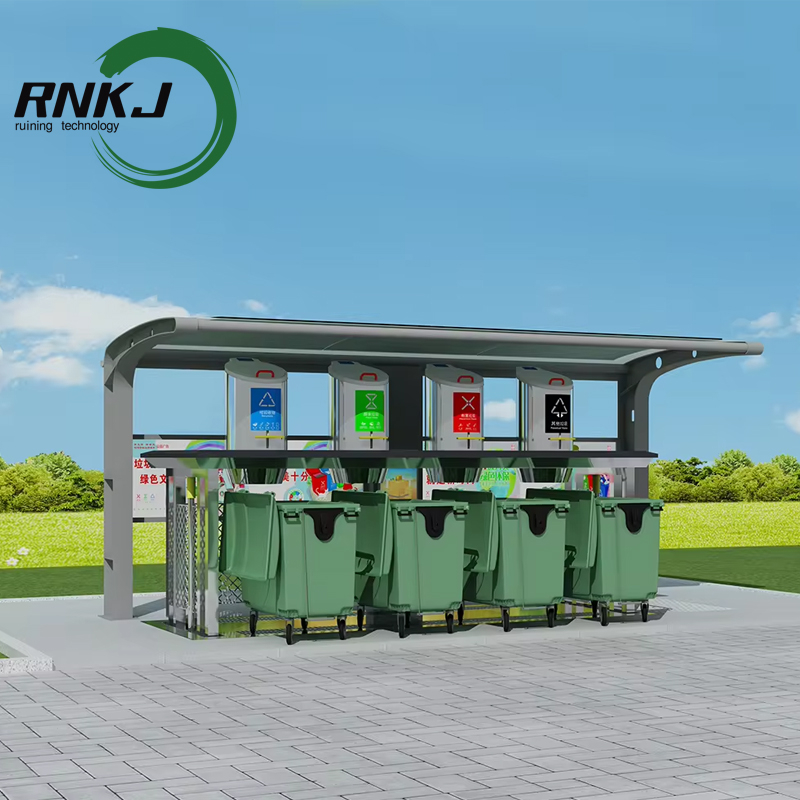

Lifting mode

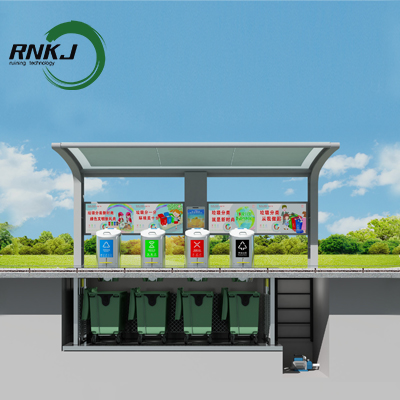

Landing mode
