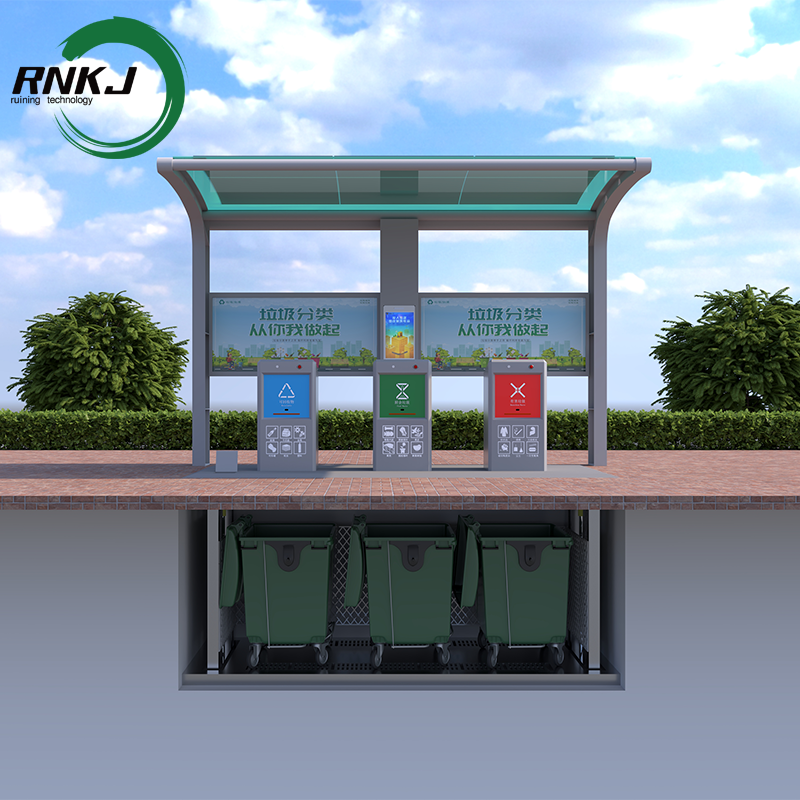

The structure of Underground Garbage Classification Collection Station includes classification publicity kiosks,garbage feeding devices, lifting devices, power systems, sewage systems, deodorization systems, pit foundations, etc.
Its advantage is that all garbage cans fall into the ground, good conceal ability, effectively reduce visual pollution, followed by convenient garbage dumping, less odor, and so on. The garbage volume can be selected according to customer needs 1100L/660L/240L garbage can, which can be used in a variety of layouts such as 1 barrel, 2 barrels, 4 barrels or 6 barrels.
Product AdvantageOptimizing the visual senses：Outdoor adaptability, small footprint on the ground, saving space on the ground, can match the surrounding environment, collecting garbage on the ground, eliminating visual pollution and beautifying the environment.
Cost saving:Durable equipment, low failure rate, long service life, high efficiency, low labor and late use costs;
Good closure:Fully enclosed odor is not easy to spread, inhibit mosquitoes and flies, to avoid picking up the reverse pickup, to prevent secondary pollution.
Highly Intelligent：Utilizing Internet+ technology, it is equipped with automatic overflow device, temperature control device, video monitoring, automatic or foot pedal or swipe card induction lid opening and so on.
Environmentally friendly:Various types of energy sources, such as environmentally friendly solar energy, wind energy, and so on.
Highly adaptable, can be used in conjunction with most existing collection systems; several times the volume of traditional waste collection, high degree of automation
FeaturesReduced Surface Impact: The system minimizes the need for multiple waste bins on streets, thereby reducing visual clutter and odor.
Improved Efficiency: Automated collection processes reduce the frequency and cost of waste pickup and can lead to more efficient waste management.
Environmental Benefits: By reducing the number of garbage trucks needed, underground waste systems can lower greenhouse gas emissions and traffic congestion.
Hygiene and Safety: These systems can improve overall cleanliness and hygiene in urban areas and reduce the risk of accidents associated with waste collection.
Product ParametersModel number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |

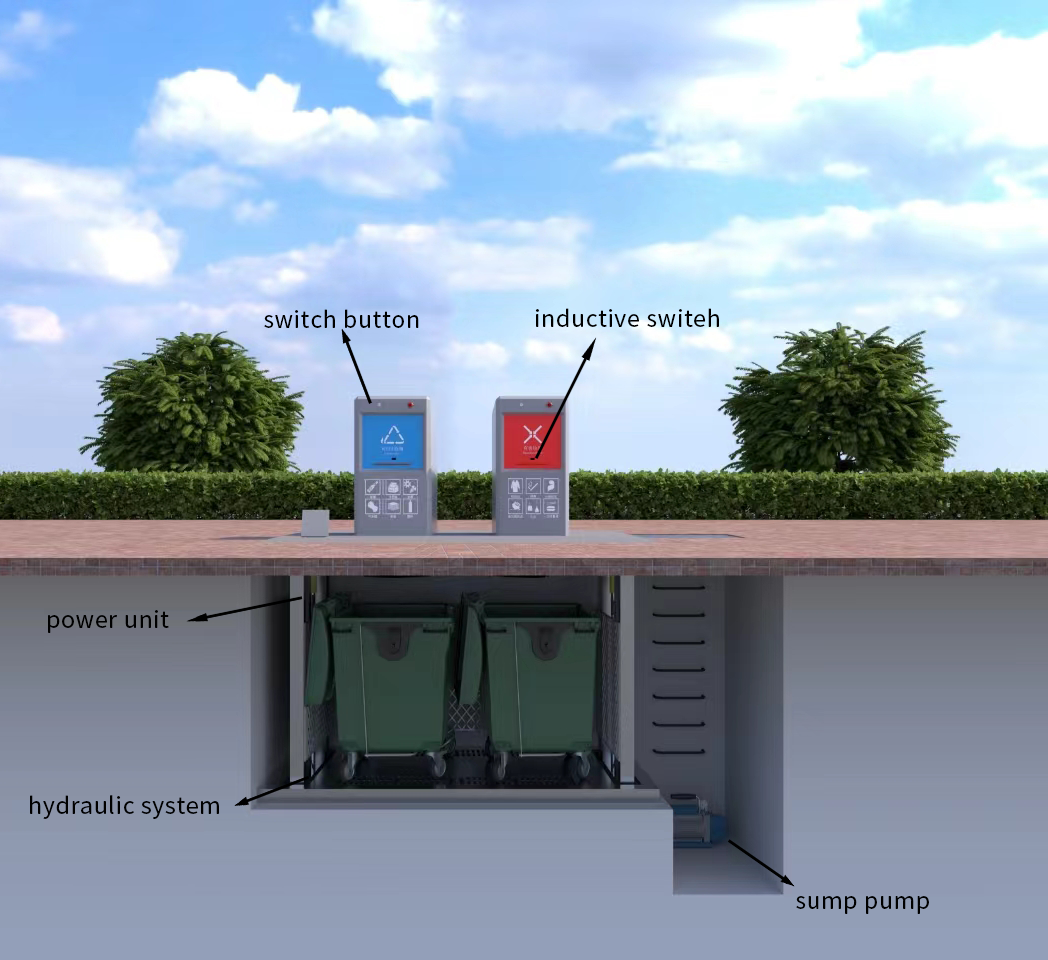

Product Structure
Materials & Exterior
These waste sorting containers adopt premium industrial-grade raw materials. The main body is crafted from electrolytic galvanized steel sheet with a thickness no less than 1.0 mm, boasting solid sturdiness, light weight and good pliability. For surface finishing, we apply outdoor-grade plastic powder via high-temperature electrostatic spraying. The finished coating features excellent adhesion, resisting peeling effectively, alongside outstanding anti-ultraviolet capability and outdoor durability.
Practical Functions
Equipped with distinct marking stickers for different waste categories including recyclables, hazardous rubbish and general waste, the bins guide people to sort and discard waste in a standard manner.
Application & Eco-friendliness
Ideal for waste collection and raw material storage across all kinds of public areas, these sorting containers help streamline daily operations and raise overall working efficiency.
Color & Marking Design
The bin labels are produced with sandwich printing technology, which delivers great UV resistance and abrasion resistance. Available in a rich range of colors, the vivid hues of these signs can stay intact for over three years.
Product Performance Collection Mode
This newly developed landscape-style buried garbage compaction station elevates urban sanitation and beautifies the city’s overall look. Unlike conventional above-ground waste sorting stations and booths, it features an eco-friendly underground system for waste sorting and collection.
Customizable Inlet Designs
We offer multiple inlet configurations to suit diverse user needs, including classified waste chutes, bin tippers and bulky waste access openings. These designs simplify waste disposal for sanitation staff and collection trucks. Waste drops straight down into the underground station through the inlets. Its fully sealed structure effectively curbs odors, keeps pests away and prevents surrounding environmental contamination.
Deodorizing System
When the inlet is opened for waste disposal or the lifting platform’s top cover is lifted, the built-in spray system will release deodorant liquid beneath the cover. This eliminates unpleasant smells produced during waste handling, delivering a cleaner experience in both sight and smell.
Noise Reduction
Rubber cushion pads are installed around the inlets of the landscape buried compactor station. They greatly cushion impacts and effectively lower operational noise.
Product Operate GuideClassified Disposal
Residents dump household garbage into corresponding surface inlets by categories (kitchen waste, recyclables, hazardous waste, other waste).
Underground Sealed Storage
Waste falls into underground sealed classified containers. Automatic deodorization and leakage prevention are implemented to avoid secondary pollution.
Lifting & Centralized Collection
When containers are full, the hydraulic lifting system raises underground containers to the ground for cleaning and collection.
Closed Transportation & Handover
Sanitation vehicles load and transport waste in fully closed mode. Empty containers are reset for cyclic use.
Post-operation Maintenance
Automatic cleaning, disinfection and equipment inspection are carried out to keep the station hygienic and operational.
Product Effects

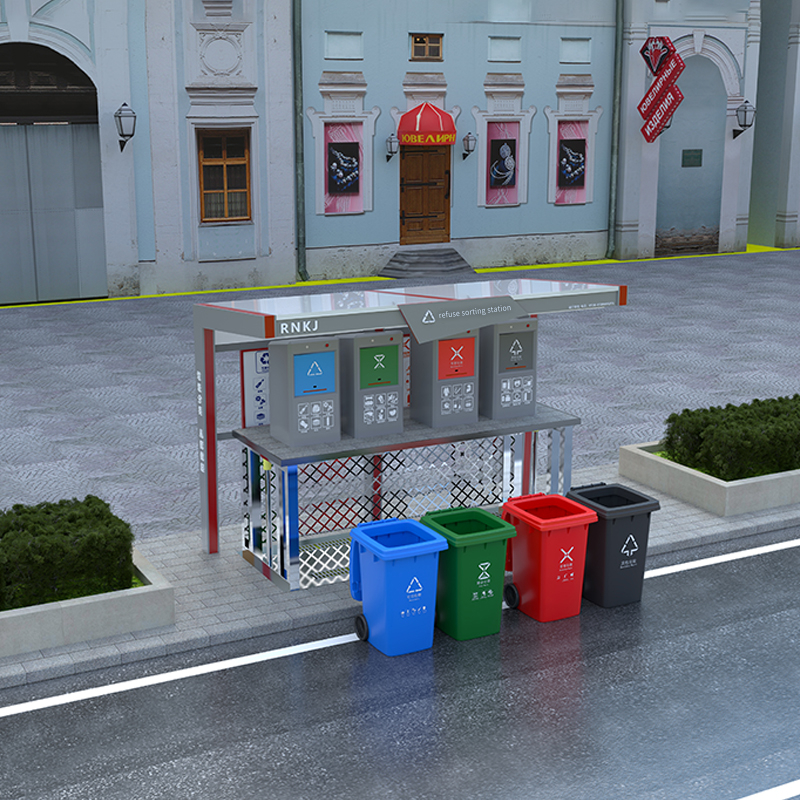

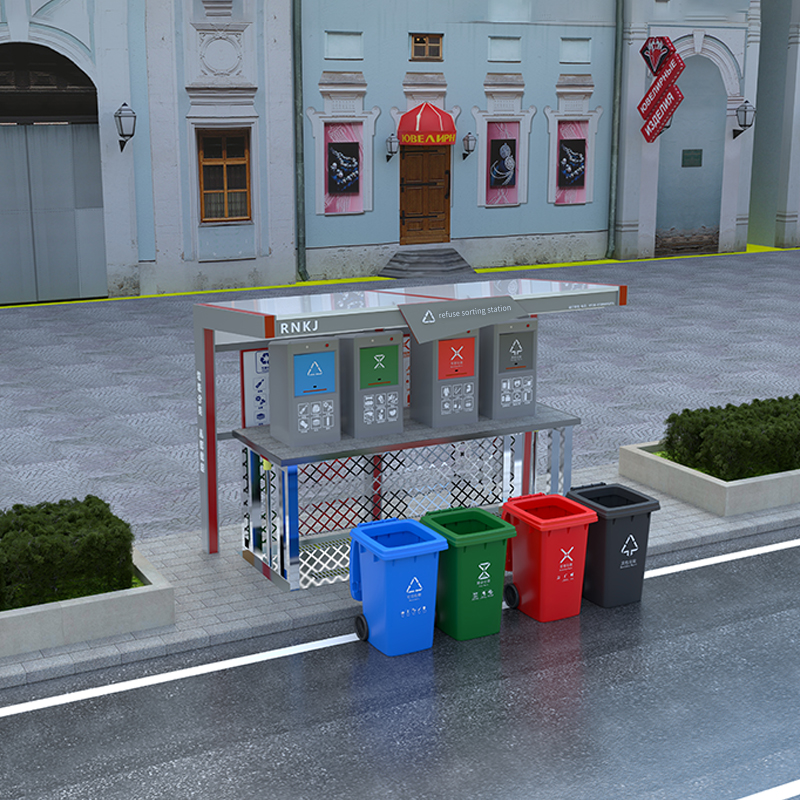

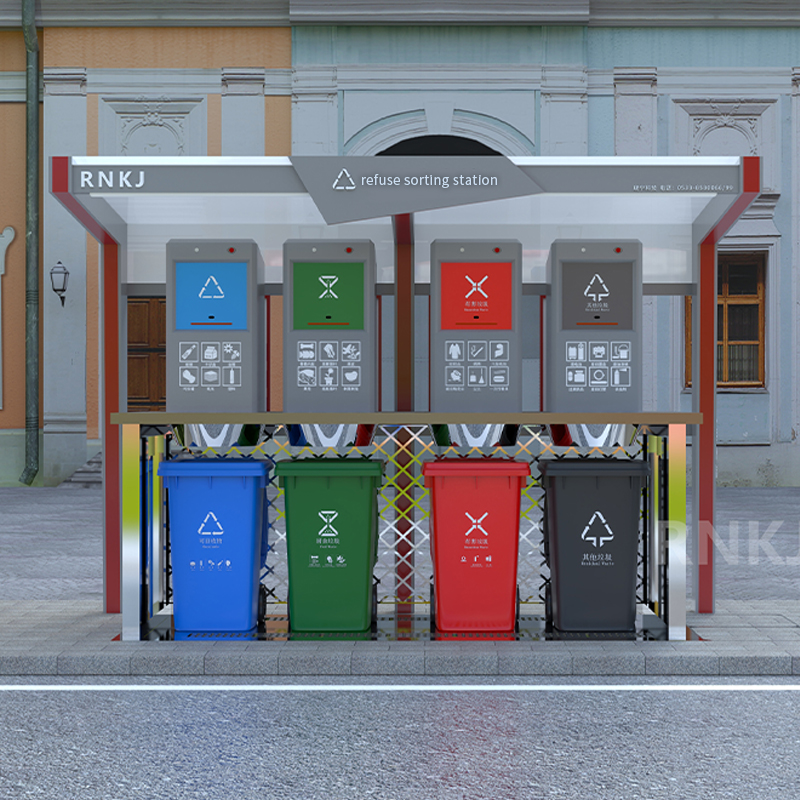

Lifting mode

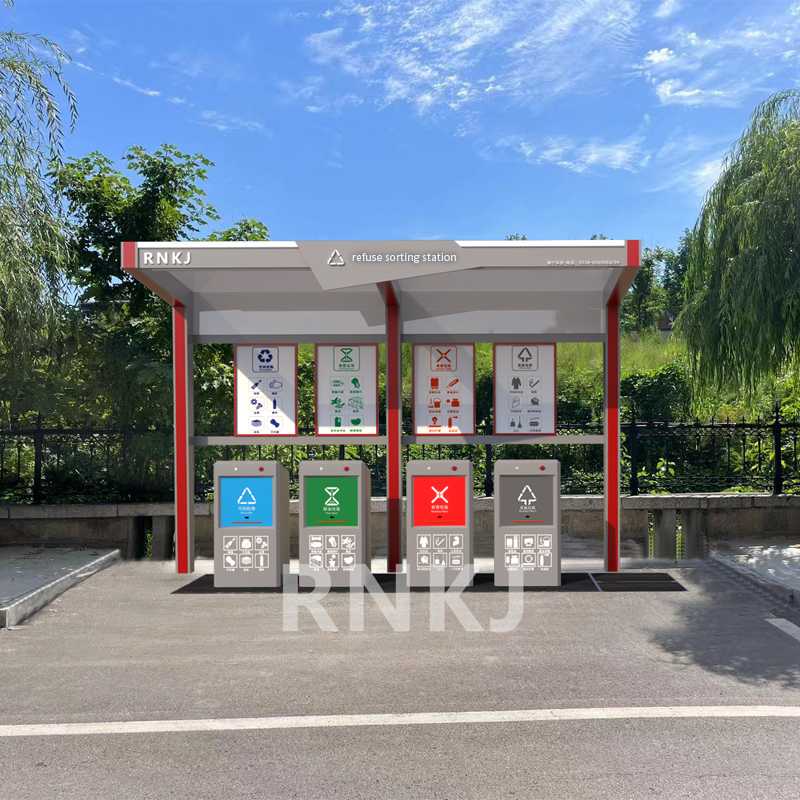

Landing mode
Applicable SceneResidential communities: New residential areas, old residential areas, resettlement areas, suitable for the regular and centralized collection of residents' household garbage.
Municipal public areas: Urban roads, parks, squares, scenic belts, green spaces, meeting the needs of refined and landscaped sanitation in urban appearance.
Cultural tourism leisure areas: Scenic spots, resort areas, cultural and tourism districts, amusement parks, museums, ensuring a clean and beautiful visiting environment.
Office industrial parks: Government and enterprise office buildings, industrial parks, science and technology parks, logistics parks, suitable for the neat environment of the park and the daily garbage classification requirements.
Campus and health care areas: Various schools, hospitals, nursing homes, health care centers, meeting the high standards of hygiene and epidemic prevention, without odors or pollution.
Transportation hubs: Stations, bus hubs, areas around subways, service areas, responding to the collection scenarios with large traffic flow and high frequency of garbage generation.
Beautiful rural areas: Rural concentrated residential areas, characteristic villages, tourist attractions, replacing traditional open-air garbage facilities, improving the rural living environment.
