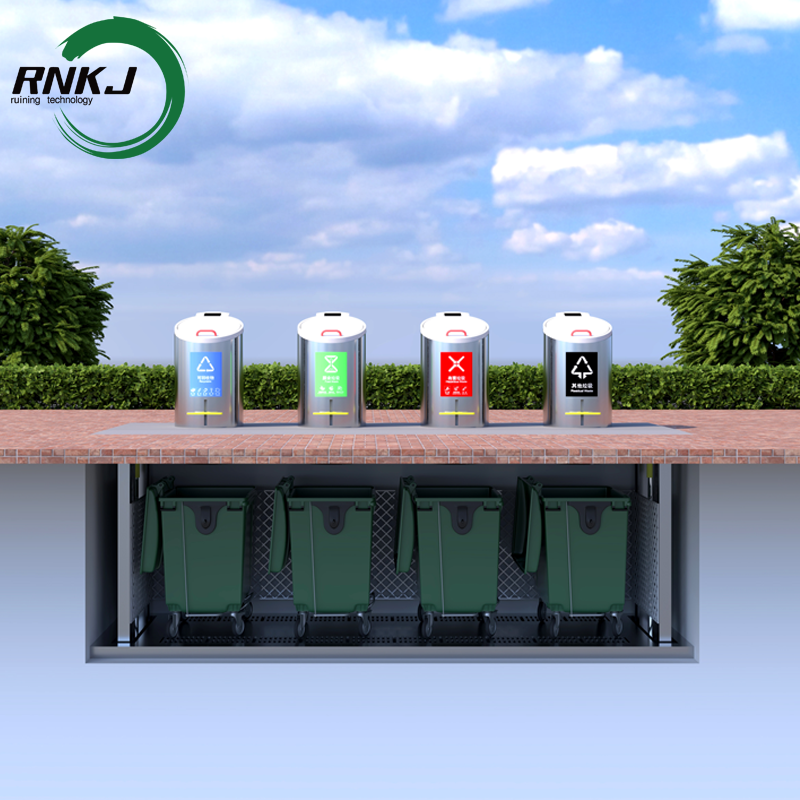

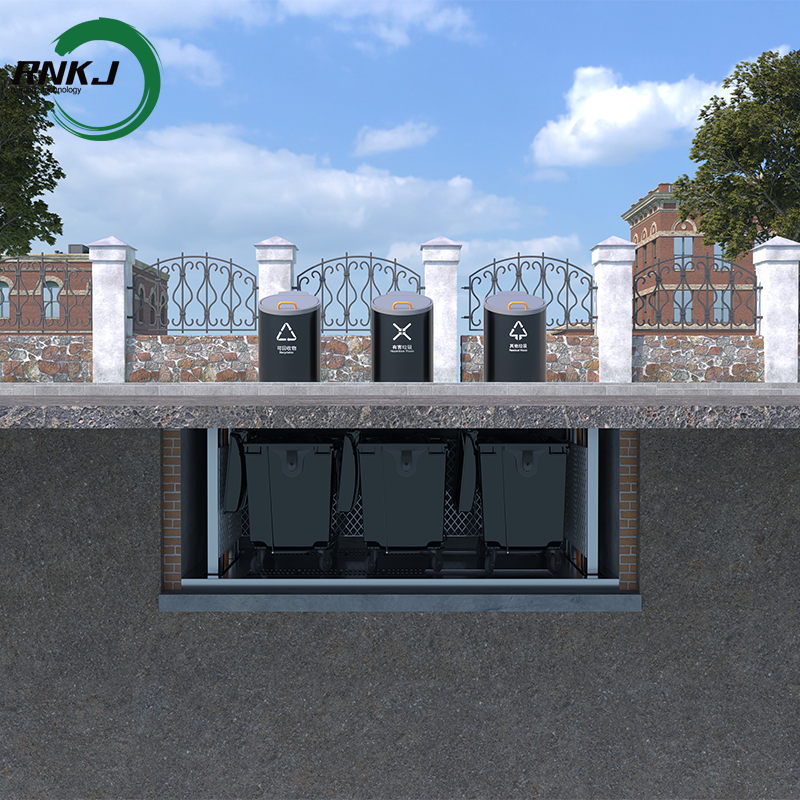

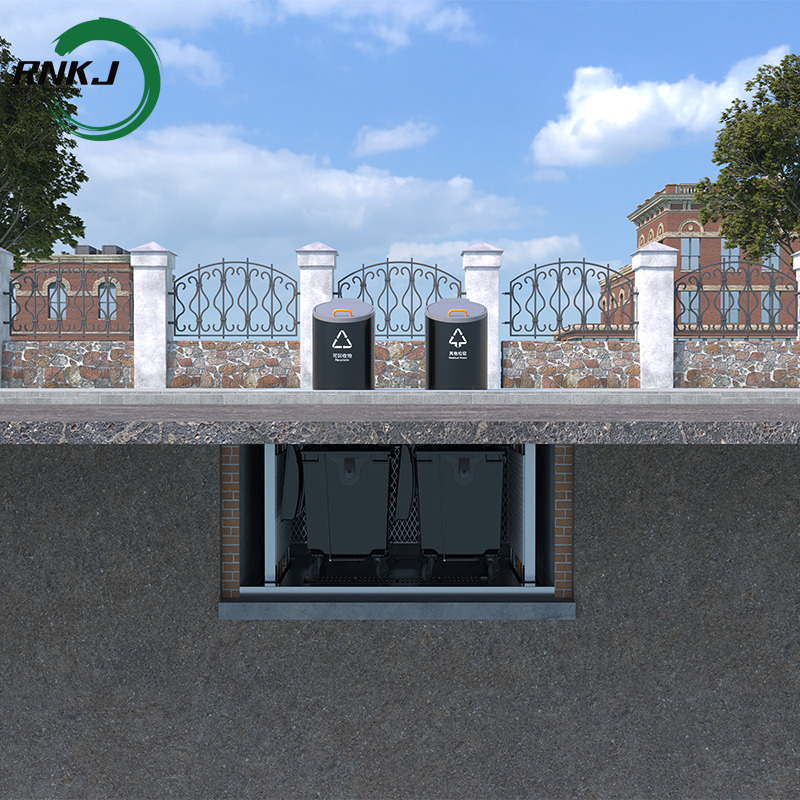

The structure of underground garbage classification system includes classification publicity kiosks,garbage feeding devices, lifting devices, power systems, sewage systems, deodorization systems, pit foundations, etc.
Underground Garbage Classification System features an integrated lifting system,Equipped with advanced intelligent components—such as overflow sensors that automatically alert the sanitation team when waste reaches a predefined capacity—and an automatic sensing mechanism that autonomously opens and closes the waste inlet.
Product Advantage
Rainproof
The design of kiosk effectively prevent users and waste bins from rain.
Landscape environmental protection
The feeding port is located above ground, and the working device is located underground, which can effectively prevent odor leakage and has no visual pollution.
Anti-handling
It can effectively reduce the risk of user accidents duringoperation,especially for special groups such as children and the elderly, providing additional safety.
Quality Material
The use of sturdy material make its service life longer with anticorrosion and anti rust.
Features：
Optimized Space Utilization: Minimizes ground-level footprint by integrating waste storage vertically.
Enhanced Capacity Flexibility: Accommodates bins of virtually any size, increasing overall waste volume.
Efficient, Labor-Saving Removal: Streamlines collection processes to reduce manual effort and turnaround time.
Intelligent Monitoring & Management: Real-time sensors and automated alerts ensure proactive oversight and maintenance.
Product Application
Urban residential communities (especially high-end communities, renovation of old residential areas)
Solves the problem that residents are dissatisfied with garbage rooms being located close to the buildings; enhances residents' participation in sorting; suits the green landscape design of the community, avoiding the damage to the overall environment caused by garbage facilities.
Commercial complexes, transportation hubs (such as shopping centers, subway stations, airports)
To deal with high waste generation: The underground storage tanks have a large volume, which can reduce the frequency of transfer; Ensure the hygiene of public areas: Avoid the mess and dirt caused by overflowing trash cans on the ground, maintaining the clean image of commercial/transportation venues; The negative pressure pipeline system can achieve "immediate garbage transportation", suitable for scenarios with dense人流 and frequent waste disposal.
Industrial parks and university campuses
Adapt to specific types of waste through classification: For industrial parks, additional classification disposal units can be added; for universities, efforts can be made to enhance the collection of recyclable materials. Reduce management costs: Through intelligent operation and maintenance, the workload of manual sorting and inspection can be reduced, making it suitable for the requirements of efficient management.
Urban Construction
As an infrastructure support: The underground waste system is planned in conjunction with the underground pipe galleries and rainwater pipelines, achieving "utilization of underground space"; through classification and closed-loop operation, the amount of landfill is reduced, the resource recovery rate is improved, and it meets the requirements of low-carbon city construction.
Product Parameters
Model number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Features
Material and appearance:
Garbage sorting bins are usually made of high-quality engineering materials, such as high-quality electrolytic galvanized sheet with a thickness of ≥ 1.0mm, which is characterized by durability, lightweight and flexibility.On the surface treatment, outdoor plastic powder high-temperature electrostatic spraying is used, and the surface coating is sturdy, not easy to peel off, and has strong UV resistance and weather resistance.
Functionality:
The garbage sorting bin is designed with clear classification labels, such as recyclable materials, hazardous waste, and other waste, to facilitate users to dispose of them correctly.
Applicability and environmental friendliness:
Garbage sorting bins are suitable for collecting waste or handling raw materials in various public places, greatly improving work efficiency.
Color and identification:
The box identification adopts UV resistant, wear-resistant, and sandwich printed garbage signs, with diverse colors and a brightness that can maintain for more than 3 years.
Product performance
collection mode
The new landscape buried garbage compactor station improves environmental hygiene while enhancing the overall image of the city, which is different from the garbage sorting service station or garbage kiosk on the ground, i.e., it adopts the environmentally friendly underground sorting collection mode.
Optional pitches
According to the customer's demand, it can choose various modes of feeding port, such as garbage classification feeding port, barrel turning device, large garbage opening device, etc., which is convenient for garbage collection vehicles and cleaning personnel to dump garbage; garbage enters into the feeding port and falls into the underground garbage collection station directly, and the fully closed structure reduces odor leakage, mosquitoes and flies, and the pollution of the environment.
deodorization system
After the opening of the feeding port, dumping of garbage and the opening of the upper cover of the lifting platform, deodorizing liquid is sprayed underneath the upper cover of the platform to remove the odor generated during the transfer of garbage, which greatly improves the situation both visually and perceptually.
noise mitigation
The landscape buried trash compactor station is also equipped with a rubber protective mat on the feeding port to minimize the noise caused by collision.
Product Operate Guide
When the trash bin is full of garbage, activate the hydraulic system.
Lift the platform smoothly until the bottom of the trash can is level with the ground.
Manually reduce the load of the garbage and pull it out. Attach the connecting hook to the garbage truck's hook.
Remove the garbage into the garbage collection vehicle and place the empty cans back at their original bin locations.
Product Effects
Lifting mode
Landing mode
Our Services
Pre-sales Service
Processing inquiry in time.
Work as your technical assistant.
Feasibility analysis.
Technical drawings and customization.
Factory visit for reference.
After-sales Service
Delivery in time.
Instructions on installation and use.
Track the conditions of equipment regularly.
Spare parts in stock.
You will receive our full range of personalized customized services, including to site design, packaging, equipment matching, customized procedures, etc,
When you purchase equipment from RNKJ. May wish you to start from a small transaction, experience the products and services from us.
