Underground Classified Waste Disposal System is an environmental sanitation management system that integrates the processes of waste classification, collection, temporary storage, and even preliminary treatment underground. Through the coordination between the ground discharge ports and the underground facilities, this system enables the classification and efficient transportation of waste, addressing issues such as space occupation, odor diffusion, and visual pollution caused by traditional ground-based garbage collection. It is a modern waste management solution for underground spaces.
Product AdvantageVisual purification: The ground only retains simple classification discharge ports, completely eliminating the messy appearance of traditional garbage stations, making the urban interface cleaner and more orderly.
Odor isolation: Fully enclosed underground storage space and automatic deodorization system, solving the problem of garbage odor spreading.
Space release: The garbage storage process is transferred to the underground, releasing valuable land resources on the ground, which can be used for greening, parking or public facility construction.
Landscape protection: In areas such as scenic spots and commercial zones, avoid the damage caused by garbage facilities to the natural and commercial landscapes, thereby improving the overall environment of that area.
Health improvement: Sensor-based discharge ports prevent contact with dirty facilities. Underground operations eliminate the breeding grounds for mosquitoes and flies, enhancing environmental comfort.
Convenience and friendliness: Clear classification guidance and intelligent operation reduce the learning cost and operational difficulty for residents in sorting garbage.
According to the customer's demand, it can choose various modes of feeding port, such as garbage classification feeding port, barrel turning device, large garbage opening device, etc., which is convenient for garbage collection vehicles and cleaning personnel to dump garbage.
Core ComponentsGround Disposal Unit: A labeled disposal opening, some equipped with sensor lid opening and overfill warning functions, facilitating residents to dispose of different types of garbage.
Underground Storage and Compression Module: Enclosed storage bins classified by garbage type, with built-in compression devices that can reduce the volume of garbage to one-third, enhancing storage efficiency.
Transfer Elevator System: Hydraulic or mechanical lifting devices, capable of quickly lifting full underground garbage containers to the ground and aligning with the garbage transfer vehicle.
Intelligent Monitoring System: Real-time monitoring of the filling status, temperature, and odor concentration of each classified bin, supporting remote scheduling and maintenance.
Working Principle
Classification disposal: Residents place different types of garbage into corresponding underground bins through the ground classification disposal ports.
Temporary storage and compression: The garbage is temporarily stored in the underground sealed bins, and the compression device automatically starts to reduce the volume.
Intelligent warning: When the storage bin is approaching full capacity, the system sends a warning message to the management platform.
Efficient transfer: Based on the warning information, the sanitation workers lift the underground bins to the ground and directly connect them with the transfer vehicles to complete the garbage transfer.
Clean and reset: After the empty bin is reset, the system automatically completes the cleaning and deodorization operations inside the bin.
Applicable scenarios Residential scenarios: Residential communities, old residential areas, high-rise apartments
Public scenarios: Schools, hospitals, government offices, office parks
Commercial and cultural tourism: Shopping malls, pedestrian streets, scenic parks, hotels
Transportation hubs: Airports, railway stations, subway stations
Large venues: Sports venues, convention centers
Underground spaces: Underground commercial streets, integrated pipe galleries
Township scenarios: Towns and rural areas with centralized residential areas
Product Parameters
Model number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
FeatureBeautiful environment: No exposed trash cans on the ground, which does not damage the landscape. Suitable for residential areas, scenic spots, business districts, etc.
Hygienic and clean: Fully enclosed and sealed storage, reducing odors, mosquitoes, and sewage leakage. Suitable for places with high hygiene requirements such as hospitals and schools.
Space-saving: Occupies a small area of the ground, releasing the ground space for greening and parking, suitable for old residential areas and high-density areas.
Efficient collection: Centralized collection and underground transportation, reducing the obstruction of garbage trucks and disturbance to residents. Suitable for transportation hubs and large venues.
Standardized sorting: Fixed sorting outlets, reducing the rate of mixed sorting, and improving the effect of garbage classification.
Safe and environmentally friendly: Avoiding garbage scattering and the risk of incineration, reducing secondary pollution.
Product Effects

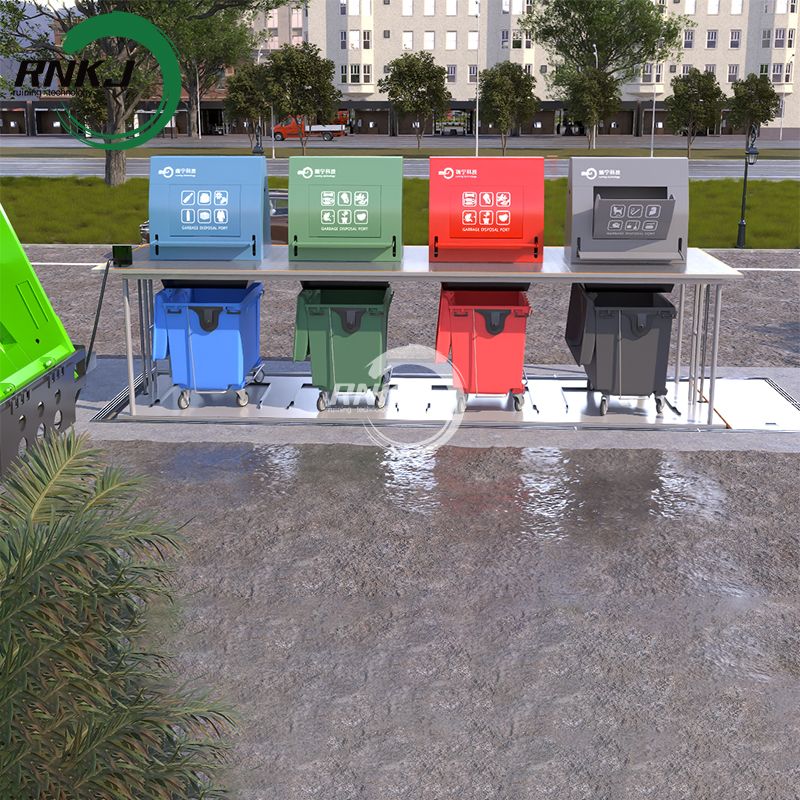

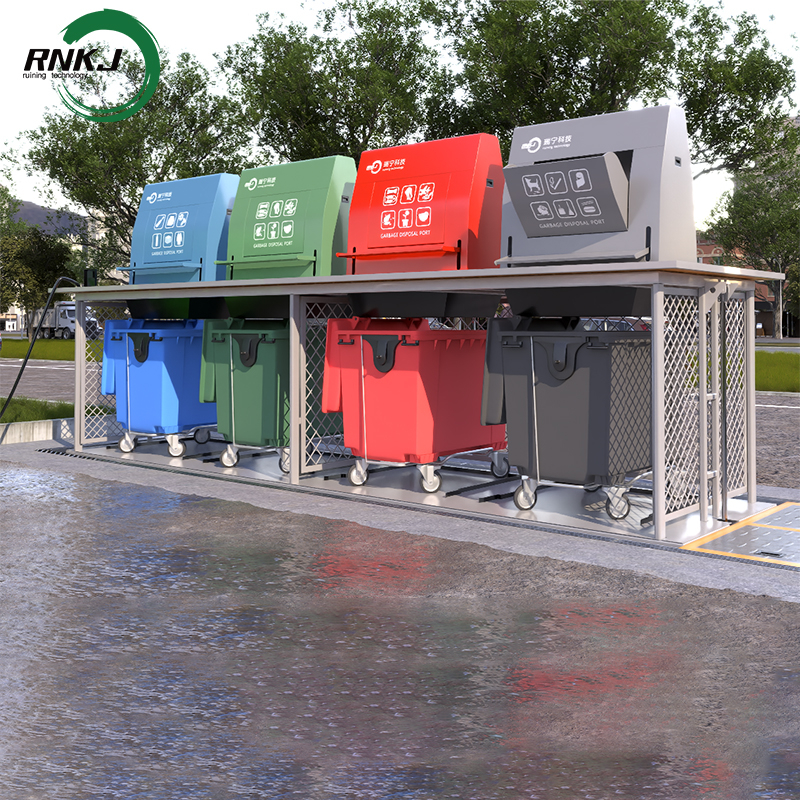

Lifting mode
Landing mode
Our Underground Classified Waste Disposal System is a fully enclosed, intelligent underground waste solution built for global export. Integrating classified collection, sealed storage, automatic compression and odor control, it eliminates surface clutter, blocks odor leakage and secondary pollution, and upgrades urban environmental appearance.
With modular design, intelligent monitoring and compliance with international waste management standards, the system features high efficiency, low energy consumption and easy maintenance. It is widely applicable to municipal streets, residential communities, commercial zones, industrial parks and tourist attractions worldwide.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
