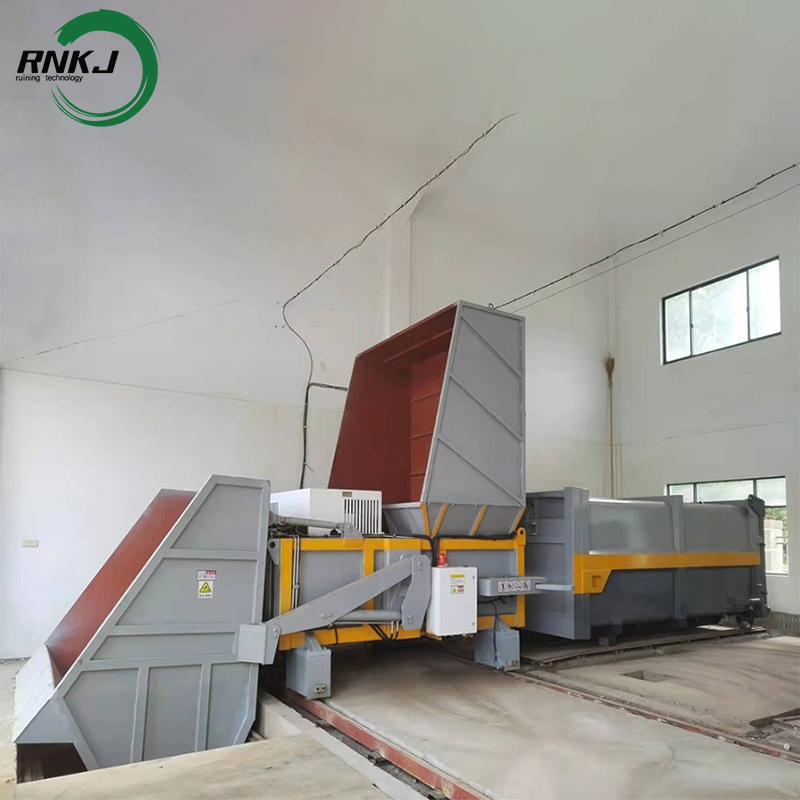

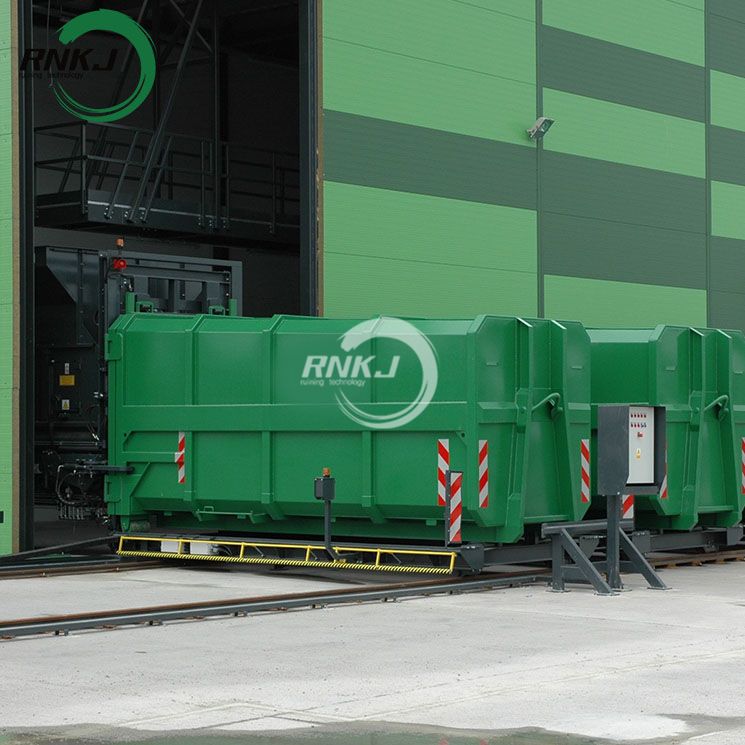

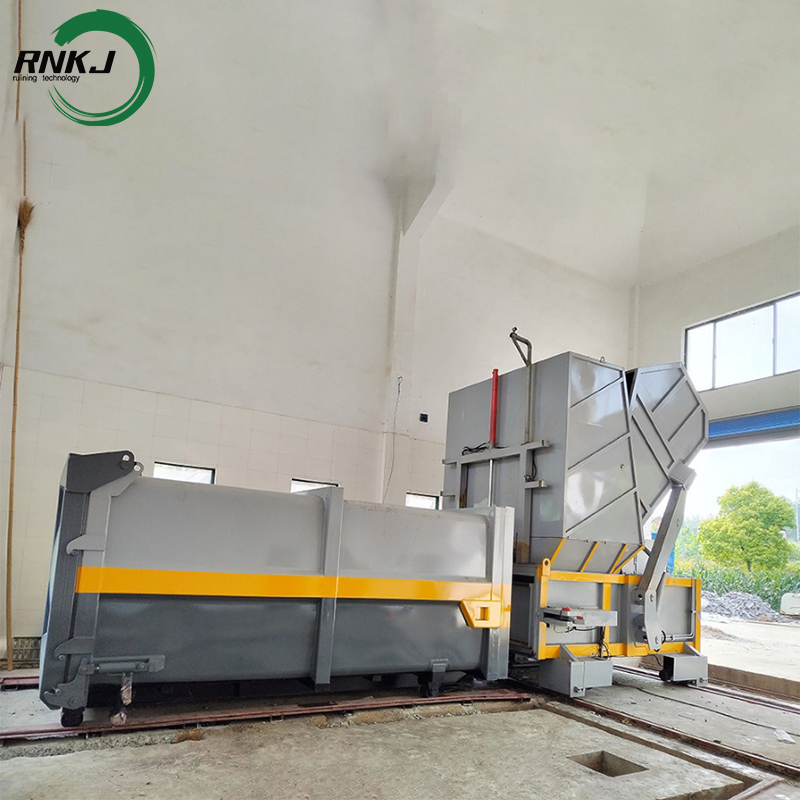

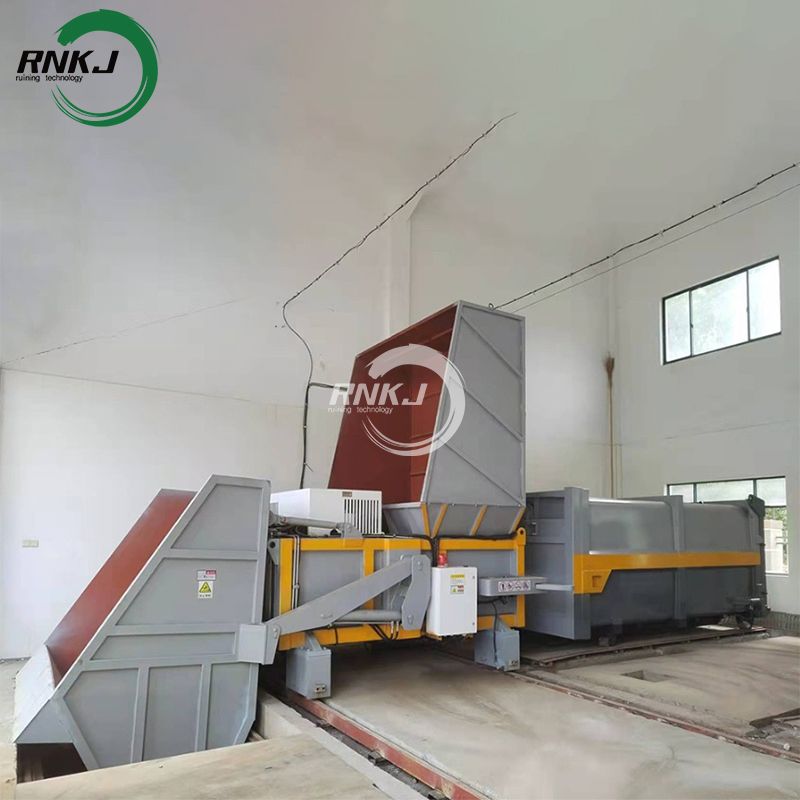

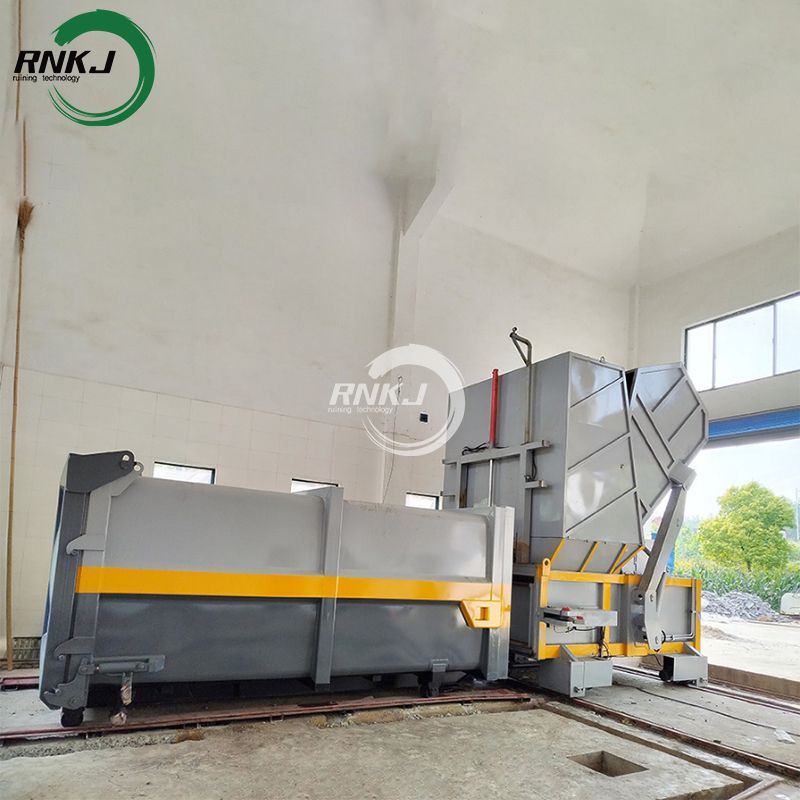

Split Waste Compression Station is the mainstream equipment for domestic waste transfer stations. Its core feature is the separation design of the compression machine and the garbage storage box, supporting configurations of "one machine with two boxes" or "one machine with multiple boxes", enabling flexible and parallel operations of compression and transfer. It is particularly suitable for medium and large-sized transfer stations and scenarios that require frequent transfers.
Product Type
Product Advantage
Continuous operation capability: With the configuration of one machine and multiple boxes, the equipment utilization rate is increased by 30% - 50%, avoiding the idle waiting of the main unit for transportation vehicles.
High transfer efficiency: The daily processing capacity at each station reaches 100 - 400 tons. The boxes are loaded fully and then leave immediately, compressing the main unit to immediately start the next box, reducing waiting time.
Maintenance is convenient: The main unit is fixed, and the boxes can be repaired or replaced separately, reducing the risk of downtime; the hydraulic system is modularized, and fault detection is fast.
High investment and operation cost performance: The initial investment is slightly higher, but the cost of box replacement is low in the later stage, and the main unit has a service life of more than 10 years.
Environmental performance is excellent: Fully enclosed compression, good control effect on odors and sewage, reducing secondary pollution.
Wide adaptability: Suitable for various types of waste, such as household garbage, kitchen waste, and mixed waste, and supports horizontal pre-pressure or direct pressure variants.
Core StructureCompressor main unit (fixed): Compressor, hydraulic system, electronic control system, flipping device, providing compression power, completing pre-compression and main compression of garbage, and controlling the entire operation process.
Storage box (replaceable): Box body, rear door seal, lifting interface, leachate collection tank, storing compressed garbage, ensuring airtight and impermeable sealing, compatible with boom truck transportation.
Auxiliary system: Box-holding device, push-pull box device, door-lifting device, shifting device, deodorization system, achieving precise connection, locking and separation of the box and the main unit, ensuring environmental protection requirements.
Working PrincipleGarbage loading: The collection vehicle or manual operation pours the garbage into the main loading port. It supports various loading methods such as front dump, side dump, rear dump, and platform loading.
Pre-compression and main compression: The garbage first enters the pre-compression chamber to be bagged and dehydrated. The hydraulic pusher moves horizontally to push the garbage into the container. It repeats the compression process, removing air and filtrate, until the container is full.
Container separation and transfer: After compression, the container holding device releases, and the push-pull container device moves the full container out. The hook-arm vehicle lifts and transports it; at the same time, the shifting device pushes the empty container into the main unit, and the lifting door device opens to continue the next round of compression.
Environmental treatment: The entire process is sealed. It integrates a system for collecting filtrate, spraying for deodorization, and negative pressure ventilation, which complies with emission standards and sewage standards.
Product Parameters
Performance Parameters | |
Equipment Model | ZYG-15/17/20 |
Compacted Density (t/㎡) | ≥0.75 |
Motor Power (kW) | 11/15/22 |
Hydraulic System Set Pressure (MPa) | 16~20 |
Case Volume (㎡) | 15/17/20 |
Power Supply (V) | 380v, 3-phase, 50HZ |
Applicable ScenariosLarge-scale waste transfer stations (daily handling capacity of 150 tons or more)
Waste transfer points in towns or county centers (requiring frequent transfers)
Industrial parks and commercial areas (with stable waste generation)
Standardized sites compatible with boom trucks
Split Waste Compression Station, with its features of efficient continuous operation, convenient maintenance and excellent environmental performance, has become the mainstream choice for medium and large-sized waste transfer stations. Its innovative design of "fixed mainframe and mobile box" effectively addresses the efficiency bottleneck of traditional waste treatment equipment, reduces operating costs, and is in line with the development direction of modern sanitation undertakings.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
